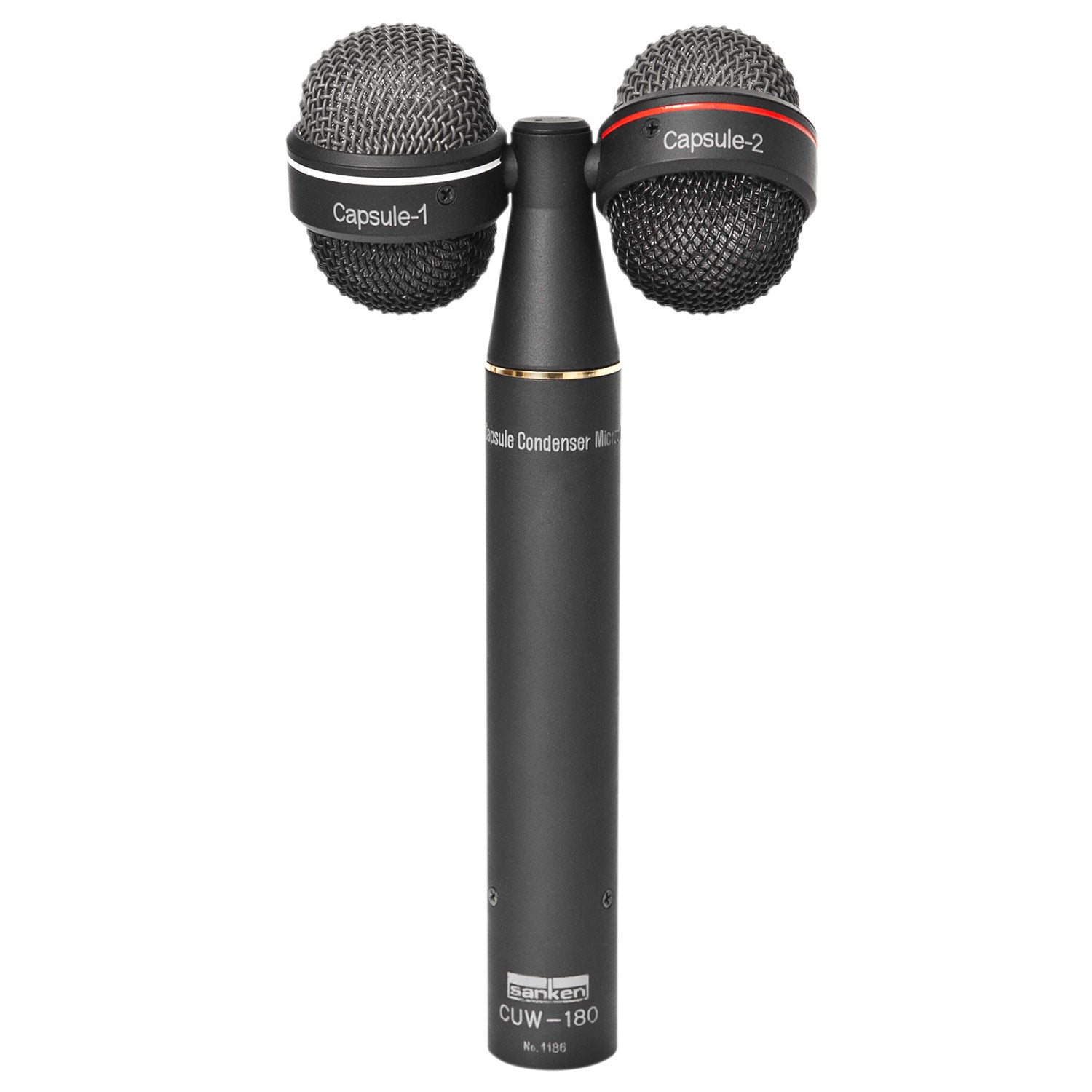

Sanken CUW-180 Adjustable Angle Stereo Condenser Microphone

  • Dale #:

    SANK-CUW180
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The breakthrough CUW-180 is two exceptionally engineered cardioid condenser microphones combined in one compact body. Each of the two 180° capsules is independently adjustable with 15" detents. For stereo recording, such as common X-Y configurations, the precise alignment of both capsules maintai... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The breakthrough CUW-180 is two exceptionally engineered cardioid condenser microphones combined in one compact body. Each of the two 180° capsules is independently adjustable with 15" detents. For stereo recording, such as common X-Y configurations, the precise alignment of both capsules maintains optimum on-axis response and phase coherence. The CUW-180 can also be used in interview situations between face-to-face participants, in a bi-directional figure 8 design, but with full independent control of each signal.

It is important to note that two microphone capsules in one body creates an ideal stereo configuration because the actual physical design takes into account the effect of the microphone body itself, as opposed to two separate microphones which are not physically designed to work adjacent to one another. The advanced physics employed in the operation of the CUW-180 utilizes extensive research conducted with NHK and furthers the Sanken legacy of incorporating new and innovative design concepts.

For stereo recording, such as common X-Y configurations, the position of both capsules maintains optimum on-axis response and phase coherence. For surround applications, two CUW-180 mics can capture 4 channels of Left, Right, Surround Left and Surround Right program simultaneously, with four independently adjustable signals.

Features:

  • Easy adjustment for various X-Y stereo requirement
  • Maintains precise phase coherence
  • Optimum on-axis response
  • Lightweight and compact
  • Two 180° adjustable cardioid condenser microphones in one body

Recommended Applications:

  • Acoustic Guitar
  • Background or Chorus Vocals
  • Orchestra Mains
  • Overheads
  • Percussion
  • Piano
  • Sound Design, Effects and ATMOS
  • Strings
  • Upright Bass

More +

Product Specs

Transducer DC biased condenser

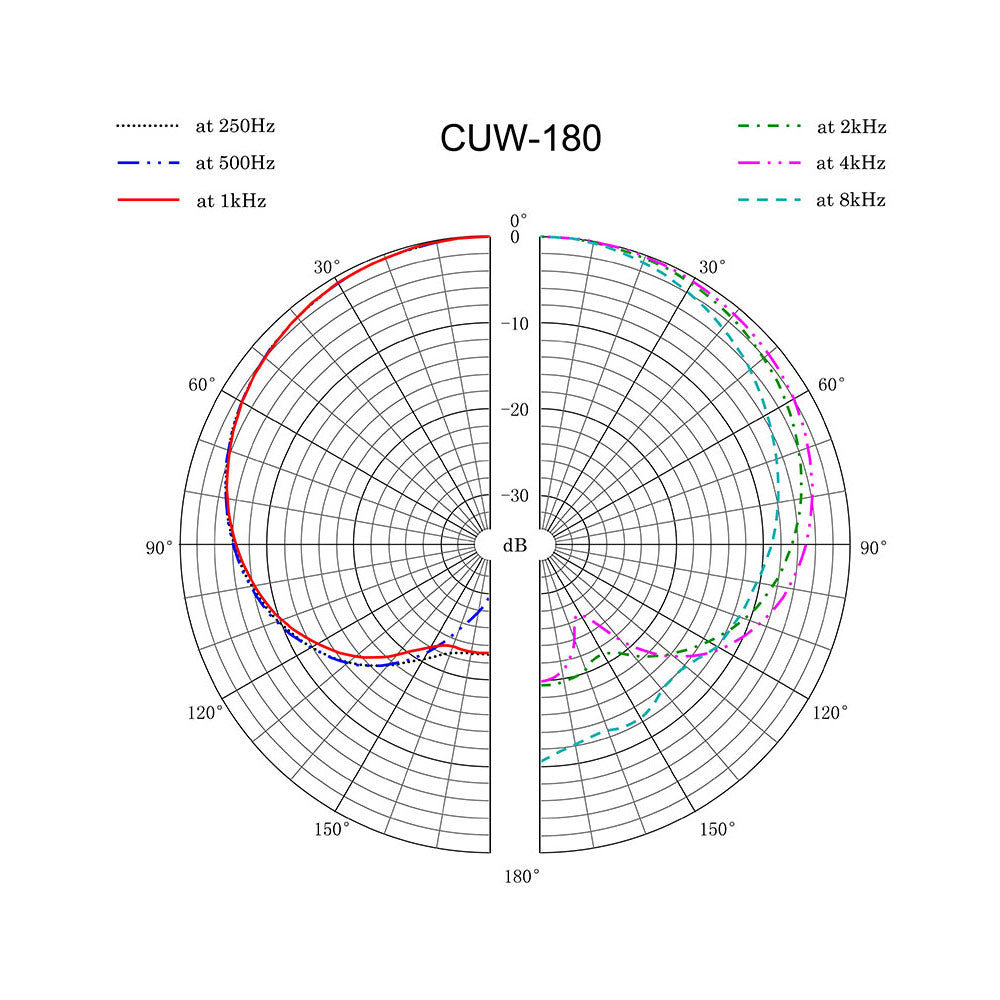

Directivity Cardioid

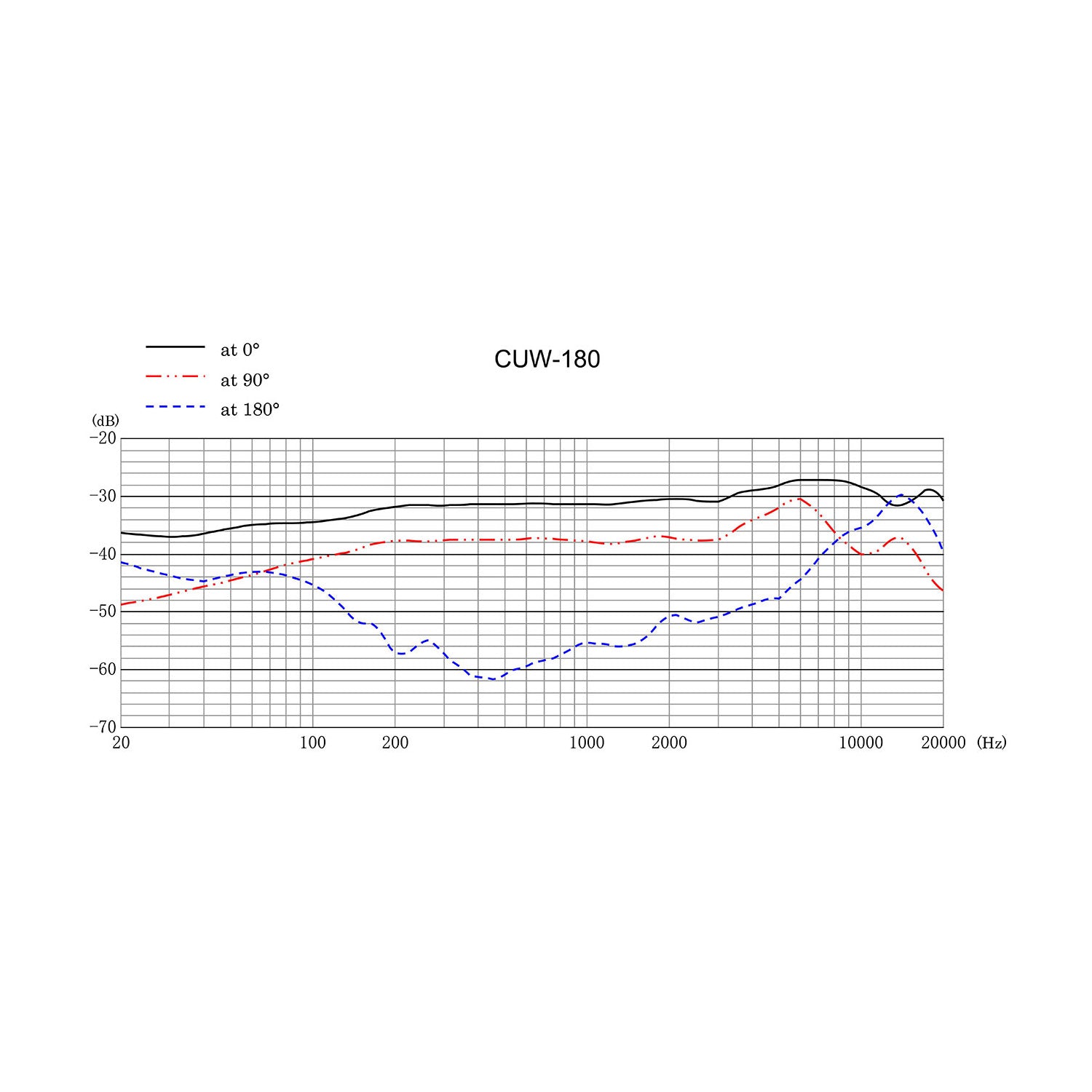

Frequency range 20Hz – 20kHz
Sensitivity -31dB(28.2mV, 0dB=1V/Pa)
Equivalent noise level (IEC) 17dB A
Max SPL(1% THD) 137dB SPL
Output impedance( 1kHz ) 180 ohms
Powering +48V±4V phantom
Current consumption 1.5mA x 2
Weight 224g/ .5lbs
Dimensions 160.6mm x 78.7mm (D)
6.32in x 3.10in (D)
Surface finish Matte black
Connector XLR-5M
1: GND 2: L ch Hot
3: L ch Cold
4: R ch Hot
5: R ch Cold

More +
