Schoeps DECCA TREE SET 2H Decca Tree Recording Kit
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Complete "Decca Tree" set for stereo recording. The CCM 2H, like the CCM 2S, is ideal for natural-sounding pickup of instruments and orchestras in spaces with well balanced reverberance. The choice between the two capsule types is essentially a matter of personal preference. At a given miking distance the CCM 2H might be described as more "balanced and round" sounding while the CCM 2S would give a slight additional brilliance. However, one might also choose the CCM 2H for slightly closer placement or the CCM 2S for slightly more distant placement - and then these two capsule types would have very similar sound quality, with the main difference then being in the balance of direct to reverberant sound which is picked up.

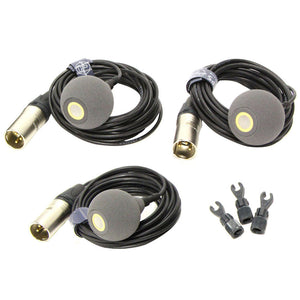

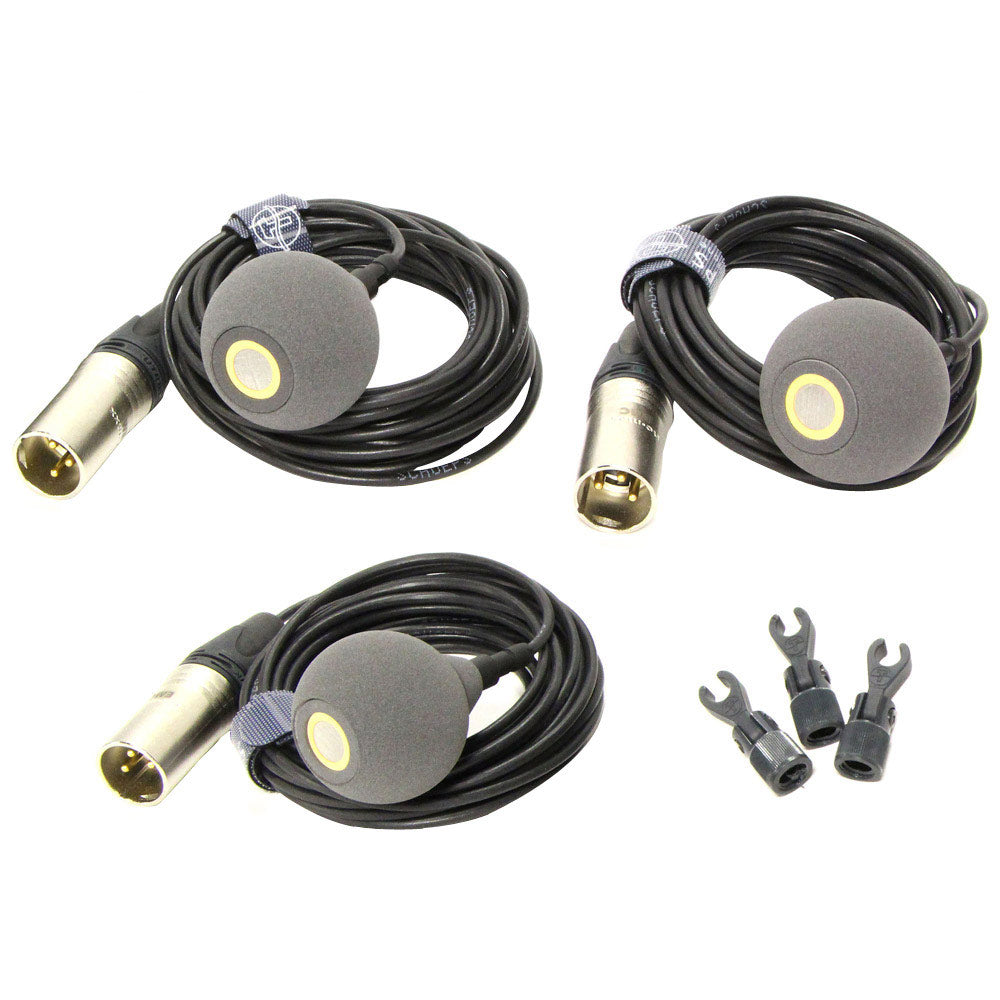

The Decca Tree Set 2H consists of the following items:
- 3x CCM 2H Lg compact microphone
- 2x matching
- 3x KA 40 sphere attachment

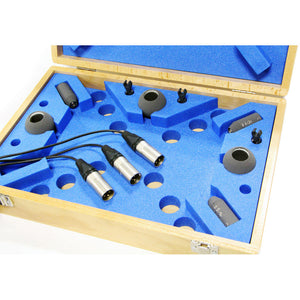

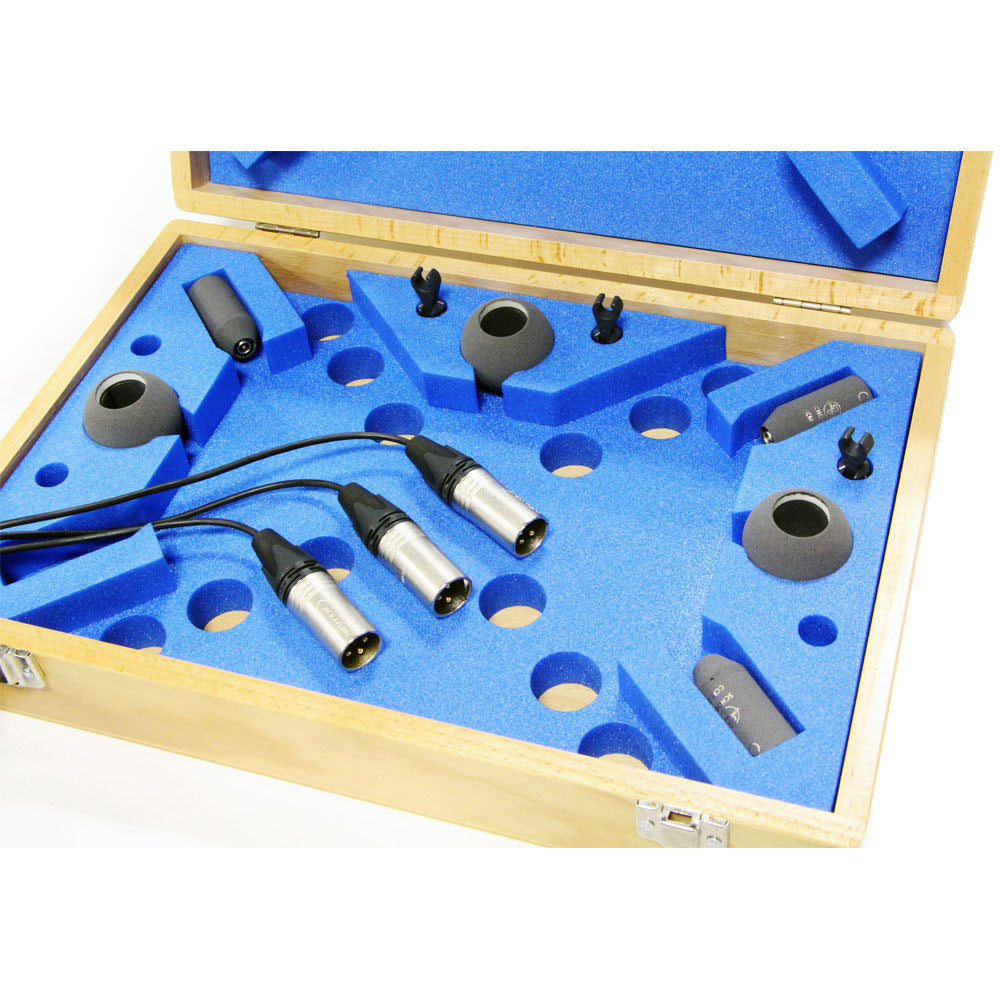

- Wooden box
| Frequency range | 20 Hz - 20 kHz |
| Sensitivity | 15 mV/Pa |
| Equivalent noise level (A-weighted) | 11 dB-A |
| Equivalent noise level (CCIR) | 23 dB |
| Signal-to-noise ratio (A-weighted) | 83 dB-A |
| Maximum sound pressure level at 0.5% THD | 130 dB-SPL |
| Current consumption with 12 V | 8 mA |
| Current consumption with 48 V | 4 mA |
| Impedance | 90 |
| Minimum recommended load impedance | 600 |
| Low-cut frequency | 20 Hz |
| Length (L version) | without connector: 46 Ð 58 mm |
| Length (U version) | 46 Ð 58 mm |
| Diameter | 20 mm |
| Weight (U-version) | 33 g |
| Weight (L-version) | 43 g |
| Surface finish | matte gray |
Complete "Decca Tree" set for stereo recording. The CCM 2H, like the CCM 2S, is ideal for natural-sounding pickup of instruments and orchestras in spaces with well balanced reverberance. The choice between the two capsule types is essentially a matter of personal preference. At a given miking distance the CCM 2H might be described as more "balanced and round" sounding while the CCM 2S would give a slight additional brilliance. However, one might also choose the CCM 2H for slightly closer placement or the CCM 2S for slightly more distant placement - and then these two capsule types would have very similar sound quality, with the main difference then being in the balance of direct to reverberant sound which is picked up.
The Decca Tree Set 2H consists of the following items:
- 3x CCM 2H Lg compact microphone
- 2x matching
- 3x KA 40 sphere attachment
- Wooden box
| Frequency range | 20 Hz - 20 kHz |
| Sensitivity | 15 mV/Pa |
| Equivalent noise level (A-weighted) | 11 dB-A |
| Equivalent noise level (CCIR) | 23 dB |
| Signal-to-noise ratio (A-weighted) | 83 dB-A |
| Maximum sound pressure level at 0.5% THD | 130 dB-SPL |
| Current consumption with 12 V | 8 mA |
| Current consumption with 48 V | 4 mA |
| Impedance | 90 |
| Minimum recommended load impedance | 600 |
| Low-cut frequency | 20 Hz |
| Length (L version) | without connector: 46 Ð 58 mm |
| Length (U version) | 46 Ð 58 mm |
| Diameter | 20 mm |
| Weight (U-version) | 33 g |
| Weight (L-version) | 43 g |
| Surface finish | matte gray |
