Description

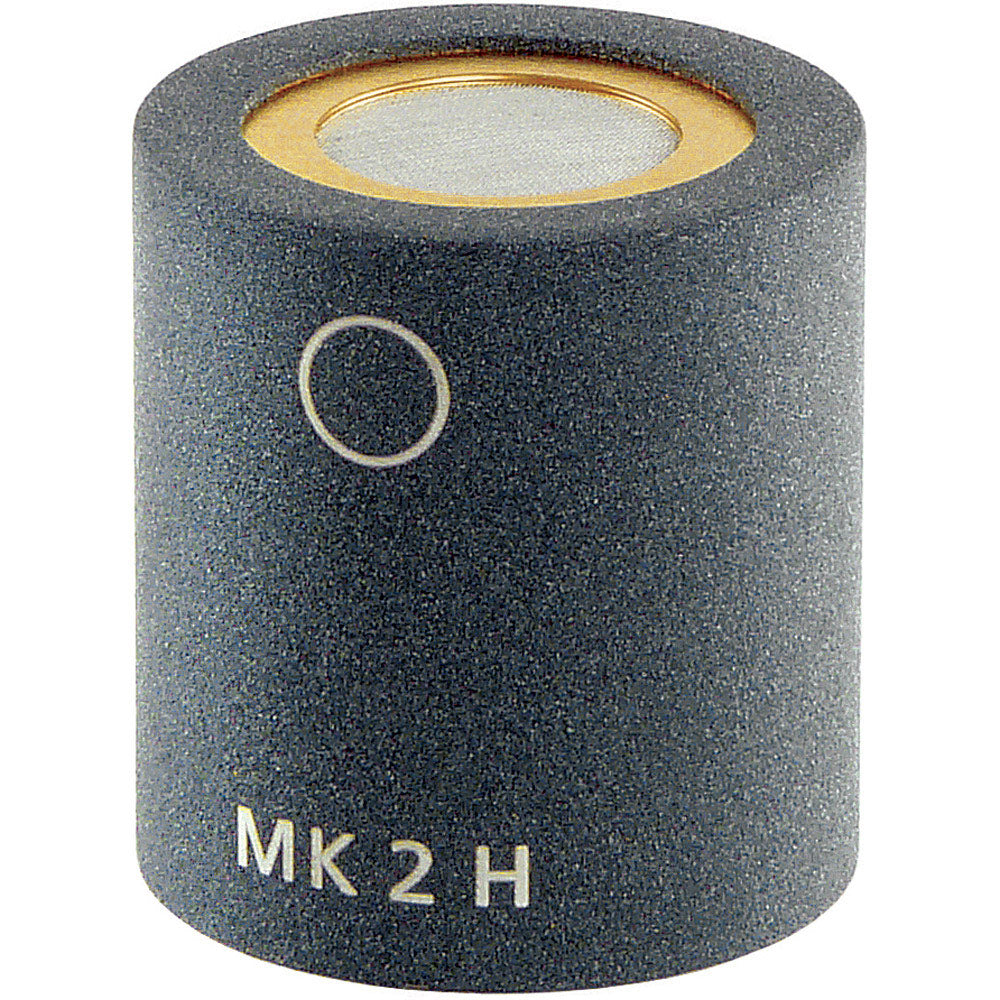

The sound inlet of the MK 2H is narrower than that of Schoeps' other pressure transducers, causing a slight, purely acoustic response elevation above 6 kHz. This reduces the high frequency loss for diffuse sound, thus helping to preserve natural sound quality. If this microphone capsule is used indoors at medium recording distances (i.e. where direct sound energy is similar in amount to reflected sound energy), its overall response will be linear. Its extended frequency response and low noise make it appropriate for the most demanding applications.
Features:
- Omnidirectional pattern
- Mild high-frequency rise to compensate for losses at medium recording distance
- Often chosen for "spaced microphone" stereo pickup and "Decca Tree" arrangements
Frequency range | 20 Hz - 20 kHz |
Sensitivity | 15 mV/Pa |
Equivalent noise level (A-weighted) | 11 dB-A |
Equivalent noise level (CCIR) | 23 dB |
Signal-to-noise ratio (A-weighted) | 83 dB-A |
Maximum sound pressure level at 0.5% THD | 130 dB-SPL |
Length | 22 mm |
Diameter | 20 mm |
Weight | 17 g |
The sound inlet of the MK 2H is narrower than that of Schoeps' other pressure transducers, causing a slight, purely acoustic response elevation above 6 kHz. This reduces the high frequency loss for diffuse sound, thus helping to preserve natural sound quality. If this microphone capsule is used indoors at medium recording distances (i.e. where direct sound energy is similar in amount to reflected sound energy), its overall response will be linear. Its extended frequency response and low noise make it appropriate for the most demanding applications.
Features:
- Omnidirectional pattern
- Mild high-frequency rise to compensate for losses at medium recording distance
- Often chosen for "spaced microphone" stereo pickup and "Decca Tree" arrangements
Frequency range | 20 Hz - 20 kHz |
Sensitivity | 15 mV/Pa |
Equivalent noise level (A-weighted) | 11 dB-A |
Equivalent noise level (CCIR) | 23 dB |
Signal-to-noise ratio (A-weighted) | 83 dB-A |
Maximum sound pressure level at 0.5% THD | 130 dB-SPL |
Length | 22 mm |
Diameter | 20 mm |
Weight | 17 g |
