Schoeps V4 SGV SET B Condenser Microphone Set (with SGV Clamp/Blue)


Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)
  • The V4 U is the studio vocal microphone by SCHOEPS. It unites the outstanding technical characteristics typical of SCHOEPS with a timeless, classic design. The €œlook€ of the V4 U is based on the SCHOEPS CM 51/3 from 1951. But the V4 U is a thoroughly modern studio microphone. Its capsule, circuitry and mechanical construction are the result of extensive new development.

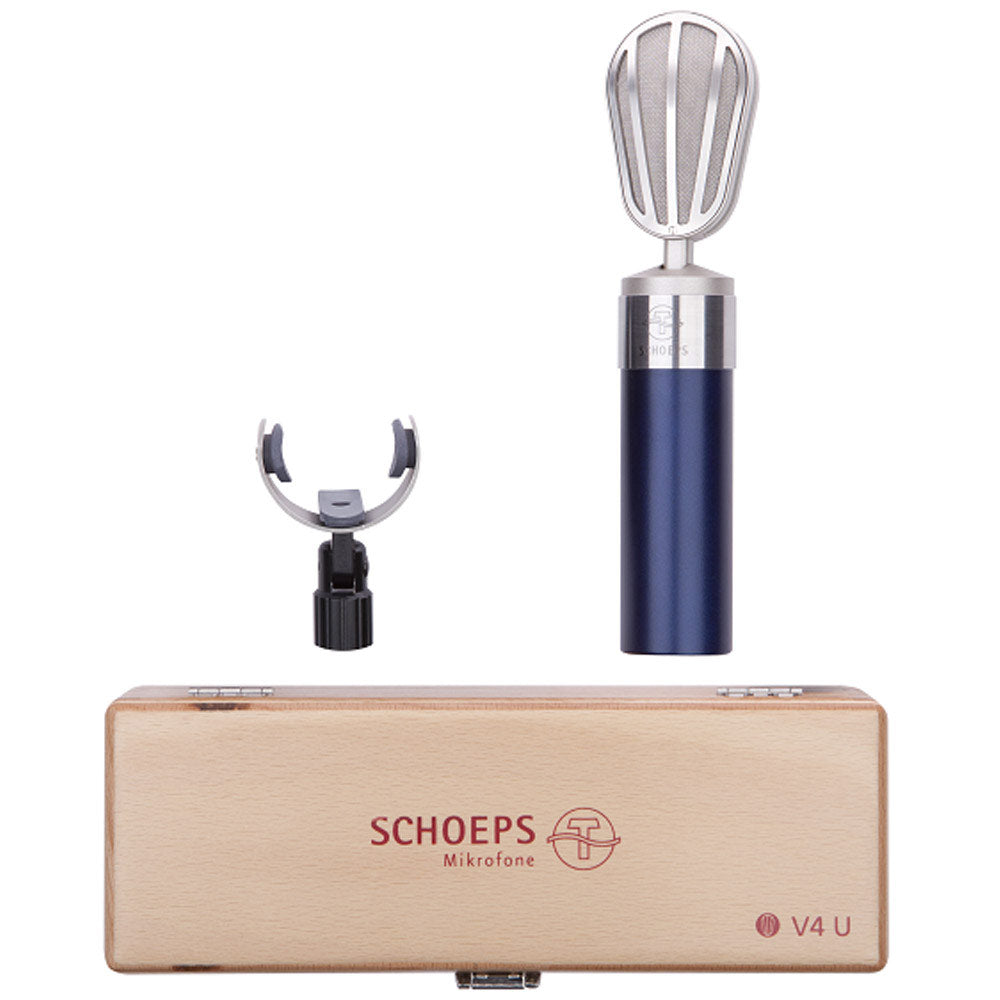

    The €œV4 SGV Set€ contains the microphone, a wooden case and the SGV stand clamp. The base of the SGV has a 5/8"-27 NS internal thread. A threaded adapter is supplied for 3/8" and 1/2" mounting. The angle can be varied continuously in the vertical plane.


    • Studio Vocal Microphone
    • New small-diaphragm capsule architecture, with bevelled collar for controlling the polar response.
    • Warm, clear sonic character with smoothly rolled-off diffuse-field response.
    • Capsule head with adjustable tilt angle.
    • Optimal on-axis frequency response featuring a mild high-frequency lift.
    • Very smooth polar response; carefully-controlled narrowing of the pattern at high frequencies.
    • Diffuse-field response parallel to the 0 ° response, with a gentle roll-off at high frequencies.
    • Newly designed electronics offer a very high maximum sound pressure level.

    The Capsule

    • A 33-mm beveled collar causes the capsule's directivity to increase steadily and smoothly at high frequencies, as in a largediaphragm microphone.
    • Meanwhile, the superior acoustic qualities of a small-diaphragm capsule like the extraordinarily smooth frequency and polar response are maintained.
    • The capsule is elastically suspended internally to reduce solid-borne sound such as handling noise.

    The Electronics

    • Newly-developed bridge-type balanced output circuit.
    • Maximum sound pressure level of 144 dB SPL, corresponding to an output level of 4.8 V.
    • Output stage transformerless and free of coupling capacitors.
    • The resulting output impedance is low and constant with frequency, while the symmetry is very high.
    • Symmetrical, balanced output, the entire audio circuit is symmetrical from the output of the FET onward.
    • High immunity to interference, with gapless shielding and a modern RFI filter at the output; very good electromagnetic compatibility.
  • Directional pattern Cardioid
    Frequency range 50 Hz - 22 kHz
    Sensitivity 16 mV/Pa
    Equivalent noise level (A-weighted) 15 dB-A
    Equivalent noise level (CCIR) 25 dB
    Signal-to-noise ratio (A-weighted) 79 dB-A
    Maximum sound pressure level at 0.5% THD 144 dB-SPL
    Maximum output voltage 4.8 V
    Low-cut frequency 40 Hz
    Powering voltage 48 V
    Current consumption 3.3 mA
    Length 194 mm
    Weight 302 g
    Diameter (cylinder) 34 mm
    Width of the capsule head 45 mm
    Head swivel degree span +/- 20 °
