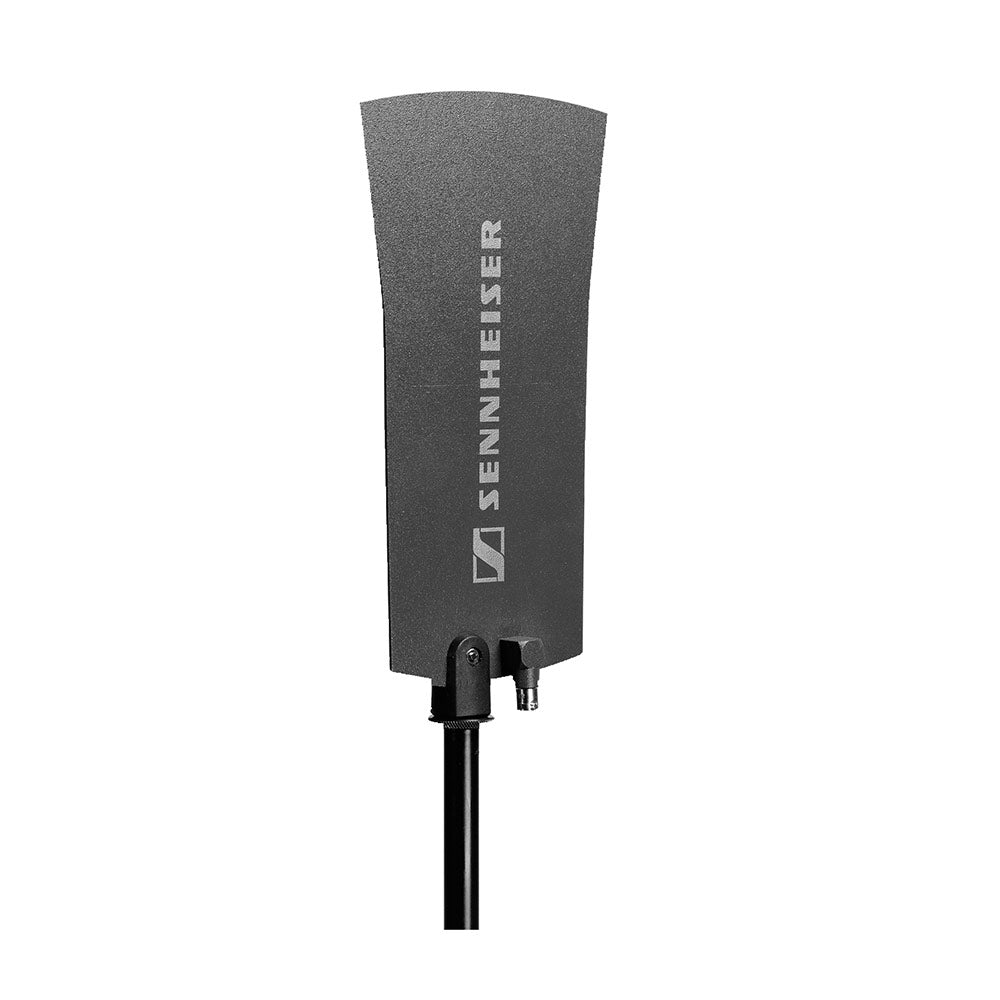

Sennheiser A1031-U Omnidirectional UHF Antenna for Evolution Series
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Passive omni-directional antenna. Transmitting and receiving antenna for frequencies between 450 and 960 MHz. Swivel joint for attachment to GZP 10 mounting plate. The swivel joint permits the exact positioning of the unit for optimum coverage.
Features
- Suitable for use with a UHF receiver in closed rooms
- Suitable for use with EM 3031-U, EM 3032-U, EM 3532-U, EM 1046-U, EM 1031-U, and all stationary evolution wireless receivers
- Can also be used as a transmitting device. Suitable transmitters: SR 3054-U. SR 3056-U, SR 1000, SER 20, and all other UHF transmitters with max. 10 W RF output power.
| Frequency range | 430Ð960 MHz |
| Apex angle | 360¡ |
| Deviation from circular radiation | < 3 dB |
| Gain | 0 dB |
| Connector | BNC socket, 50ohms |
| Max. input power | 10 W |
| DC input resistance | >= 1 Mohms |
| Temperature range | -20¡Ð +80¡ C |
| Max. humidity | 95% |
| Dimensions in inches | 10.63 x 5.12 x 1.38 |
| Weight (with booster) | approx. 5.29 oz |
| Mounting connection | 5/8 thread, thread adapter to 3/8 |
Passive omni-directional antenna. Transmitting and receiving antenna for frequencies between 450 and 960 MHz. Swivel joint for attachment to GZP 10 mounting plate. The swivel joint permits the exact positioning of the unit for optimum coverage.
Features
- Suitable for use with a UHF receiver in closed rooms
- Suitable for use with EM 3031-U, EM 3032-U, EM 3532-U, EM 1046-U, EM 1031-U, and all stationary evolution wireless receivers
- Can also be used as a transmitting device. Suitable transmitters: SR 3054-U. SR 3056-U, SR 1000, SER 20, and all other UHF transmitters with max. 10 W RF output power.
| Frequency range | 430Ð960 MHz |
| Apex angle | 360¡ |
| Deviation from circular radiation | < 3 dB |
| Gain | 0 dB |
| Connector | BNC socket, 50ohms |
| Max. input power | 10 W |
| DC input resistance | >= 1 Mohms |
| Temperature range | -20¡Ð +80¡ C |
| Max. humidity | 95% |
| Dimensions in inches | 10.63 x 5.12 x 1.38 |
| Weight (with booster) | approx. 5.29 oz |
| Mounting connection | 5/8 thread, thread adapter to 3/8 |
