Sennheiser AB 4 Inline Antenna Booster Module (GW4 Band / 558-626 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

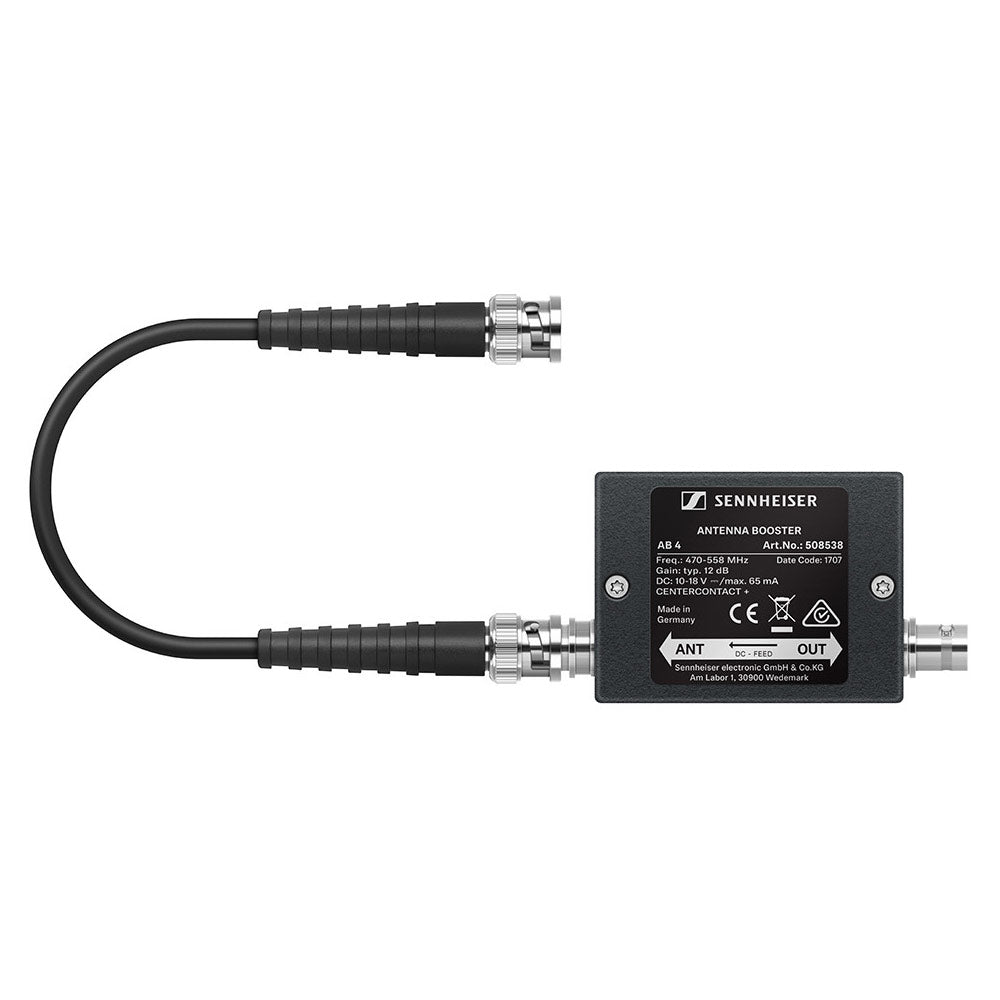

The AB 4 is a filtered, inline antenna booster module with BNC connectors, designed to offer typ. +12dB of boost to compensate for signal losses created by long antenna cable runs.
The AB 4 is fully compatible with all legacy evolution wireless systems. Additionally, the AB 4's filters have been expanded to support the bandwiths up to 88 Mhz.
Features:
- Boosts filtered signal by typ. 12dB
- No power supply necessary
- Compact full metal housing
What's In The Box:
- Sennheiser AB 4 antenna booster
- BNC cable
| Frequency range | AB 4-GW: 558-626 MHz AB4-AW+: 470-558 MHz |
| Gain | approx. 12 dB |
| Power supply | via antenna cable from ASA 214 or EM 2050 |
| Connector | BNC |
| Dimensions | 12.5 x 8.2 x 2.6 cm |
| Weight | 184 g |
The AB 4 is a filtered, inline antenna booster module with BNC connectors, designed to offer typ. +12dB of boost to compensate for signal losses created by long antenna cable runs.
The AB 4 is fully compatible with all legacy evolution wireless systems. Additionally, the AB 4's filters have been expanded to support the bandwiths up to 88 Mhz.
Features:
- Boosts filtered signal by typ. 12dB
- No power supply necessary
- Compact full metal housing
What's In The Box:
- Sennheiser AB 4 antenna booster
- BNC cable
| Frequency range | AB 4-GW: 558-626 MHz AB4-AW+: 470-558 MHz |
| Gain | approx. 12 dB |
| Power supply | via antenna cable from ASA 214 or EM 2050 |
| Connector | BNC |
| Dimensions | 12.5 x 8.2 x 2.6 cm |
| Weight | 184 g |
