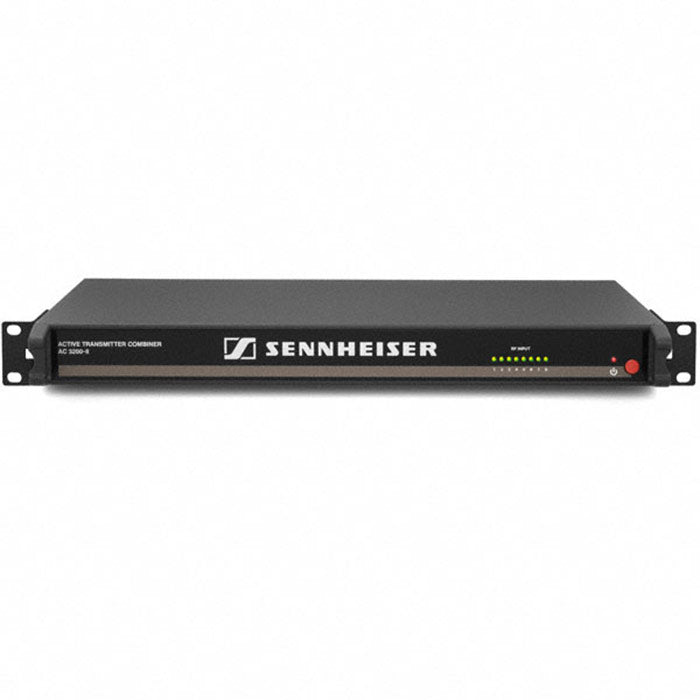

Sennheiser AC 3200-II Active 8-Channel Antenna Combiner


  • Dale #:

    SENN-AC3200II
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The AC 3200 is an active, high-power 8:1 antenna combiner for large multi-channel wireless monitoring systems. the AC3200-II combines up to eight channels for transmission via one antenna, with a broadband design covering 500 - 870 MHz. It significantly reduces intermodulation of wireless monitor... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The AC 3200 is an active, high-power 8:1 antenna combiner for large multi-channel wireless monitoring systems. the AC3200-II combines up to eight channels for transmission via one antenna, with a broadband design covering 500 - 870 MHz. It significantly reduces intermodulation of wireless monitoring transmitters while keeping backstage clutter to a minimum. Long distances can be covered reliably as the AC 3200 accepts up to 250 mW of input power.

Features:

  • Active 8-channel 0 dB transmitter combiner with highly constant RF output power over the entire frequency range
  • Significant improvement of RF performance for multi-channel systems
  • Broadband RF design to cover the UHF frequency range from 500-870 MHz
  • Maximum input power of 250 mW
  • LEDs on the front show whether a signal is present at the RF input
  • Compatible with SR 2050XP IEM, SR 2000XP IEM, SR 300 IEM G3, and legacy EW and 3000 Series monitor transmitters

What's In The Box:

  • 1 AC 3200-II active transmitter combiner
  • 1 NT12-125D in-line power supply
  • 3 power cables (US/EU/UK)
  • 4 self-adhesive device feet
  • 1 instruction manual

More +

Product Specs

Impedance 50 ohms
Dimensions 436 x 215 x 44 mm
Weight approx. 4 kg
Attenuation 0 dB (+/- 1dB)
Power consumption max. 90 W
Operating temperature -10 °C to +45 °C
RF frequency range 500 – 870 MHz
Power supply 12 V DC
Antenna connector BNC
Current consumption max. 7.5 A
