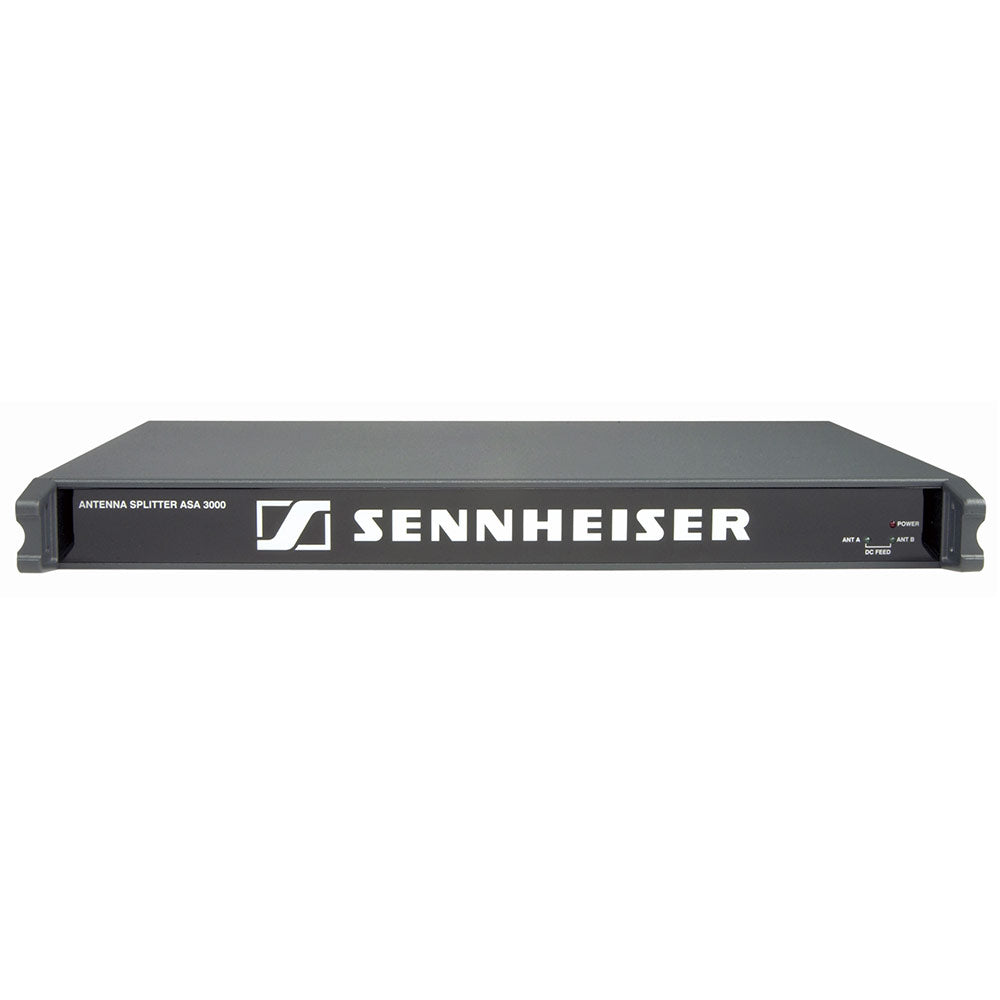

Sennheiser ASA3000 Active Wideband 16 Channel Rackmount Antenna Splitter
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
With the 2 x 1:8 active antenna splitter, up to eight receivers (EM 3031) or twin receivers (EM 3032, EM 3532) can be operated with only one pair of diversity antennas. Each diversity section is fitted with a wideband input module which can be exchanged for a selective input module. Due to the built-in antenna boosters, the signals are routed without loss the the connected receivers. The active antenna splitter allows you to make receiver systems with up to 16 channels.
Features
- Multi-channel RF installations (fixed or mobile)
- Permanent installations in small conference centres and similar venues
The 2 x 1:8 active antenna splitter must only be set up and connected by an electrical engineering expert. Never open electronic units! This must only be done by authorized personnel and is all the more important for units connected to AC outlets. If units are opened by customers in breach of this instruction, the warranty becomes null and void! Make sure that the air vents of the unit are not covered or blocked. Keep the unit away from central heating radiators and electric heaters.
| Antenna splitter | 2 x 1:8, active |
| Frequency range | 470Ð870 MHz |
| Distribution attenuation | +3/-1 dB |
| Nominal impedance of the inputs/outputs | 50 ohms |
| Connections inputs A/B | BNC sockets |
| Connections outputs A1-A8/B1-B8 | BNC sokkets |
| Booster supply at the inputs A and B | 12 V, 200 mA max. each, short circuit-proof |
| Supply voltage range | nom. 100Ð240 V AC, 50Ð60 Hz |
| Power consumption | max. 15 W |
| Weight | approx. 3 kg |
| Dimensions | 19, 1 U |
| Temperature range | -10 to +55 ¡C |
| Variable two-circuit bandpass filter Frequency range | 470Ð870 MHz |
| Insertion loss | < 1.5 dB |
| Bandwidth -1 dB | >= 40 MHz |
| Bandwidth -3 dB | <= 60 MHz |
| Bandwidth -10 dB | <= 100 MHz |
| Far-off selection | >= 50 dB |
| DC feed | max. 0.5 A, 20 V |
| Input | BNC socket, 50 ohms |
| Output | IEC connector |
With the 2 x 1:8 active antenna splitter, up to eight receivers (EM 3031) or twin receivers (EM 3032, EM 3532) can be operated with only one pair of diversity antennas. Each diversity section is fitted with a wideband input module which can be exchanged for a selective input module. Due to the built-in antenna boosters, the signals are routed without loss the the connected receivers. The active antenna splitter allows you to make receiver systems with up to 16 channels.
