Sennheiser AWM UHF - Active Directional Antenna for EW-D or EW-DX (823-1075 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

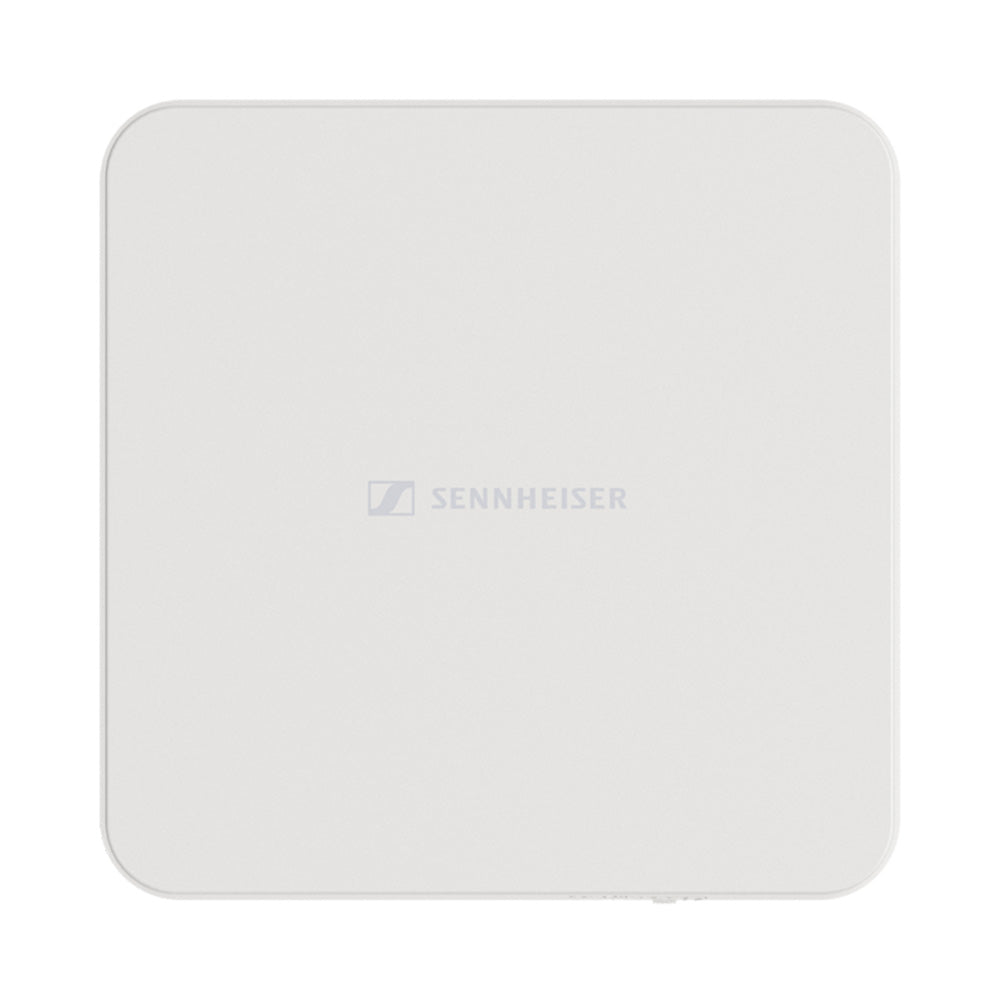

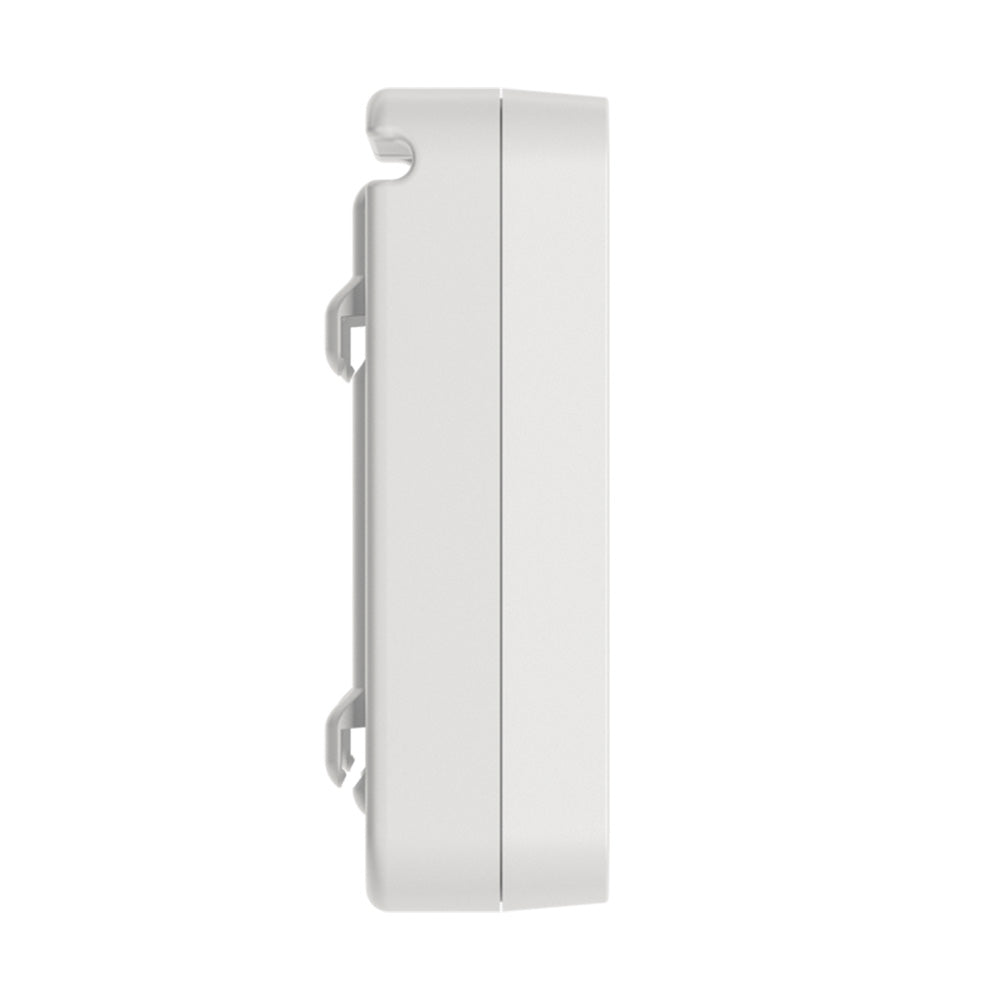

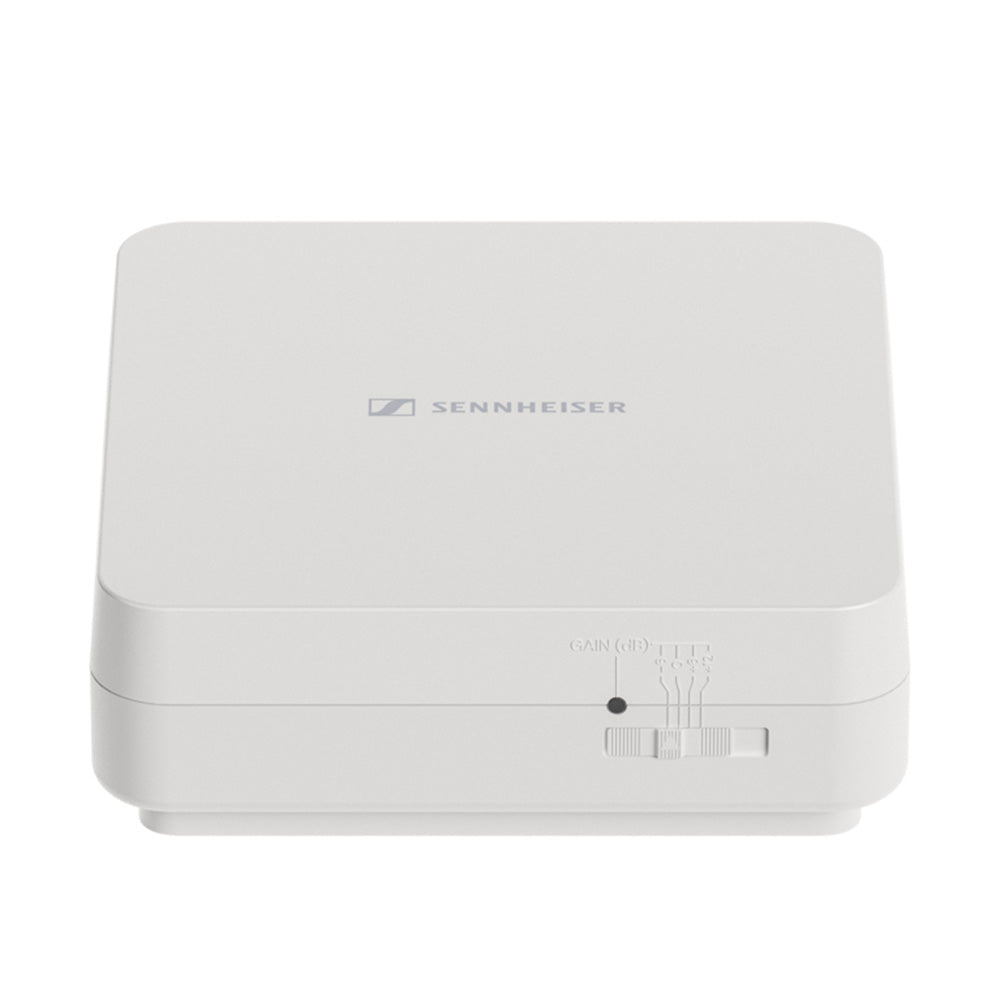

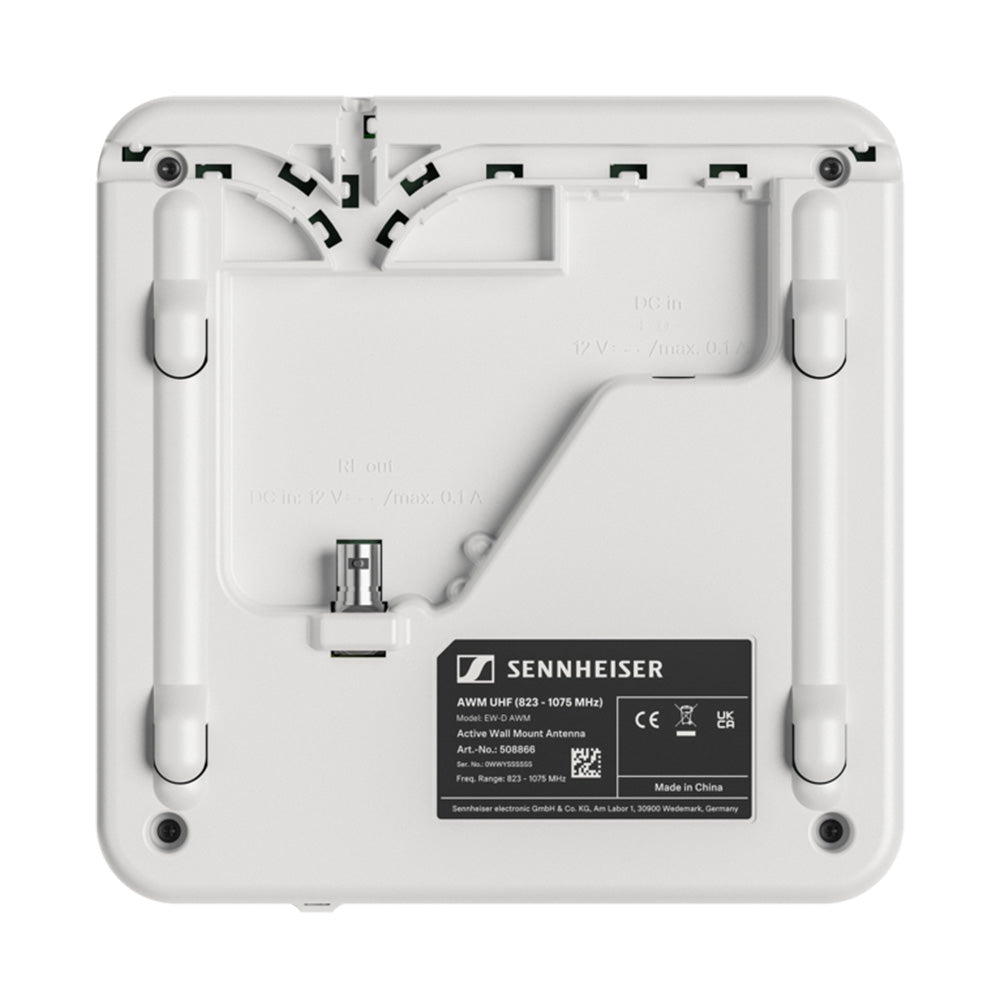

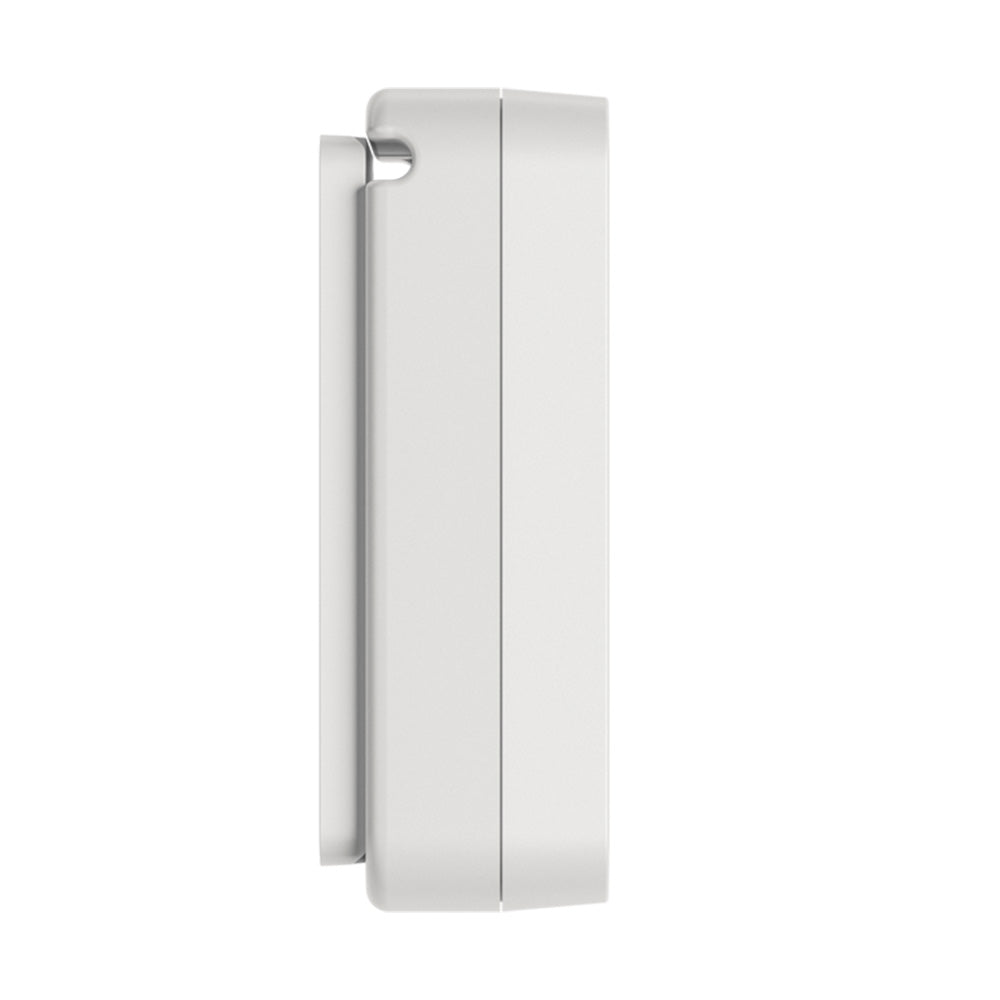

AWM Antenna is an active directional antenna for use with Evolution Wireless Digital microphone systems. The AWM antenna is designed to enhance the wireless performance of your Evolution Wireless Digital system and can be installed quickly and easily in any room, on a vertical (wall) or horizontal (ceiling) surfaces. The AWM UHF can be connected to any stationary Evolution Wireless Digital receiver or EW-D ASA antenna splitter. Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live performance productions benefit from a network-ready system that is designed to integrate seamlessly.
Features:
- Active directional antenna
- Adjustable gain settings for different cable length
- Wall, ceiling or mic stand mounting options
- Power supply either via BNC or DC Jack
| Frequency ranges | UHF I: 470 - 694 MHz UHF II: 823 - 1075 MHz 1 G8: 1785 - 1805 MHz |
| Apex angle (horizontal, -3 dB) | UHF I: N/A UHF II: Approx. 80 ¡ 1 G8: Approx. 110 ¡ |
| Front-to-back ratio | UHF I: N/A UHF II: Approx. 10 dB 1 G8: Approx. 10 dB |
| Antenna gain | UHF I: +3.5 dBi (582 MHz) / +4.5 dBi (694 MHz) UHF II: +6.0 dBi 1 G8: +6.0 dBi |
| Antenna polarization | Linear |
| Amplification (signal booster, low noise, band selective, +/-1 ¢dB w/o line break) | Setting / Max. gain [dB]: +12 dB: 12 +6 dB: 6 0 dB: UHF I, UHF II: -0.5; 1G8: -1.5 -6 dB: -6 At 0 dB, band selective booster is bypassed. This mode also needs DC power supply. |
| OIP3 (@ +12 dB) | 35 dBm |
| Max. RF output | UHF I/UHF II: approx. +22 dBm 1 G8: approx. +18 dBm |
| RF connection | BNC female, DC coupled |
| Impedance | 50 ohms |
| DC connection | 5.5 x 1.6 mm DC jack, center contact + |
| Power supply (via BNC or DC jack) | 12 V DC (9 - 18 V DC) / max. ¢100 ¢mA @ 12 V |
| LED signalization | ON (white= "+12 dB"; blue= "+6 ¢dB"; green= "0 dB"; orange= "-6 dB") OFF (no or insufficient DC supply) |
| Mounting connection for tripod or mic stand | 3/8" internal thread |
| Mounting holes standard | VESA 100 x 100 |
| Color | Traffic white (RAL: 9016) |
| Housing material | Halogen-free flame-retardant PC/ABS |
| Dimensions (excl. mounting plate) (incl. mounting plate) |
180 x 180 x 53 mm (7.08 x 7.08 x 2.08") 180 x 180 x 63 mm (7.08 x 7.08 x 2.48") |
| Weight | Approx. 700 g (1.54 Ib.) |
| Operating temperature | -10 ¡C to +55 ¡C (14 ¡F to 131 ¡F) |
| Storage temperature | -20 ¡C to +70 ¡C (-4 ¡F to 158 ¡F) |
| Relative air humidity | 5 to 95 % |
| In The Box | Wallmount AWM Antenna Wallmount adapter Drilling template Quick Guide Safety Guide |
AWM Antenna is an active directional antenna for use with Evolution Wireless Digital microphone systems. The AWM antenna is designed to enhance the wireless performance of your Evolution Wireless Digital system and can be installed quickly and easily in any room, on a vertical (wall) or horizontal (ceiling) surfaces. The AWM UHF can be connected to any stationary Evolution Wireless Digital receiver or EW-D ASA antenna splitter. Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live performance productions benefit from a network-ready system that is designed to integrate seamlessly.
Features:
- Active directional antenna
- Adjustable gain settings for different cable length
- Wall, ceiling or mic stand mounting options
- Power supply either via BNC or DC Jack
| Frequency ranges | UHF I: 470 - 694 MHz UHF II: 823 - 1075 MHz 1 G8: 1785 - 1805 MHz |
| Apex angle (horizontal, -3 dB) | UHF I: N/A UHF II: Approx. 80 ¡ 1 G8: Approx. 110 ¡ |
| Front-to-back ratio | UHF I: N/A UHF II: Approx. 10 dB 1 G8: Approx. 10 dB |
| Antenna gain | UHF I: +3.5 dBi (582 MHz) / +4.5 dBi (694 MHz) UHF II: +6.0 dBi 1 G8: +6.0 dBi |
| Antenna polarization | Linear |
| Amplification (signal booster, low noise, band selective, +/-1 ¢dB w/o line break) | Setting / Max. gain [dB]: +12 dB: 12 +6 dB: 6 0 dB: UHF I, UHF II: -0.5; 1G8: -1.5 -6 dB: -6 At 0 dB, band selective booster is bypassed. This mode also needs DC power supply. |
| OIP3 (@ +12 dB) | 35 dBm |
| Max. RF output | UHF I/UHF II: approx. +22 dBm 1 G8: approx. +18 dBm |
| RF connection | BNC female, DC coupled |
| Impedance | 50 ohms |
| DC connection | 5.5 x 1.6 mm DC jack, center contact + |
| Power supply (via BNC or DC jack) | 12 V DC (9 - 18 V DC) / max. ¢100 ¢mA @ 12 V |
| LED signalization | ON (white= "+12 dB"; blue= "+6 ¢dB"; green= "0 dB"; orange= "-6 dB") OFF (no or insufficient DC supply) |
| Mounting connection for tripod or mic stand | 3/8" internal thread |
| Mounting holes standard | VESA 100 x 100 |
| Color | Traffic white (RAL: 9016) |
| Housing material | Halogen-free flame-retardant PC/ABS |
| Dimensions (excl. mounting plate) (incl. mounting plate) |
180 x 180 x 53 mm (7.08 x 7.08 x 2.08") 180 x 180 x 63 mm (7.08 x 7.08 x 2.48") |
| Weight | Approx. 700 g (1.54 Ib.) |
| Operating temperature | -10 ¡C to +55 ¡C (14 ¡F to 131 ¡F) |
| Storage temperature | -20 ¡C to +70 ¡C (-4 ¡F to 158 ¡F) |
| Relative air humidity | 5 to 95 % |
| In The Box | Wallmount AWM Antenna Wallmount adapter Drilling template Quick Guide Safety Guide |
