Sennheiser CH 70N-C - Charging Unit for EW-DX Wireless
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Network charger for EW-DX wireless. No PSU included; use this to 'cascade' up to four units to a CHG 70-C and PSU on a single network and power source.

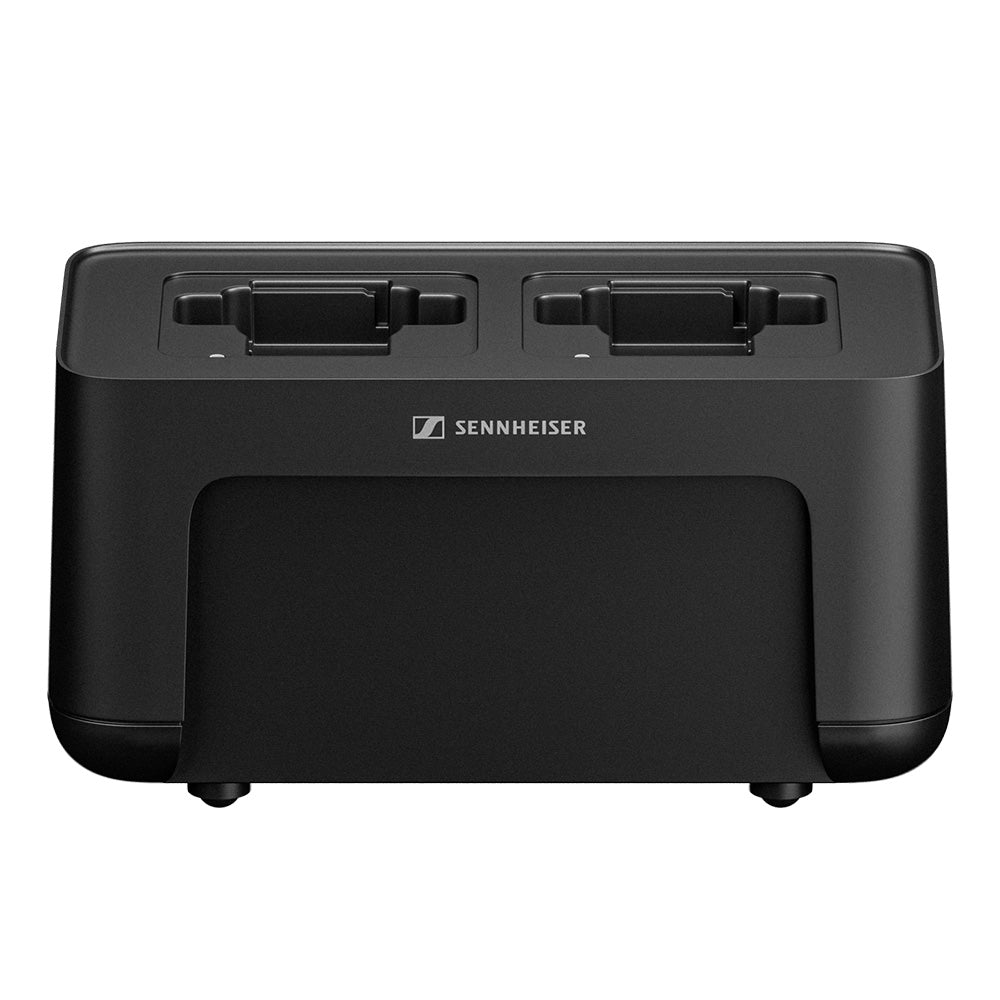

The CHG 70N-C is a network enabled charger featuring two individual charging bays. Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live performance productions benefit from a network-ready system that is designed to integrate seamlessly.
Features:
- Control and monitoring via the Sennheiser Control Cockpit and 3rd party applications.
- 2 bays: charge EW-DX SKM, EW-DX SK or BA 70
- Power via PoE or PSU
- PoE IEEE 802.3af Class 3

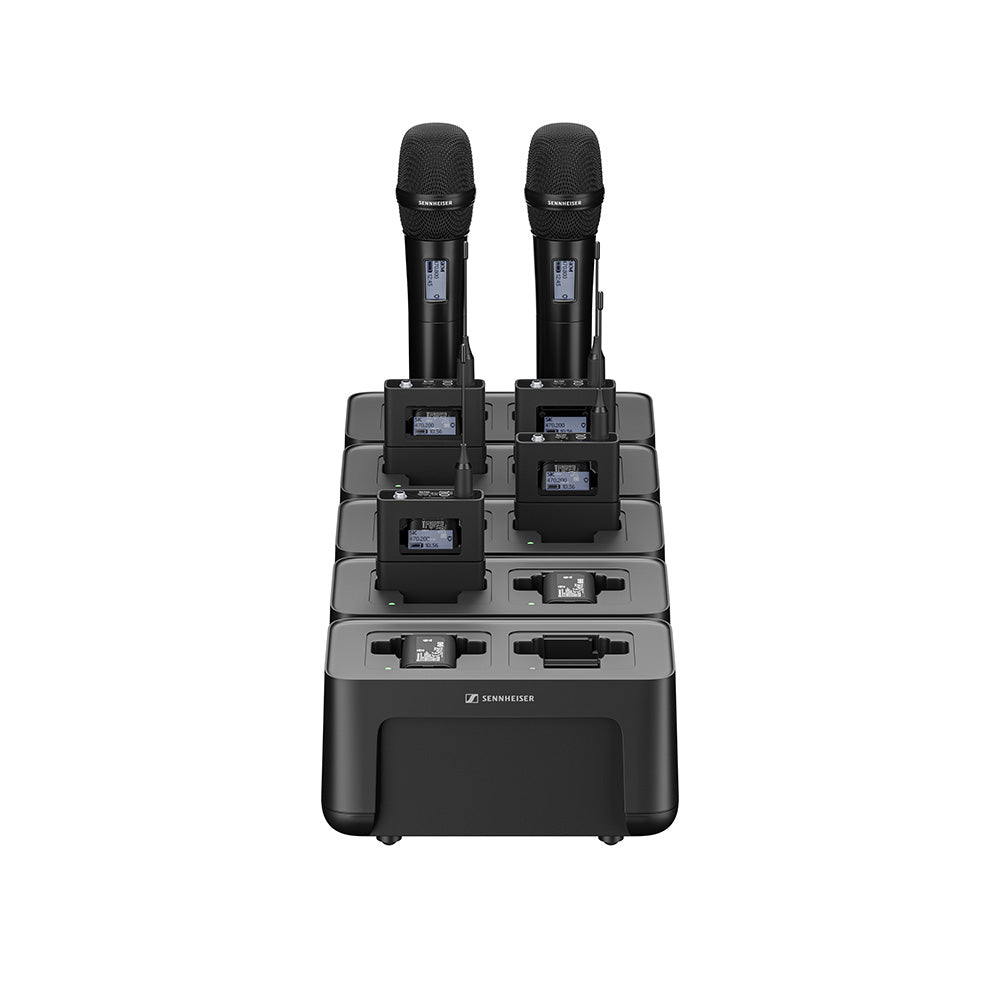

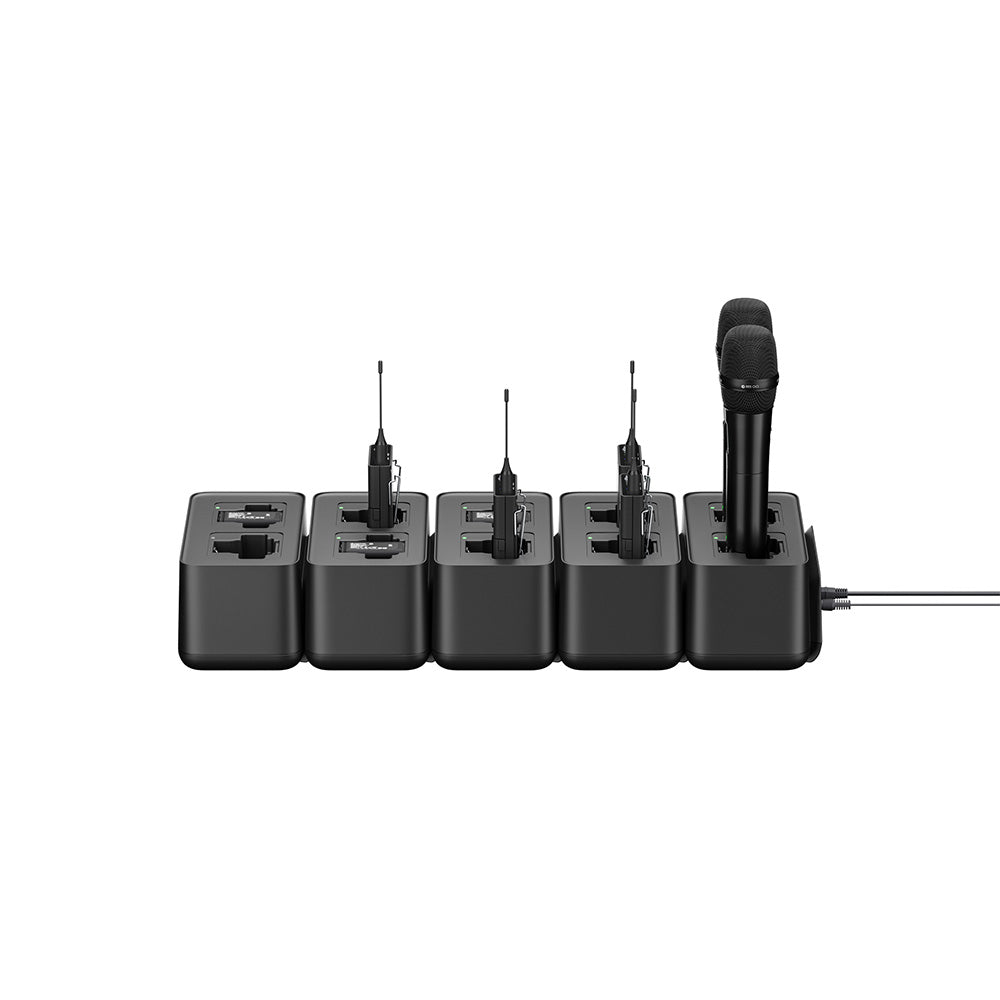

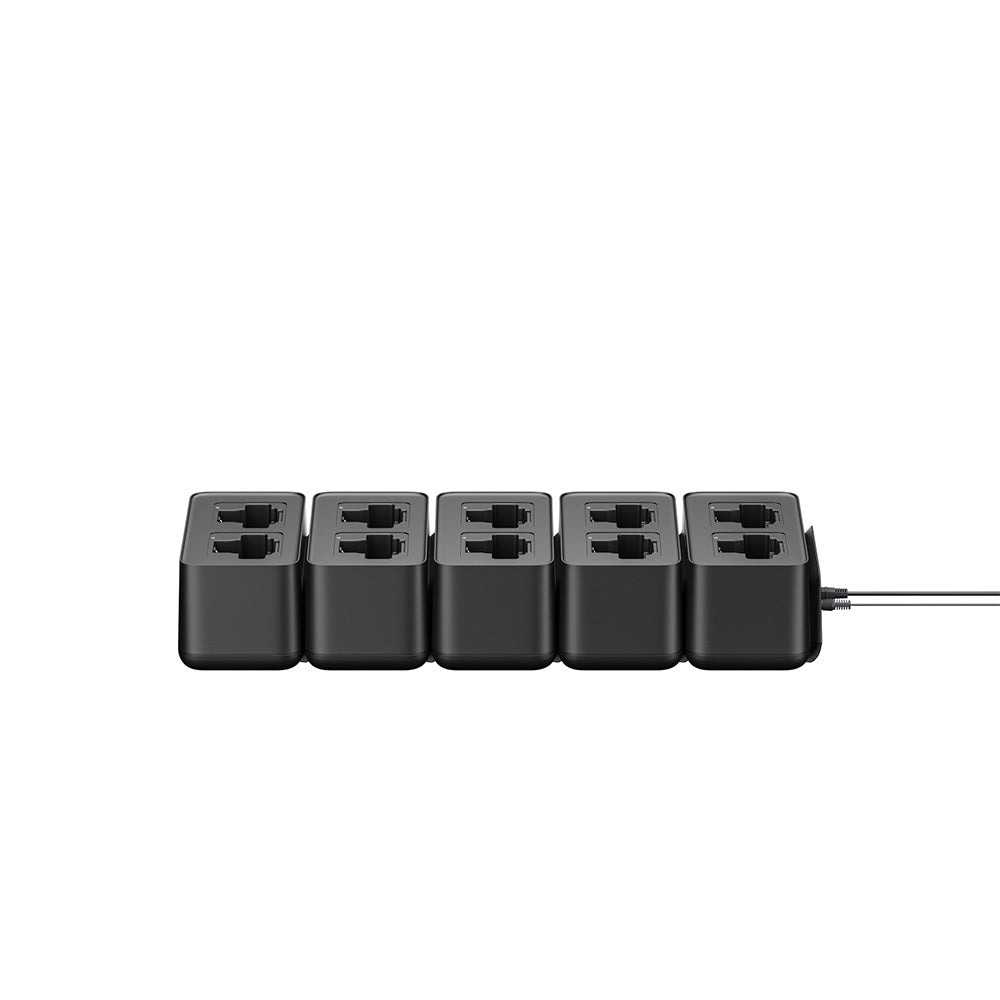

- Cascade up to 5 x CHG 70N (only one network and PSU needed)
- 2h charging time (0 ~ 80%), 3h till 100%
| Power supply | 12 V (single device or cascade of up to 5 devices) or PoE IEEE 802.3af Class 0 (CAT5e or higher) |
| Current consumption | max. 3.5 A for cascade of up to 5 devices |
| Power consumption | max. 12 W |
| Network socket | RJ-45, IEEE 802.3; 10base-T (half and full), 100base-TX (half and full) |
| Dimensions | approx. 200 x 104 x 116 mm (7.9" x 4.1" x 4.6") |
| Weight | approx. 640 g |
| Charging bays | 2 |
| Charging capacity per bay | BA 70 rechargeable battery or EW-DX SK with BA 70 or EW-DX SKM with BA 70 |
| Charging voltage | 4.35 V |
| Charging current | min. 344 mA max. 860 mA |
| Charging status indicator | 1 LED per bay (red, yellow, green) |
| Charging time for full charge | max. 3.5h |
| Charging temperature range | -10 ¡C - 50 ¡C (14 ¡F - 122 ¡F) |
| Storage temperature range | -20 ¡C - 70 ¡C (-4 ¡F - 158 ¡F) |
| Relative humidity | max. 95 % non-condensing |
| in The Box | CHG 70N-C Quick guide Safety guide |
Network charger for EW-DX wireless. No PSU included; use this to 'cascade' up to four units to a CHG 70-C and PSU on a single network and power source.
The CHG 70N-C is a network enabled charger featuring two individual charging bays. Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live performance productions benefit from a network-ready system that is designed to integrate seamlessly.
Features:
- Control and monitoring via the Sennheiser Control Cockpit and 3rd party applications.
- 2 bays: charge EW-DX SKM, EW-DX SK or BA 70
- Power via PoE or PSU
- PoE IEEE 802.3af Class 3
- Cascade up to 5 x CHG 70N (only one network and PSU needed)
- 2h charging time (0 ~ 80%), 3h till 100%
| Power supply | 12 V (single device or cascade of up to 5 devices) or PoE IEEE 802.3af Class 0 (CAT5e or higher) |
| Current consumption | max. 3.5 A for cascade of up to 5 devices |
| Power consumption | max. 12 W |
| Network socket | RJ-45, IEEE 802.3; 10base-T (half and full), 100base-TX (half and full) |
| Dimensions | approx. 200 x 104 x 116 mm (7.9" x 4.1" x 4.6") |
| Weight | approx. 640 g |
| Charging bays | 2 |
| Charging capacity per bay | BA 70 rechargeable battery or EW-DX SK with BA 70 or EW-DX SKM with BA 70 |
| Charging voltage | 4.35 V |
| Charging current | min. 344 mA max. 860 mA |
| Charging status indicator | 1 LED per bay (red, yellow, green) |
| Charging time for full charge | max. 3.5h |
| Charging temperature range | -10 ¡C - 50 ¡C (14 ¡F - 122 ¡F) |
| Storage temperature range | -20 ¡C - 70 ¡C (-4 ¡F - 158 ¡F) |
| Relative humidity | max. 95 % non-condensing |
| in The Box | CHG 70N-C Quick guide Safety guide |
