Sennheiser CT-W 2FT - TeamConnect Ceiling Medium CT-W 2FT
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

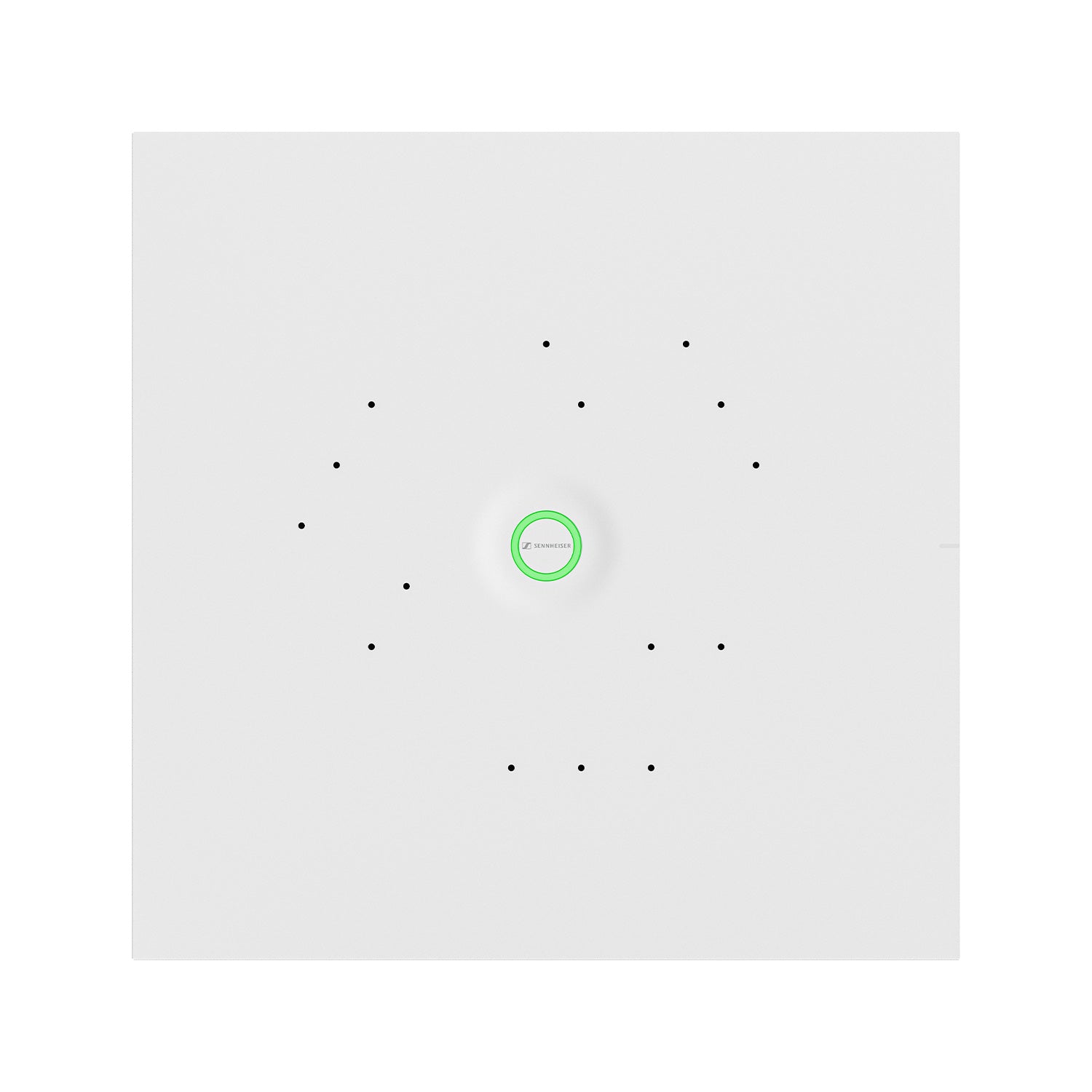

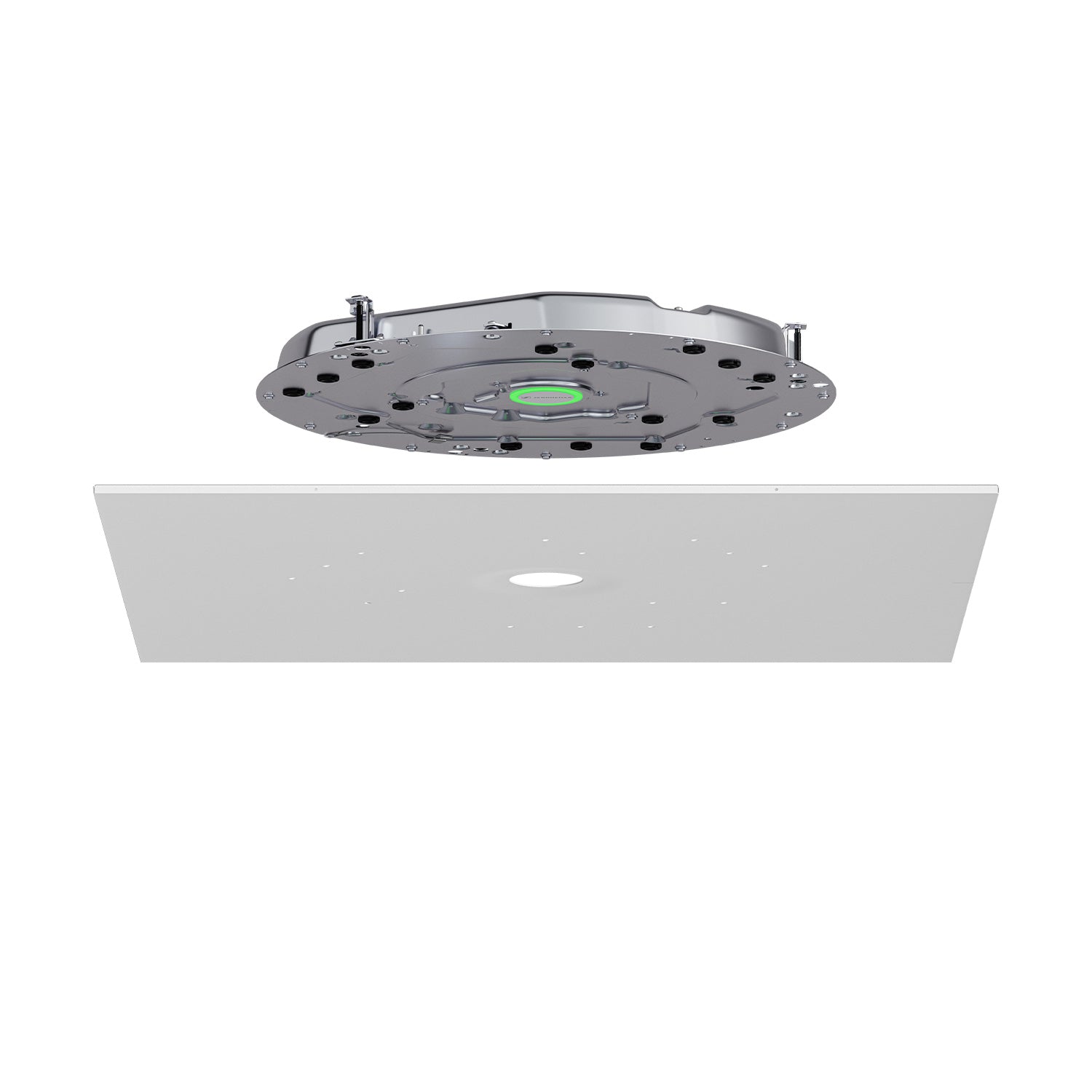

(Ceiling Tile Mount: 2 Foot | White) TeamConnect Ceiling Medium Ceiling Tile is a new easy to fit leightweight square plate installation variation for the TeamConnect Ceiling Medium. The Ceiling Tile brings versatility and adaptability, elevating your meeting experience across a range of flexible and hybrid meeting spaces and learning environments.
With its adaptive, intelligent beamforming technology, TeamConnect Ceiling Medium ensures flawless audio every time. Effortless integration with single cable mode and numerous design and installation options ensure TeamConnect Ceiling Medium transforms any room into a hub of collaboration. The TeamConnect Ceiling Medium can only be purchased as a Kit and not as a single article.
Features:
- Patented automatic dynamic beamforming
- TruVoicelift
- 15 SMD Electret condenser capsules made in Germany
- Perfect speech intelligibility
- Dante or Analog Output
- PoE/PoE+ powered (single/daisy chaining)
- Single-cable mode
- Exclusion / Priority Zones
- Camera Control via talker position data
- Encrypted Sennheiser Sound Control Protocol API (SSCv2) with TLS 1.2
- Options for flush, surface, suspended, VESA mounting and ceiling tile
- Easily paintable metal housing
- IEEE 802.1x
- Intelligent Noise Control
- Color: White
- Certified for Microsoft Teams
| Product properties | |
| Dimensions (dia x H) | 477 x 46 mm (16 x 1.8 ") |
| Weight | max. 4,9 kg (10.8lbs) |
| Audio output | 1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81) 1x Digital Dante Network Audio (RJ-45) |
| Network/Control | 1 x RJ-45 Ethernet Port for PoE power supply and data/control communication |
| Supply voltage | PoE IEEE 802.3af Class 3 IEEE 802.3at / Typ 2 / Class 4 (when cascaded) |
| Power consumption | Approx. 8 W |
| Safety certification | IEC/EN 62368-1 (including UL 2043 testing and compliance) |
| Acoustic properties | |
| Transducer principle | Pre-polarized condenser microphone |
| AF frequency response | 100 Hz to 16,000 Hz |
| Sensitivity | 0 dBV/Pa (890 mV/Pa) |
| Signal-to-noise ratio | 79 dB (A) |
| Equivalent noise level | 15 dB (A) |
| Number of KE 10-237 microphone capsules | 15 |
| Pick-up pattern | Beam pattern |
| Max. sound pressure level | 98 dB SPL |
| Dynamic range | 83 dB (A) |
| Ambient Conditions | |
| Temperature Range | Operation: 0 to 40¡C Storage: -10 to 60¡C |
| Relative air humidity | 20 to 95%, non-condensing |
