Description

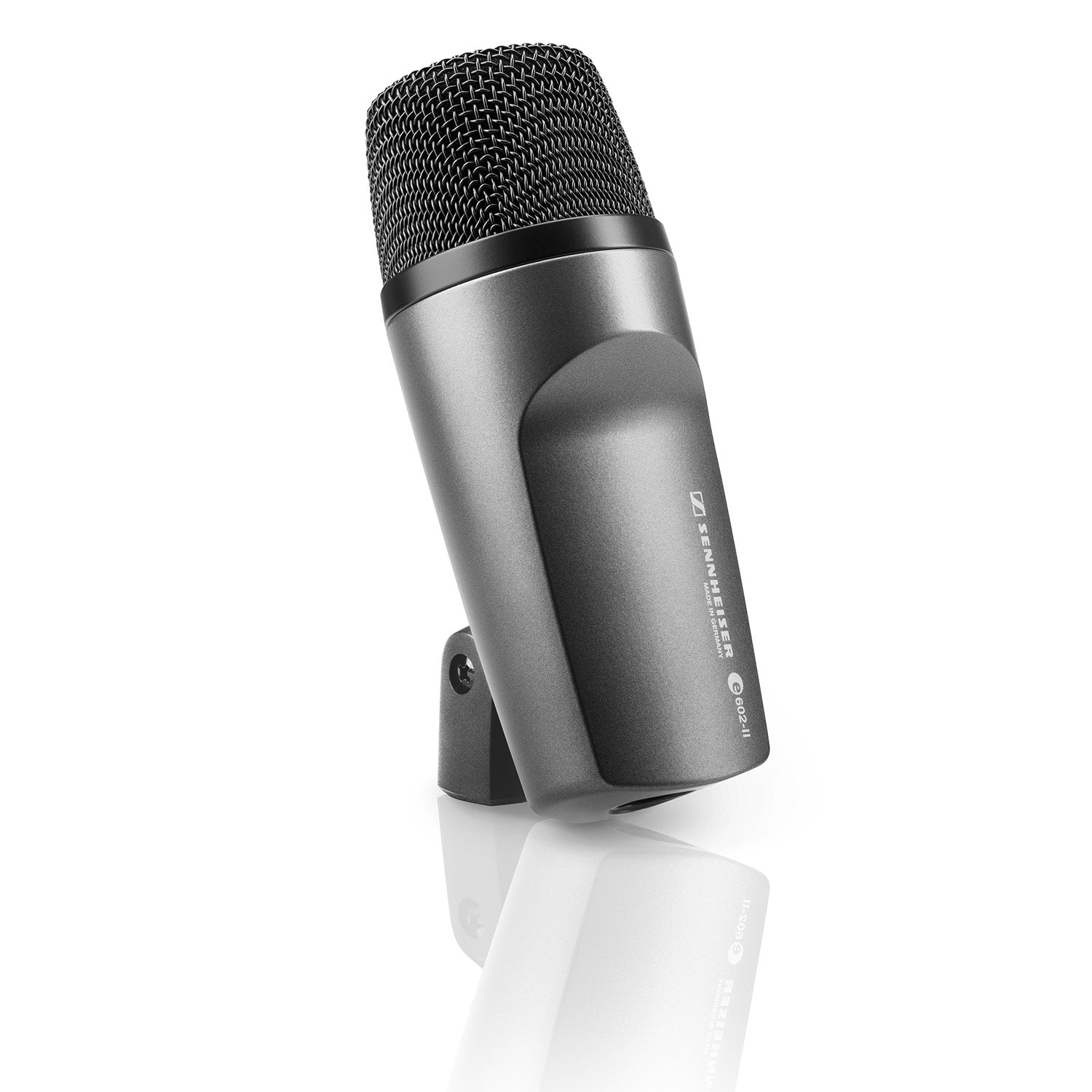

The E 602 combines the latest lightweight high performance voice coil construction with a traditional large diaphragm capsule design to deliver very low bass response (down to 20Hz) and fast transient signals, low frequency extension and mid band attenuation produce an ultra smooth pre-shaped signal enabling the mic to be used without corrective EQing, even on the most problematic bass signal sources, frequency independent cardioid pick-up pattern ensures very high signal output before feedback and isolation from other on-stage signals.
Features:
- Rugged, lightweight aluminium body for stable positioning on long microphone boom arms
- Lightweight high-performance voice coil construction
- Fast transient response
- Low frequency extension
- Ideal for direct use on the most problematic bass signal
- Frequency-independent directivity provides isolation from other on-stage signals
- Humbucking coil
- Integral stand mount
What's In The Box:
- 1 e 602-II
- 1 pouch
- Instructions for use
Pick Up Pattern | Cardioid |
Frequency Response | 20Hz - 16kHz |
Sensitivity | 1mV/Pa =/- 60 dB (0dB=1V/Pa) =/-80dB (0dB=1V/µbar) (USA) |
Nominal Impedance | 250 ohms |
Min Terminating Impedance | 1000 ohms |
Dimensions | ¯=2.4 in. L=6.1 in |
Transducer Principle | Pressure gradient receiver |
The E 602 combines the latest lightweight high performance voice coil construction with a traditional large diaphragm capsule design to deliver very low bass response (down to 20Hz) and fast transient signals, low frequency extension and mid band attenuation produce an ultra smooth pre-shaped signal enabling the mic to be used without corrective EQing, even on the most problematic bass signal sources, frequency independent cardioid pick-up pattern ensures very high signal output before feedback and isolation from other on-stage signals.
Features:
- Rugged, lightweight aluminium body for stable positioning on long microphone boom arms
- Lightweight high-performance voice coil construction
- Fast transient response
- Low frequency extension
- Ideal for direct use on the most problematic bass signal
- Frequency-independent directivity provides isolation from other on-stage signals
- Humbucking coil
- Integral stand mount
What's In The Box:
- 1 e 602-II
- 1 pouch
- Instructions for use
Pick Up Pattern | Cardioid |
Frequency Response | 20Hz - 16kHz |
Sensitivity | 1mV/Pa =/- 60 dB (0dB=1V/Pa) =/-80dB (0dB=1V/µbar) (USA) |
Nominal Impedance | 250 ohms |
Min Terminating Impedance | 1000 ohms |
Dimensions | ¯=2.4 in. L=6.1 in |
Transducer Principle | Pressure gradient receiver |
