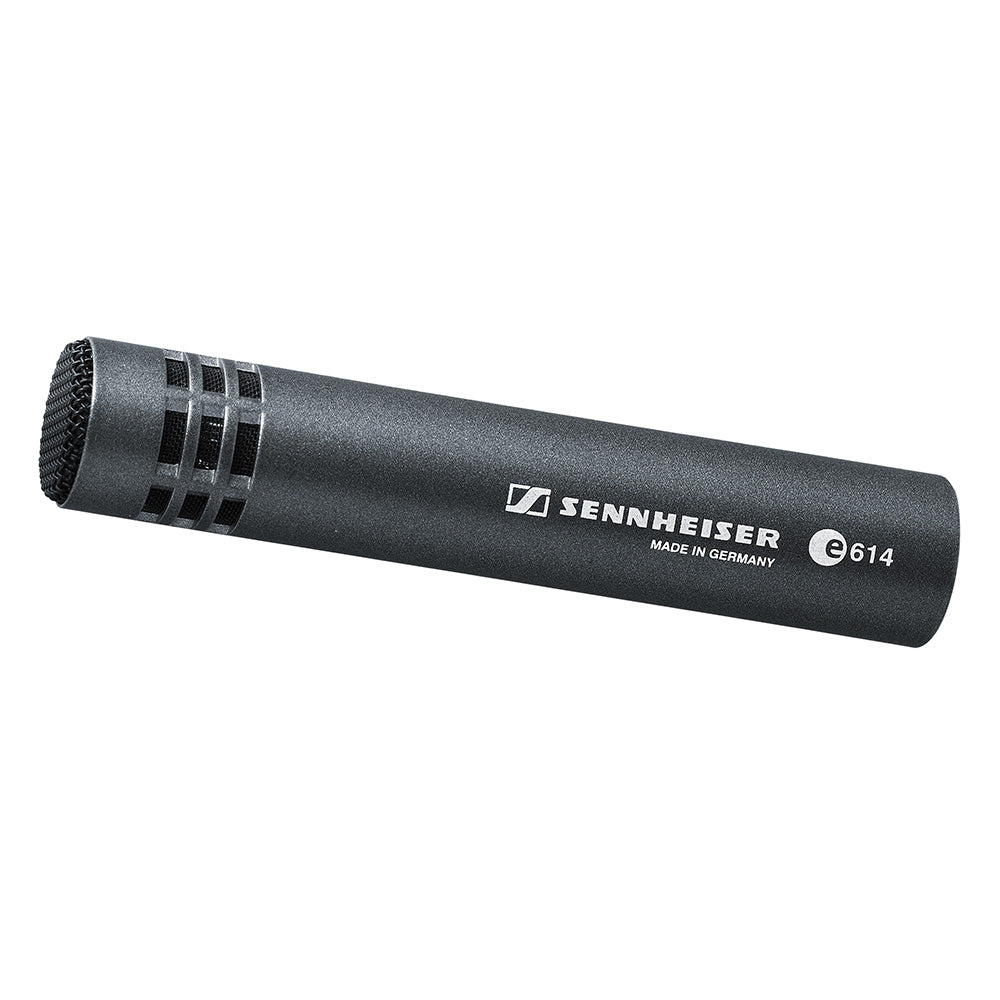

Sennheiser e614 Super-Cardioid Drum and Percussion Microphone
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The e 614 is a super-cardioid condenser microphone, designed for demanding instrument recordings and performances that require extended frequency response, high SPL handling, fast transient response and compact size. While drumset overhead miking was the first design priority, the e614 also works exceptionally well on percussion setups as well, fitting comfortably into tight setups. The e 614 can handle high SPLs and features medium sensitivity, which ensures reduced bleed from other instruments on stage. Because of its excellent acoustic properties, this mic is also ideal for home recording.
Features:
- 40-20,000 Hz frequency response
- Designed for demanding applications where extended frequency range, high SPL handling, fast transient response and small size are required
- Captures the shimmer and the contact of sticks, mallets and hands
- Nearly flat response from 40 Hz to 20 kHz and a supercardioid pattern
What's In The Box:
- e 614
- Microphone pouch
- Microphone clip MZQ 100
| Dimensions | ¯ 20mm, L = 100mm |
| Connector | XLR-3 |
| Frequency response | 40 - 20000 Hz |
| Transducer principle | pre-polarised condenser microphone |
| Weight | w/o cable: 93 g |
| Pick-up pattern | super-cardioid |
| Sensitivity in free field, no load (1kHz) | 3 mV/Pa = - 50dB (0 dB = 1 V/Pa) |
| Nominal impedance | 50 ½ |
| Min. terminating impedance | 1000 ½ |
| Phantom powering | 12 Ð 52 V / 3 mA |
| Equivalent noise level | 24 dB(A) |
| Equivalent noise level weighted as per CCIR 468-3 | 35 dB |
| Maximum sound pressure level (passiv) | 139 dB/SPL |
The e 614 is a super-cardioid condenser microphone, designed for demanding instrument recordings and performances that require extended frequency response, high SPL handling, fast transient response and compact size. While drumset overhead miking was the first design priority, the e614 also works exceptionally well on percussion setups as well, fitting comfortably into tight setups. The e 614 can handle high SPLs and features medium sensitivity, which ensures reduced bleed from other instruments on stage. Because of its excellent acoustic properties, this mic is also ideal for home recording.
Features:
- 40-20,000 Hz frequency response
- Designed for demanding applications where extended frequency range, high SPL handling, fast transient response and small size are required
- Captures the shimmer and the contact of sticks, mallets and hands
- Nearly flat response from 40 Hz to 20 kHz and a supercardioid pattern
What's In The Box:
- e 614
- Microphone pouch
- Microphone clip MZQ 100
| Dimensions | ¯ 20mm, L = 100mm |
| Connector | XLR-3 |
| Frequency response | 40 - 20000 Hz |
| Transducer principle | pre-polarised condenser microphone |
| Weight | w/o cable: 93 g |
| Pick-up pattern | super-cardioid |
| Sensitivity in free field, no load (1kHz) | 3 mV/Pa = - 50dB (0 dB = 1 V/Pa) |
| Nominal impedance | 50 ½ |
| Min. terminating impedance | 1000 ½ |
| Phantom powering | 12 Ð 52 V / 3 mA |
| Equivalent noise level | 24 dB(A) |
| Equivalent noise level weighted as per CCIR 468-3 | 35 dB |
| Maximum sound pressure level (passiv) | 139 dB/SPL |
