Description

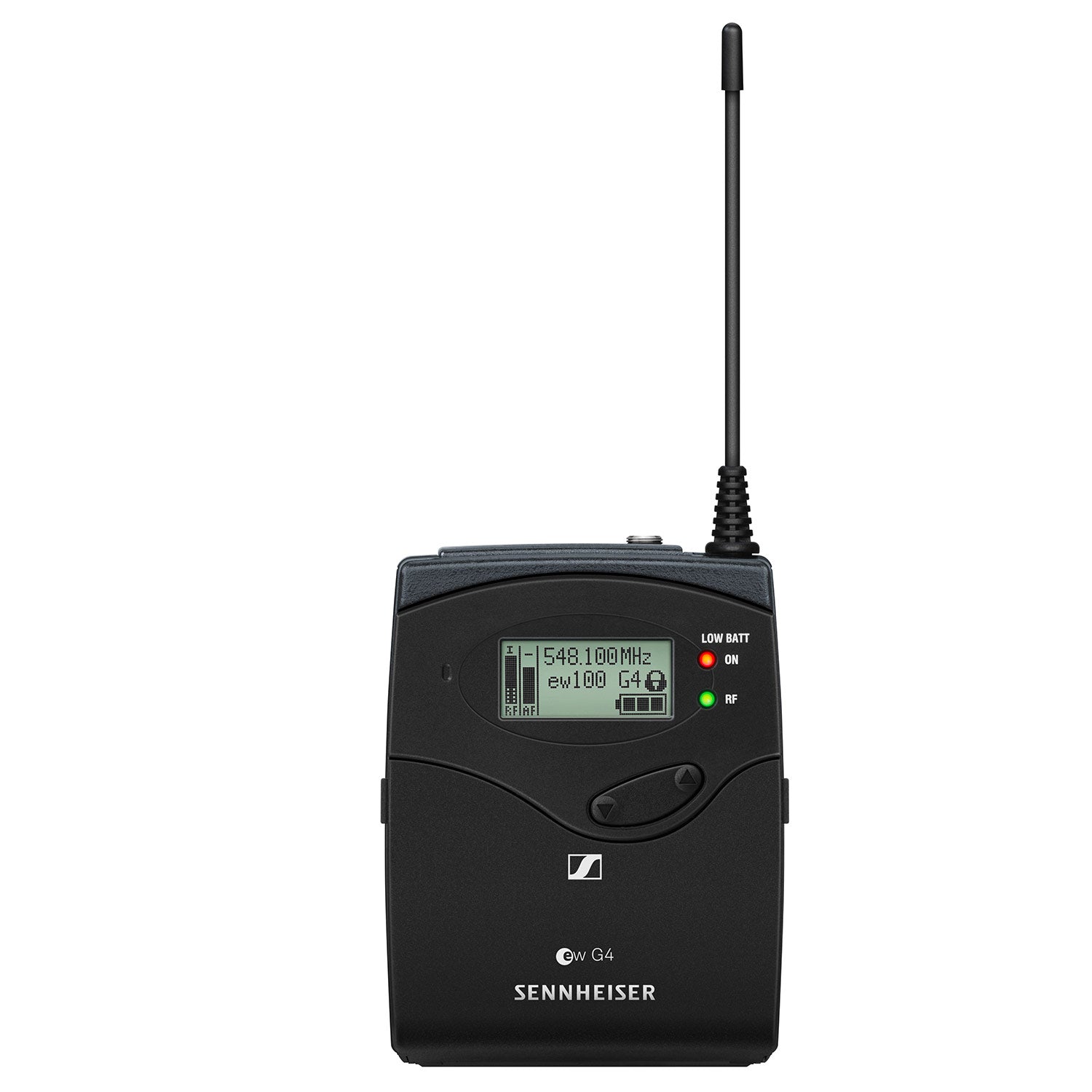

The EK 100 G4 is a powerful camera receiver with a lightweight aluminum housing and for evolution wireless G4 100P Series systems. For documentary, Mobile Journalism and audio for video applications. Features: Powerful camera receiver, easily mounted on any kind of camera Excellent sound and... Read MoreRetail Price: $439.95 Our Price: $349.95
Free Shipping (Continental US)
Suggested Accessories
Description
The EK 100 G4 is a powerful camera receiver with a lightweight aluminum housing and for evolution wireless G4 100P Series systems. For documentary, Mobile Journalism and audio for video applications.
Features:
What's In The Box:
More +
Product Specs
RF characteristics | |
Modulation | Wideband FM |
Frequency ranges | A1: 470 - 516 MHz A: 516 - 558 MHz G: 566 - 608 MHz |
Receiving frequencies | Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels |
Switching bandwidth | up to 42 MHz |
Nominal/peak deviation | ±24 kHz / ±48 kHz |
Receiver principle | Adaptive diversity |
Sensitivity (with HDX, peak deviation) | < 1.6 V for 52 dBA eff S/N |
Adjacent channel selection | 65 dB |
Intermodulation attenuation | 65 dB |
Blocking | 70 dB |
Squelch | low: 5 dB V middle: 15 dB V high: 25 dB V |
Pilot tone squelch | Can be switched off |
AF characteristics | |
Compander system | Sennheiser HDX |
Signal-to-noise ratio (1 mV, peak deviation) | 110 dBA |
Total harmonic distortion (THD) | 0.9 % |
AF output voltage (at peak deviation, 1 kHz AF) | 3.5 mm jack socket: +12 dBu (mono, unbalanced) |
Adjustment range of audio output level | 42 dB, adjustable in steps of 6 dB |
Overall device | |
Temperature range | -10 °C to +55 °C |
Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
Current consumption | at nominal voltage: typ. 180 mA with receiver switched off: 25 A |
Operating time | Typically 8 h |
Dimensions | Approx. 82 x 64 x 24 mm |
Weight (incl. batteries) | approx. 160 g |
