Sennheiser EK 2000 IEM Personal Monitoring Receiver (GW1 Band / 558-608 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
This wireless monitoring set's receiver uses adaptive-diversity technology. The earphone cable serves as a second antenna, which considerably reduces the number of drop-outs. Combined with IE 4 ear-canal phones for precise sound reproduction, EK 2000 IEM conveys an authentic acoustic pattern of live sound and allows you to monitor your own performance perfectly.
Features:
- Sturdy all-metal housing
- Up to 3000 frequencies in up to 75 MHz switching bandwidth
- 20 fixed frequency banks with up to 32 compatible presets
- 6 banks with up to 32 tunable channels
- Adaptive-diversity technology for high reliability
- Pilot tone squelch can be set in 2 dB steps for interference-free reception
- Frequency scan feature searches for available reception frequencies
- Wireless synchronization of receiver parameters from transmitter
- User-friendly menu interface with a backlit graphic display
- HDX compander for crystal clear sound
- Enhanced AF frequency response
- Backlit graphic display
- 4-stage battery status display
- Charging contacts for recharging BA2015
- Auto-lock feature to prevent settings from being changed accidentally
- Hi Boost, adjustable limiter, stereo/focus mode, selectable balance on receiver
- Wide range of accessories for virtually any use
What's In The Box:

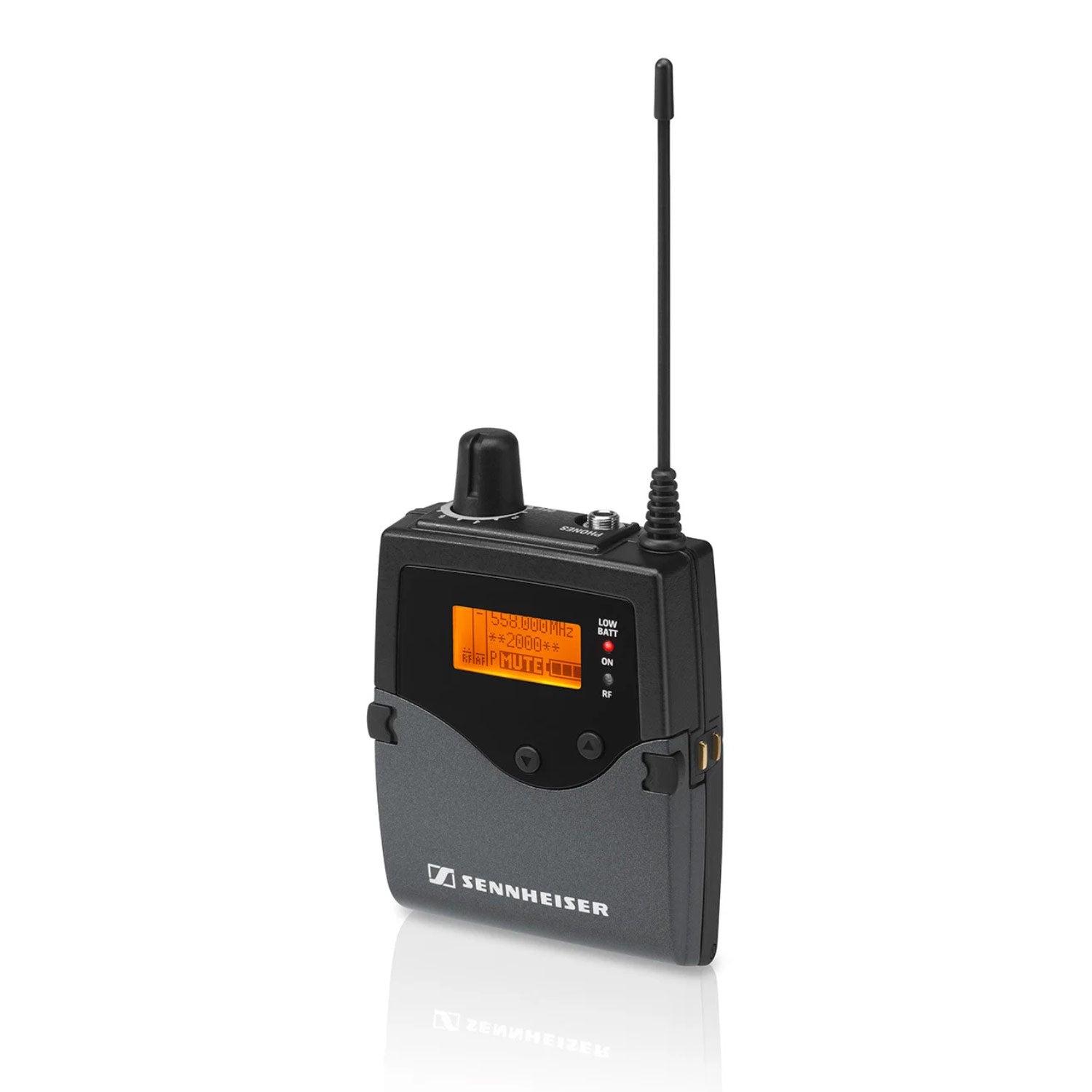

- 1 EK 2000 IEM diversity receiver

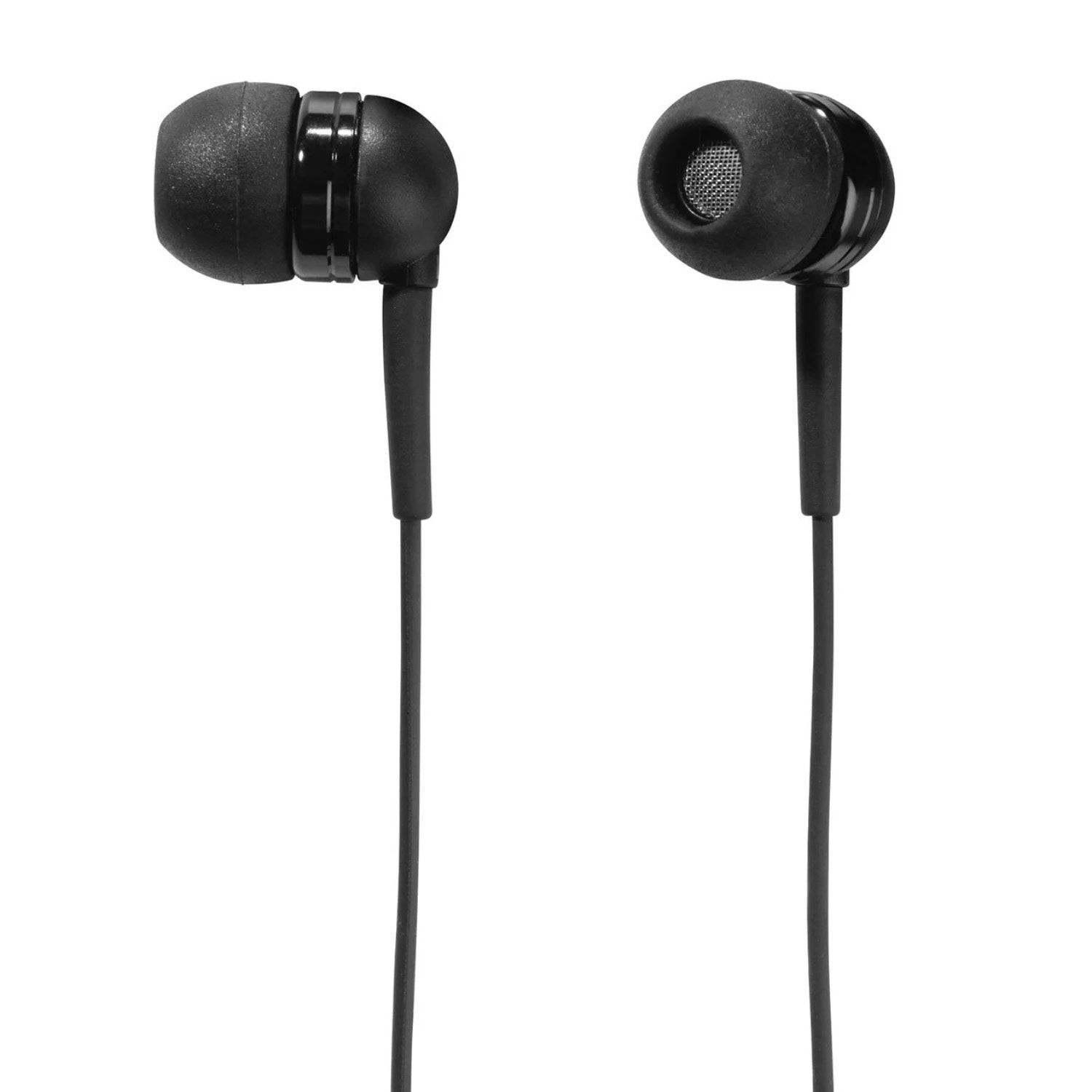

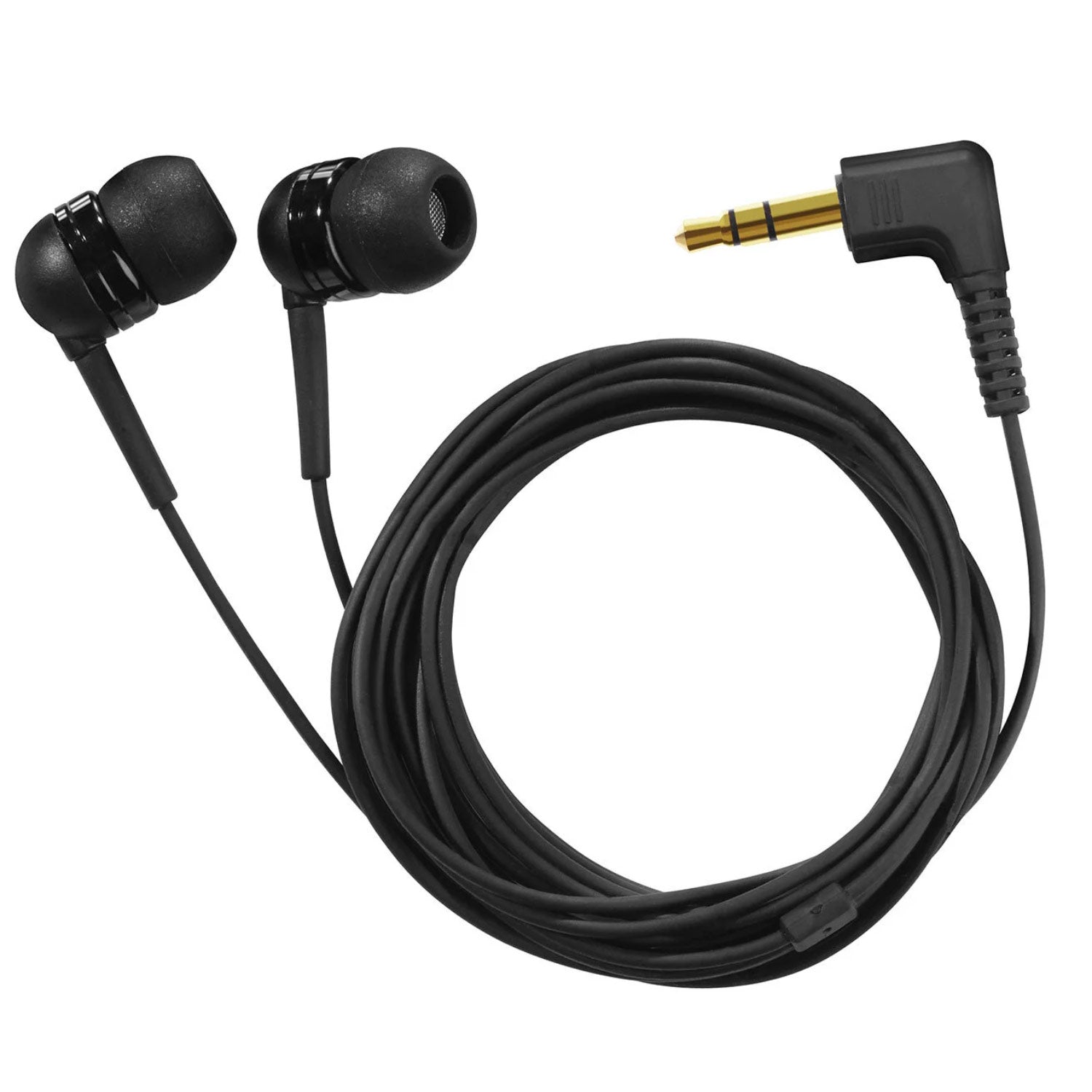

- 1 IE 4 earphones
- 1 instruction manual
- 1 supplementary frequency sheet
| RF frequency range | 516 ... 865 MHz |
| Frequency range | 516 ... 558 MHz / US |
| Dimensions | 82 x 64 x 24 mm |
| Presets | max. 32 |
| Frequency response | 25 - 15000 Hz |
| Jack plug | 3,5 mm Jack |
| Weight | 200 g |
| Signal-to-noise ratio | > 90 dB(A) |
| Switching bandwidth | max. 75 MHz |
| Operating time | 4 - 6 h |
| Modulation | FM, MPX-stereo |
| Carrier frequencies | max. 3000 |
| Squelch threshold | off, 5 ... 25 dB_V in 2 dB steps |
| Audio-Output-Power | 100 mW @32 ½ |
| Operating voltage (stand alone) | 2 x 1,5V AA |
This wireless monitoring set's receiver uses adaptive-diversity technology. The earphone cable serves as a second antenna, which considerably reduces the number of drop-outs. Combined with IE 4 ear-canal phones for precise sound reproduction, EK 2000 IEM conveys an authentic acoustic pattern of live sound and allows you to monitor your own performance perfectly.
Features:
- Sturdy all-metal housing
- Up to 3000 frequencies in up to 75 MHz switching bandwidth
- 20 fixed frequency banks with up to 32 compatible presets
- 6 banks with up to 32 tunable channels
- Adaptive-diversity technology for high reliability
- Pilot tone squelch can be set in 2 dB steps for interference-free reception
- Frequency scan feature searches for available reception frequencies
- Wireless synchronization of receiver parameters from transmitter
- User-friendly menu interface with a backlit graphic display
- HDX compander for crystal clear sound
- Enhanced AF frequency response
- Backlit graphic display
- 4-stage battery status display
- Charging contacts for recharging BA2015
- Auto-lock feature to prevent settings from being changed accidentally
- Hi Boost, adjustable limiter, stereo/focus mode, selectable balance on receiver
- Wide range of accessories for virtually any use
What's In The Box:
- 1 EK 2000 IEM diversity receiver
- 1 IE 4 earphones
- 1 instruction manual
- 1 supplementary frequency sheet
| RF frequency range | 516 ... 865 MHz |
| Frequency range | 516 ... 558 MHz / US |
| Dimensions | 82 x 64 x 24 mm |
| Presets | max. 32 |
| Frequency response | 25 - 15000 Hz |
| Jack plug | 3,5 mm Jack |
| Weight | 200 g |
| Signal-to-noise ratio | > 90 dB(A) |
| Switching bandwidth | max. 75 MHz |
| Operating time | 4 - 6 h |
| Modulation | FM, MPX-stereo |
| Carrier frequencies | max. 3000 |
| Squelch threshold | off, 5 ... 25 dB_V in 2 dB steps |
| Audio-Output-Power | 100 mW @32 ½ |
| Operating voltage (stand alone) | 2 x 1,5V AA |
