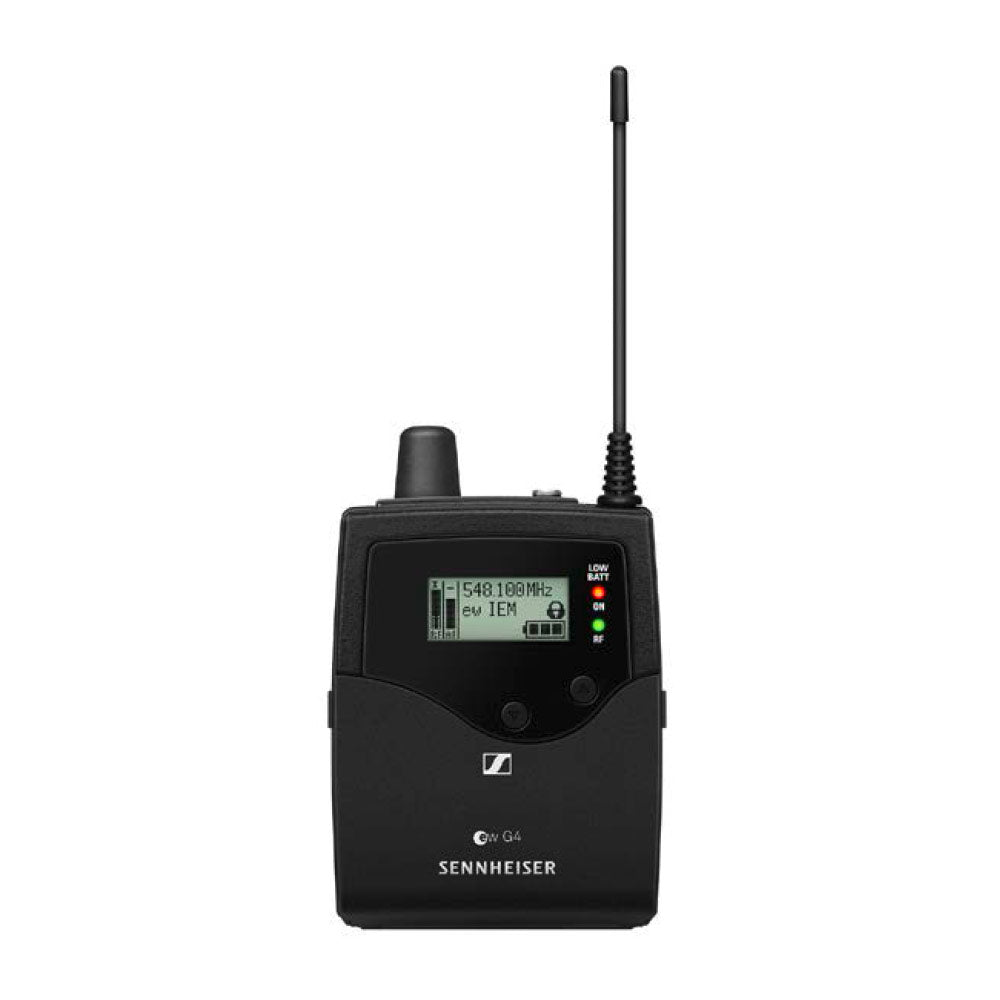

Sennheiser EK IEM G4 Evolution Wireless IEM Bodypack Receiver (A Band/518-554 MHz)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Sennheiser EK IEM G4 Evolution Wireless IEM Bodypack Receiver (A Band/518-554 MHz)
Sale price$549.00
Regular price$649.00
Description
The SK IEM G4 is a robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.
Features:
- Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage
- Easy and exible wireless synchronization between transmitter and receiver via infrared
- Compatible with Sennheiser WSM control software for exible frequency allocation
- Up to 16 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
What's In The Box:
- EK IEM G4 stereo receiver
- 2 AA batteries
- IE 4 earphones
- Quick guide
- Safety guide
- Manufacturer declaration sheet
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | A1: 470 - 516 MHz A: 516 - 558 MHz G: 566 - 608 MHz |
| Receiving frequencies | Max. 1680 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation 6 frequency banks with up to 16 programmable channels |
| Switching bandwidth | up to 42 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Receiver principle | Adaptive diversity |
| Sensitivity (with HDX, peak deviation) | < 4 V, typ. 1.6 V for 52 dBA rms S/N |
| Adjacent channel selection | Typically 65 dB |
| Intermodulation attenuation | Typically 70 dB |
| Blocking | 80 dB |
| Squelch | 5 to 25 dB V, adjustable in steps of 2 dB |
| Pilot tone squelch | Can be switched off |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| Signal-to-noise ratio (1 mV, peak deviation) | approx. 90 dBA |
| Total harmonic distortion (THD) | 0.9 % |
| Output power at 2.4 V, 5 % THD, nominal deviation | 2 x 100 mW at 32 |
| High Boost | +8 dB at 80 kHz |
| Limiter | Ð18 dB to Ð6 dB, adjustable in steps of 6 dB, can be switched off |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
| Current consumption | at nominal voltage: approx. 140 mA with transmitter switched off: 25 A |
| Operating time | approx. 4 to 6 hours (depending on volume level) |
| Dimensions | Approx. 82 x 64 x 24 mm |
| Weight (incl. batteries) | approx. 125 g |
The SK IEM G4 is a robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.
Features:
- Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage
- Easy and exible wireless synchronization between transmitter and receiver via infrared
- Compatible with Sennheiser WSM control software for exible frequency allocation
- Up to 16 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
What's In The Box:
- EK IEM G4 stereo receiver
- 2 AA batteries
- IE 4 earphones
- Quick guide
- Safety guide
- Manufacturer declaration sheet
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | A1: 470 - 516 MHz A: 516 - 558 MHz G: 566 - 608 MHz |
| Receiving frequencies | Max. 1680 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation 6 frequency banks with up to 16 programmable channels |
| Switching bandwidth | up to 42 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Receiver principle | Adaptive diversity |
| Sensitivity (with HDX, peak deviation) | < 4 V, typ. 1.6 V for 52 dBA rms S/N |
| Adjacent channel selection | Typically 65 dB |
| Intermodulation attenuation | Typically 70 dB |
| Blocking | 80 dB |
| Squelch | 5 to 25 dB V, adjustable in steps of 2 dB |
| Pilot tone squelch | Can be switched off |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| Signal-to-noise ratio (1 mV, peak deviation) | approx. 90 dBA |
| Total harmonic distortion (THD) | 0.9 % |
| Output power at 2.4 V, 5 % THD, nominal deviation | 2 x 100 mW at 32 |
| High Boost | +8 dB at 80 kHz |
| Limiter | Ð18 dB to Ð6 dB, adjustable in steps of 6 dB, can be switched off |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
| Current consumption | at nominal voltage: approx. 140 mA with transmitter switched off: 25 A |
| Operating time | approx. 4 to 6 hours (depending on volume level) |
| Dimensions | Approx. 82 x 64 x 24 mm |
| Weight (incl. batteries) | approx. 125 g |
