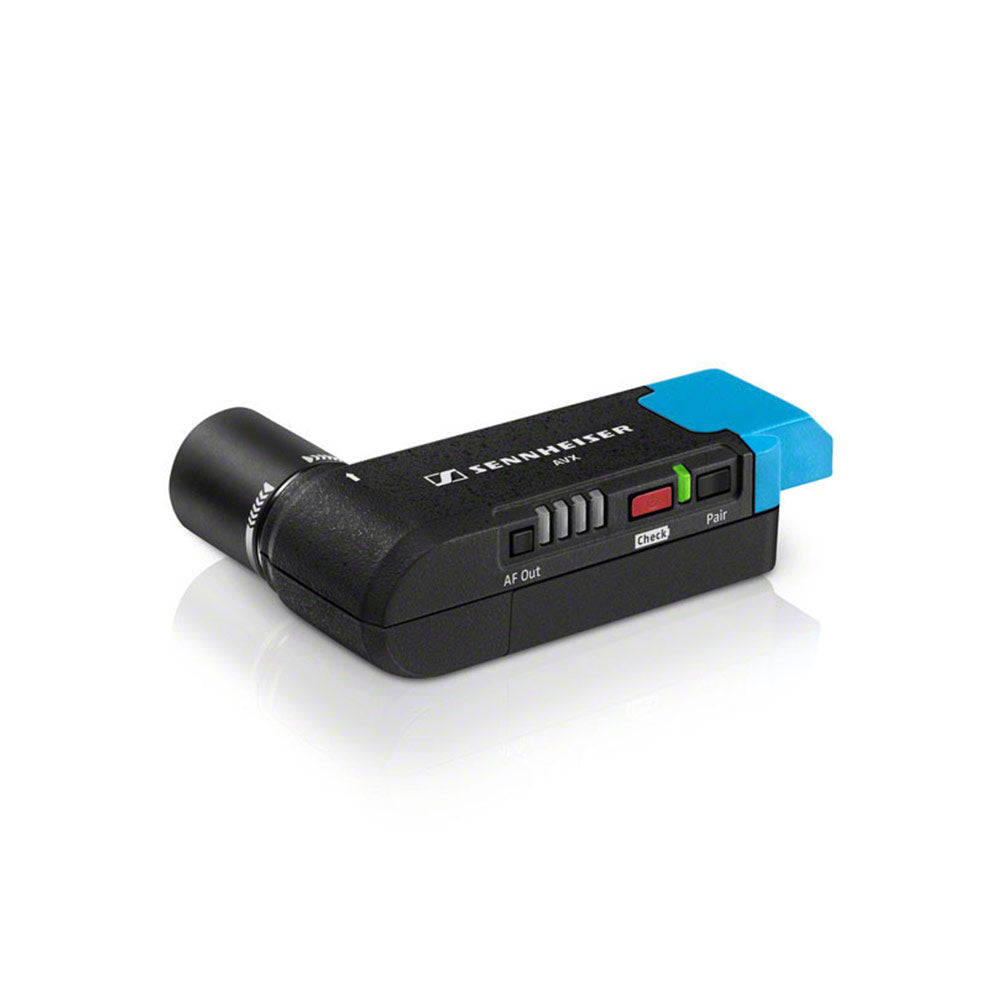

Sennheiser EKP AVX-4-US Plug-On Receiver for AVX Wireless
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The EKP AVX is the receiver for the AVX wireless microphone system. It features self configuring digital transmission which eliminates time-consuming radio frequency setup. The ultra compact receiver rotates around the XLR connector to avoid collision with other devices mounted on your camera. It switches on and off automatically with your camera - saving battery power. The AVX matches perfectly to your camera's input sensitivity without having to adjust the audio level on the microphone.
Features:
- Very fast setup
- Plugs directly into XLR audio input
- Ultra compact receiver
- Switches on/off by P48 Phantom power
- Optimized dynamic range
- Auto frequency management
- AES 256 encryption
- License free
- Metal housing
- Made in Germany
What's In The Box:
- Plug-on receiver
- energy pack
- hot shoe mount
- beltclip
- XLR to mini jack cable
- USB charging cable
| Audio input | 3,5 mm mini jack |
| Audio output | XLR |
| Audio output level | -30 dBu - 0 dBu in 4 Steps |
| Battery Specification | Li-Ion 3,7 V DC |
| Dynamic range | > 120 dB(A) |
| Frequency band | 1880 - 1930 MHz (Country specific) |
| Frequency response | 20 Hz - 20000 Hz |
| Modulation | GFSK |
| Operating temperature | -10 ¡C - + 55¡C |
| Operating time | > 4h (Receiver), typ 15 h (Transmitter with LiIon energy pack) |
| RF output power | adaptive up to 250mW (peak) country specific |
| Sampling rates | 24 bit / 48 kHz |
| Signal-to-noise ratio | > 90 dB(A) |
| THD, total harmonic distortion | typ. 0.1 % |
| Weight | Receiver: 87 g (incl energy pack) |
| Latency | 19 ms |
The EKP AVX is the receiver for the AVX wireless microphone system. It features self configuring digital transmission which eliminates time-consuming radio frequency setup. The ultra compact receiver rotates around the XLR connector to avoid collision with other devices mounted on your camera. It switches on and off automatically with your camera - saving battery power. The AVX matches perfectly to your camera's input sensitivity without having to adjust the audio level on the microphone.
Features:
- Very fast setup
- Plugs directly into XLR audio input
- Ultra compact receiver
- Switches on/off by P48 Phantom power
- Optimized dynamic range
- Auto frequency management
- AES 256 encryption
- License free
- Metal housing
- Made in Germany
What's In The Box:
- Plug-on receiver
- energy pack
- hot shoe mount
- beltclip
- XLR to mini jack cable
- USB charging cable
| Audio input | 3,5 mm mini jack |
| Audio output | XLR |
| Audio output level | -30 dBu - 0 dBu in 4 Steps |
| Battery Specification | Li-Ion 3,7 V DC |
| Dynamic range | > 120 dB(A) |
| Frequency band | 1880 - 1930 MHz (Country specific) |
| Frequency response | 20 Hz - 20000 Hz |
| Modulation | GFSK |
| Operating temperature | -10 ¡C - + 55¡C |
| Operating time | > 4h (Receiver), typ 15 h (Transmitter with LiIon energy pack) |
| RF output power | adaptive up to 250mW (peak) country specific |
| Sampling rates | 24 bit / 48 kHz |
| Signal-to-noise ratio | > 90 dB(A) |
| THD, total harmonic distortion | typ. 0.1 % |
| Weight | Receiver: 87 g (incl energy pack) |
| Latency | 19 ms |
