Sennheiser EM 6000 DANTE Dual-Channel Digital Wireless Receiver with Dante Outputs

  • Dale #:

    SENN-EM6000DANTEUS
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Same as EM 6000 but with two channels of outputs into a Dante network. No compromises, on any stage: With its large 244 MHz switching bandwidth, the EM 6000 2-channel digital receiver can find reliable transmission paths in absolutely any environment. Its renowned LR mode (shared with the maste... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Same as EM 6000 but with two channels of outputs into a Dante network.

No compromises, on any stage: With its large 244 MHz switching bandwidth, the EM 6000 2-channel digital receiver can find reliable transmission paths in absolutely any environment. Its renowned LR mode (shared with the masterpiece Digital 9000) ensures superior quality audio signals, even in the most demanding high frequency scenarios. Error correction and audio error masking recognize and fix problems long before they even become audible. This guarantees a reliable connection where other systems fail.

Through its equidistant frequency grid, Digital 6000 assures the simplest frequency configuration and excellent spectral efficiency. Thanks to the high intermodulation resistance, more channels can now be set up than ever before. Up to eight receivers can be cascaded directly from only one pair of antennas.

Maximum overview, quick setup, shortcuts to important functions: The concept for the new user interface on contrast-rich, white OLED displays comes from practical experience. All vital parameters are summarized at a glance. Important functions can be reached directly via home screens, without lengthy navigation paths. The auto-setup enables scanning and frequency distribution to all connected devices directly via the receiver. Of course, the Digital 6000 can also be monitored and configured via Wireless Systems Manager (WSM) software.

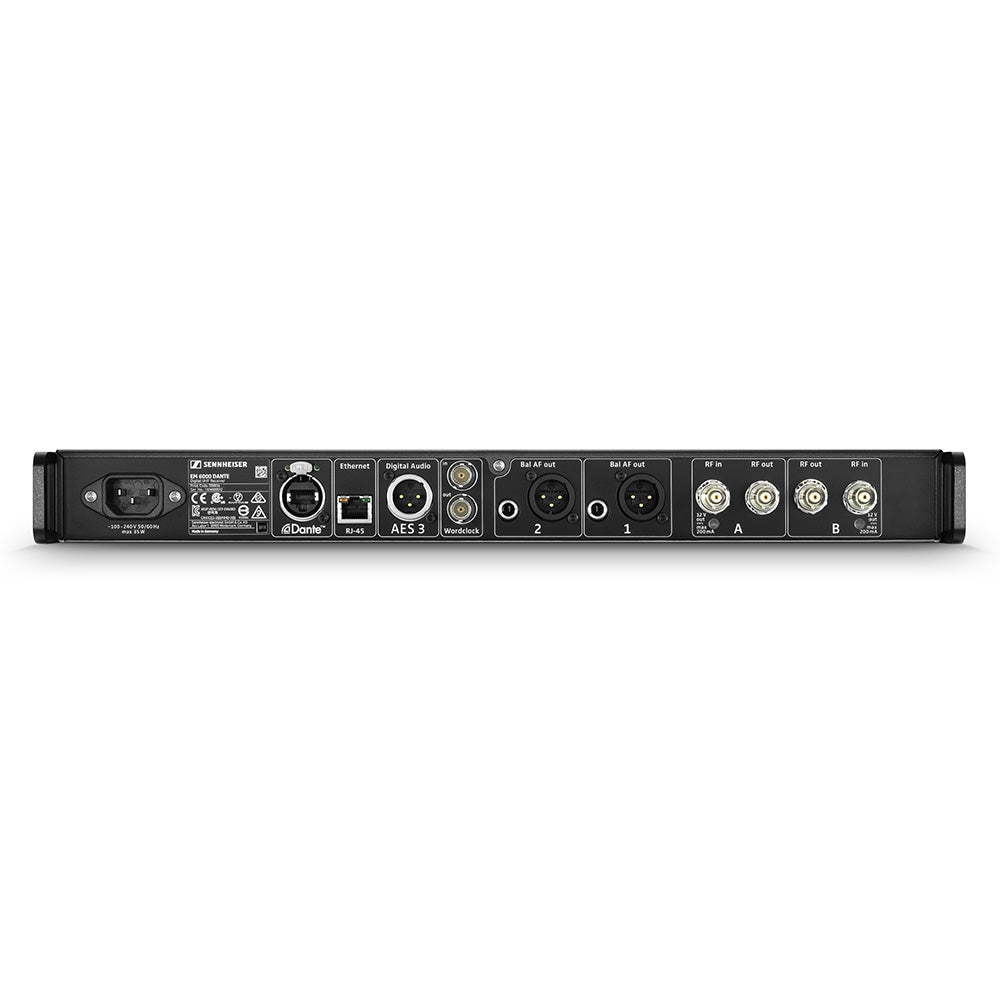

Digital 6000 seamlessly integrates with existing digital or analog infrastructures. The EM 6000 receiver has a digital AES output with word clock in and outputs, high-quality, transformer balanced analog XLR and 6.3 mm TRS jack outputs as well as a 6.3 mm headphone output. The Dante Version with an Audinate Brooklyn II card offers an additional Amphenol RJ-45 connector for integrating the receiver into a Dante network.

The EM 6000 is compatible with all Sennheiser UHF antennas.

Features:

  • 19" 2-Channel receiver, 19 inch 1RU
  • Large 244 MHz switching bandwidth
  • Legendary Long Range mode (LR) with proprietary audio codec (SeDAC) from the masterpiece Digital 9000
  • True bit diversity utilizes both receiver paths, combines their information content to provide the best possible signal
  • Equidistant frequency grid for maximum channel density and simplest setup
  • 32 superior quality RF pre-selection filters for optimal suppression of interference signals at antenna input
  • Error correction and audio error masking
  • AES-256 encryption
  • Automatic frequency setup
  • Digital and transformer balanced analog outputs XLR, 6.3 mm jack, AES-3
  • Dante with Brooklyn II Card and Amphenol RJ-45 Connector
  • Integrated antenna splitter for cascading of up to 8 systems
  • One high-quality OLED display per channel
  • Link Quality Indicator (LQI)
  • Wireless Systems Manager (WSM) compatible
  • Compatible with standard Sennheiser UHF antennas
  • Compatible with Digital 9000 transmitters in Long Range mode

What's In The Box:

  • 1 EM 6000
  • 1 mains cables (with EU, UK or US plug)
  • Quick guide
  • Safty guide
  • 2 Antennas
  • 2 BNC Antenna Cables (50 ohm) for Daisy-Chaining
  • 2 Rubber Feet

More +

Product Specs

Dimensions 44 x 483 x 373 mm
Frequency response 30 Hz - 20 kHz (1.5 dB)
THD, total harmonic distortion < 0.03 % (@ 1 kHz)
Weight Approx. 5.2 kg
Power consumption Max. 35 W
Audio output
Digital Audio outputs AES3-2003, XLR-3: 48 kHz, 96 kHz, 24 bit
Dante™, RJ-45: 48 kHz, 96 kHz, 24 bit (EM 6000 DANTE Only)
Sync Options Can be externally synchronized using WCLK loop-through with BNC sockets
Analog Audio Outputs XLR-3 and 6.3 mm jack per channel (transformer balance)
Output Levels -10 dBu to +18 dBu in steps of 1 dB (2 kΩ)
Storage temperature -25°C to +70°C
Operating temperature -10°C to +50°C
Switching bandwidth 244 MHz
Power supply 90 - 240 V AC, 50/60 Hz
Antenna connector Input 2x BNC (50 Ω), 12 V DC, max. 200 mA each via antenna sockets, short circuit proof, Output 2 x BNC (50 Ω)
Dynamic range 111 dB (A) type
Frequency range 470 - 714 MHz
Headphone output level 6.3 mm jack, 2x 100 mW at 32 Ω
Image rejection > 100 dB typ.
Sensitivity -100 dBm typ.
Word clock Input: BNC, 75 Ω
Output: BNC, 75 Ω
Sampling Rates 48 kHz, 96 kHz
Operating relative humidity Operation: Max. 85% at 40°C (non-condensing)
Storage: Max. 90% at 40°C (non-condensing)
Transmission method Digital modulation, “LR” mode Min. frequency spacing for equidistant grid: 600 kHz
Latency Analog Audio Out: 3 ms
Digital Audio Out: 3 ms (AES/EBU)
Audio codec SeDAC (Sennheiser Digital Audio Codec)
Network protocol IEEE 802.3-2002 (10/100 Mbit/s), shielded RJ-45 connection
Receiver Principle Double superheterodyne
Diversity principle True bit diversity
Encryption AES 256
Receiving channels 2
Daisy-chained receivers (RF) Max. 8 EM 6000 units
Dante™ (only EM 6000 DANTE) IEEE 802.3 (1000 Mbit/s), shielded RJ-45 connection
Power plug 3-pin, protection class I as per IEC/EN 60320-1
Water Protection Code The product must not be exposed to dripping and splashing (IP2X)

More +
