Sennheiser EW-D ME3 SET - Digital Headset Wireless System (Q1-6 Band / 470-550 MHz)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Sennheiser EW-D ME3 SET - Digital Headset Wireless System (Q1-6 Band / 470-550 MHz)
Sale price$799.00
Regular price$949.00
Description
Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter and feedback resistant headmic ME 3 with high speech intelligibility suit perfectly for daily use on stage.
Features:
- Digital wireless eliminates noise, interference and static bursts
- UHF transmission greatly enhances range, reliability and scalability
- Mobile App streamlines setup and operation and eliminates complicated menus
- Automated setup creates reliable connections with minimal time and effort
- Up to 2,240 selectable frequencies
- Lithium Ion battery pack delivers up to 12 hours of operation (up to 8 hours of operation with AA batteries)
- 56 MHz Bandwidth will allow for up to 90 channels
- Preserves every detail of even the most dynamic performances with 134 dB transmitter dynamic range

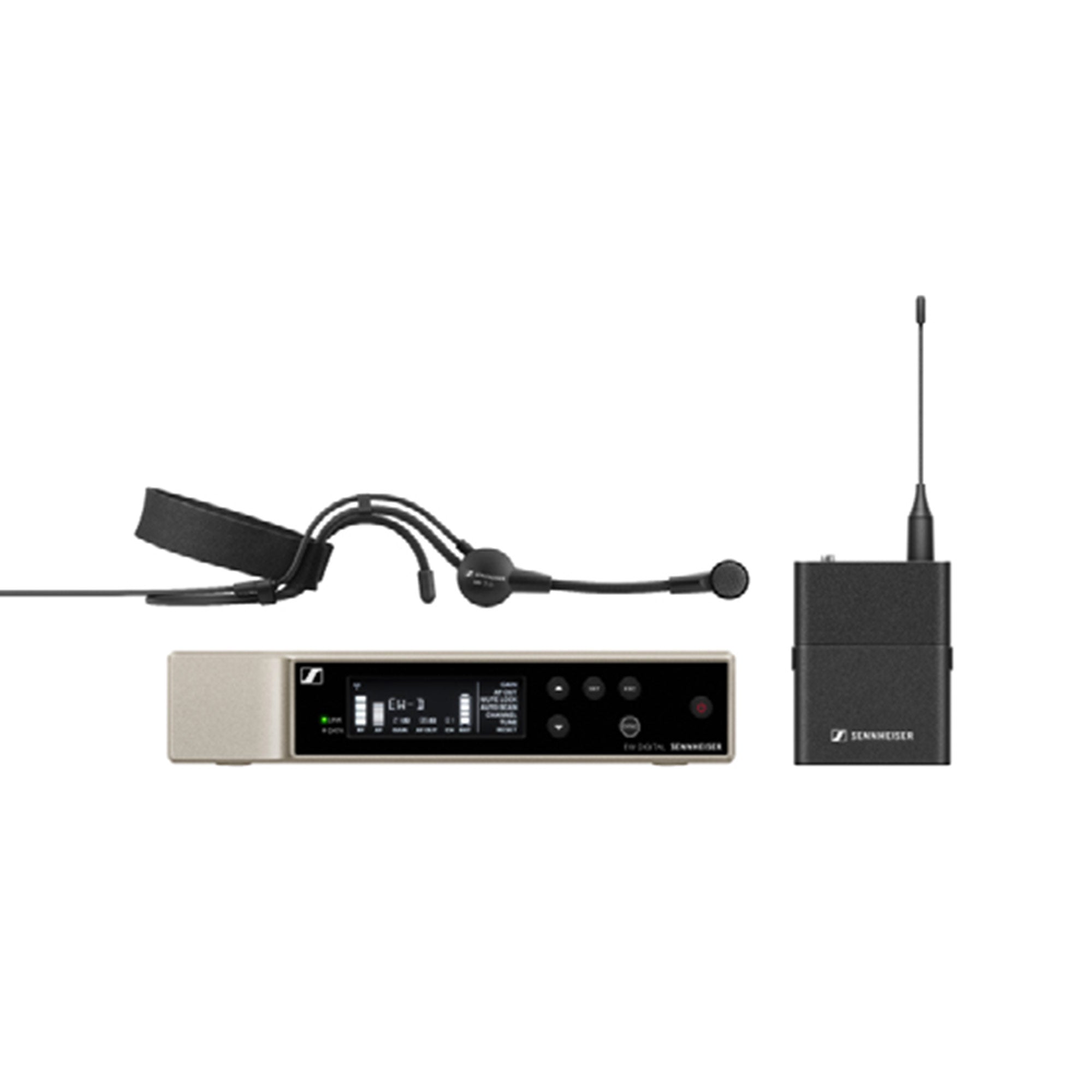

What's In The Box:

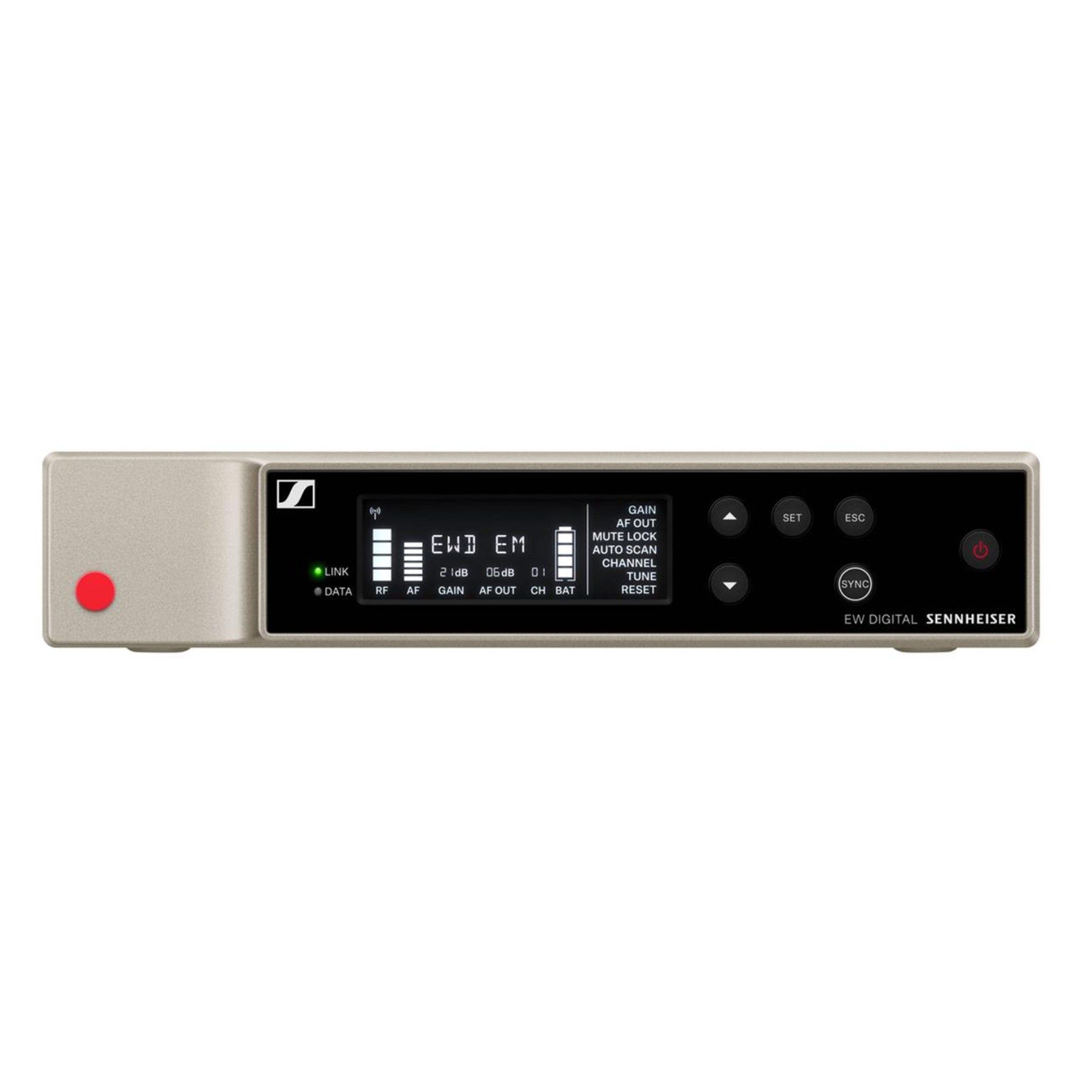

- EW-D EM rack receiver

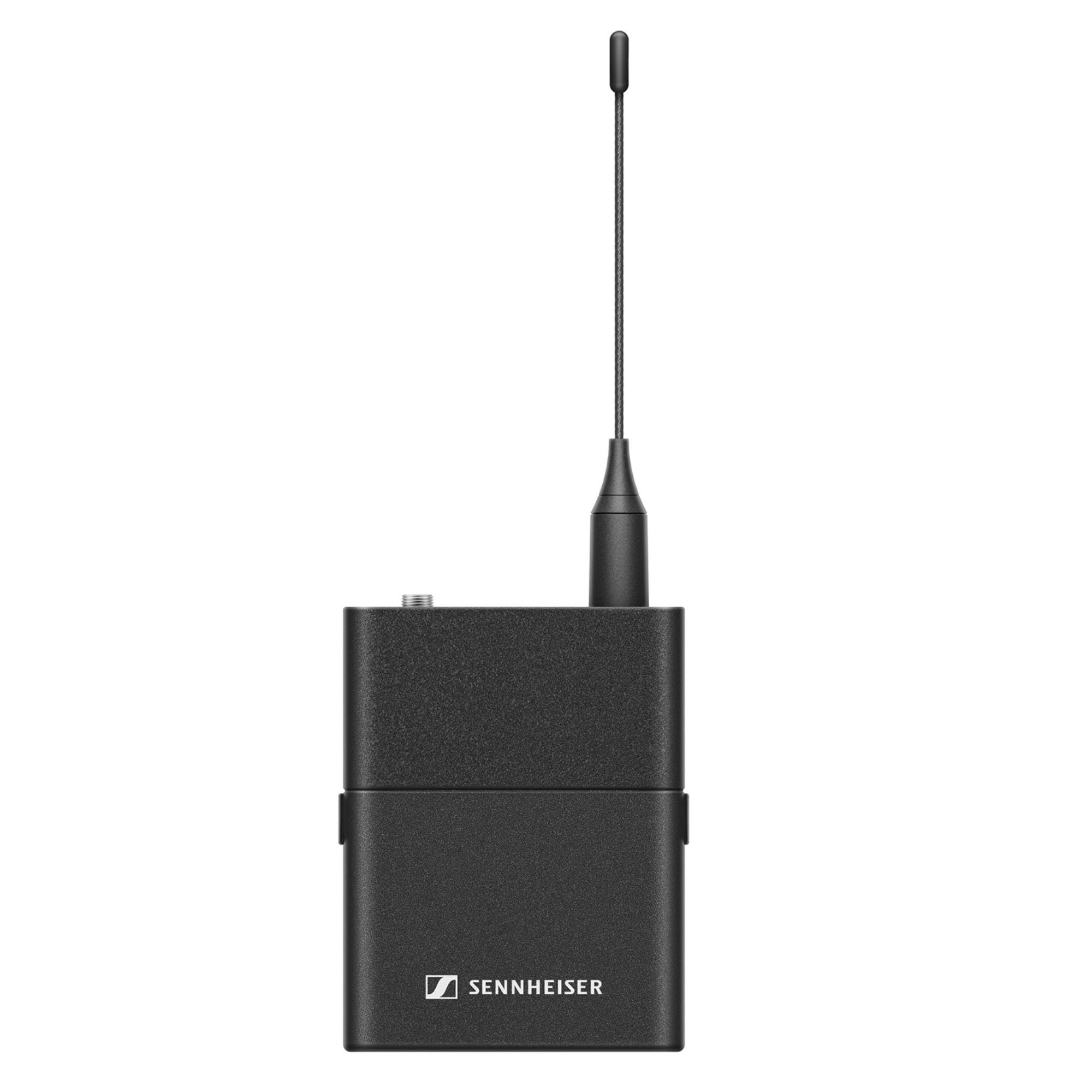

- EW-D SK bodypack transmitter

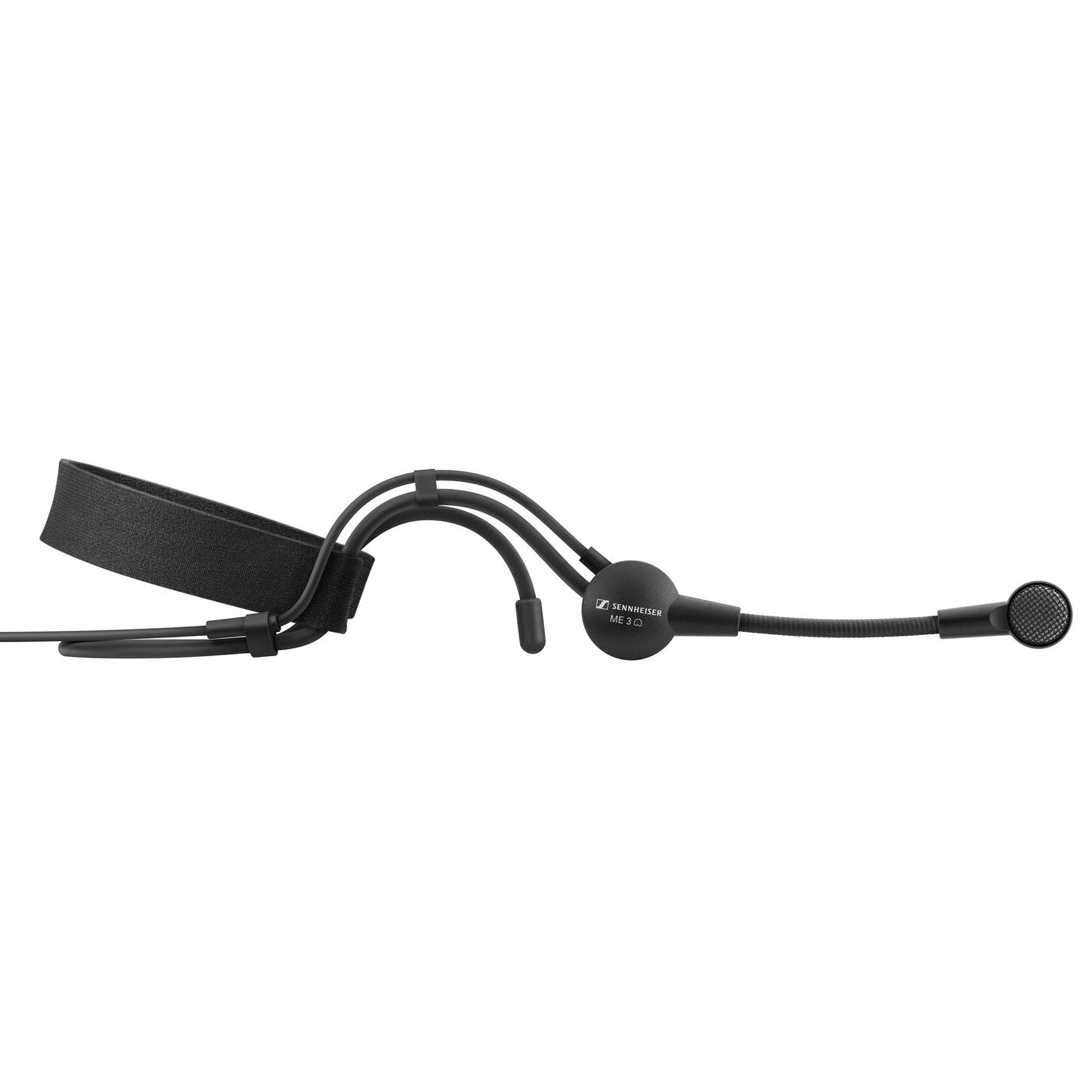

- ME 3 headset microphone
- 2 rod antennas
- power supply with country adapters
- rackmount set
- 4 rubber feet
- quick guide
- safety guide
- manufacturer declaration sheet
| System | |
| Audio link frequency ranges | Q1-6 470.2 - 526 MHz R1-6 520 - 576 MHz R4-9 552 - 607.8 MHz |
| Bluetooth¨ Low Energy (BLE) frequency range | 2402 - 2480 MHz |
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
| Audio THD | ? -60 dB for 1 kHz @ -3 dBfs input level |
| Operating temperature | -10 deg.C - +55 deg.C (14 deg.F - 131 deg.F) |
| Relative humidity | 5 - 95 % (non-condensing) |
| EW-D EM (Rack Receiver) | |
| Input voltage | 11 - 13 V DC |
| Input current | ? 300 mA |
| Transmit power (radiated) | BLE: max. 10 mW EIRP Audio output power 18 dBu max. |
| Dimensions | 212 x 44 x 189 mm |
| Weight | approx. 1000 g (without antennas and power supply) |
| EW-D SK (Bodypack Transmitter) | |
| Input voltage | 2.0 - 4.35 V |
| Input current | < 300 mA |
| Power supply | 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack |
| Occupied bandwidth | 200 kHz |
| Transmit power (radiated) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP |
| Dimensions | 63 x 80 x 20 mm (without antenna) |
| Weight (without batteries) | approx. 120 g |
| ME 3 (Headset Microphone) | |
| Transducer principle | pre-polarized condensor microphone |
| Pick-up pattern | cardioid |
| Sensitivity (free field, no load) (1 kHz) | 1.6 mV/Pa |
| Max. SPL at 1 kHz | 150 dB |
| Frequency response | 50 to 18,000 Hz |
| Equivalent noise level A-weighted (DIN IEC 651) | 32 dB |
| Connector | 3.5 mm jack |
| Cable length | approx. 1.60 m |
| Supply voltage | 7.5 V |
| Set in packaging | |
| Dimensions | 405 x 350 x 73 mm |
| Weight | 3.1 kg |
Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter and feedback resistant headmic ME 3 with high speech intelligibility suit perfectly for daily use on stage.
Features:
- Digital wireless eliminates noise, interference and static bursts
- UHF transmission greatly enhances range, reliability and scalability
- Mobile App streamlines setup and operation and eliminates complicated menus
- Automated setup creates reliable connections with minimal time and effort
- Up to 2,240 selectable frequencies
- Lithium Ion battery pack delivers up to 12 hours of operation (up to 8 hours of operation with AA batteries)
- 56 MHz Bandwidth will allow for up to 90 channels
- Preserves every detail of even the most dynamic performances with 134 dB transmitter dynamic range
What's In The Box:
- EW-D EM rack receiver
- EW-D SK bodypack transmitter
- ME 3 headset microphone
- 2 rod antennas
- power supply with country adapters
- rackmount set
- 4 rubber feet
- quick guide
- safety guide
- manufacturer declaration sheet
| System | |
| Audio link frequency ranges | Q1-6 470.2 - 526 MHz R1-6 520 - 576 MHz R4-9 552 - 607.8 MHz |
| Bluetooth¨ Low Energy (BLE) frequency range | 2402 - 2480 MHz |
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
| Audio THD | ? -60 dB for 1 kHz @ -3 dBfs input level |
| Operating temperature | -10 deg.C - +55 deg.C (14 deg.F - 131 deg.F) |
| Relative humidity | 5 - 95 % (non-condensing) |
| EW-D EM (Rack Receiver) | |
| Input voltage | 11 - 13 V DC |
| Input current | ? 300 mA |
| Transmit power (radiated) | BLE: max. 10 mW EIRP Audio output power 18 dBu max. |
| Dimensions | 212 x 44 x 189 mm |
| Weight | approx. 1000 g (without antennas and power supply) |
| EW-D SK (Bodypack Transmitter) | |
| Input voltage | 2.0 - 4.35 V |
| Input current | < 300 mA |
| Power supply | 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack |
| Occupied bandwidth | 200 kHz |
| Transmit power (radiated) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP |
| Dimensions | 63 x 80 x 20 mm (without antenna) |
| Weight (without batteries) | approx. 120 g |
| ME 3 (Headset Microphone) | |
| Transducer principle | pre-polarized condensor microphone |
| Pick-up pattern | cardioid |
| Sensitivity (free field, no load) (1 kHz) | 1.6 mV/Pa |
| Max. SPL at 1 kHz | 150 dB |
| Frequency response | 50 to 18,000 Hz |
| Equivalent noise level A-weighted (DIN IEC 651) | 32 dB |
| Connector | 3.5 mm jack |
| Cable length | approx. 1.60 m |
| Supply voltage | 7.5 V |
| Set in packaging | |
| Dimensions | 405 x 350 x 73 mm |
| Weight | 3.1 kg |
