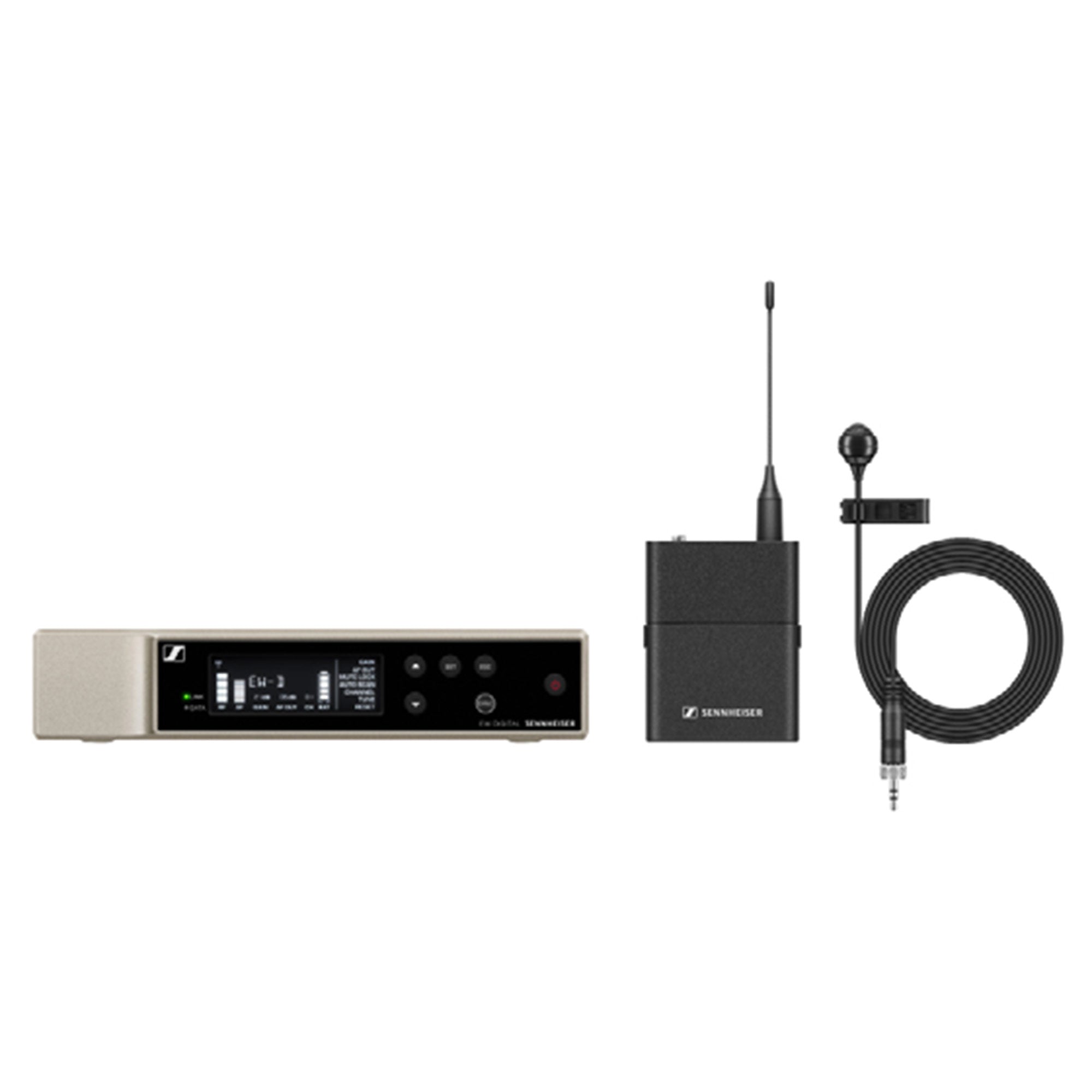

Sennheiser EW-D ME4 SET - Digital Lavalier Wireless System (R4-9 Band / 552-608 MHz)

  • Dale #:

    SENN-EWDME4SETR49
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter and unobstrusive clip-on microphone ME 4 (cardioid) with hi... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter and unobstrusive clip-on microphone ME 4 (cardioid) with high speech intelligibility suit perfectly for daily use on stage.

Features:

  • Digital wireless eliminates noise, interference and static bursts
  • UHF transmission greatly enhances range, reliability and scalability
  • Mobile App streamlines setup and operation and eliminates complicated menus
  • Automated setup creates reliable connections with minimal time and effort
  • Up to 2,240 selectable frequencies
  • Lithium Ion battery pack delivers up to 12 hours of operation (up to 8 hours of operation with AA batteries)
  • 56 MHz Bandwidth will allow for up to 90 channels
  • Preserves every detail of even the most dynamic performances with 134 dB transmitter dynamic range

What's In The Box:

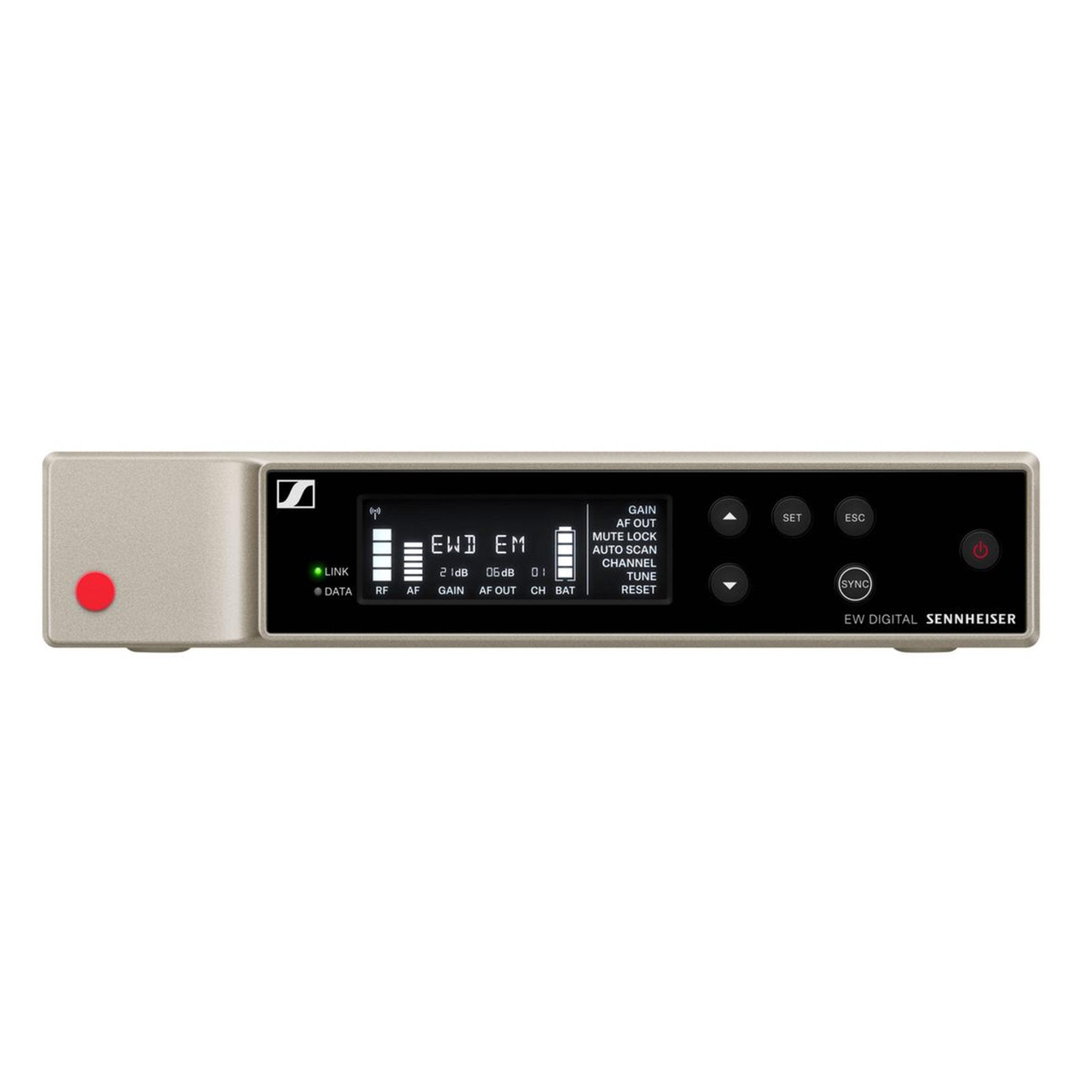

  • EW-D EM rack receiver
  • EW-D SK bodypack transmitter

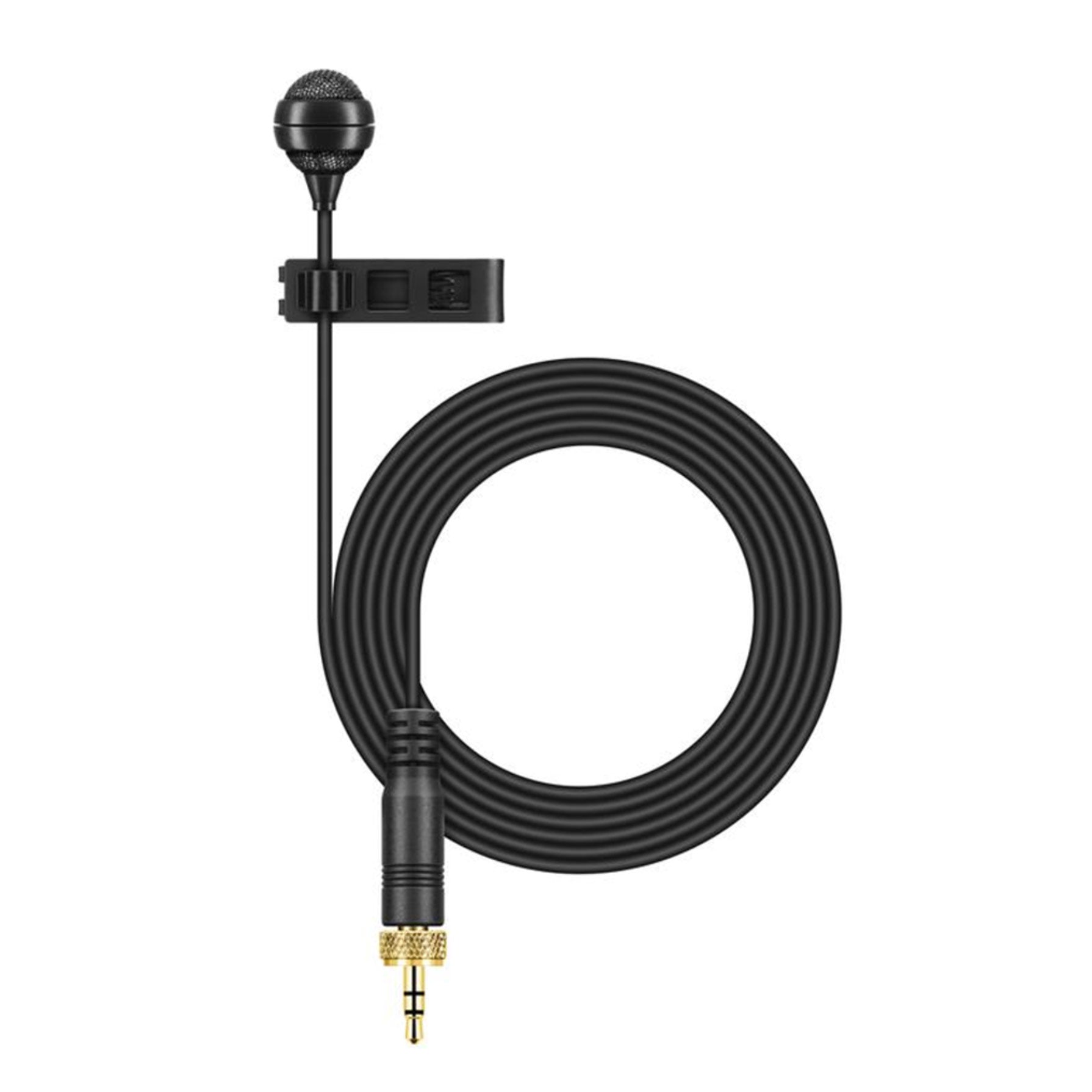

  • ME 4 lavalier microphone
  • 2 rod antennas
  • power supply with country adapters
  • rackmount set
  • 4 rubber feet
  • quick guide
  • safety guide
  • manufacturer declaration sheet

More +

Product Specs

System
Audio link frequency ranges Q1-6 470.2 - 526 MHz
R1-6 520 - 576 MHz
R4-9 552 - 607.8 MHz
Bluetooth® Low Energy (BLE) frequency range 2402 - 2480 MHz
Audio frequency response 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio THD ? -60 dB for 1 kHz @ -3 dBfs input level
Operating temperature -10 deg.C - +55 deg.C (14 deg.F - 131 deg.F)
Relative humidity 5 - 95 % (non-condensing)
EW-D EM (Rack Receiver)
Input voltage 11 - 13 V DC
Input current ? 300 mA
Transmit power (radiated) BLE: max. 10 mW EIRP
Audio output power 18 dBu max.
Dimensions 212 x 44 x 189 mm
Weight approx. 1000 g (without antennas and power supply)
EW-D SK (Bodypack Transmitter)
Input voltage 2.0 - 4.35 V
Input current < 300 mA
Power supply 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
Occupied bandwidth 200 kHz
Transmit power (radiated) Audio link: 10 mW ERP
(Range Y1-3: 12 mW ERP)
BLE: max. 10 mW EIRP
Dimensions 63 x 80 x 20 mm (without antenna)
Weight (without batteries) approx. 120 g
ME 4 (Lavalier Microphone)
Transducer principle pre-polarized condensor microphone
Pick-up pattern cardioid
Sensitivity (free field, no load) (1 kHz) 40 mV/Pa
Max. SPL at 1 kHz 120 dB
Frequency response 50 to 18,000 Hz
Equivalent noise level A-weighted (DIN IEC 651) 31 dB
Connector 3.5 mm jack
Cable length approx. 1.60 m
Supply voltage 7.5 V
Set in packaging
Dimensions 405 x 350 x 73 mm
Weight 3.1 kg
