Description
Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter suits perfectly for daily use on stage.
Features:
- Digital wireless eliminates noise, interference and static bursts
- UHF transmission greatly enhances range, reliability and scalability
- Mobile App streamlines setup and operation and eliminates complicated menus
- Automated setup creates reliable connections with minimal time and effort
- Up to 2,240 selectable frequencies
- Lithium Ion battery pack delivers up to 12 hours of operation (up to 8 hours of operation with AA batteries)
- 56 MHz Bandwidth will allow for up to 90 channels
- Preserves every detail of even the most dynamic performances with 134 dB transmitter dynamic range

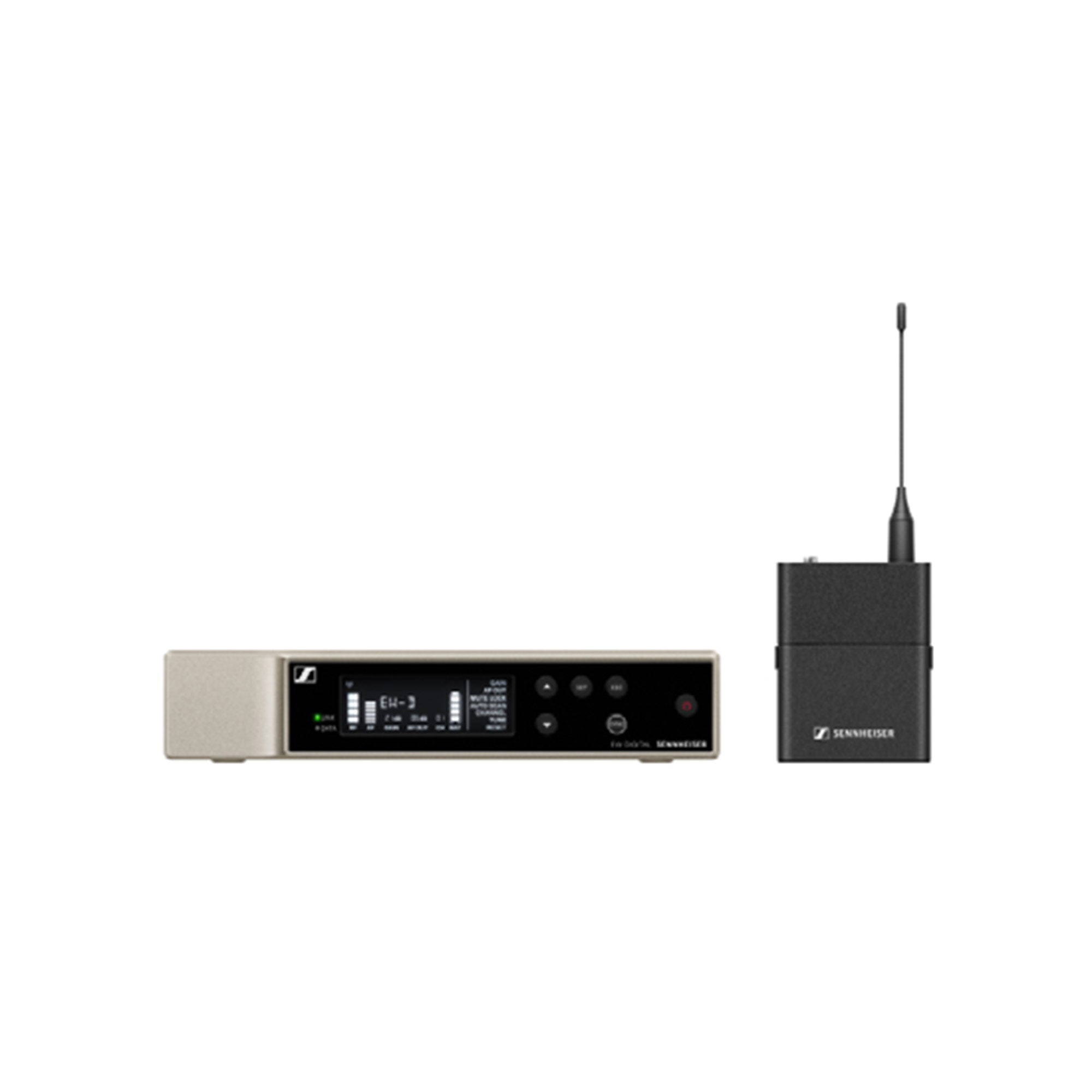

What's In The Box:
- EW-D EM rack receiver
- EW-D SK bodypack transmitter
- 2 rod antennas
- power supply with country adapters
- rackmount set
- 4 rubber feet
- quick guide
- safety guide
- manufacturer declaration sheet
System | |
Audio link frequency ranges | Q1-6 470.2 - 526 MHz R1-6 520 - 576 MHz R4-9 552 - 607.8 MHz |
Bluetooth¨ Low Energy (BLE) frequency range | 2402 - 2480 MHz |
Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
Audio THD | ? -60 dB for 1 kHz @ -3 dBfs input level |
Operating temperature | -10 deg.C - +55 deg.C (14 deg.F - 131 deg.F) |
Relative humidity | 5 - 95 % (non-condensing) |

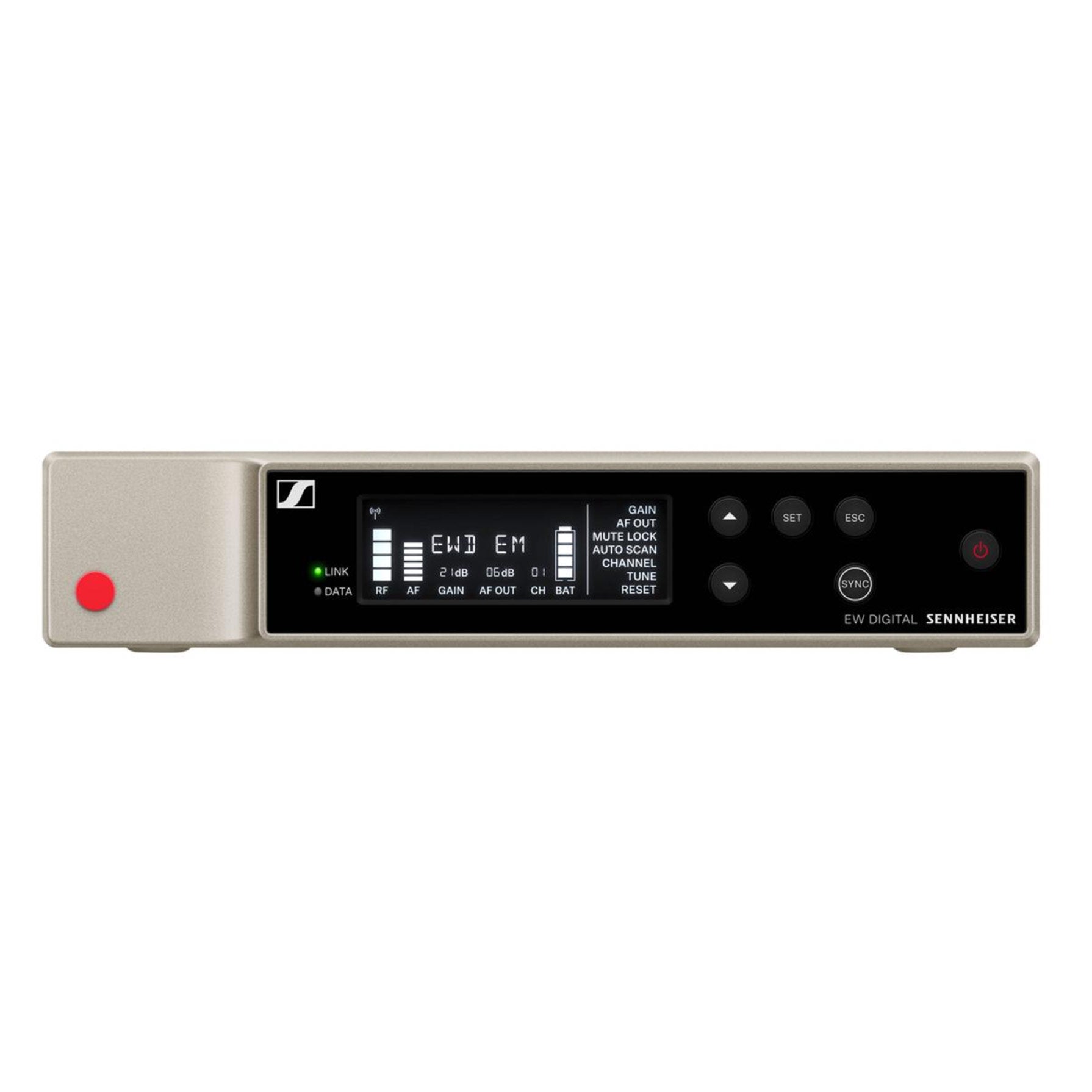

EW-D EM (Rack Receiver) | |
Input voltage | 11 - 13 V DC |
Input current | ? 300 mA |
Transmit power (radiated) | BLE: max. 10 mW EIRP Audio output power 18 dBu max. |
Dimensions | 212 x 44 x 189 mm |
Weight | approx. 1000 g (without antennas and power supply) |
EW-D SK (Bodypack Transmitter) | |
Input voltage | 2.0 - 4.35 V |
Input current | < 300 mA |
Power supply | 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack |
Occupied bandwidth | 200 kHz |
Transmit power (radiated) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP |
Dimensions | 63 x 80 x 20 mm (without antenna) |
Weight (without batteries) | approx. 120 g |
Set in packaging | |
Dimensions | 405 x 350 x 73 mm |
Weight | 3.1 kg |
