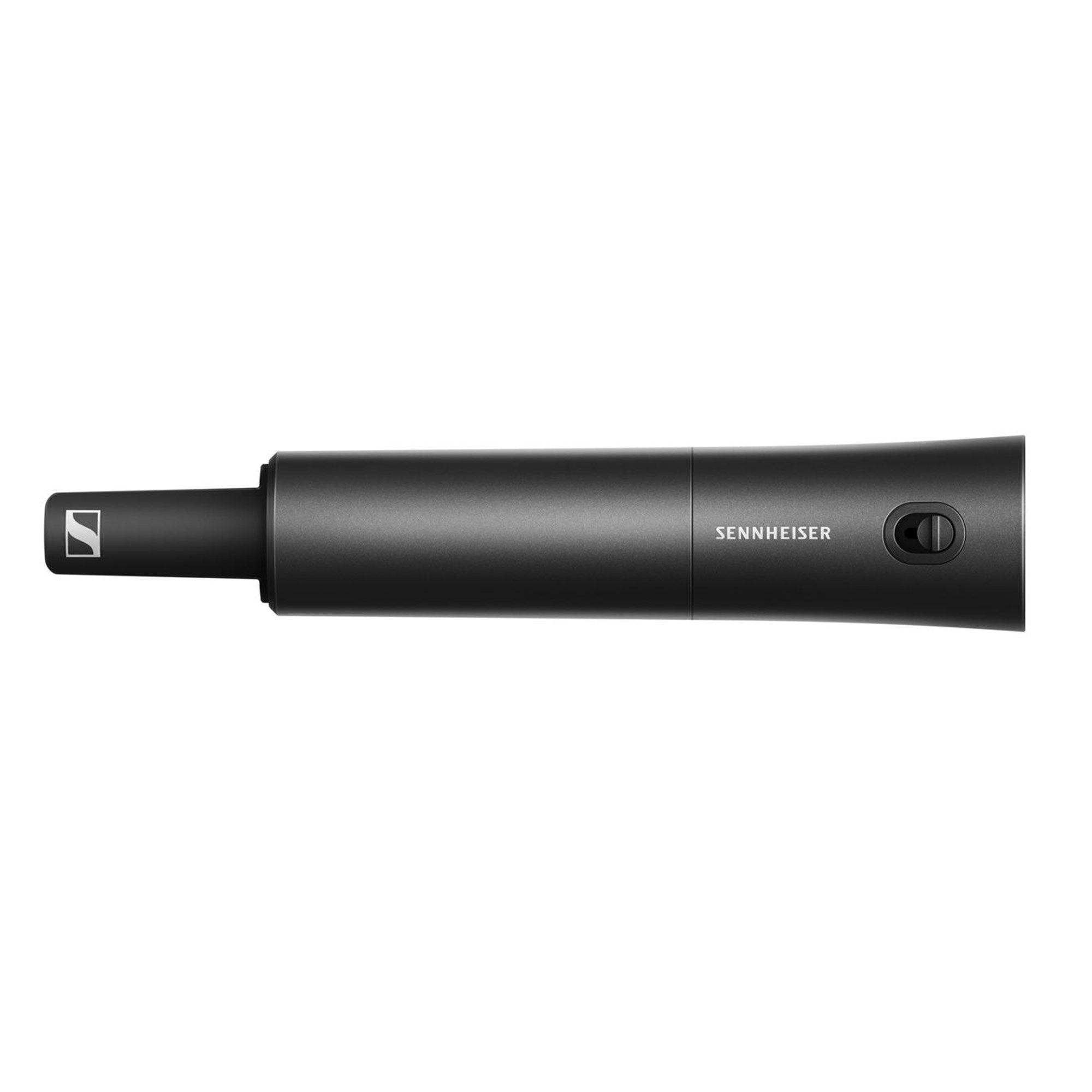

Sennheiser EW-D SKM-S Digital Handheld Transmitter for EW-D Wireless (Q1-6 Band / 470-550 MHz)
Dale #:
SENN-EWDSKMSQ16Availability:
Not in Stock - Reserve YoursThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Description
Rugged and versatile handheld transmitter for use with Evolution Wireless Digital receivers. Microphone module not included. What's In The Box: (1) EW-D handheld transmitter (1) MZQ 1 microphone clamp (2) AA batteries Read MoreRetail Price: $349.00 Our Price: $299.95
Free Shipping (Continental US)
Suggested Accessories
Description
Rugged and versatile handheld transmitter for use with Evolution Wireless Digital receivers.
Microphone module not included.
What's In The Box:
- (1) EW-D handheld transmitter
- (1) MZQ 1 microphone clamp
- (2) AA batteries
More +
Product Specs
| System | |
| Audio link frequency ranges | Q1-6 470.2 - 526 MHz R1-6 520 - 576 MHz R4-9 552 - 607.8 MHz |
| Bluetooth® Low Energy (BLE) frequency range | 2402 - 2480 MHz |
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
| Audio THD | ? -60 dB for 1 kHz @ -3 dBfs input level |
| Operating temperature | -10 deg.C - +55 deg.C (14 deg.F - 131 deg.F) |
| Relative humidity | 5 - 95 % (non-condensing) |
| EW-D SKM-S (Handheld Transmitter) | |
| Input voltage | 2.0 - 4.35 V |
| Input current | < 300 mA |
| Power supply | 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack |
| Occupied bandwidth | 200 kHz |
| Transmit power (radiated) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP |
| Dimensions (O x l) | 50 x 268 mm (incl. MMD 835 microphone module) 40 x 200 mm (without microphone module) |
| Weight (without batteries) | approx. 304 g (incl. MMD 835 microphone module) approx. 195 g (without microphone module) |
