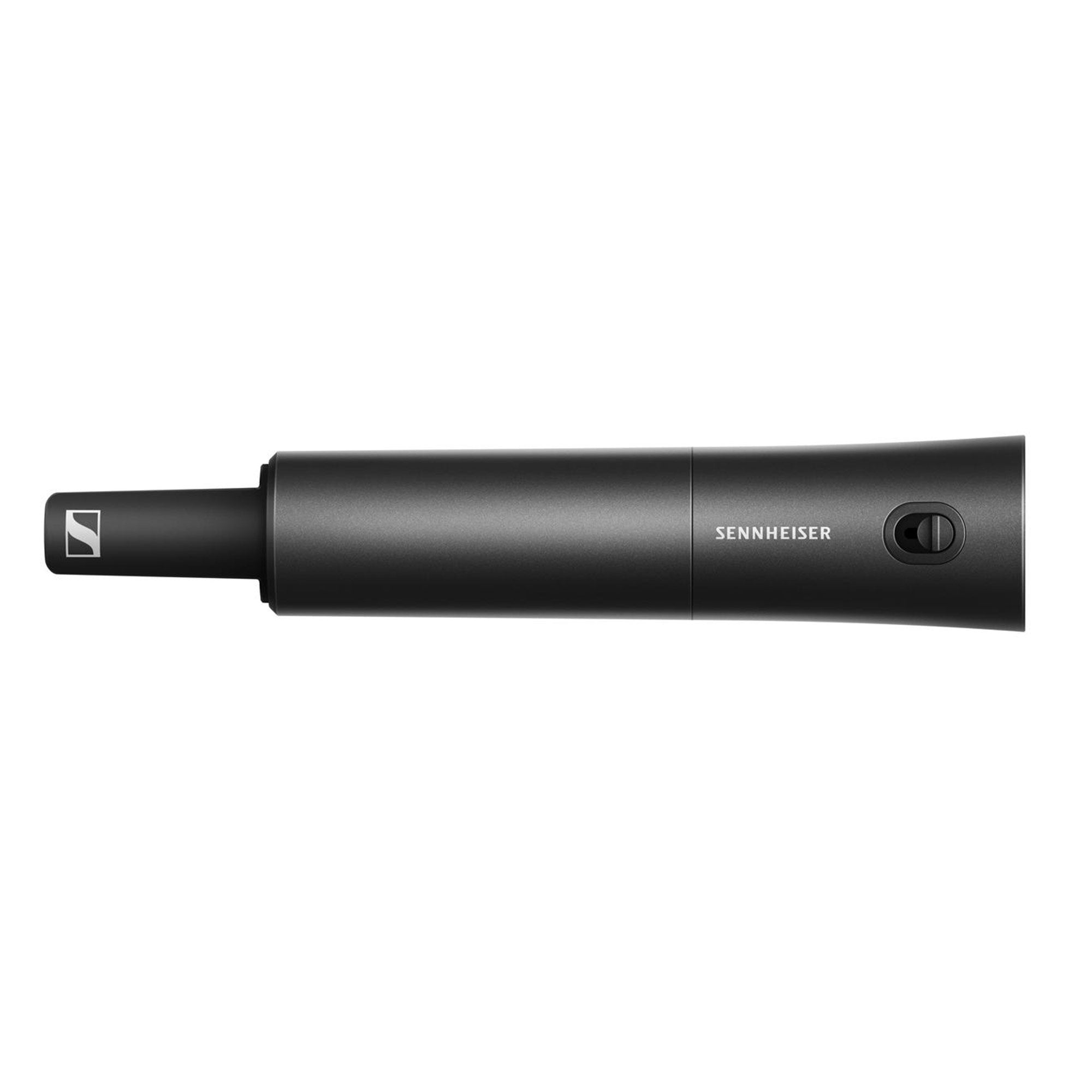

Sennheiser EW-D SKM-S Digital Handheld Transmitter for EW-D Wireless (R1-6 Band / 520-576 MHz)


  • Dale #:

    SENN-EWDSKMSR16
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

Rugged and versatile handheld transmitter for use with Evolution Wireless Digital receivers. Microphone module not included. What's In The Box: (1) EW-D handheld transmitter (1) MZQ 1 microphone clamp (2) AA batteries Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Rugged and versatile handheld transmitter for use with Evolution Wireless Digital receivers.

Microphone module not included.

What's In The Box:

  • (1) EW-D handheld transmitter
  • (1) MZQ 1 microphone clamp
  • (2) AA batteries

More +

Product Specs

System
Audio link frequency ranges Q1-6 470.2 - 526 MHz
R1-6 520 - 576 MHz
R4-9 552 - 607.8 MHz
Bluetooth® Low Energy (BLE) frequency range 2402 - 2480 MHz
Audio frequency response 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio THD ? -60 dB for 1 kHz @ -3 dBfs input level
Operating temperature -10 deg.C - +55 deg.C (14 deg.F - 131 deg.F)
Relative humidity 5 - 95 % (non-condensing)
EW-D SKM-S (Handheld Transmitter)
Input voltage 2.0 - 4.35 V
Input current < 300 mA
Power supply 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
Occupied bandwidth 200 kHz
Transmit power (radiated) Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)
BLE: max. 10 mW EIRP
Dimensions (O x l) 50 x 268 mm (incl. MMD 835 microphone module)
40 x 200 mm (without microphone module)
Weight (without batteries) approx. 304 g (incl. MMD 835 microphone module)
approx. 195 g (without microphone module)
