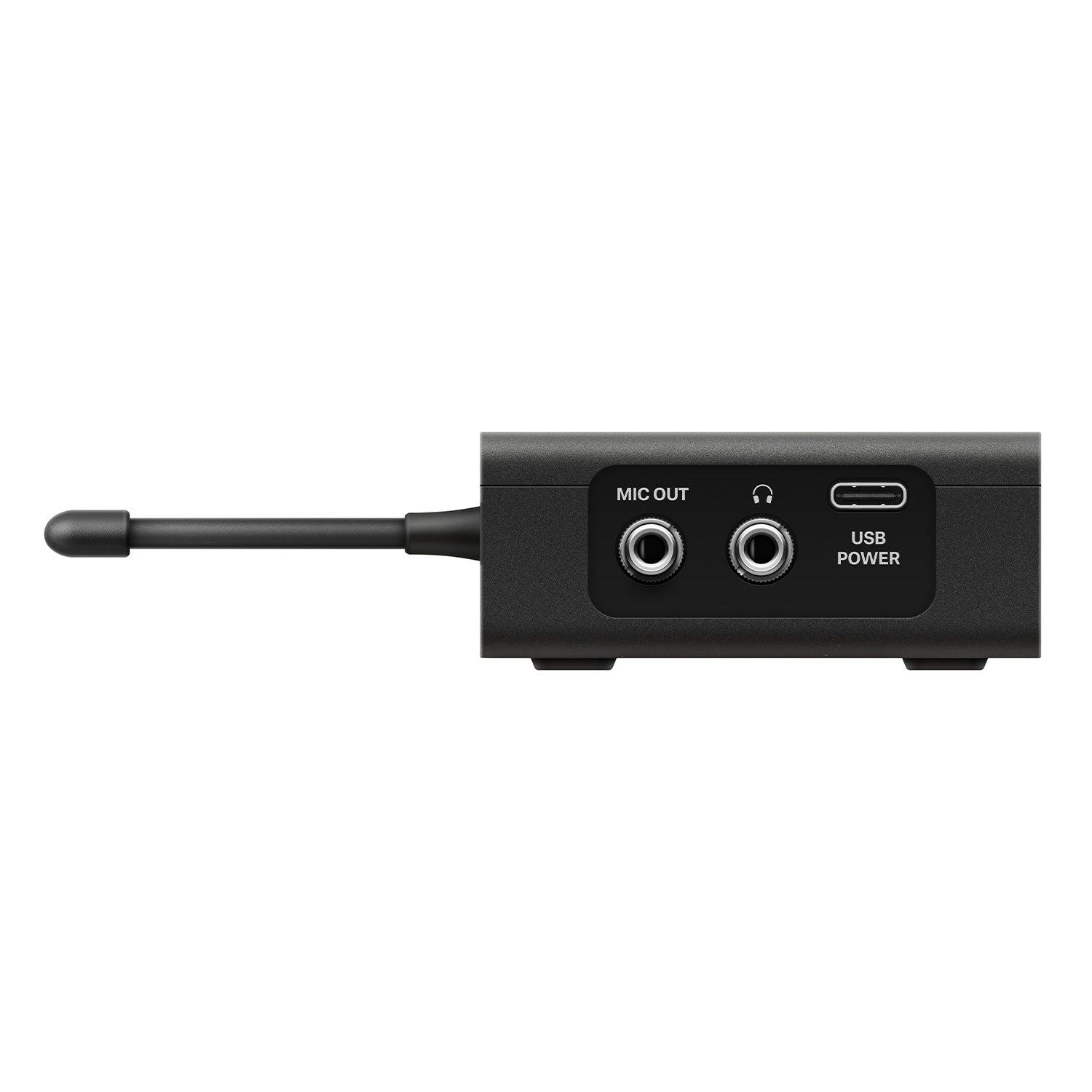

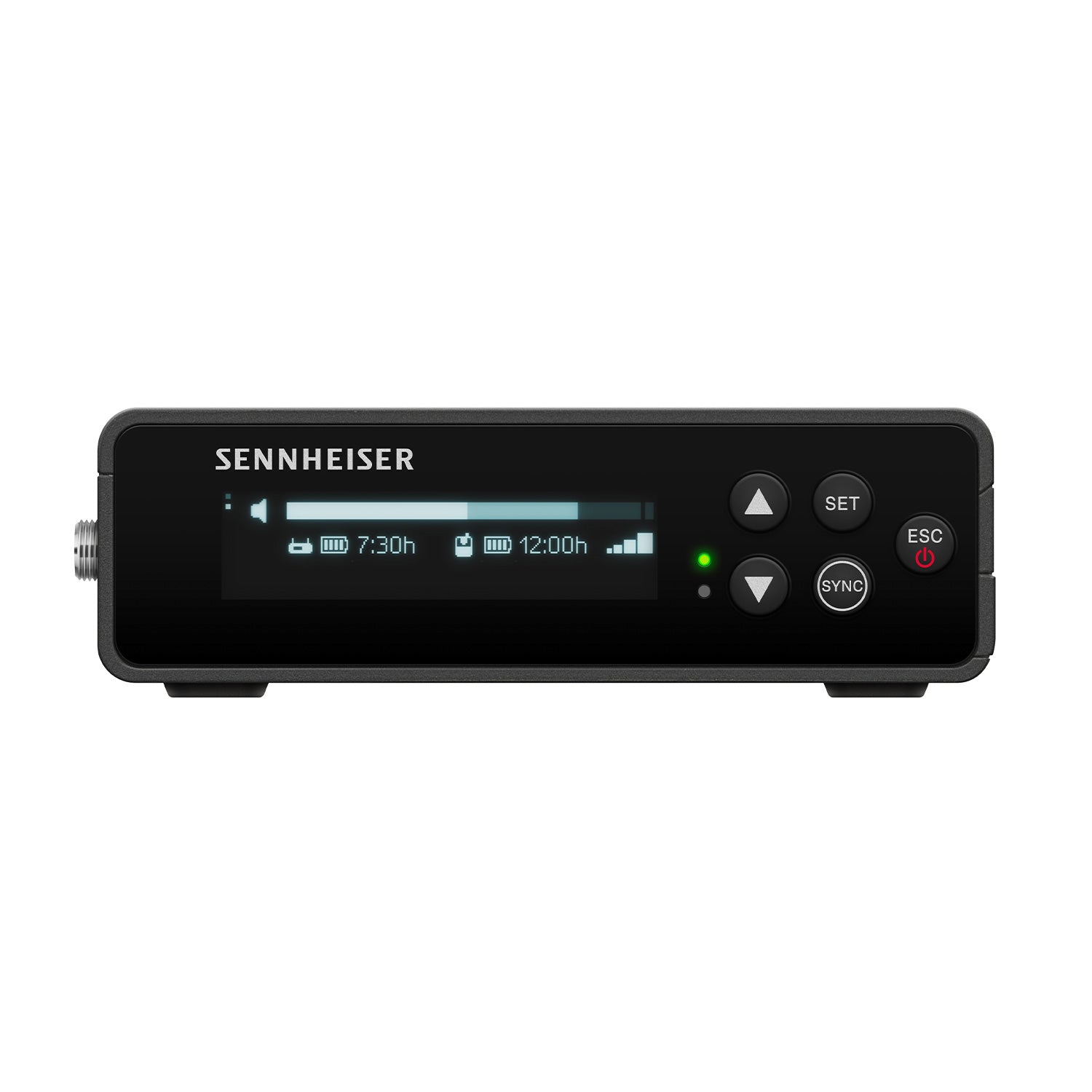

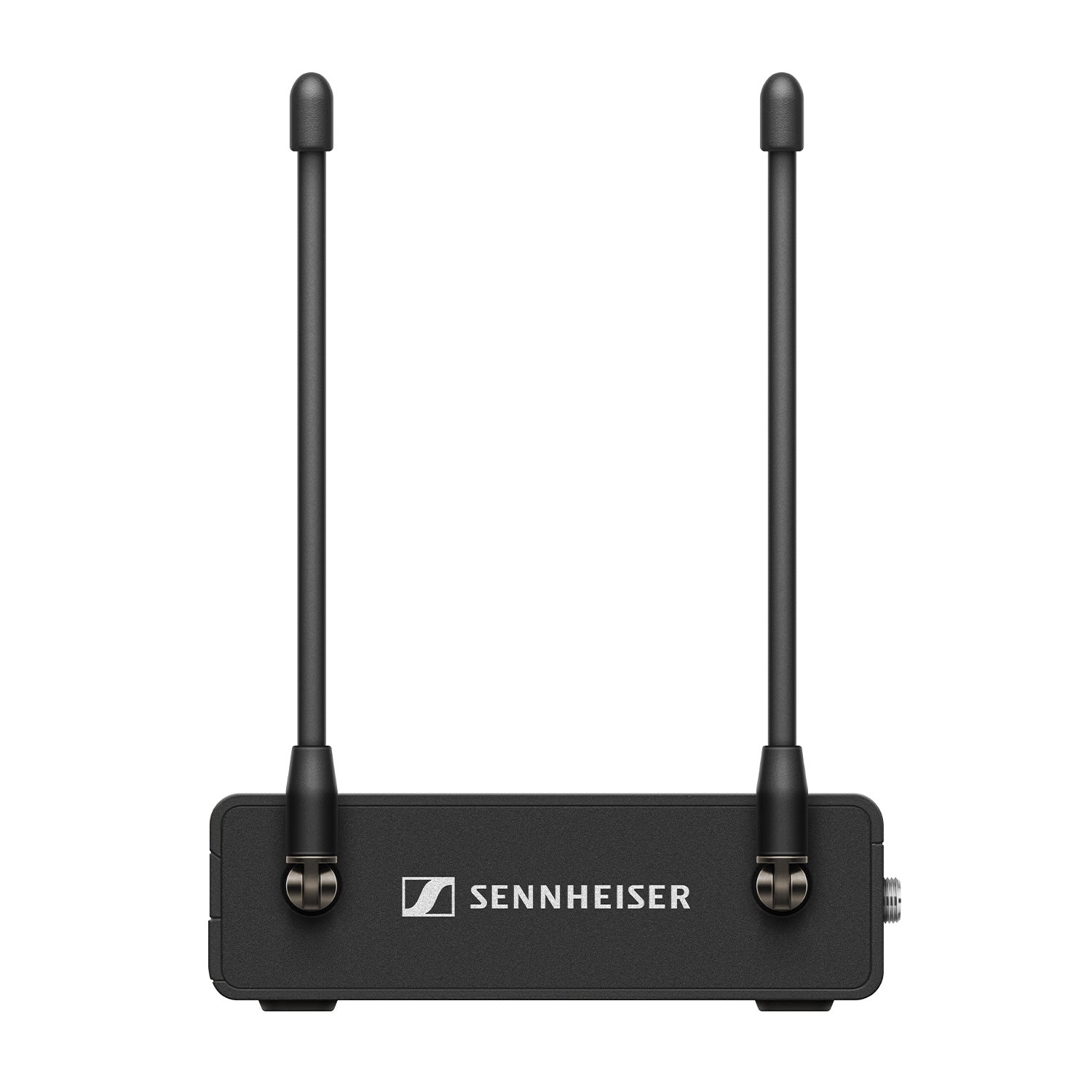

Sennheiser EW-DP EK - Portable Digital Wireless Receiver (R1-6 Band / 520-576 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Sennheiser EW-DP EK - Portable Digital Wireless Receiver (R1-6 Band / 520-576 MHz)
Sale price$379.00
Regular price$449.00
Description
Portable digital UHF wireless receiver for filmmakers, content creators, and broadcasters.
Features:
- Fully digital UHF wireless microphone system for video applications
- Integrated Bluetooth for synchronization and control
- Smart Notifications for troubleshooting and system guidance
- Intelligent battery management provides operating time (hours:minutes)
- Extended battery life: up to 12h on transmitter, 7h on receiver
- Magnetically stackable components for versatile mounting
- Industry leading 134 dB dynamic range for distortion free transmission
- Up to 56 MHz bandwidth for flexibility in any RF environment
- Exceptionally low latency (1.9 ms)
- External charging and powering via USB-C (receiver only)
- Smart Assist app for monitor and control
- Optional plug-on transmitter features XLR or 3.5 mm inputs, +48V and recording via microSD (ENG Set or component only)
What's In The Box:
- EW-DP EK digital portable single channel receiver
- USB-C charging cable
| System | |
| Audio link frequency ranges | Q1-6: 470.2 - 526 MHz R1-6: 520 - 576 MHz R4-9: 552 - 607.8 MHz |
| Bluetooth¨ Low Energy (BLE) frequency range | 2402 - 2480 MHz |
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
| Audio THD | ? -60 dB for 1 kHz @ -3 dBfs input level |
| Dynamic range | 134 dB |
| System latency | 1.9 ms |
| Operating temperature | -10 ¡C - +55 ¡C (14 ¡F - 131 ¡F) |
| Relative humidity | 5 - 95 % (non-condensing) |
| EW-DP EK | |
| Input voltage | ~ 1.8 - 4.35 V |
| Input current | Typ. < 250 mA / Max. < 400 mA (BA 70) Typ. < 400 mA / Max. < 750 mA (2x AA batteries) < 300 mA@5 V (USB-C standalone) |
| Power Supply | 2x AA batteries 1.5V or BA70 rechargeable battery pack or USB-C PD power supply (max.): ¥ 5V / 1500mA ¥ 9V / 900mA ¥ 12V / 700mA |
| Transmit power (radiated) | BLE: max. 10 mW EIRP |
| Audio output power | < 2 dBV max. (high level) / < 4dBU max (high level) |
| Headphone Output | < 50 mW into 16 Ohms |
| Dimensions | 86 x 67 x 28 mm (3.39" x 2.64" x 1.1") |
| Weight (without antennas and power supply) | approx. 140g (0.31 lbs) |
Portable digital UHF wireless receiver for filmmakers, content creators, and broadcasters.
Features:
- Fully digital UHF wireless microphone system for video applications
- Integrated Bluetooth for synchronization and control
- Smart Notifications for troubleshooting and system guidance
- Intelligent battery management provides operating time (hours:minutes)
- Extended battery life: up to 12h on transmitter, 7h on receiver
- Magnetically stackable components for versatile mounting
- Industry leading 134 dB dynamic range for distortion free transmission
- Up to 56 MHz bandwidth for flexibility in any RF environment
- Exceptionally low latency (1.9 ms)
- External charging and powering via USB-C (receiver only)
- Smart Assist app for monitor and control
- Optional plug-on transmitter features XLR or 3.5 mm inputs, +48V and recording via microSD (ENG Set or component only)
What's In The Box:
- EW-DP EK digital portable single channel receiver
- USB-C charging cable
| System | |
| Audio link frequency ranges | Q1-6: 470.2 - 526 MHz R1-6: 520 - 576 MHz R4-9: 552 - 607.8 MHz |
| Bluetooth¨ Low Energy (BLE) frequency range | 2402 - 2480 MHz |
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
| Audio THD | ? -60 dB for 1 kHz @ -3 dBfs input level |
| Dynamic range | 134 dB |
| System latency | 1.9 ms |
| Operating temperature | -10 ¡C - +55 ¡C (14 ¡F - 131 ¡F) |
| Relative humidity | 5 - 95 % (non-condensing) |
| EW-DP EK | |
| Input voltage | ~ 1.8 - 4.35 V |
| Input current | Typ. < 250 mA / Max. < 400 mA (BA 70) Typ. < 400 mA / Max. < 750 mA (2x AA batteries) < 300 mA@5 V (USB-C standalone) |
| Power Supply | 2x AA batteries 1.5V or BA70 rechargeable battery pack or USB-C PD power supply (max.): ¥ 5V / 1500mA ¥ 9V / 900mA ¥ 12V / 700mA |
| Transmit power (radiated) | BLE: max. 10 mW EIRP |
| Audio output power | < 2 dBV max. (high level) / < 4dBU max (high level) |
| Headphone Output | < 50 mW into 16 Ohms |
| Dimensions | 86 x 67 x 28 mm (3.39" x 2.64" x 1.1") |
| Weight (without antennas and power supply) | approx. 140g (0.31 lbs) |
