Sennheiser EW-DP ME2 SET - Portable Digital Lavalier Wireless System (Q1-6 Band / 470-526 MHz)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.

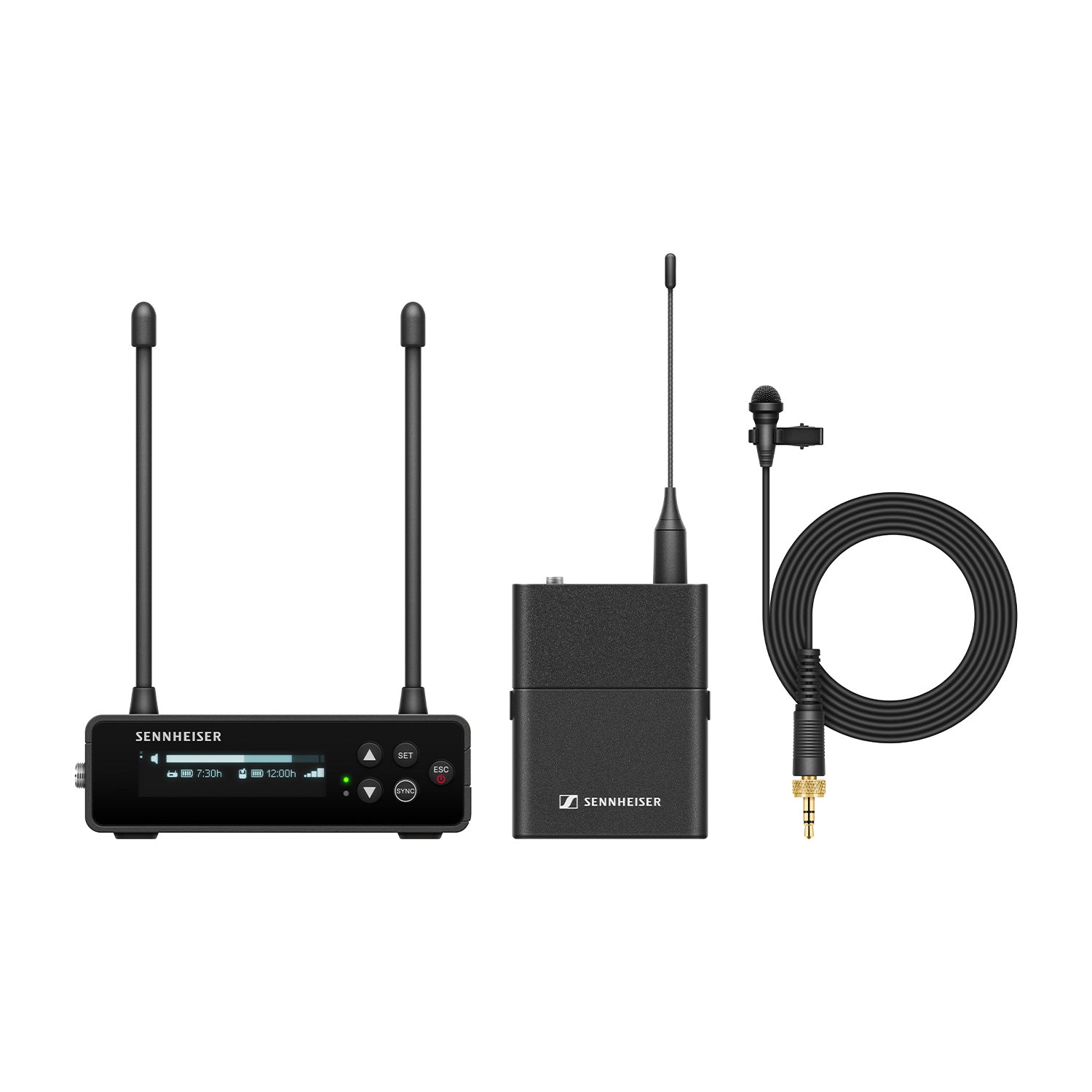

Sennheiser EW-DP ME2 SET - Portable Digital Lavalier Wireless System (Q1-6 Band / 470-526 MHz)
Sale price$699.00
Regular price$829.00
Description
Portable digital UHF wireless microphone system with ME 2 omnidirectional lavalier for filmmakers, content creators, and broadcasters.
Features:
- Fully digital UHF wireless microphone system for video applications
- Integrated Bluetooth for synchronization and control
- Smart Notifications for troubleshooting and system guidance
- Intelligent battery management provides operating time (hours:minutes)
- Extended battery life: up to 12h on transmitter, 7h on receiver
- Magnetically stackable components for versatile mounting
- Industry leading 134 dB dynamic range for distortion free transmission
- Up to 56 MHz bandwidth for flexibility in any RF environment
- Exceptionally low latency (1.9 ms)
- External charging and powering via USB-C (receiver only)
- Smart Assist app for monitor and control
What's In The Box:
- EW-DP EK digital portable single channel receiver
- EW-D SK digital bodypack transmitter
- ME 2 omnidirectional lavalier microphone

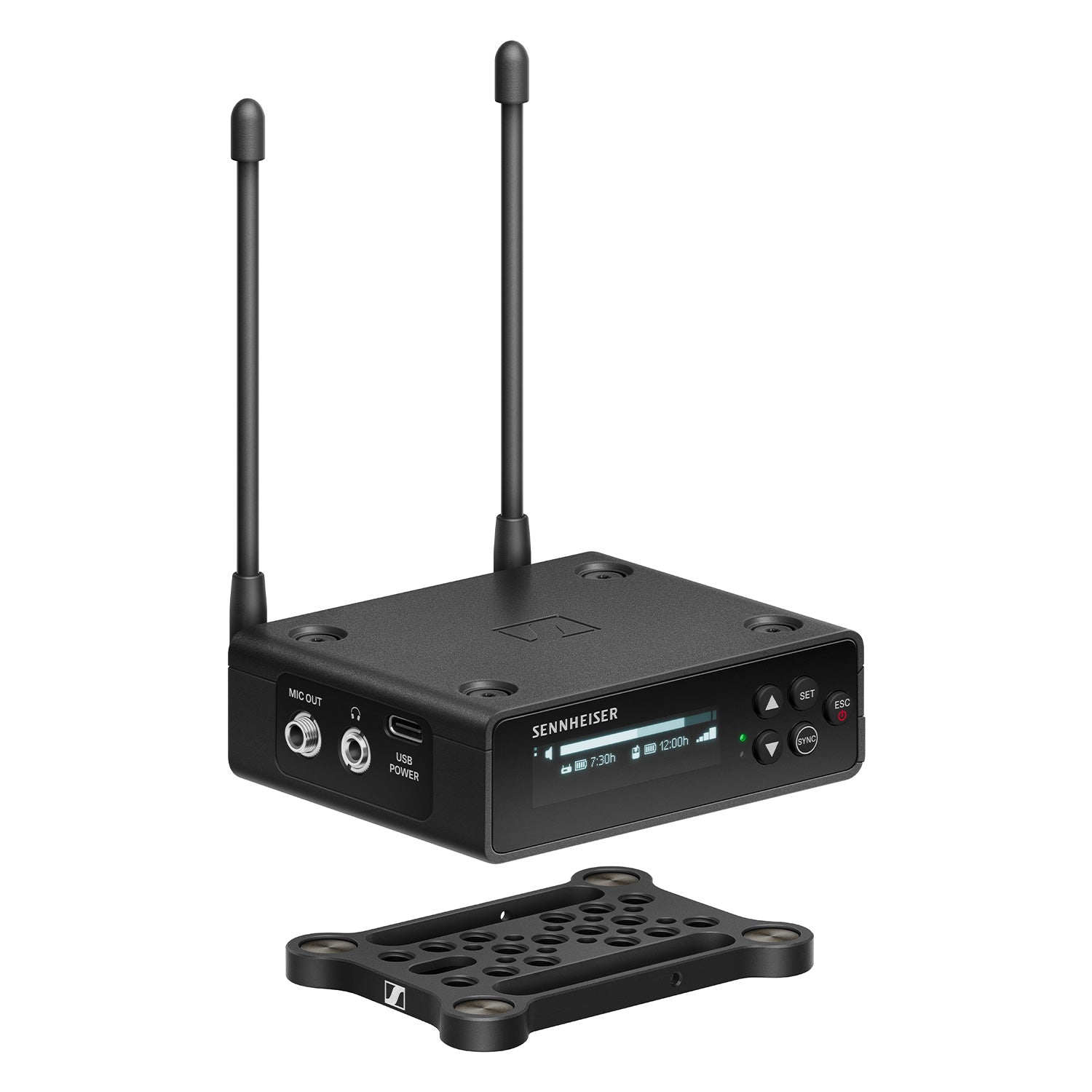

- Mounting kit (Mounting plate, cold shoe, belt clip and screws)
- BA 70 li-ion battery
- (2) AA battery
- Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
- Locking 3.5 mm TRS plug to XLR plug cable
- USB-C charging cable
| System | |
| Audio link frequency ranges | Q1-6: 470.2 - 526 MHz R1-6: 520 - 576 MHz R4-9: 552 - 607.8 MHz |
| Bluetooth¨ Low Energy (BLE) frequency range | 2402 - 2480 MHz |
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
| Audio THD | ? -60 dB for 1 kHz @ -3 dBfs input level |
| Dynamic range | 134 dB |
| System latency | 1.9 ms |
| Operating temperature | -10 ¡C - +55 ¡C (14 ¡F - 131 ¡F) |
| Relative humidity | 5 - 95 % (non-condensing) |

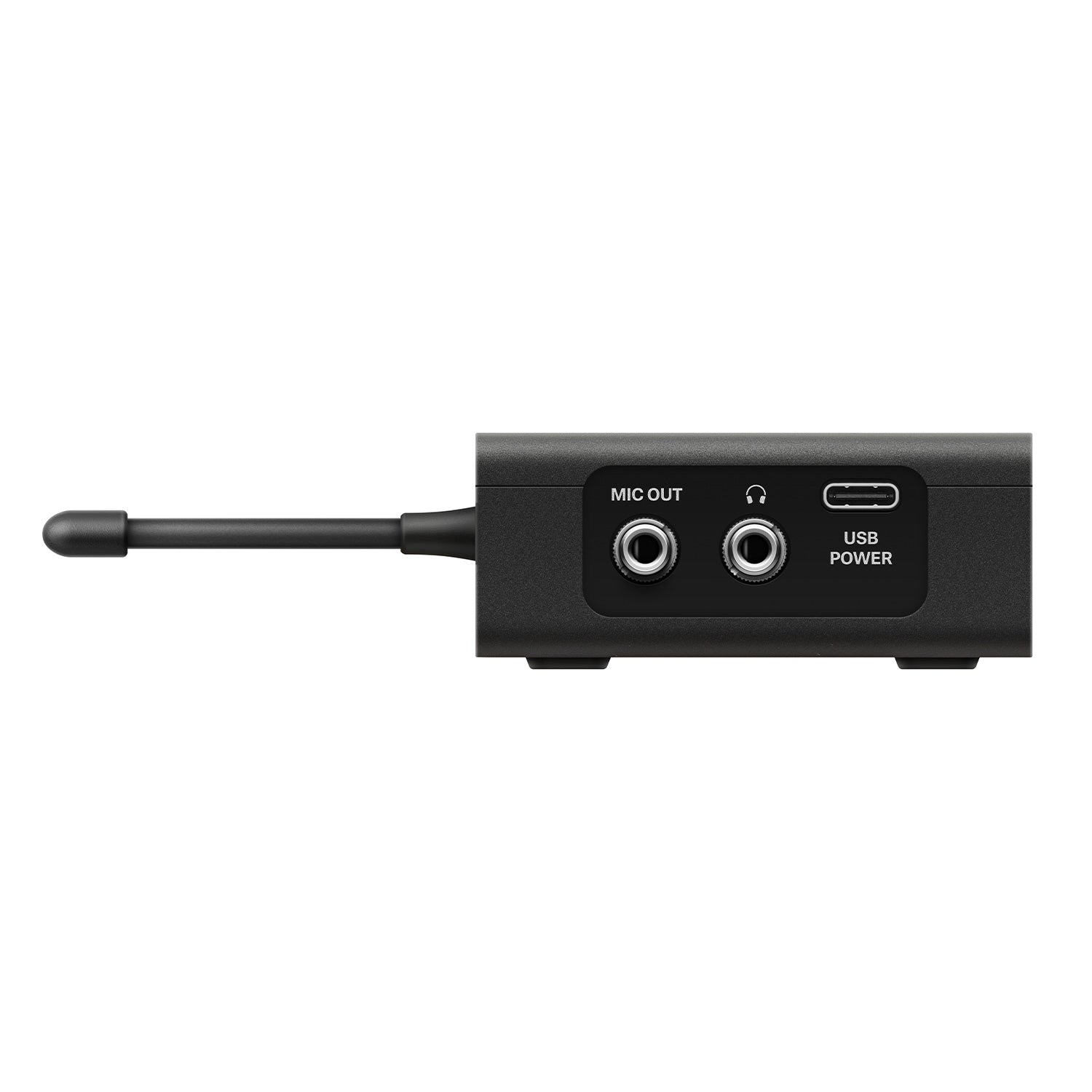

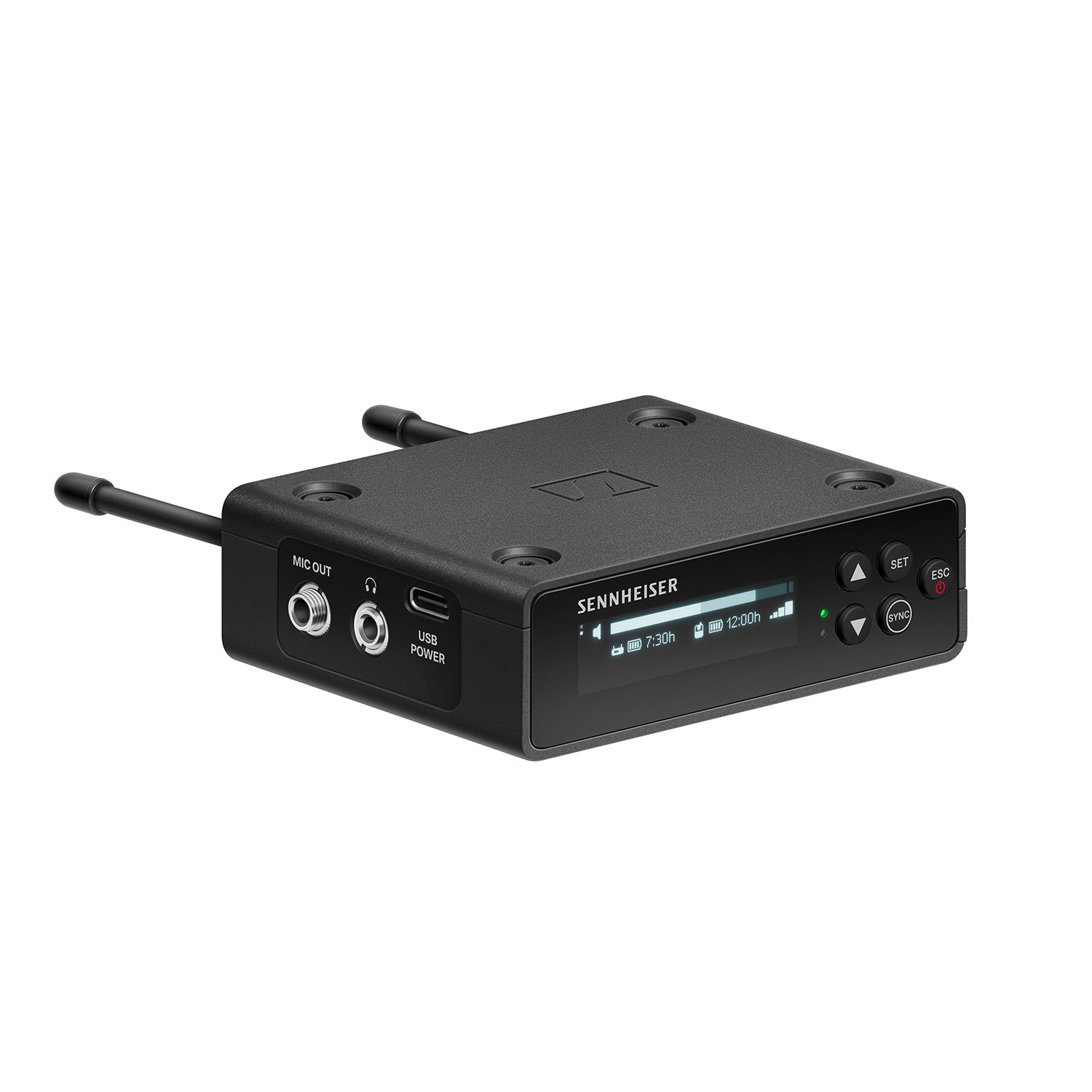

| EW-DP EK | |
| Input voltage | ~ 1.8 - 4.35 V |
| Input current | Typ. < 250 mA / Max. < 400 mA (BA 70) Typ. < 400 mA / Max. < 750 mA (2x AA batteries) < 300 mA@5 V (USB-C standalone) |
| Power Supply | 2x AA batteries 1.5V or BA70 rechargeable battery pack or USB-C PD power supply (max.): ¥ 5V / 1500mA ¥ 9V / 900mA ¥ 12V / 700mA |
| Transmit power (radiated) | BLE: max. 10 mW EIRP |
| Audio output power | < 2 dBV max. (high level) / < 4dBU max (high level) |
| Headphone Output | < 50 mW into 16 Ohms |
| Dimensions | 86 x 67 x 28 mm (3.39" x 2.64" x 1.1") |
| Weight (without antennas and power supply) | approx. 140g (0.31 lbs) |

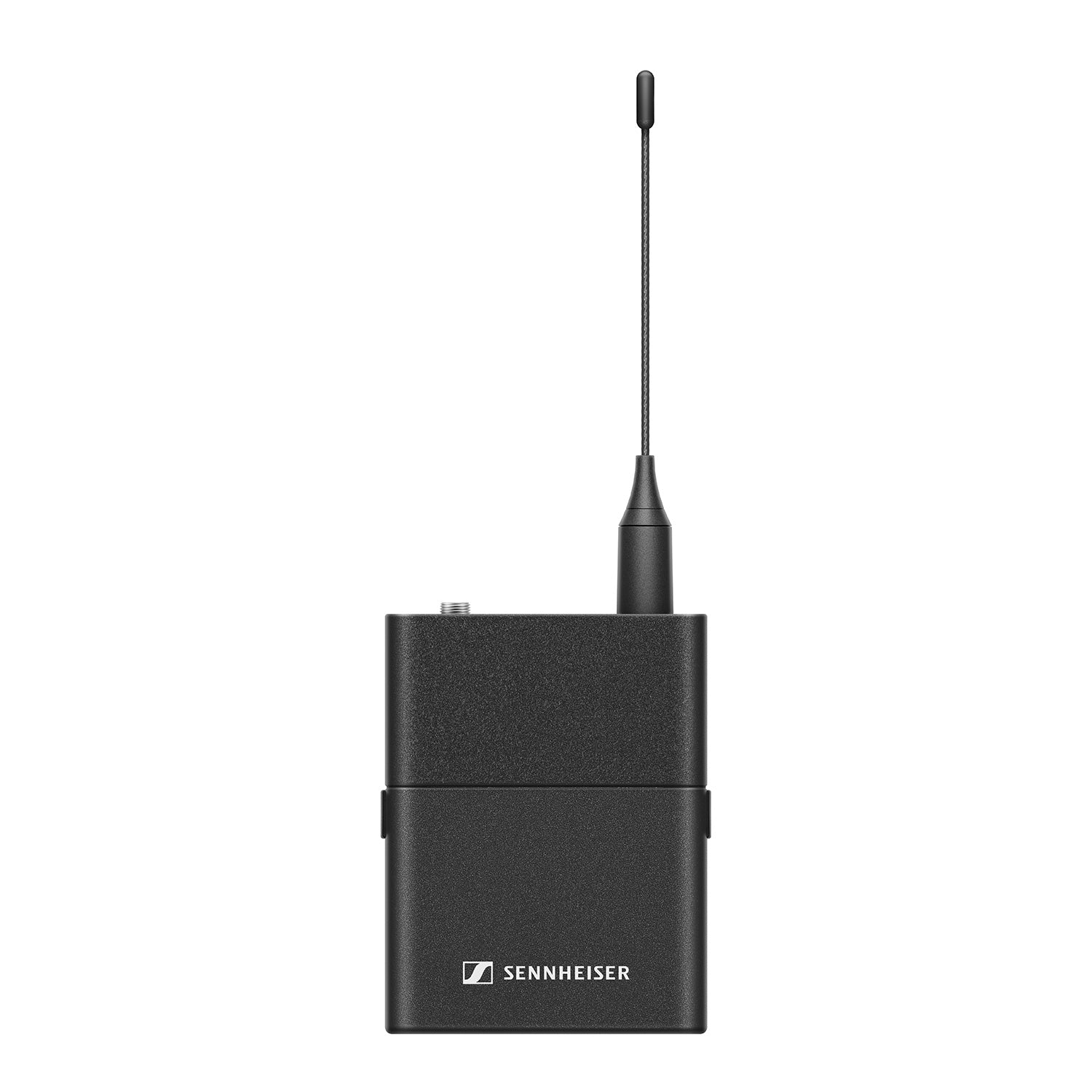

| EW-D SK (Bodypack Transmitter) | |
| Input voltage | 2.0 - 4.35 V |
| Input current | < 300 mA |
| Power supply | 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack |
| Occupied bandwidth | 200 kHz |
| Transmit power (radiated) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP |
| Dimensions (without antenna) | 63 x 80 x 20 mm (2.48" x 3.15" x 0.79") |
| Weight (without batteries) | approx. 120 g (0.26 lbs) |

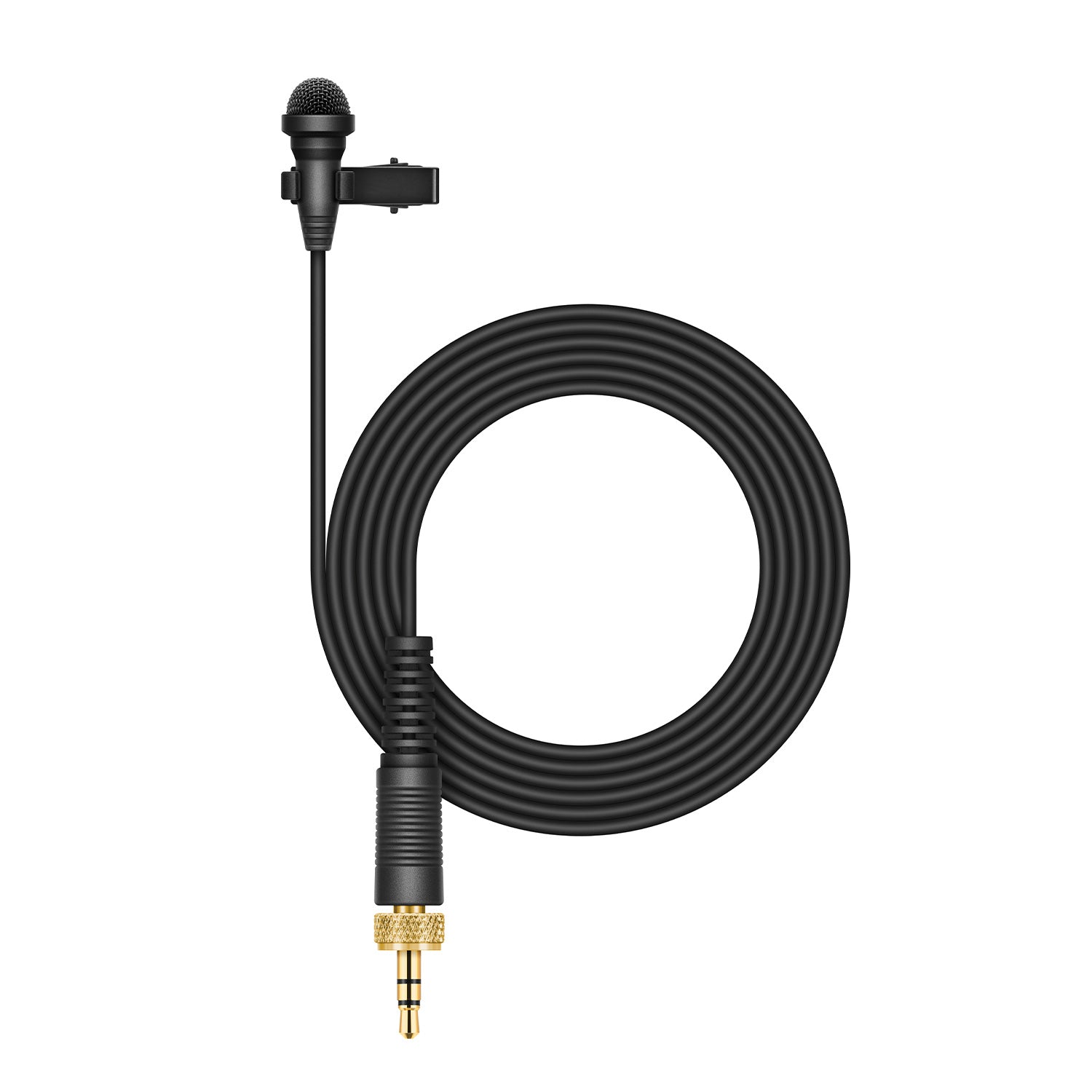

| ME 2 (Lavalier Microphone) | |
| Transducer principle | pre-polarized condensor microphone |
| Pick-up pattern | omni-directional |
| Sensitivity (free field, no load) (1 kHz) | 17 mV/Pa |
| Max. SPL at 1 kHz | 130 dB |
| Frequency response | 50 to 18,000 Hz |
| Equivalent noise level | A-weighted 32 dB |
| Connector | 3.5 mm jack |
| Cable length | approx. 1.60 m (62.99") |
| Supply voltage | 7.5 V |
