Sennheiser EW-DP ME2 SET - Portable Digital Lavalier Wireless System (R1-6 Band / 520-576 MHz)



  • Dale #:

    SENN-EWDPME2SETR16

  • Availability:

    In Stock

  • Available for immediate shipment or pick-up from our Jamaica, NY warehouse. In-store pick-up is available Monday through Friday 8:30 am to 5:30 pm.

Description

Portable digital UHF wireless microphone system with ME 2 omnidirectional lavalier for filmmakers, content creators, and broadcasters. Features: Fully digital UHF wireless microphone system for video applications Integrated Bluetooth for synchronization and control Smart Notifications... Read More

Retail Price: $829.00 Our Price: $699.00

affirm logo 3, 6 or 12 monthly payments available.

Learn more

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Portable digital UHF wireless microphone system with ME 2 omnidirectional lavalier for filmmakers, content creators, and broadcasters.

Features:

  • Fully digital UHF wireless microphone system for video applications
  • Integrated Bluetooth for synchronization and control
  • Smart Notifications for troubleshooting and system guidance
  • Intelligent battery management provides operating time (hours:minutes)
  • Extended battery life: up to 12h on transmitter, 7h on receiver
  • Magnetically stackable components for versatile mounting
  • Industry leading 134 dB dynamic range for distortion free transmission
  • Up to 56 MHz bandwidth for flexibility in any RF environment
  • Exceptionally low latency (1.9 ms)
  • External charging and powering via USB-C (receiver only)
  • Smart Assist app for monitor and control

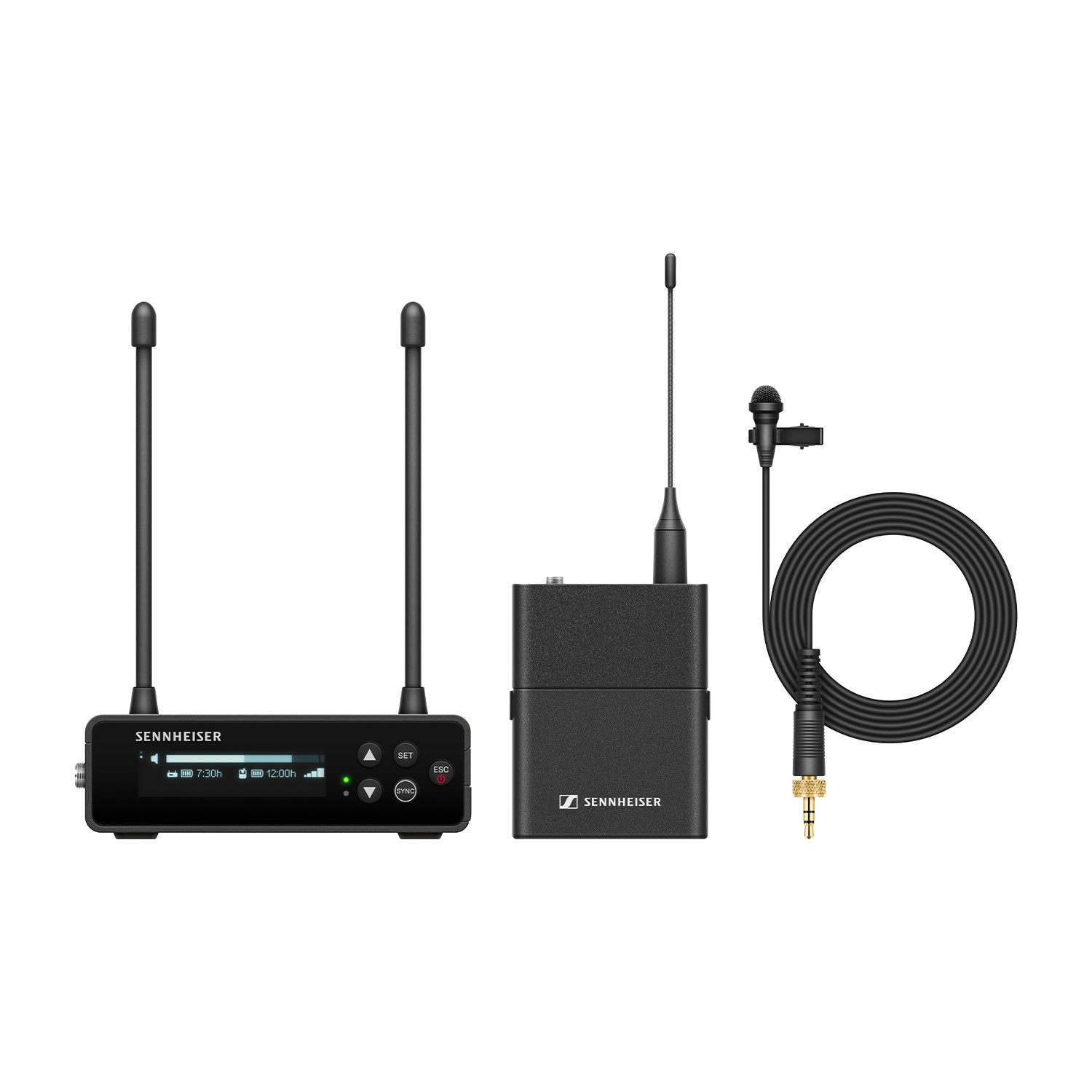

What's In The Box:

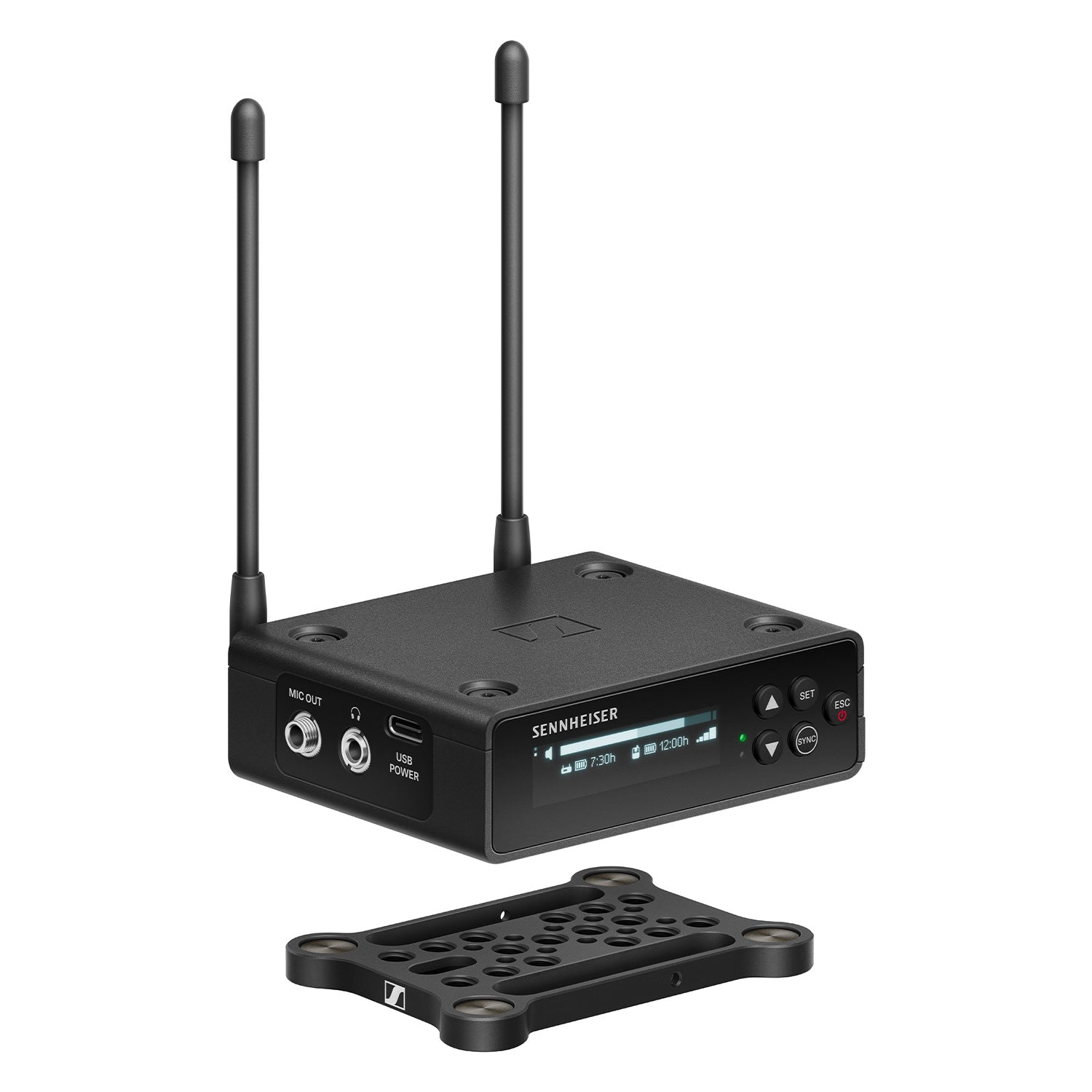

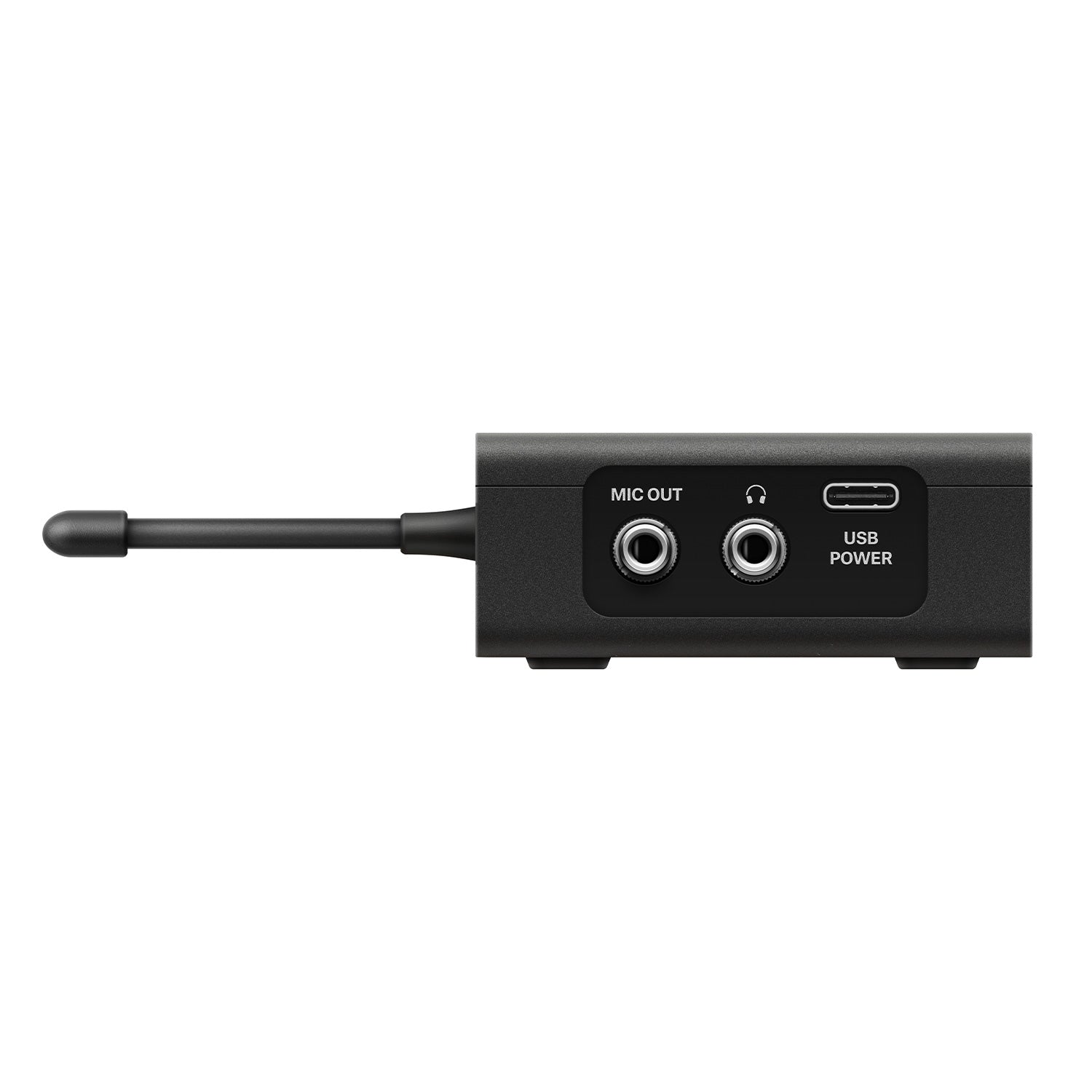

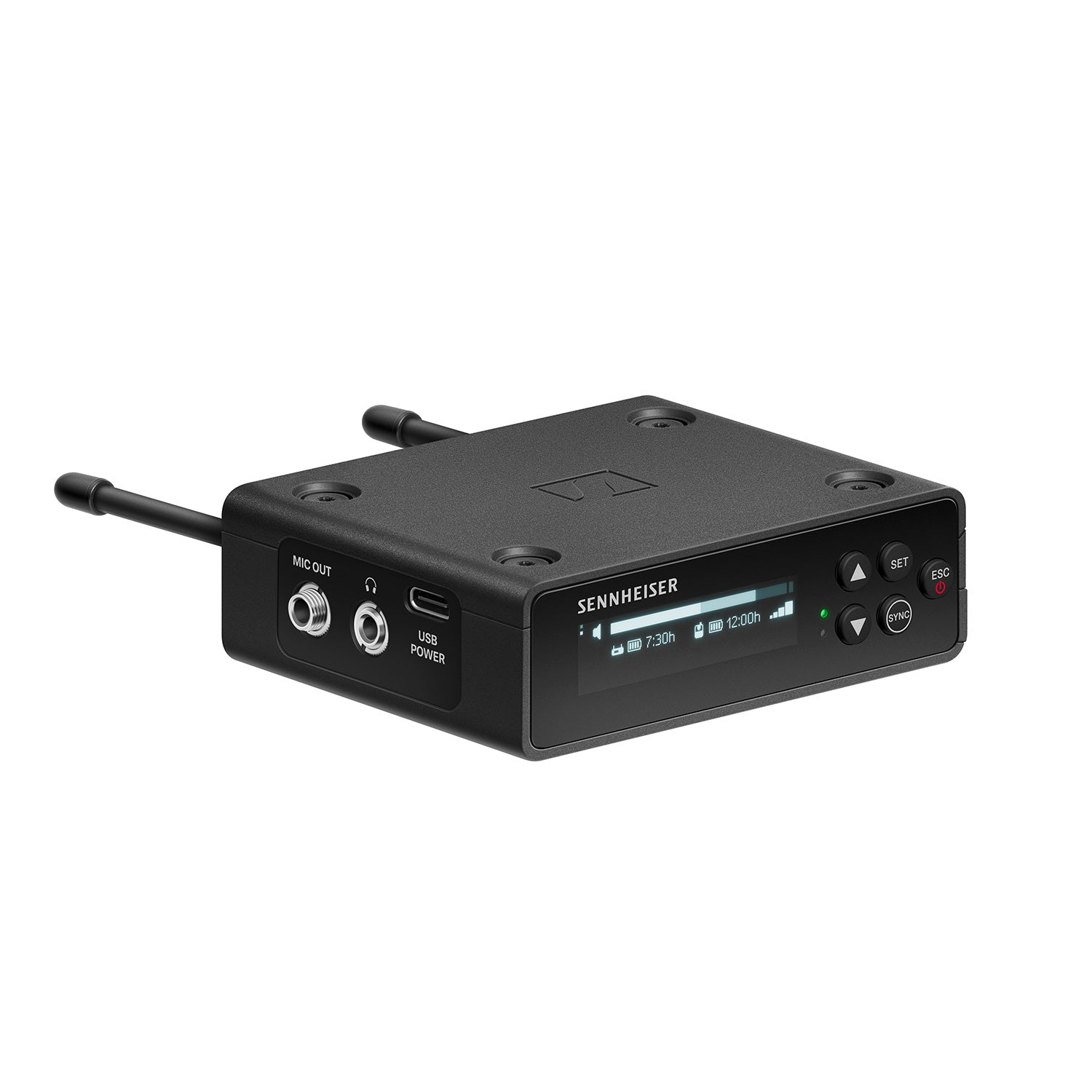

  • EW-DP EK digital portable single channel receiver

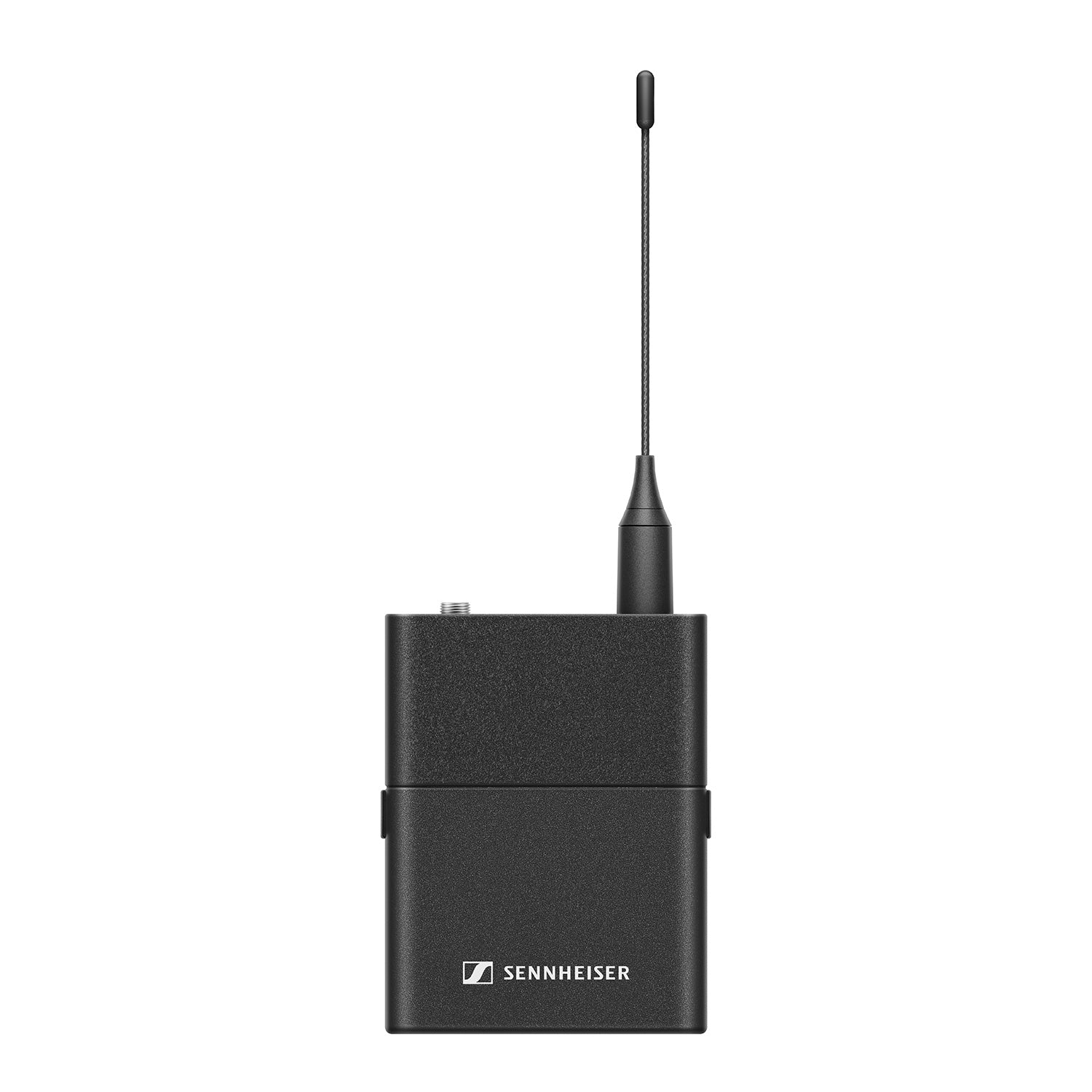

  • EW-D SK digital bodypack transmitter

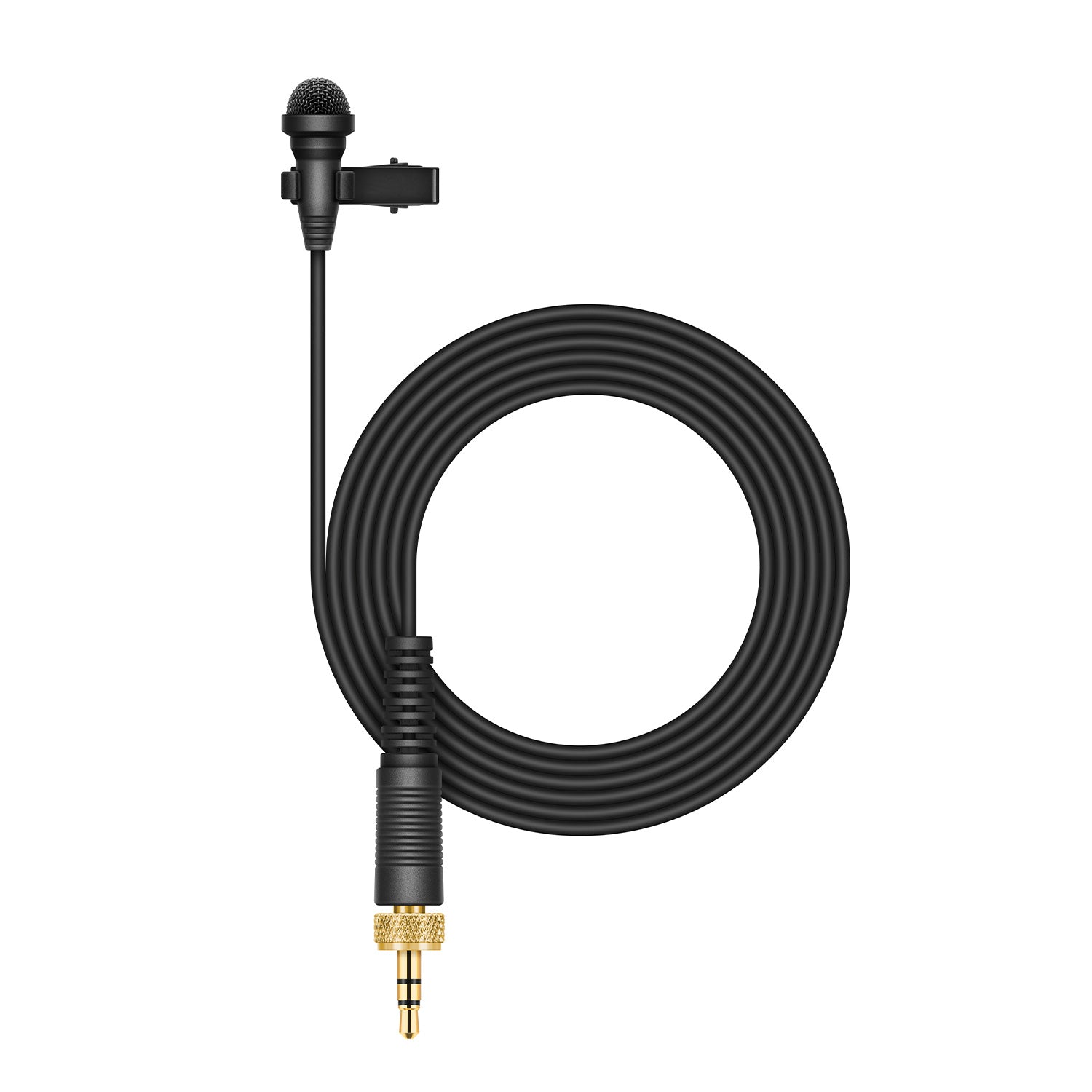

  • ME 2 omnidirectional lavalier microphone
  • Mounting kit (Mounting plate, cold shoe, belt clip and screws)
  • BA 70 li-ion battery
  • (2) AA battery
  • Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
  • Locking 3.5 mm TRS plug to XLR plug cable
  • USB-C charging cable

More +

Product Specs

System
Audio link frequency ranges Q1-6: 470.2 - 526 MHz
R1-6: 520 - 576 MHz
R4-9: 552 - 607.8 MHz
Bluetooth® Low Energy (BLE) frequency range 2402 - 2480 MHz
Audio frequency response 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio THD ? -60 dB for 1 kHz @ -3 dBfs input level
Dynamic range 134 dB
System latency 1.9 ms
Operating temperature -10 °C - +55 °C (14 °F - 131 °F)
Relative humidity 5 - 95 % (non-condensing)
EW-DP EK
Input voltage ~ 1.8 - 4.35 V
Input current Typ. < 250 mA / Max. < 400 mA (BA 70)
Typ. < 400 mA / Max. < 750 mA (2x AA batteries)
< 300 mA@5 V (USB-C standalone)
Power Supply 2x AA batteries 1.5V or BA70 rechargeable battery pack or USB-C PD power supply (max.):
• 5V / 1500mA
• 9V / 900mA
• 12V / 700mA
Transmit power (radiated) BLE: max. 10 mW EIRP
Audio output power < 2 dBV max. (high level) / < 4dBU max (high level)
Headphone Output < 50 mW into 16 Ohms
Dimensions 86 x 67 x 28 mm (3.39" x 2.64" x 1.1")
Weight (without antennas and power supply) approx. 140g (0.31 lbs)
EW-D SK (Bodypack Transmitter)
Input voltage 2.0 - 4.35 V
Input current < 300 mA
Power supply 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
Occupied bandwidth 200 kHz
Transmit power (radiated) Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)
BLE: max. 10 mW EIRP
Dimensions (without antenna) 63 x 80 x 20 mm (2.48" x 3.15" x 0.79")
Weight (without batteries) approx. 120 g (0.26 lbs)
ME 2 (Lavalier Microphone)
Transducer principle pre-polarized condensor microphone
Pick-up pattern omni-directional
Sensitivity (free field, no load) (1 kHz) 17 mV/Pa
Max. SPL at 1 kHz 130 dB
Frequency response 50 to 18,000 Hz
Equivalent noise level A-weighted 32 dB
Connector 3.5 mm jack
Cable length approx. 1.60 m (62.99")
Supply voltage 7.5 V

More +
