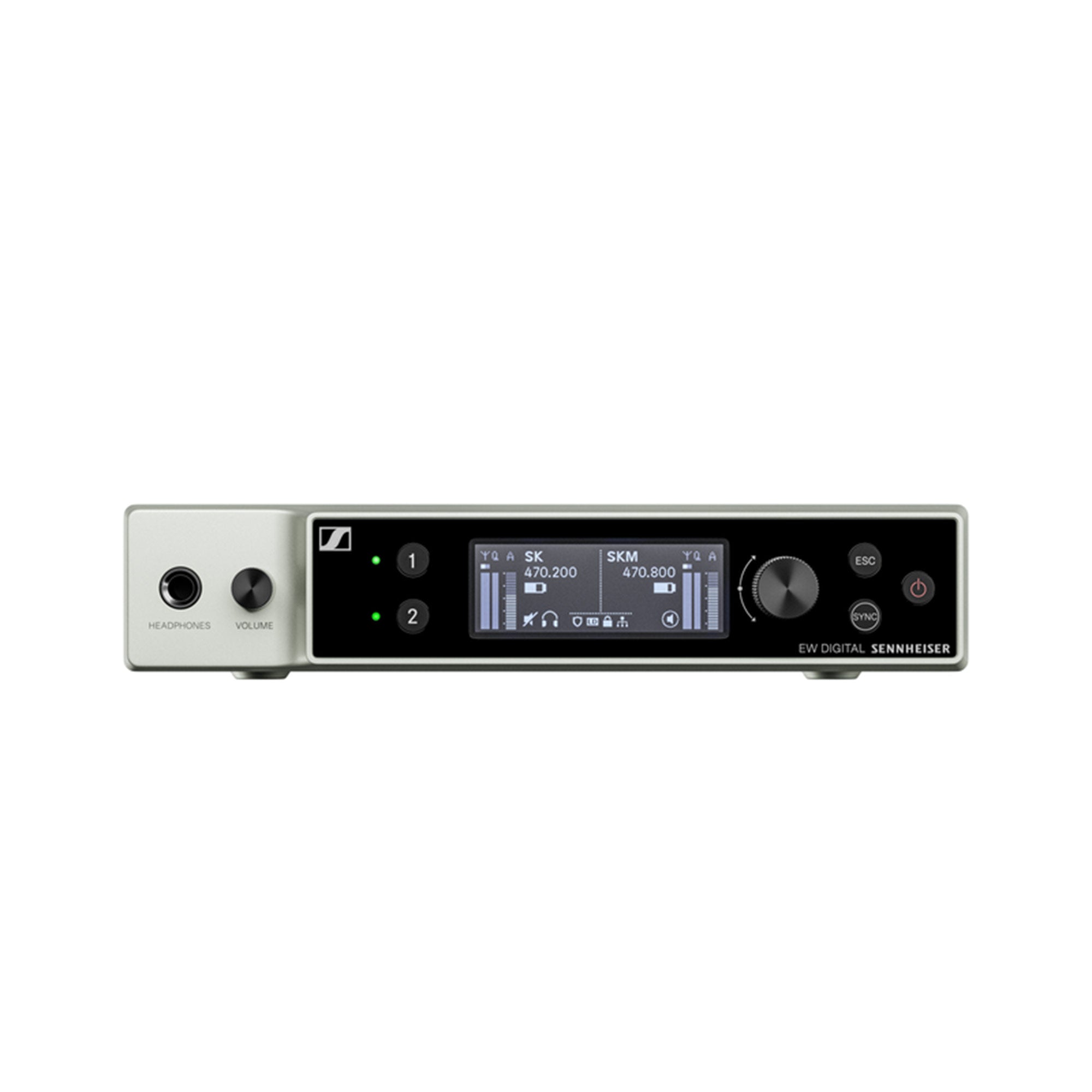

Sennheiser EW-DX EM 2 DANTE - Dual Channel Wireless Receiver (Q1-9 Band / 470-550 MHz)


  • Dale #:

    SENN-EWDXEM2DANTEQ19
  • Availability:

    In Stock
  • Available for immediate shipment or pick-up from our Jamaica, NY warehouse. In-store pick-up is available Monday through Friday 8:30 am to 5:30 pm.

Description

Half-rack (9,5”) receiver for use with Evolution Wireless Digital handheld, bodypack and tablestand transmitters. Includes option for Dante output of both channels. Features: 2 channel half rack (9.5’) Dante output for both channels Up to 88 MHz switching bandwidth PoE IEEE 802.3af... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Half-rack (9,5”) receiver for use with Evolution Wireless Digital handheld, bodypack and tablestand transmitters. Includes option for Dante output of both channels.

Features:

  • 2 channel half rack (9.5’)
  • Dante output for both channels
  • Up to 88 MHz switching bandwidth
  • PoE IEEE 802.3af Class 3
  • Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
  • Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules
  • Clear and easy focused user interface with OLED display
  • Ethernet connectivity (IPv4 and IPv6)
  • Secure AES 256 encryption
  • External PSU 12V/1A
  • All-metal housing

What's In The Box:

  • EW-DX EM 2 rack receiver
  • 2 rod antennas
  • power supply with country adapters
  • GA 3 rackmount set
  • 4 rubber feet
  • quick guide
  • safety guide
  • manufacturer declaration sheet

More +

Product Specs

System
Audio link frequency ranges Q1-9 Band: 470-550 MHz
R1-9 Band: 520-608 MHz
V5-7 Band: 941-960 MHz
Bluetooth® Low Energy (BLE) frequency range 2402 - 2480 MHz
Audio frequency response 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio THD ? -60 dB for 1 kHz @ -3 dBfs input level
Dynamic range 134 dB
System latency 1.9 ms
Operating temperature -10 °C - +55 °C (14 °F - 131 °F)
Relative humidity 5 - 95 % (non-condensing)
EW-DX EM 2 (Rack Receiver)
Input voltage 11 - 13 V DC or PoE IEEE 802.3af Class 0 (CAT5e or higher)
Input current ? 1 A
Transmit power (radiated) BLE: max. 10 mW EIRP
Audio output power 18 dBu max.
Headphone output 2x 70 mW @ 32 ?
Ethernet RJ-45 socket, IEEE802.3 100
Base-TX (half+full duplex)
10Base-T (half+full duplex)
(CAT5e or higher)
Dimensions 212 x 44 x 189 mm (8.35" x 1.73" x 7.44")
Weight approx. 1000 g (2.2  lbs) (without antennas and power supply)
