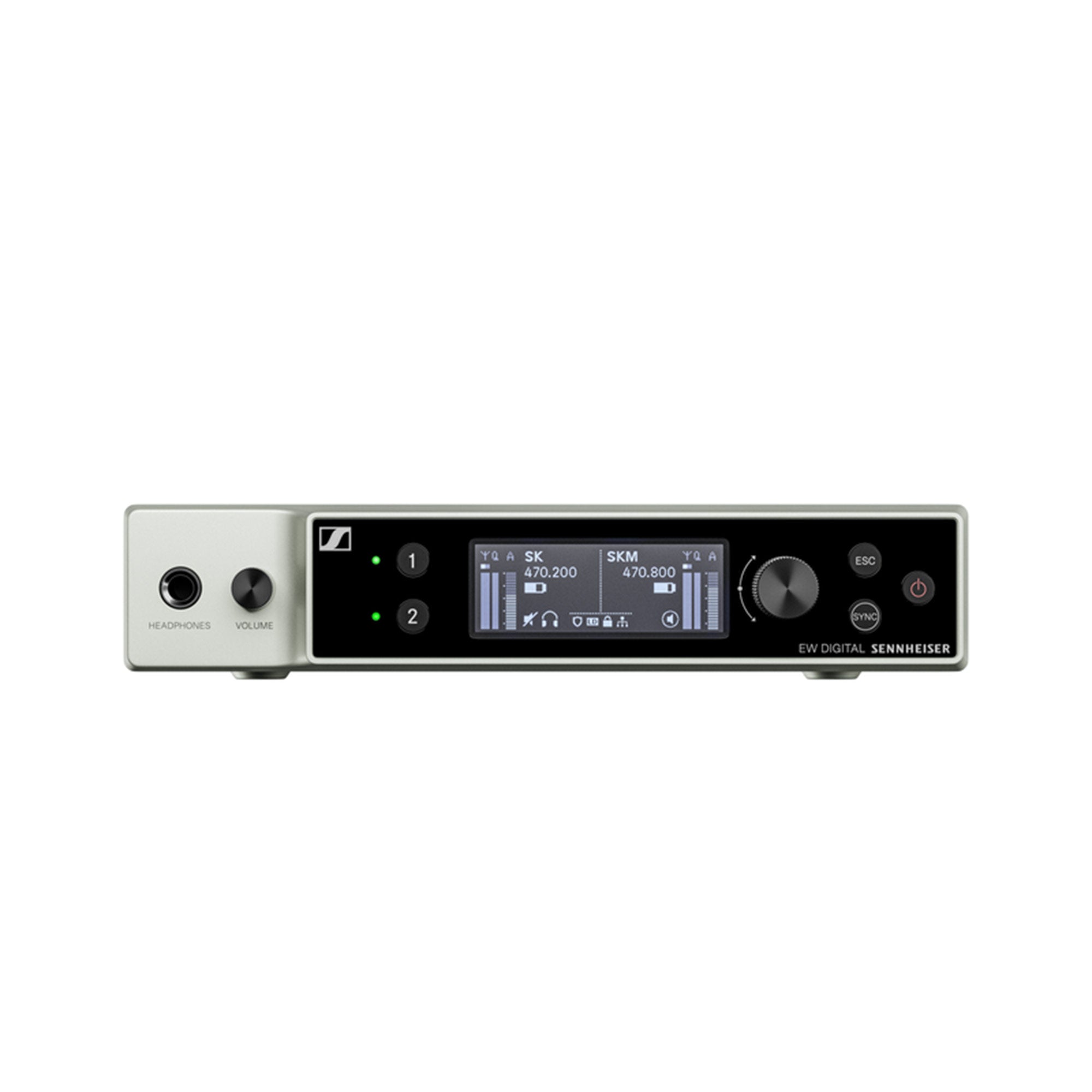

Sennheiser EW-DX EM 2 - Dual Channel Wireless Receiver (V5-7 Band / 941-960 MHz)



  • Dale #:

    SENN-EWDXEM2V57

  • Availability:

    Not in Stock - Reserve Yours

  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Half-rack (9,5") receiver for use with Evolution Wireless Digital handheld, bodypack and tablestand transmitters. Features: 2 channel half rack (9.5') Up to 88 MHz switching bandwidth PoE IEEE 802.3af Class 3 Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Densit... Read More

Retail Price: $1,299.00 Our Price: $1,099.00

affirm logo 3, 6 or 12 monthly payments available.

Learn more

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Half-rack (9,5") receiver for use with Evolution Wireless Digital handheld, bodypack and tablestand transmitters.

Features:

  • 2 channel half rack (9.5')
  • Up to 88 MHz switching bandwidth
  • PoE IEEE 802.3af Class 3
  • Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
  • Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules
  • Clear and easy focused user interface with OLED display
  • Ethernet connectivity (IPv4 and IPv6)
  • Secure AES 256 encryption
  • External PSU 12V/1A
  • All-metal housing

What's In The Box:

  • EW-DX EM 2 rack receiver
  • 2 rod antennas
  • power supply with country adapters
  • GA 3 rackmount set
  • 4 rubber feet
  • quick guide
  • safety guide
  • manufacturer declaration sheet

More +

Product Specs

System
Audio link frequency ranges Q1-9 Band: 470-550 MHz
R1-9 Band: 520-608 MHz
V5-7 Band: 941-960 MHz
Bluetooth® Low Energy (BLE) frequency range 2402 - 2480 MHz
Audio frequency response 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio THD ? -60 dB for 1 kHz @ -3 dBfs input level
Dynamic range 134 dB
System latency 1.9 ms
Operating temperature -10 °C - +55 °C (14 °F - 131 °F)
Relative humidity 5 - 95 % (non-condensing)
EW-DX EM 2 (Rack Receiver)
Input voltage 11 - 13 V DC or PoE IEEE 802.3af Class 0 (CAT5e or higher)
Input current ? 1 A
Transmit power (radiated) BLE: max. 10 mW EIRP
Audio output power 18 dBu max.
Headphone output 2x 70 mW @ 32 ?
Ethernet RJ-45 socket, IEEE802.3 100
Base-TX (half+full duplex)
10Base-T (half+full duplex)
(CAT5e or higher)
Dimensions 212 x 44 x 189 mm (8.35" x 1.73" x 7.44")
Weight approx. 1000 g (2.2  lbs) (without antennas and power supply)
