Sennheiser EW-DX MKE 2 SET - Dual Lavalier Wireless System (R1-9 Band / 520-608 MHz)

  • Dale #:

    SENN-EWDXMKE2SETR19
  • Availability:

    Accepting Preorders
  • expected to ship in Fall 2022

Description

This wireless lavalier microphone set consists of 2 x EW-DX SK (wireless bodypack transmitter), 2 x MKE 2 (omni-directional clip-on lavalier microphone), 1 x EW-DX EM 2 rackmout receiver (2 channels) and 2 x BA 70 rechargeable batteries. FEATURES EW-DX EM 2 2 channel half rack (9.5’) Up to 8... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

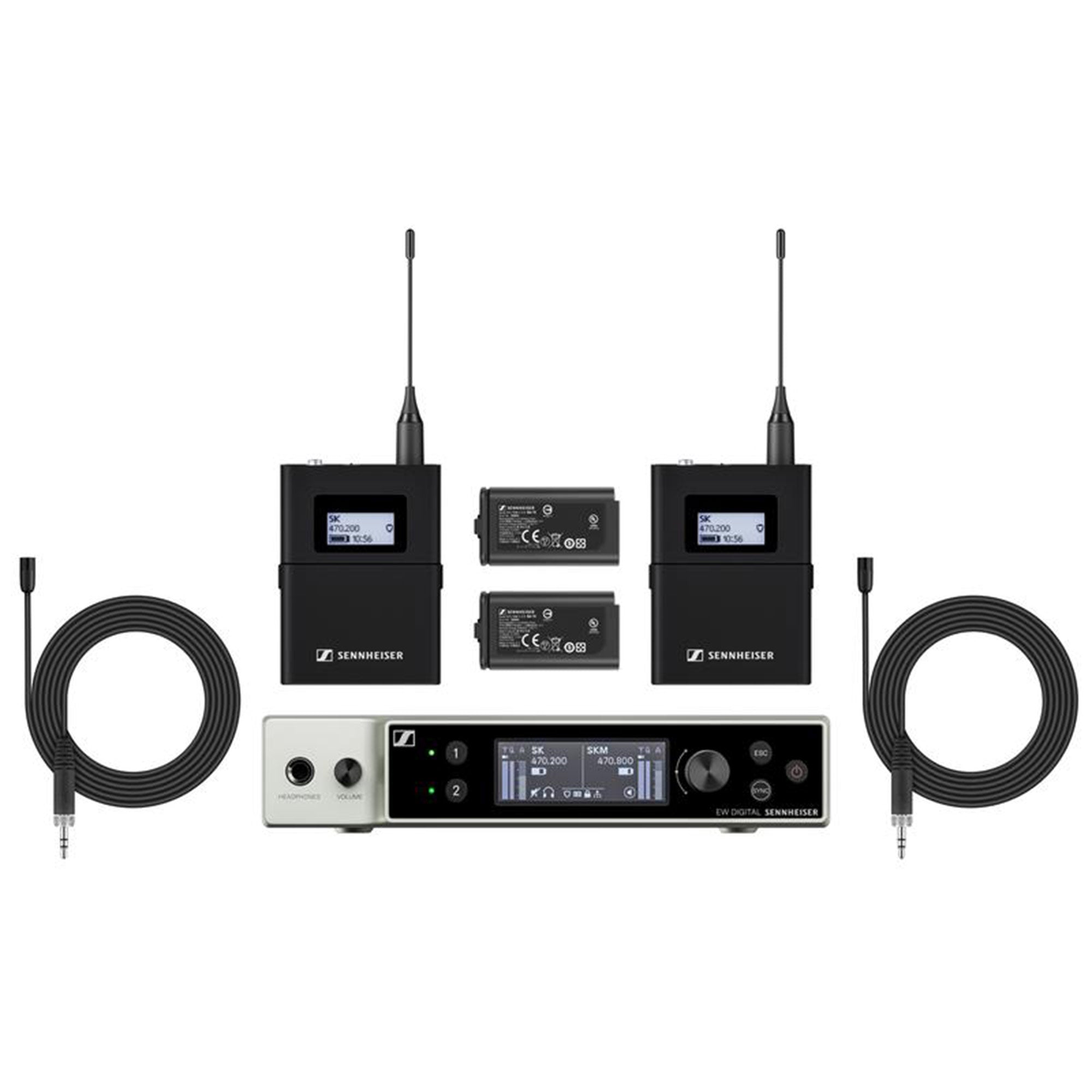

This wireless lavalier microphone set consists of 2 x EW-DX SK (wireless bodypack transmitter), 2 x MKE 2 (omni-directional clip-on lavalier microphone), 1 x EW-DX EM 2 rackmout receiver (2 channels) and 2 x BA 70 rechargeable batteries.

FEATURES EW-DX EM 2

  • 2 channel half rack (9.5’)
  • Up to 88 MHz switching bandwidth
  • PoE IEEE 802.3af Class 3
  • Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
  • Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules
  • Clear and easy focused user interface with OLED display
  • Ethernet connectivity (IPv4 and IPv6)
  • Secure AES 256 encryption
  • External PSU 12V/1A
  • All-metal housing

FEATURES EW-DX SK

  • 3,5 mm jack or 3-pin connector variants
  • 10mW RF power with up to 100m/328ft working range
  • Charging contacts for in-device charging with CHG 70N
  • Persistent eInk display - parameters visible on screen even when device is not powered on
  • Programmable mute switch - customize the device depending on your professional needs
  • Extended runtime with lithium ion batteries - up to 12 hours operation time
  • Mic input trim control
  • Metal housing

What's In The Box:

  • EW-DX EM 2 rack receiver
  • 2 EW-DX SK bodypack transmitters
  • 2 MKE 2 lavalier microphones
  • 2 rod antennas
  • power supply with country adapters
  • 2 mic clamps
  • GA 3 rackmount set
  • 4 rubber feet
  • 2 BA 70 rechargeable battery packs
  • quick guide
  • safety guide
  • manufacturer declaration sheet

More +

Product Specs

System
Audio link frequency ranges Q1-9 Band: 470-550 MHz
R1-9 Band: 520-608 MHz
V5-7 Band: 941-960 MHz
Bluetooth® Low Energy (BLE) frequency range 2402 - 2480 MHz
Audio frequency response 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio THD ? -60 dB for 1 kHz @ -3 dBfs input level
Dynamic range 134 dB
System latency 1.9 ms
Operating temperature -10 °C - +55 °C (14 °F - 131 °F)
Relative humidity 5 - 95 % (non-condensing)

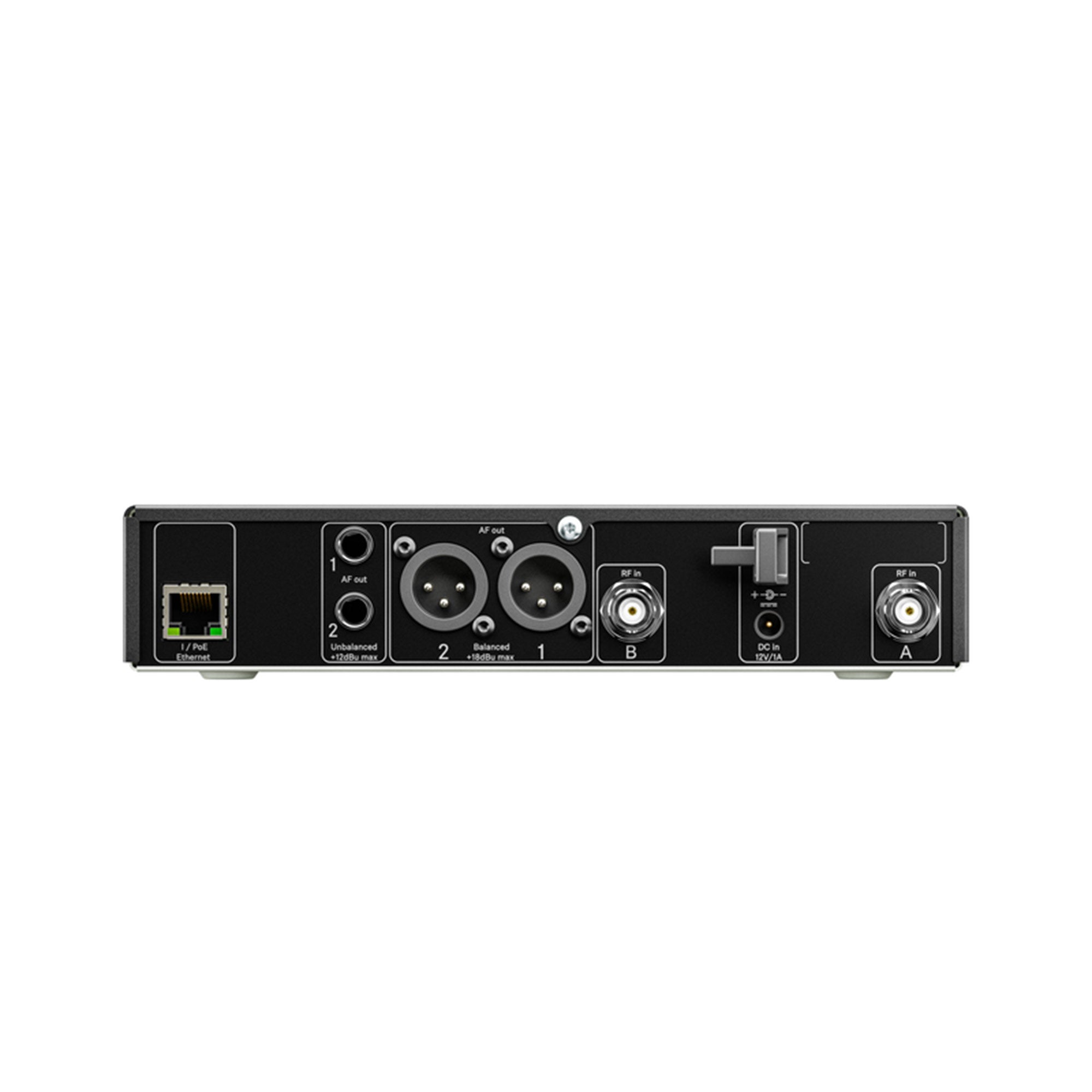

EW-DX EM 2 (Rack Receiver)
Input voltage 11 - 13 V DC or PoE IEEE 802.3af Class 0 (CAT5e or higher)
Input current ? 1 A
Transmit power (radiated) BLE: max. 10 mW EIRP
Audio output power 18 dBu max.
Headphone output 2x 70 mW @ 32 ?
Ethernet RJ-45 socket, IEEE802.3 100
Base-TX (half+full duplex)
10Base-T (half+full duplex)
(CAT5e or higher)
Dimensions 212 x 44 x 189 mm (8.35" x 1.73" x 7.44")
Weight approx. 1000 g (2.2  lbs) (without antennas and power supply)

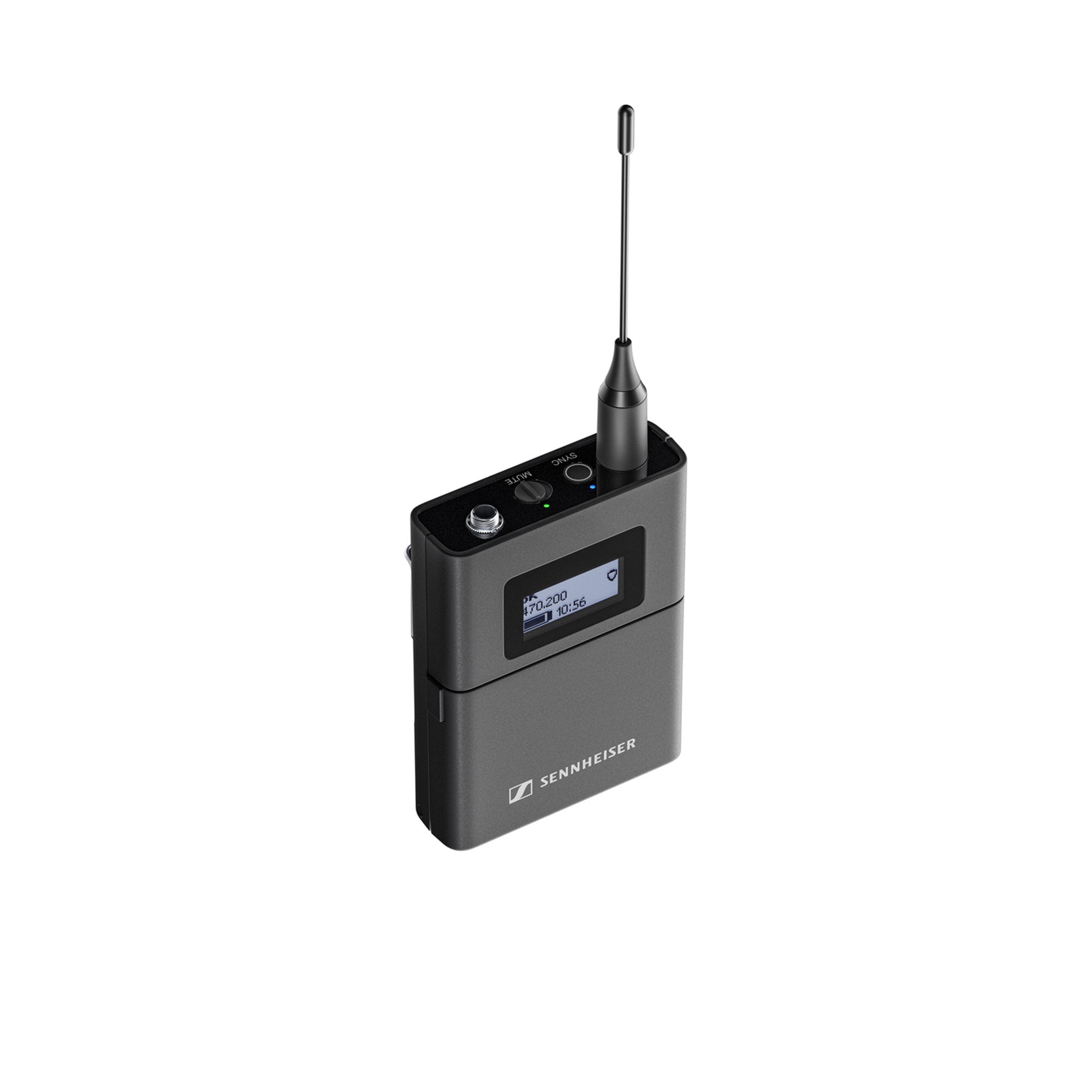

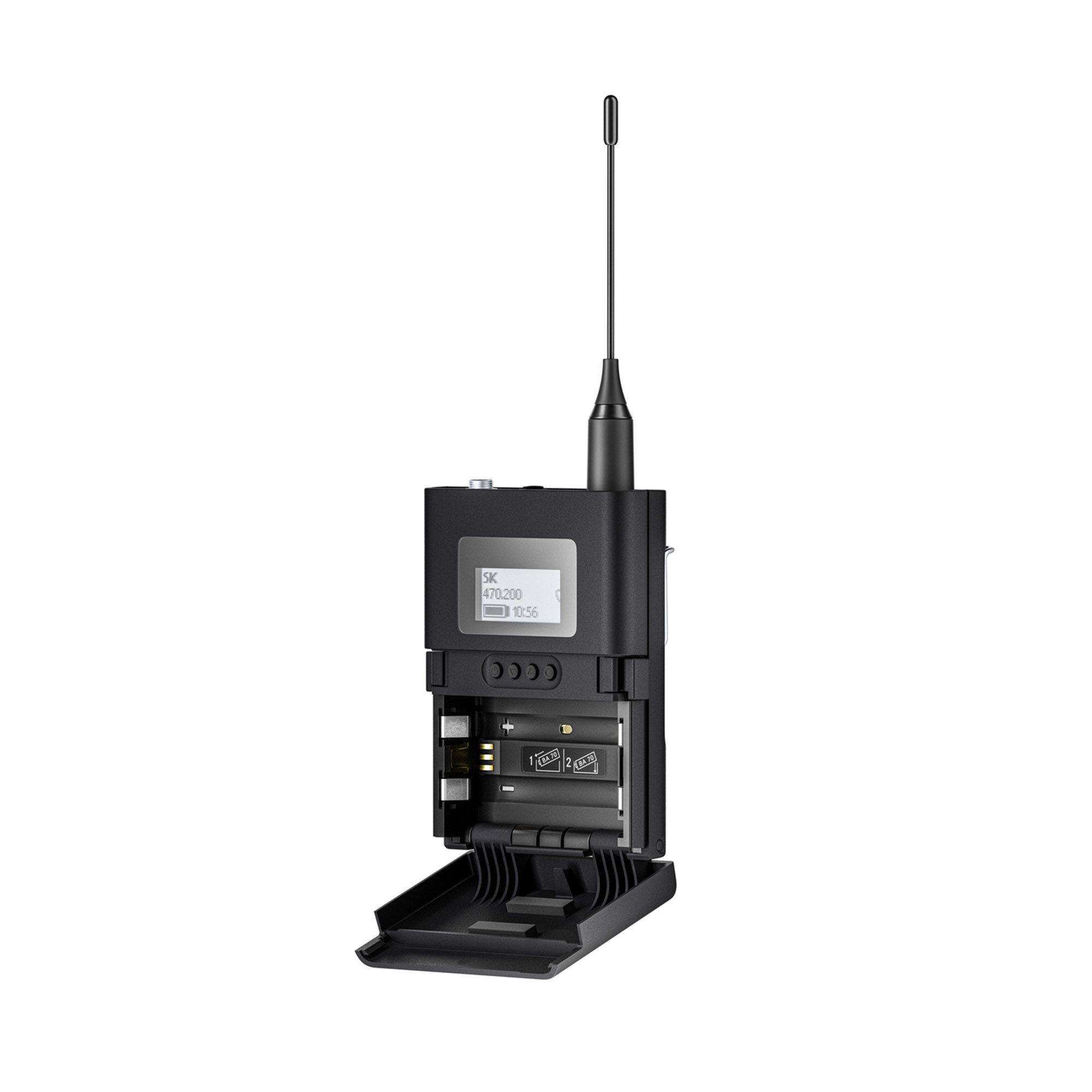

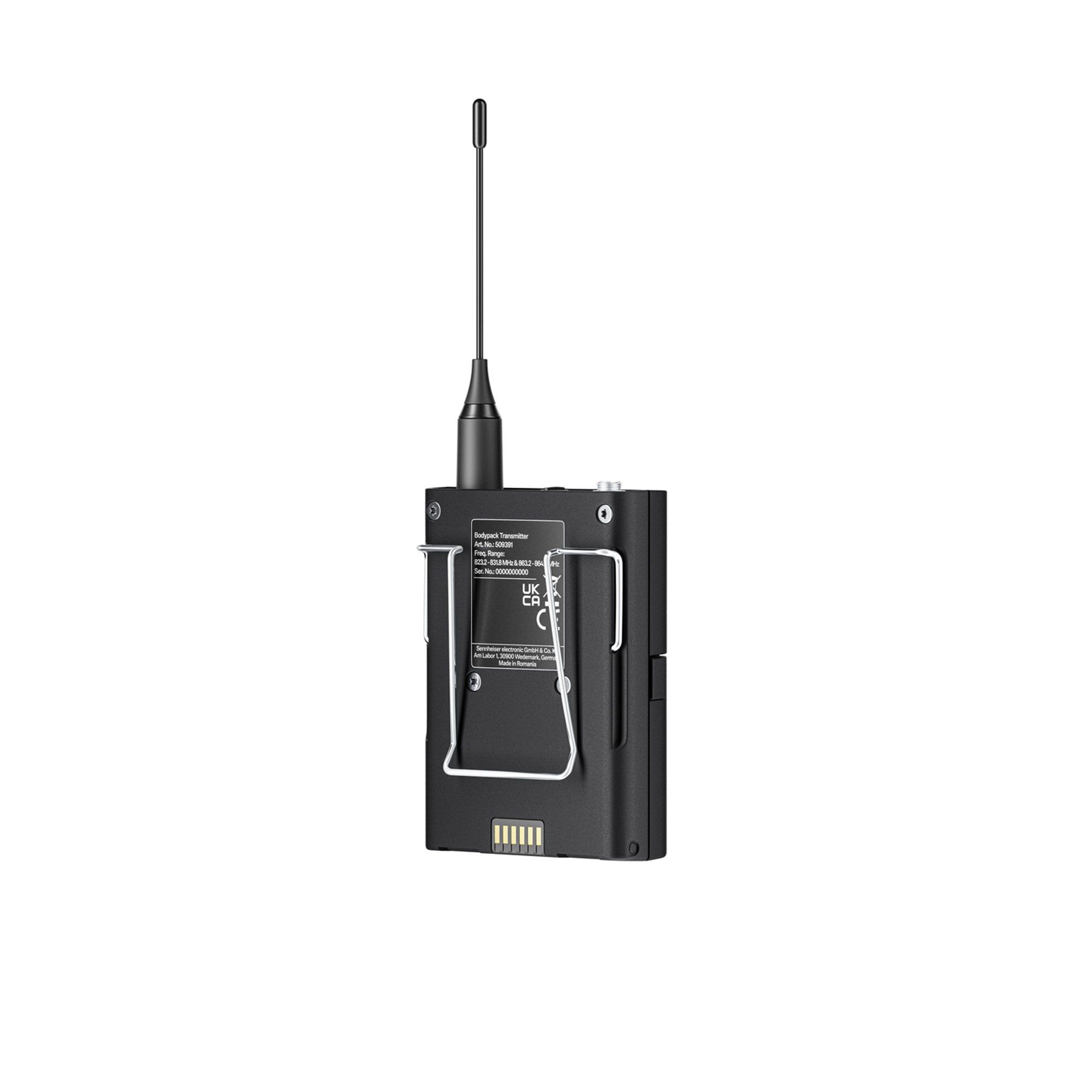

EW-DX SK (Bodypack Transmitter)
Input voltage 2.0 - 4.35 V
Input current < 300 mA
Power supply 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
Occupied bandwidth 200 kHz
Transmit power (radiated) Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)
LD mode: 10 mW ERP
BLE: max. 10 mW EIRP
Dimensions (without antenna) 63.5 x 85 x 20 mm (2.5" x 3.35" x 0.79")
Weight (without batteries) approx. 115-120 g (0.260,27 -  lbs)

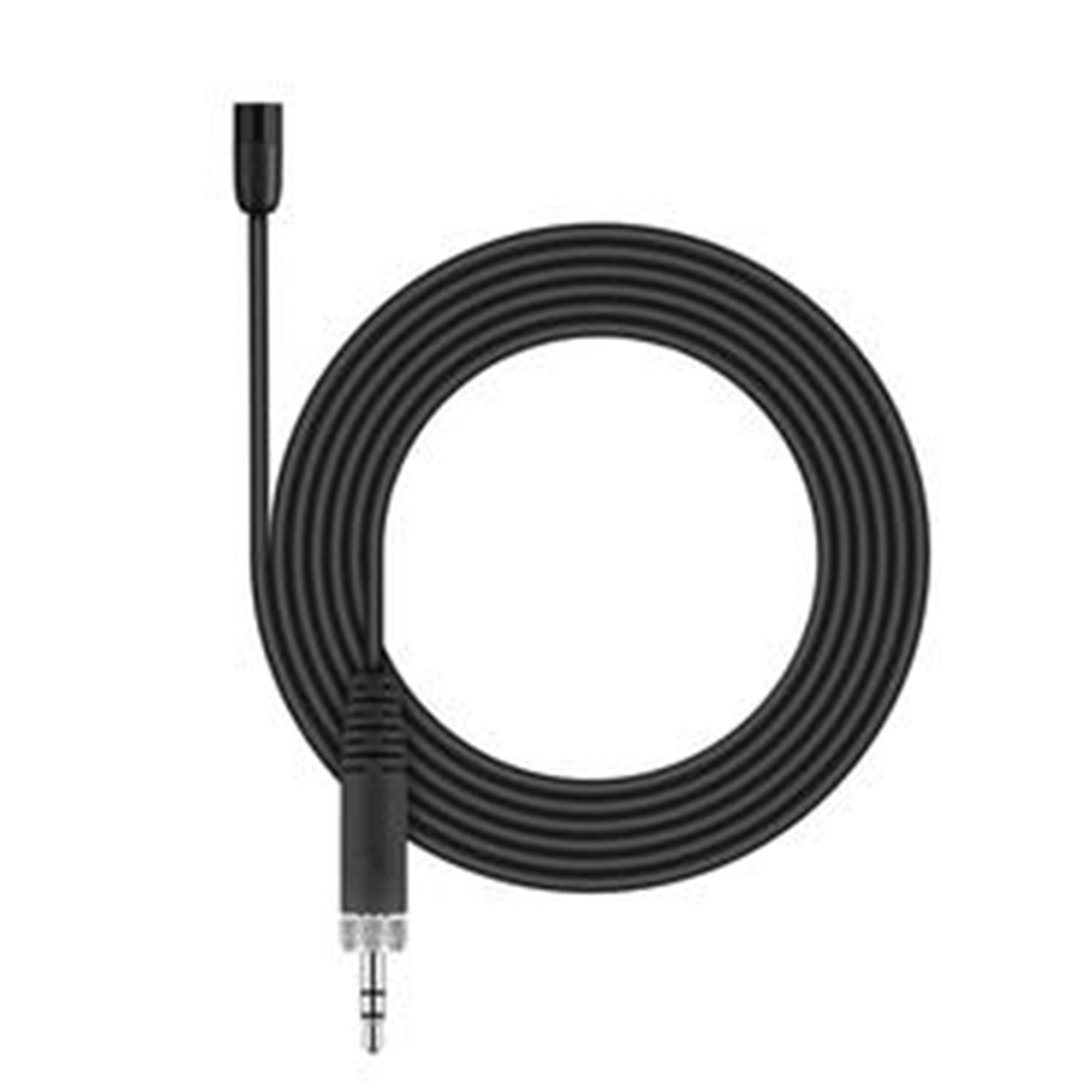

ME 2 (Lavalier Microphone)
Transducer principle pre-polarized condensor microphone
Pick-up pattern omni-directional
Sensitivity (free field, no load) (1 kHz) 17 mV/Pa
Max. SPL at 1 kHz 130 dB
Frequency response 50 to 18,000 Hz
Equivalent noise level A-weighted 32 dB
Connector 3.5 mm jack
Cable length approx. 1.60 m (62.99")
Supply voltage 7.5 V

More +
