Dale #:
SENN-EWDXSKSKMSBASESETV57Availability:
Accepting Preordersexpected to ship in early 2023
Description

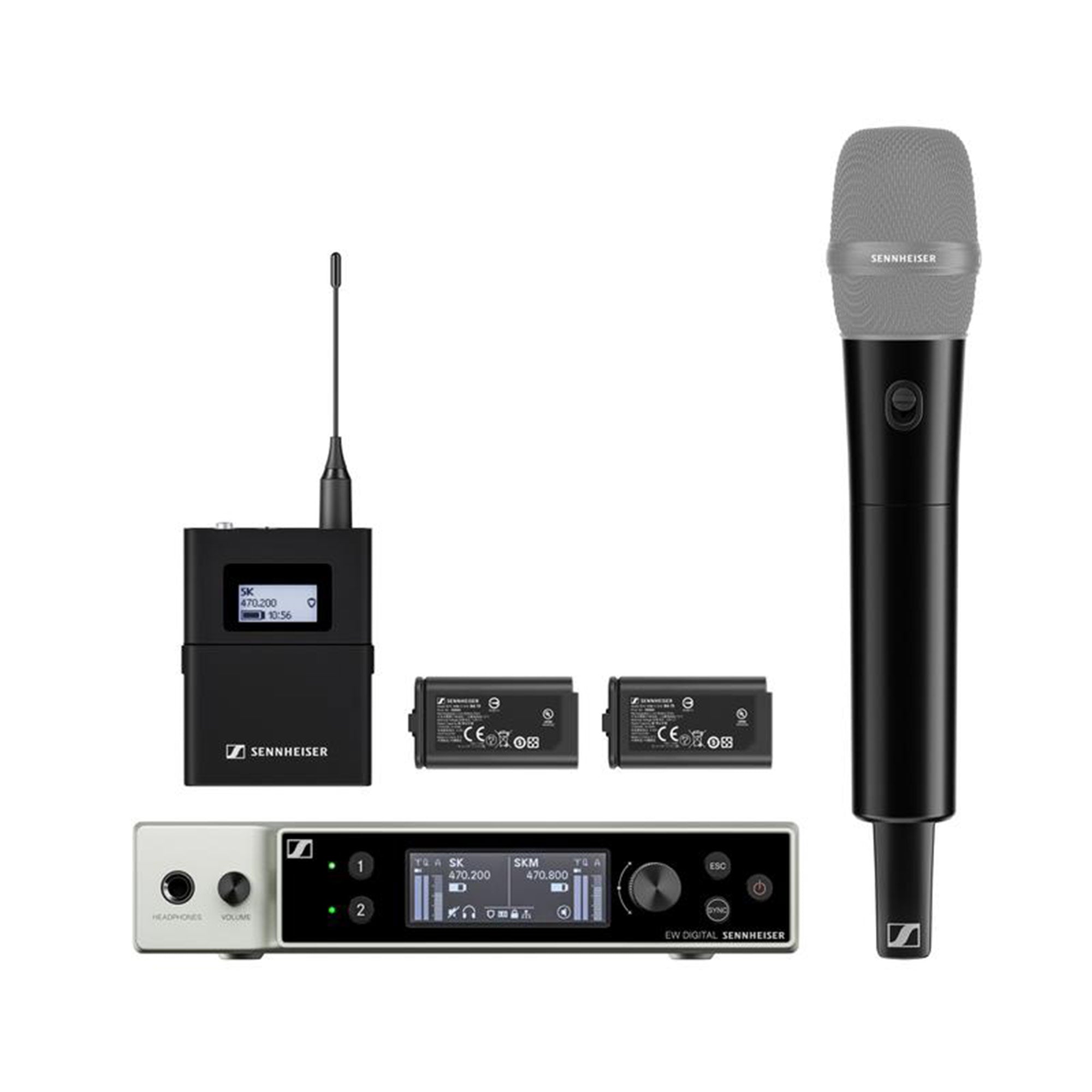

Wireless bodypack base set consisting of 1 x EW-DX SKM-S (handheld with mute switch), 1 x EW-DX SK (wireless bodypack transmitter), 1 x EW-DX EM 2 rackmout receiver (2 channels) and 2 x BA 70 rechargeable batteries. Microphone capsules are sold separately. FEATURES EW-DX EM 2 2 channel half r... Read MoreRetail Price: $2,349.00 Our Price: $1,999.00
Free Shipping (Continental US)
Suggested Accessories
Description
Wireless bodypack base set consisting of 1 x EW-DX SKM-S (handheld with mute switch), 1 x EW-DX SK (wireless bodypack transmitter), 1 x EW-DX EM 2 rackmout receiver (2 channels) and 2 x BA 70 rechargeable batteries. Microphone capsules are sold separately.
FEATURES EW-DX EM 2
FEATURES EW-DX SKM-S
FEATURES EW-DX SK
What's In The Box:
More +
Product Specs
System | |
Audio link frequency ranges | Q1-9 Band: 470-550 MHz R1-9 Band: 520-608 MHz V5-7 Band: 941-960 MHz |
Bluetooth® Low Energy (BLE) frequency range | 2402 - 2480 MHz |
Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
Audio THD | ? -60 dB for 1 kHz @ -3 dBfs input level |
Dynamic range | 134 dB |
System latency | 1.9 ms |
Operating temperature | -10 °C - +55 °C (14 °F - 131 °F) |
Relative humidity | 5 - 95 % (non-condensing) |

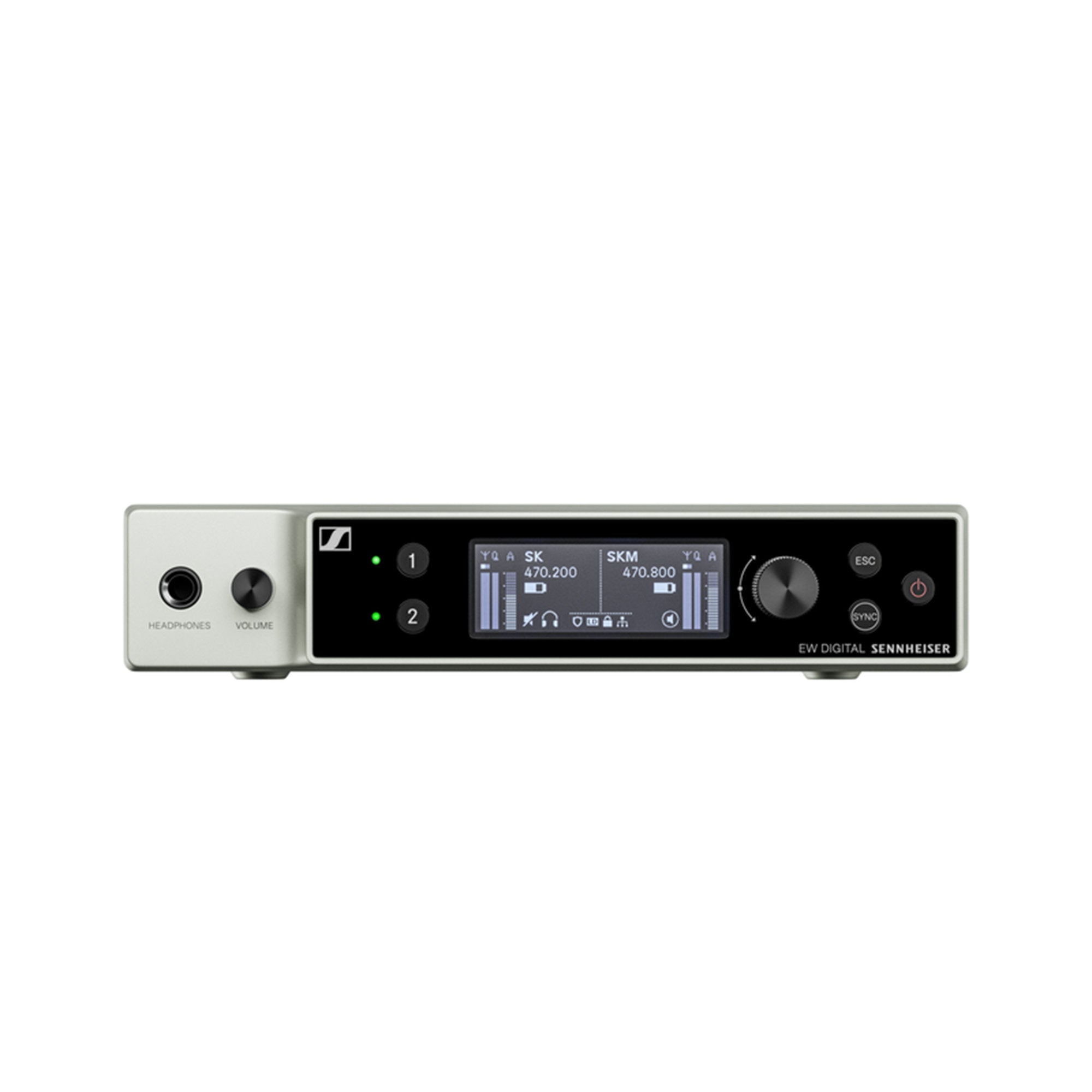

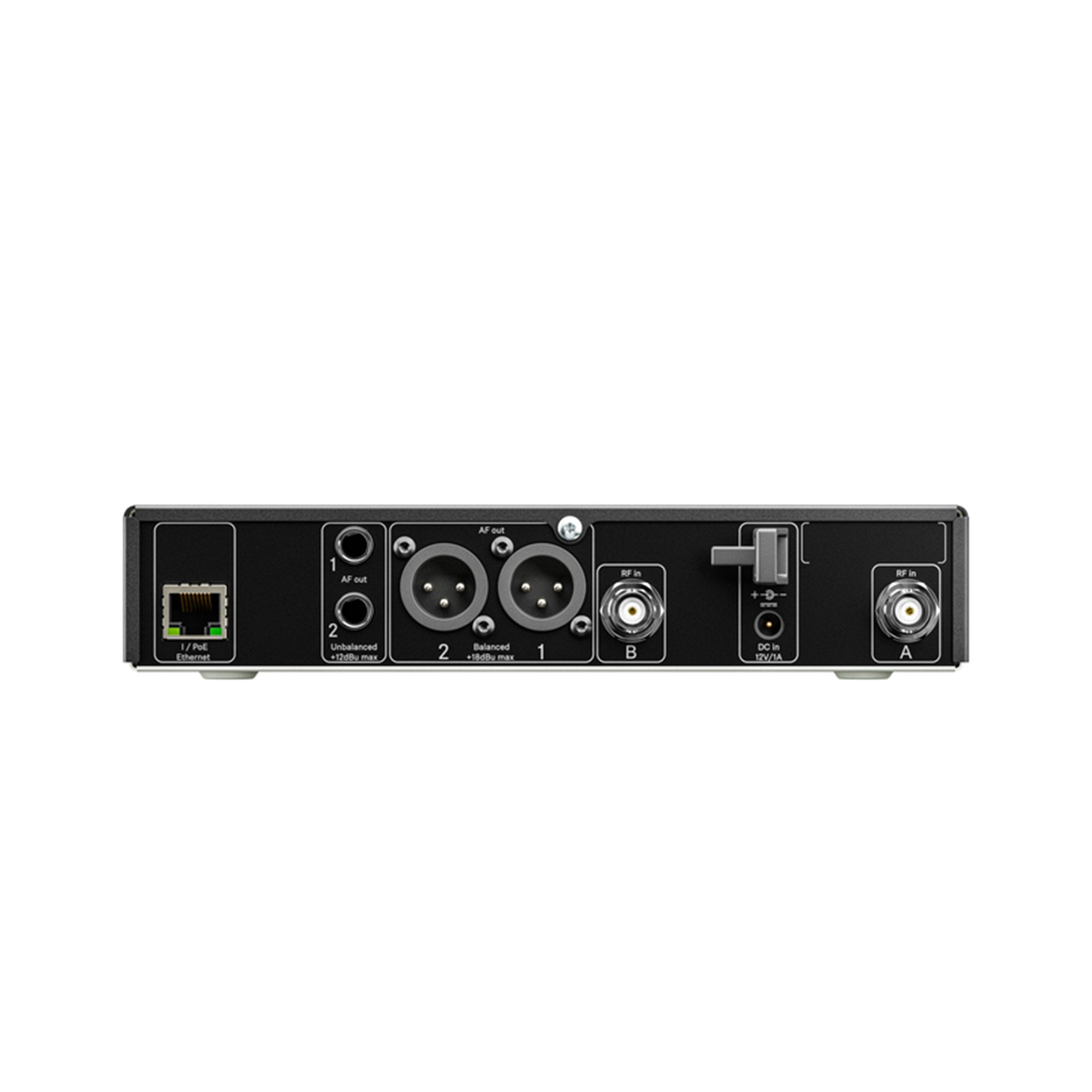

EW-DX EM 2 (Rack Receiver) | |
Input voltage | 11 - 13 V DC or PoE IEEE 802.3af Class 0 (CAT5e or higher) |
Input current | ? 1 A |
Transmit power (radiated) | BLE: max. 10 mW EIRP |
Audio output power | 18 dBu max. |
Headphone output | 2x 70 mW @ 32 ? |
Ethernet | RJ-45 socket, IEEE802.3 100 Base-TX (half+full duplex) 10Base-T (half+full duplex) (CAT5e or higher) |
Dimensions | 212 x 44 x 189 mm (8.35" x 1.73" x 7.44") |
Weight | approx. 1000 g (2.2 lbs) (without antennas and power supply) |

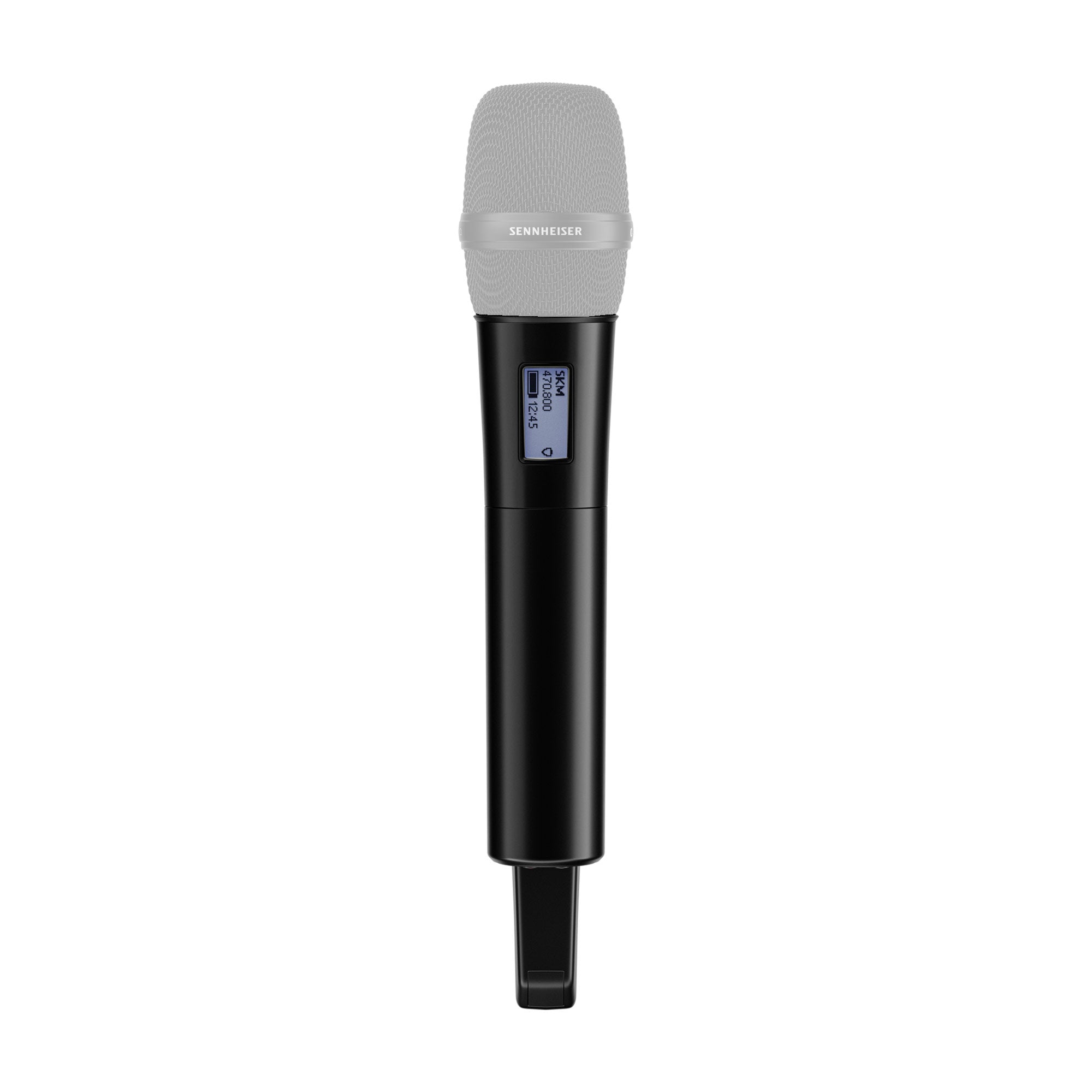

EW-DX SKM-S (Handheld Transmitter) | |
Input voltage | 2.0 - 4.35 V |
Input current | < 300 mA |
Power supply | 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack |
Occupied bandwidth | 200 kHz |
Transmit power (radiated) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP |
Dimensions (dia. x l) | (incl. MMD 835 microphone module) 50 x 268 mm (1.97" x 10.55") (without microphone module) 40 x 200 mm (1.57" x 7.87") |
Weight (without batteries) | (incl. MMD 835 microphone module) approx. 304 g (0.67 lbs) (without microphone module) approx. 195 g (7.14 lbs) |

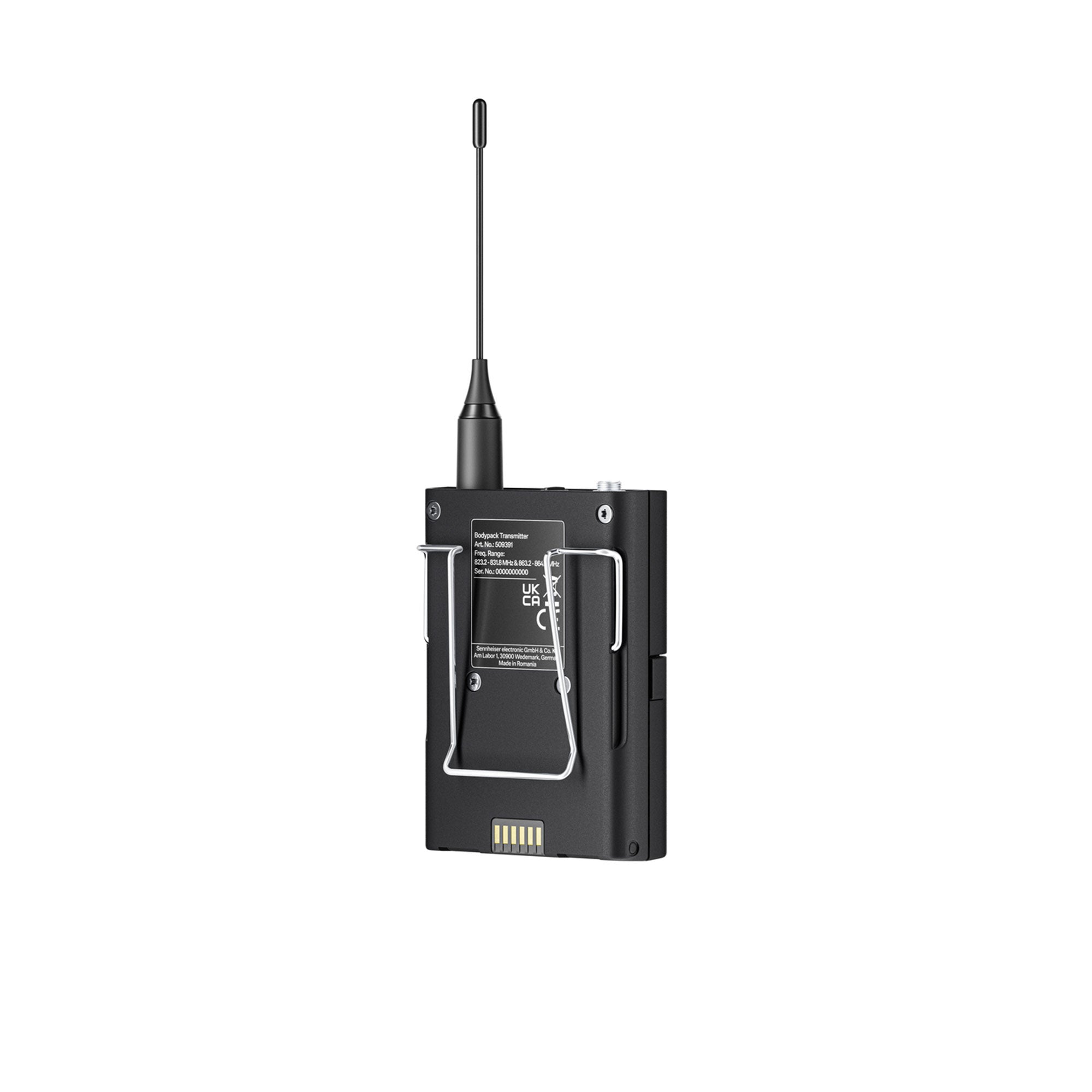

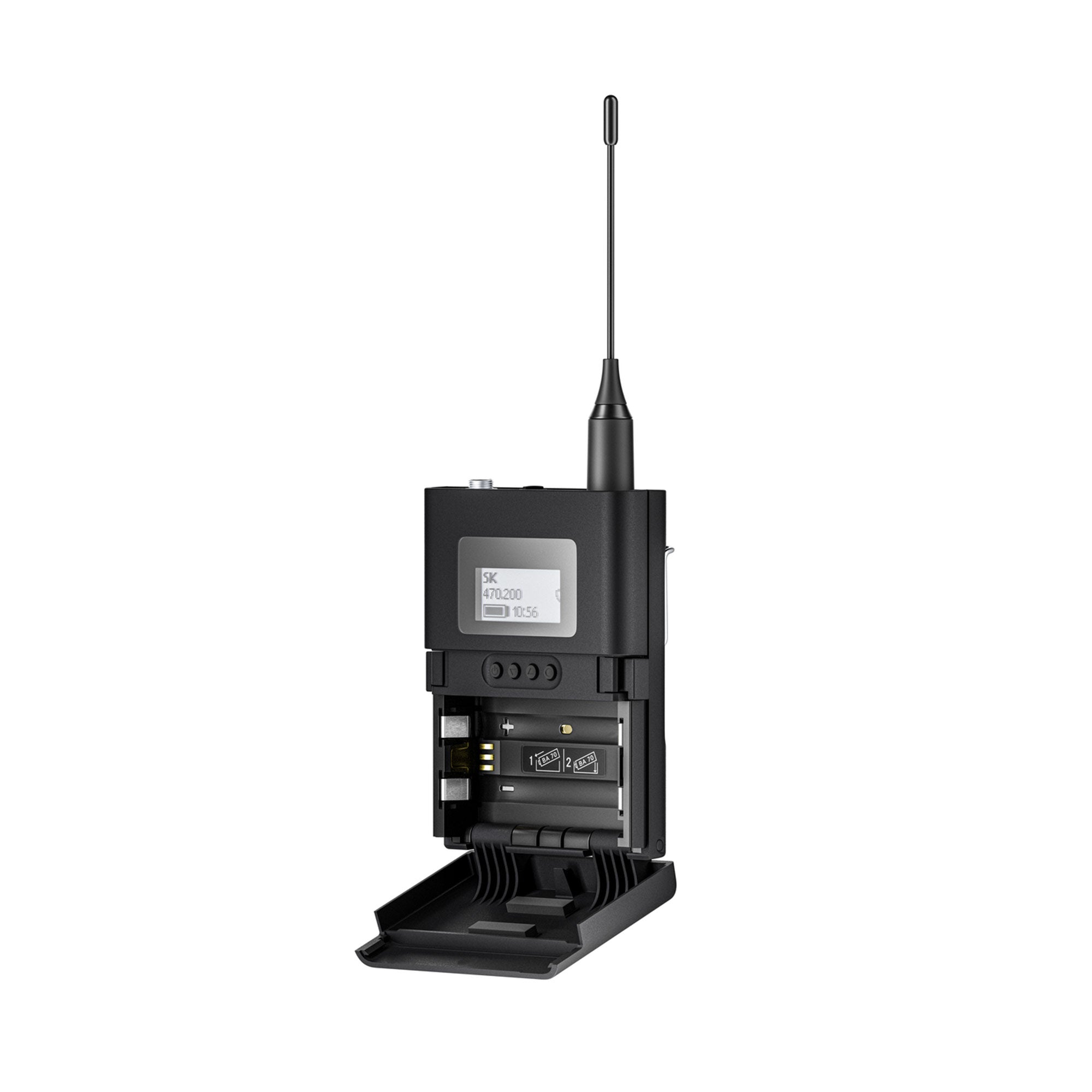

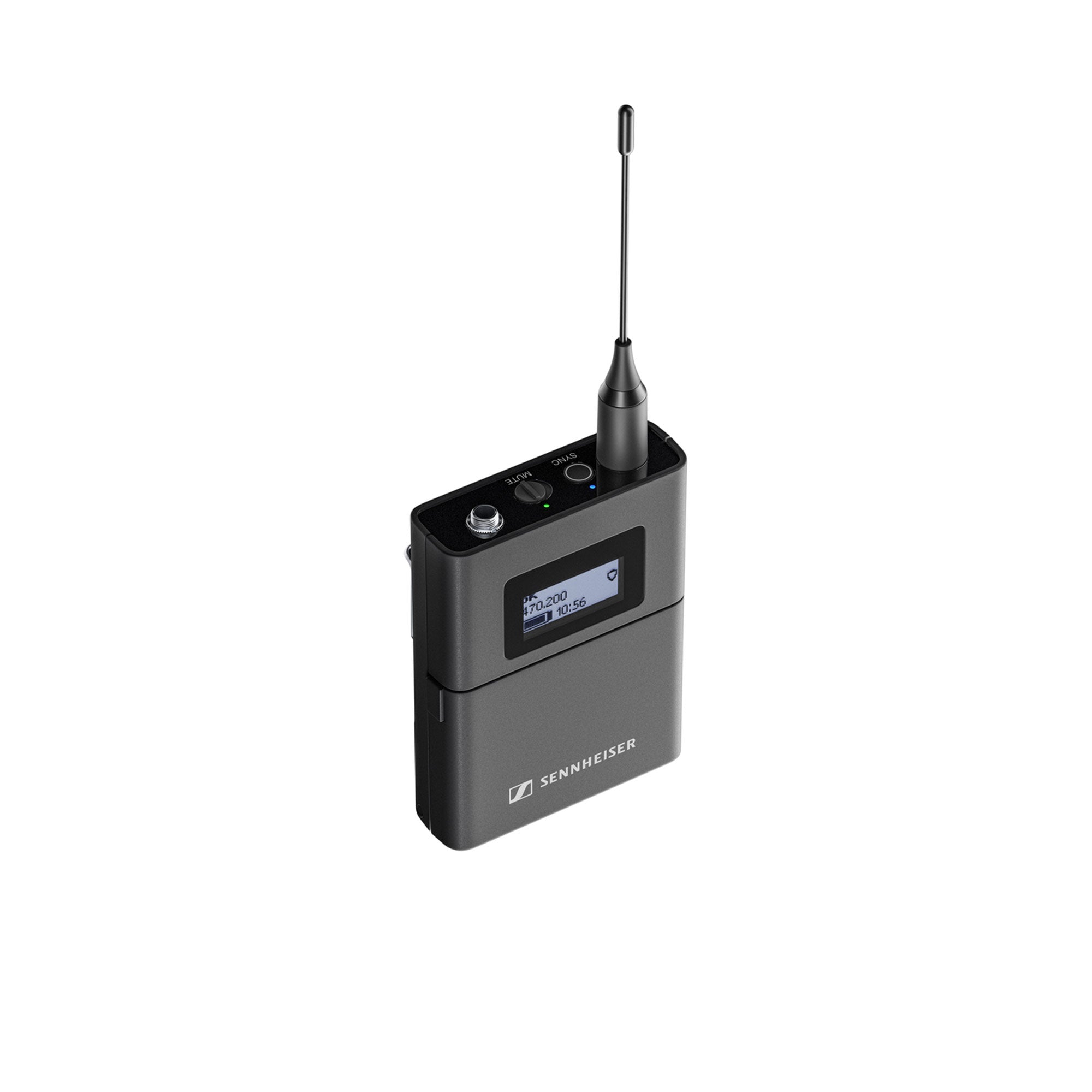

EW-DX SK (Bodypack Transmitter) | |
Input voltage | 2.0 - 4.35 V |
Input current | < 300 mA |
Power supply | 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack |
Occupied bandwidth | 200 kHz |
Transmit power (radiated) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) LD mode: 10 mW ERP BLE: max. 10 mW EIRP |
Dimensions (without antenna) | 63.5 x 85 x 20 mm (2.5" x 3.35" x 0.79") |
Weight (without batteries) | approx. 115-120 g (0.260,27 - lbs) |
