Description

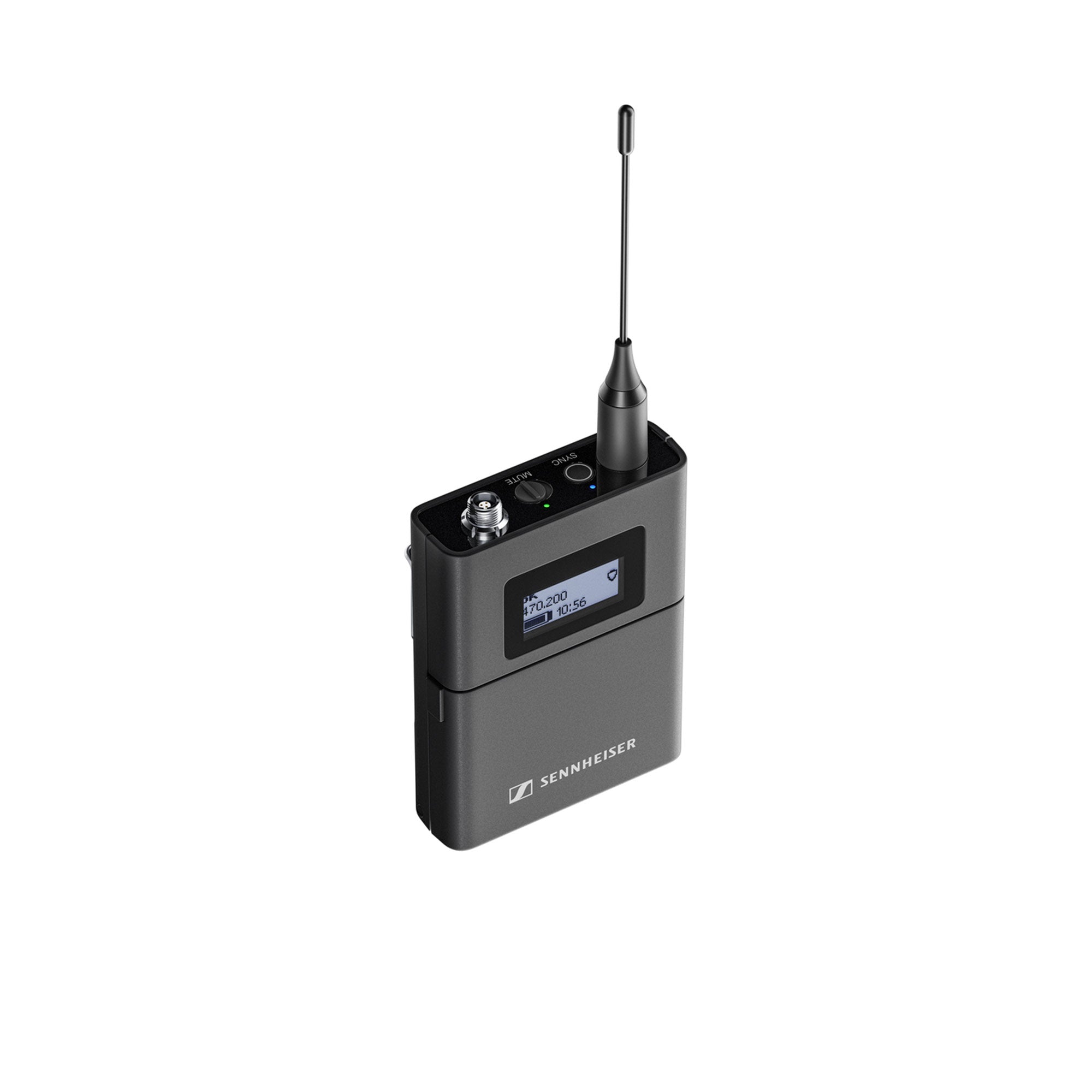

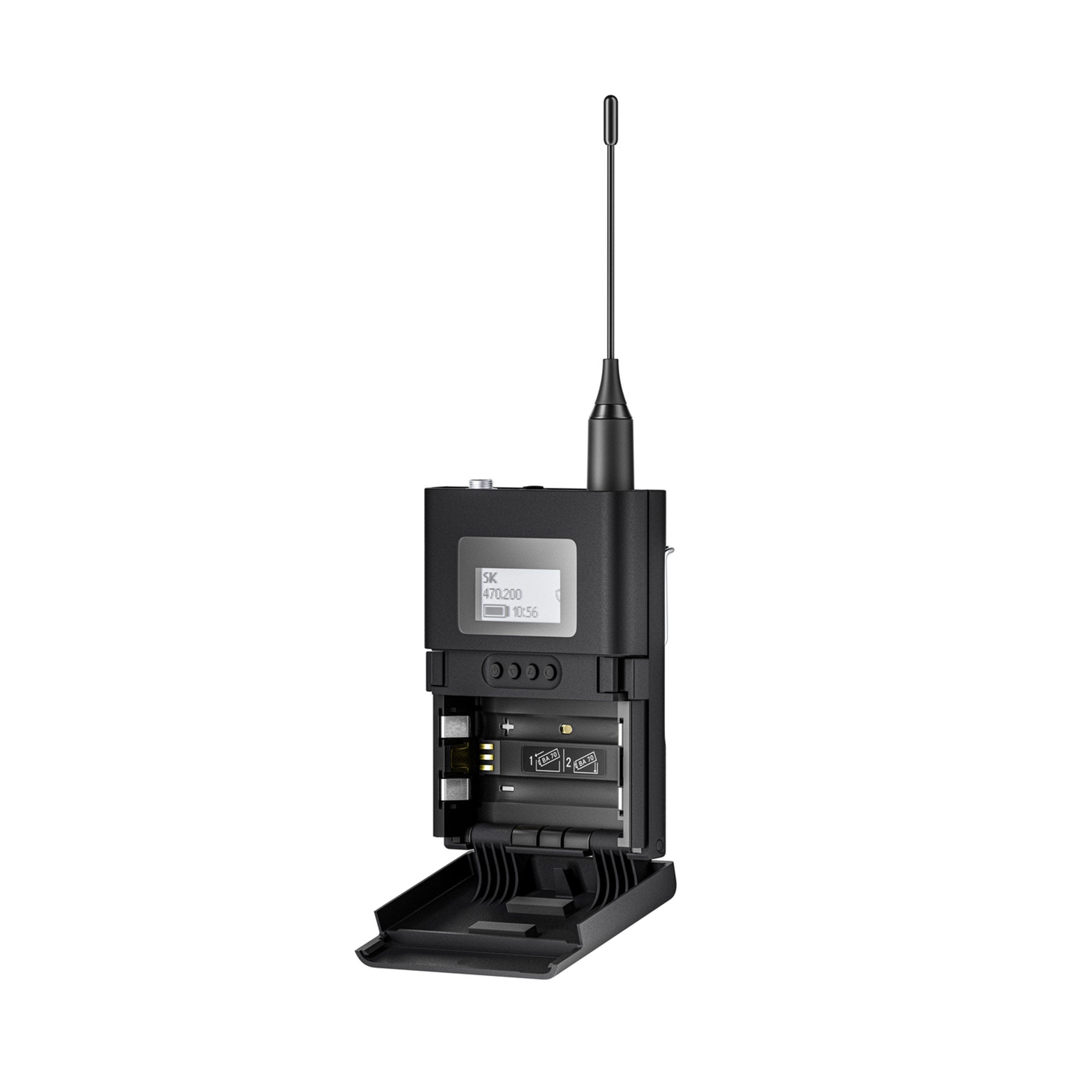

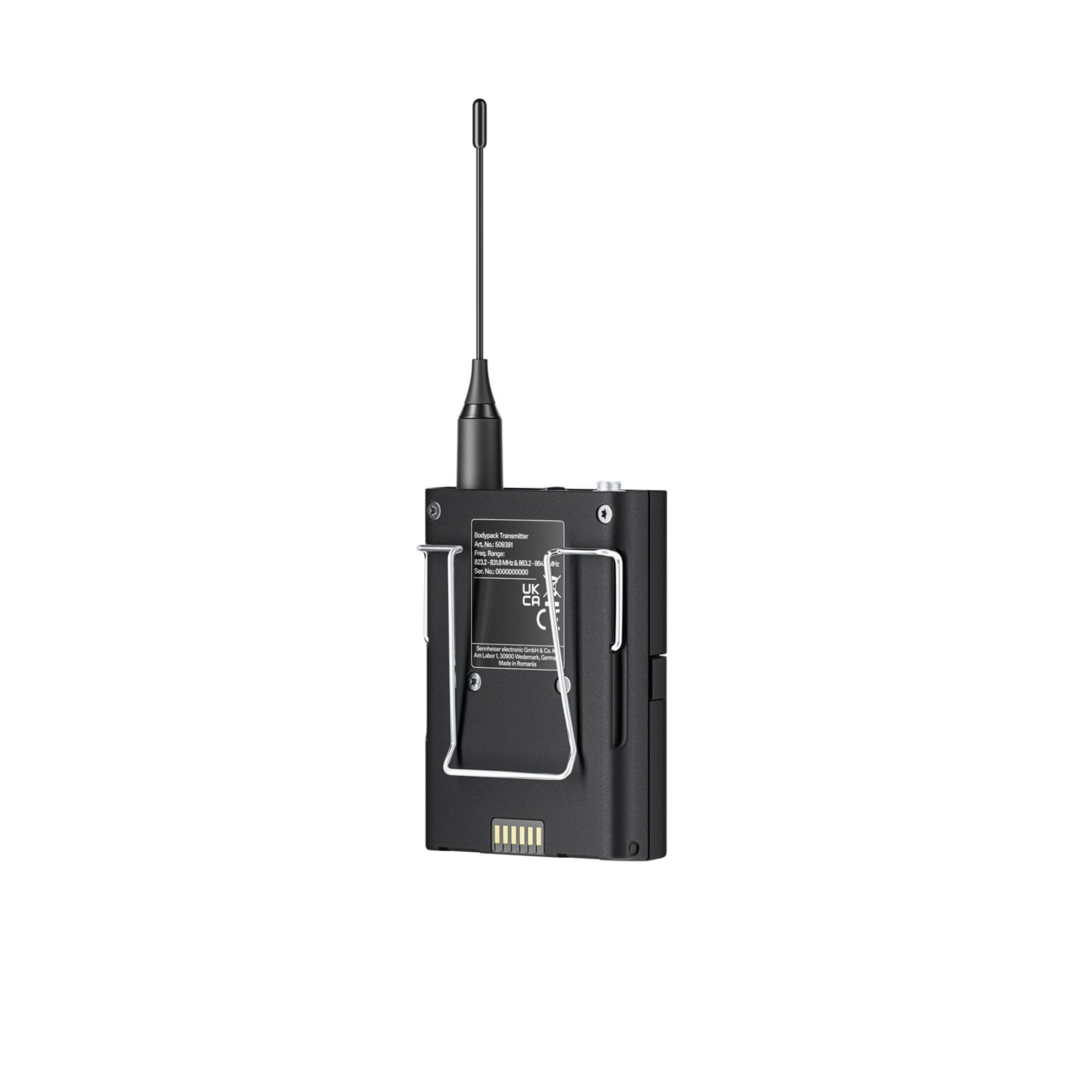

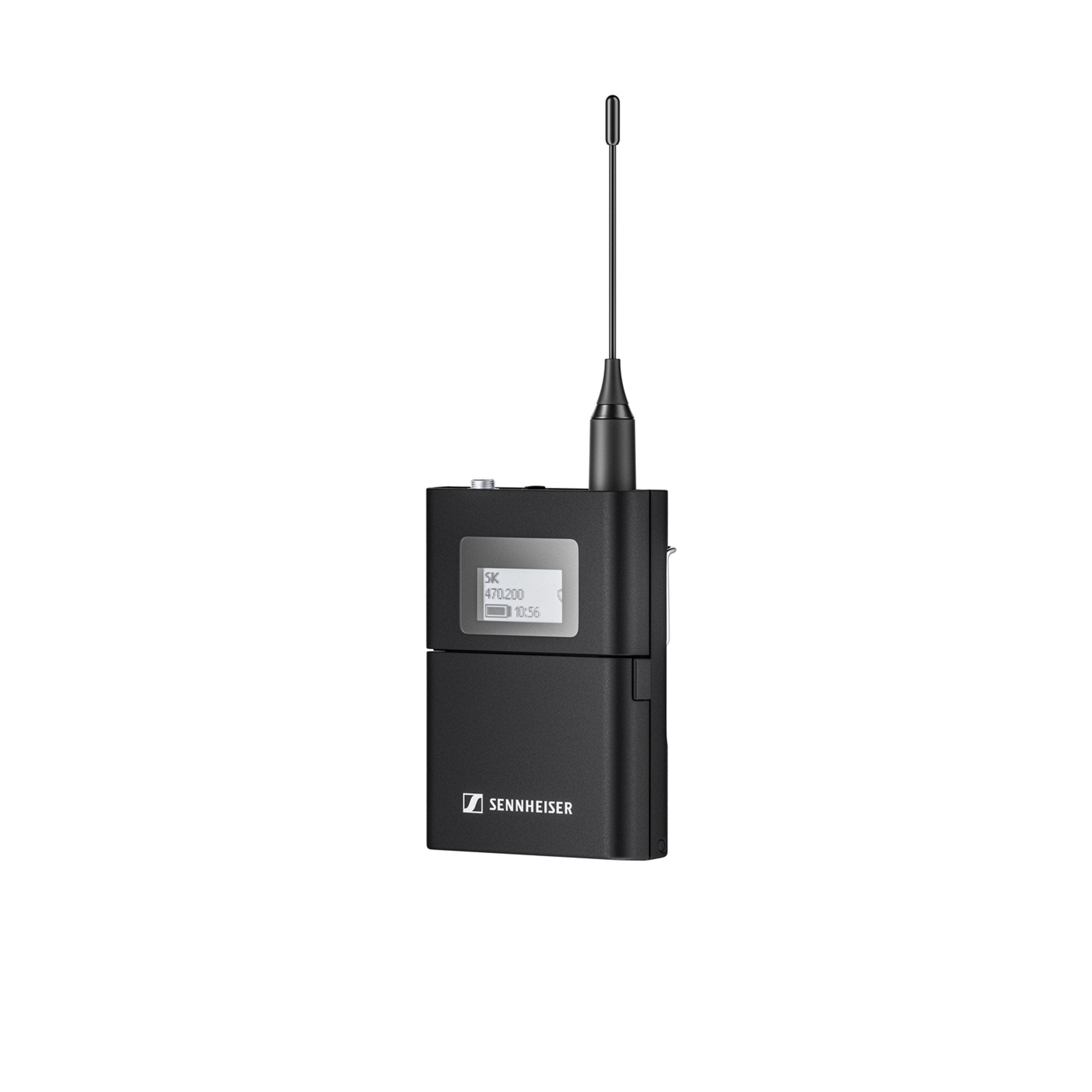

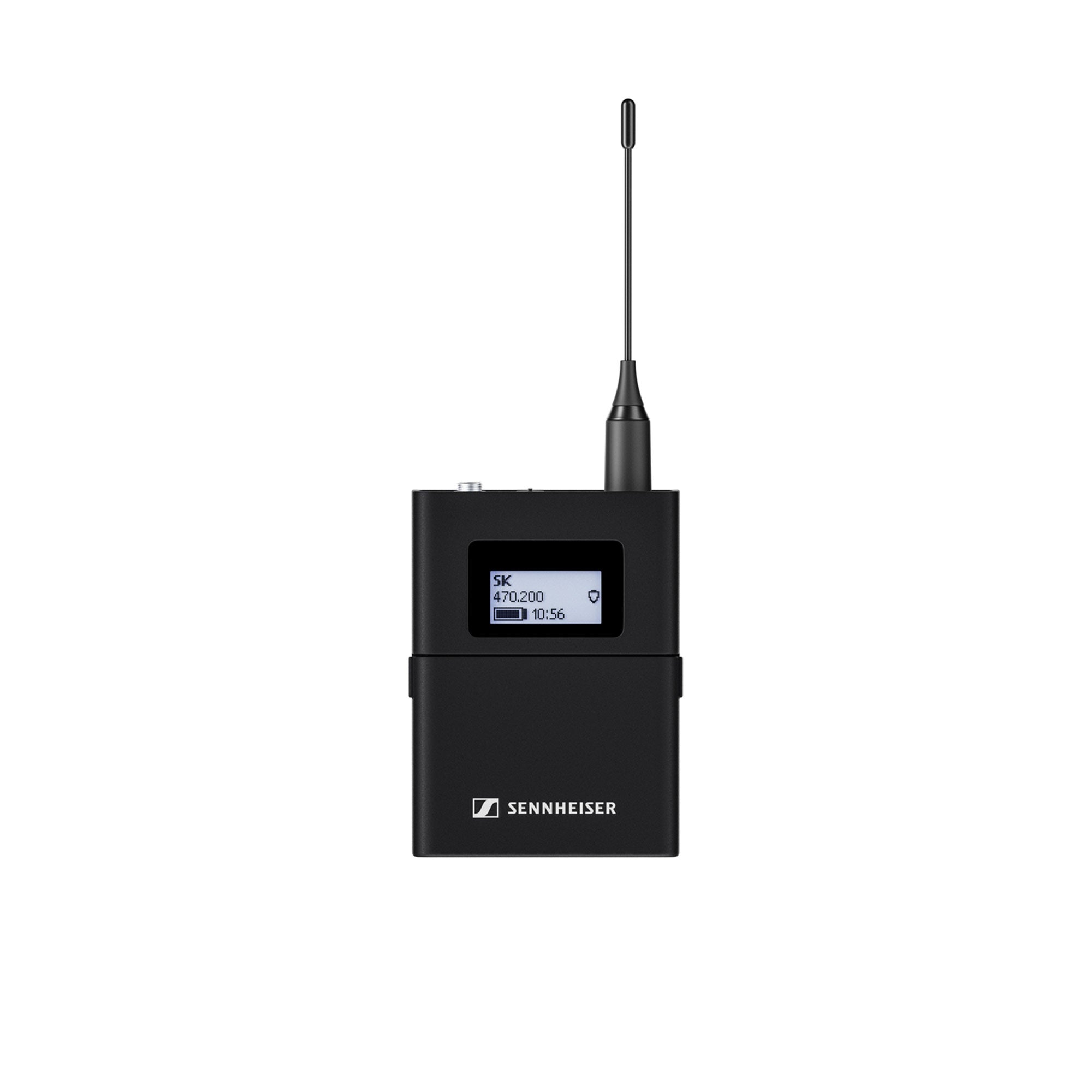

Compact and versatile bodypack transmitter for use with Evolution Wireless Digital receivers - with 3,5 mm jack or 3-pin connector variants.
Features:
- 3,5 mm jack or 3-pin connector variants
- 10mW RF power with up to 100m/328ft working range
- Charging contacts for in-device charging with CHG 70N
- Persistent eInk display - parameters visible on screen even when device is not powered on
- Programmable mute switch - customize the device depending on your professional needs
- Extended runtime with lithium ion batteries - up to 12 hours operation time
- Mic input trim control
- Metal housing
What's In The Box:
- EW-DX SK bodypack transmitter
- clip
- batteries (AA)
- pouch
- quick guide
- safety guide
- manufacturer declaration sheet
System | |
Audio link frequency ranges | Q1-9 Band: 470-550 MHz R1-9 Band: 520-608 MHz V5-7 Band: 941-960 MHz |
Bluetooth¨ Low Energy (BLE) frequency range | 2402 - 2480 MHz |
Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
Audio THD | ? -60 dB for 1 kHz @ -3 dBfs input level |
Dynamic range | 134 dB |
System latency | 1.9 ms |
Operating temperature | -10 ¡C - +55 ¡C (14 ¡F - 131 ¡F) |
Relative humidity | 5 - 95 % (non-condensing) |
EW-DX SK (Bodypack Transmitter) | |
Input voltage | 2.0 - 4.35 V |
Input current | < 300 mA |
Power supply | 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack |
Occupied bandwidth | 200 kHz |
Transmit power (radiated) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) LD mode: 10 mW ERP BLE: max. 10 mW EIRP |
Dimensions (without antenna) | 63.5 x 85 x 20 mm (2.5" x 3.35" x 0.79") |
Weight (without batteries) | approx. 115-120 g (0.260,27 - lbs) |
Compact and versatile bodypack transmitter for use with Evolution Wireless Digital receivers - with 3,5 mm jack or 3-pin connector variants.
Features:
- 3,5 mm jack or 3-pin connector variants
- 10mW RF power with up to 100m/328ft working range
- Charging contacts for in-device charging with CHG 70N
- Persistent eInk display - parameters visible on screen even when device is not powered on
- Programmable mute switch - customize the device depending on your professional needs
- Extended runtime with lithium ion batteries - up to 12 hours operation time
- Mic input trim control
- Metal housing
What's In The Box:
- EW-DX SK bodypack transmitter
- clip
- batteries (AA)
- pouch
- quick guide
- safety guide
- manufacturer declaration sheet
System | |
Audio link frequency ranges | Q1-9 Band: 470-550 MHz R1-9 Band: 520-608 MHz V5-7 Band: 941-960 MHz |
Bluetooth¨ Low Energy (BLE) frequency range | 2402 - 2480 MHz |
Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
Audio THD | ? -60 dB for 1 kHz @ -3 dBfs input level |
Dynamic range | 134 dB |
System latency | 1.9 ms |
Operating temperature | -10 ¡C - +55 ¡C (14 ¡F - 131 ¡F) |
Relative humidity | 5 - 95 % (non-condensing) |
EW-DX SK (Bodypack Transmitter) | |
Input voltage | 2.0 - 4.35 V |
Input current | < 300 mA |
Power supply | 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack |
Occupied bandwidth | 200 kHz |
Transmit power (radiated) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) LD mode: 10 mW ERP BLE: max. 10 mW EIRP |
Dimensions (without antenna) | 63.5 x 85 x 20 mm (2.5" x 3.35" x 0.79") |
Weight (without batteries) | approx. 115-120 g (0.260,27 - lbs) |
