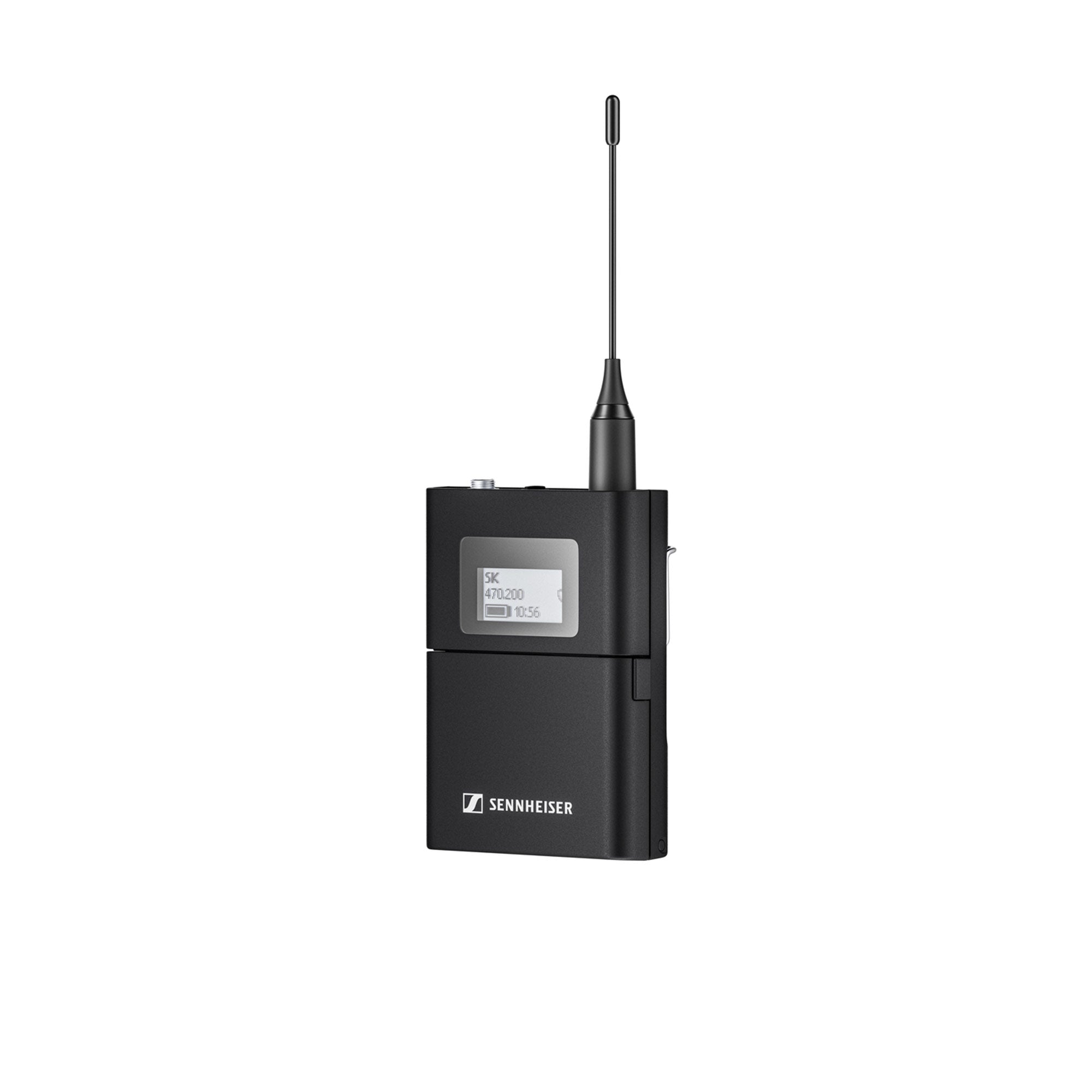

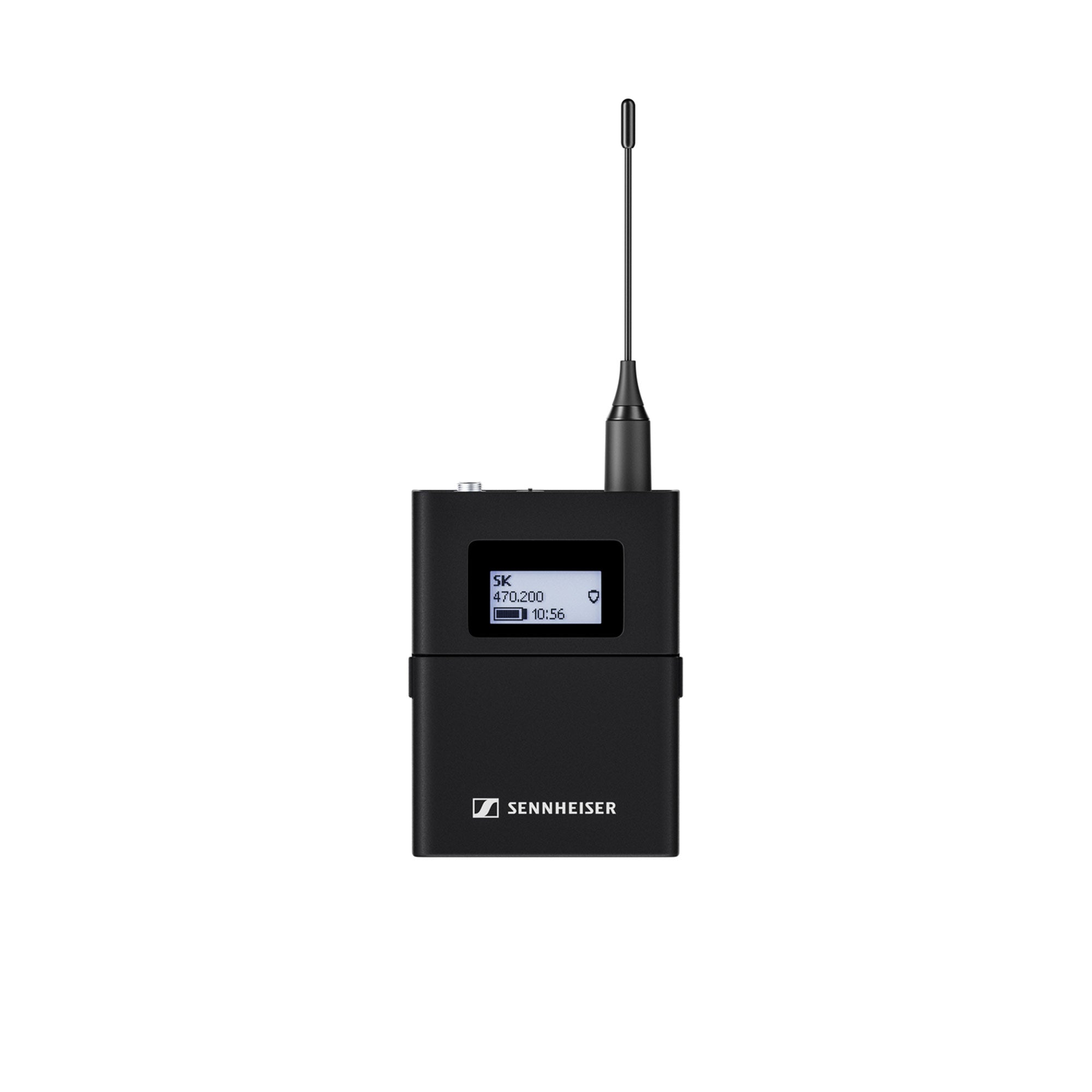

Sennheiser EW-DX SK - Wireless Bodypack Transmitter with 3-Pin Lemo (V5-7 Band / 941-960 MHz)



  • Dale #:

    SENN-EWDXSK3PINV57

  • Availability:

    Not in Stock - Reserve Yours

  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Compact and versatile bodypack transmitter for use with Evolution Wireless Digital receivers - with 3,5 mm jack or 3-pin connector variants. Features: 3,5 mm jack or 3-pin connector variants 10mW RF power with up to 100m/328ft working range Charging contacts for in-device charging wit... Read More

Retail Price: $579.00 Our Price: $499.00

affirm logo 3, 6 or 12 monthly payments available.

Learn more

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Compact and versatile bodypack transmitter for use with Evolution Wireless Digital receivers - with 3,5 mm jack or 3-pin connector variants.

Features:

  • 3,5 mm jack or 3-pin connector variants
  • 10mW RF power with up to 100m/328ft working range
  • Charging contacts for in-device charging with CHG 70N
  • Persistent eInk display - parameters visible on screen even when device is not powered on
  • Programmable mute switch - customize the device depending on your professional needs
  • Extended runtime with lithium ion batteries - up to 12 hours operation time
  • Mic input trim control
  • Metal housing

What's In The Box:

  • EW-DX SK bodypack transmitter
  • clip
  • batteries (AA)
  • pouch
  • quick guide
  • safety guide
  • manufacturer declaration sheet

More +

Product Specs

System
Audio link frequency ranges Q1-9 Band: 470-550 MHz
R1-9 Band: 520-608 MHz
V5-7 Band: 941-960 MHz
Bluetooth® Low Energy (BLE) frequency range 2402 - 2480 MHz
Audio frequency response 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio THD ? -60 dB for 1 kHz @ -3 dBfs input level
Dynamic range 134 dB
System latency 1.9 ms
Operating temperature -10 °C - +55 °C (14 °F - 131 °F)
Relative humidity 5 - 95 % (non-condensing)
EW-DX SK (Bodypack Transmitter)
Input voltage 2.0 - 4.35 V
Input current < 300 mA
Power supply 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
Occupied bandwidth 200 kHz
Transmit power (radiated) Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)
LD mode: 10 mW ERP
BLE: max. 10 mW EIRP
Dimensions (without antenna) 63.5 x 85 x 20 mm (2.5" x 3.35" x 0.79")
Weight (without batteries) approx. 115-120 g (0.260,27 -  lbs)
