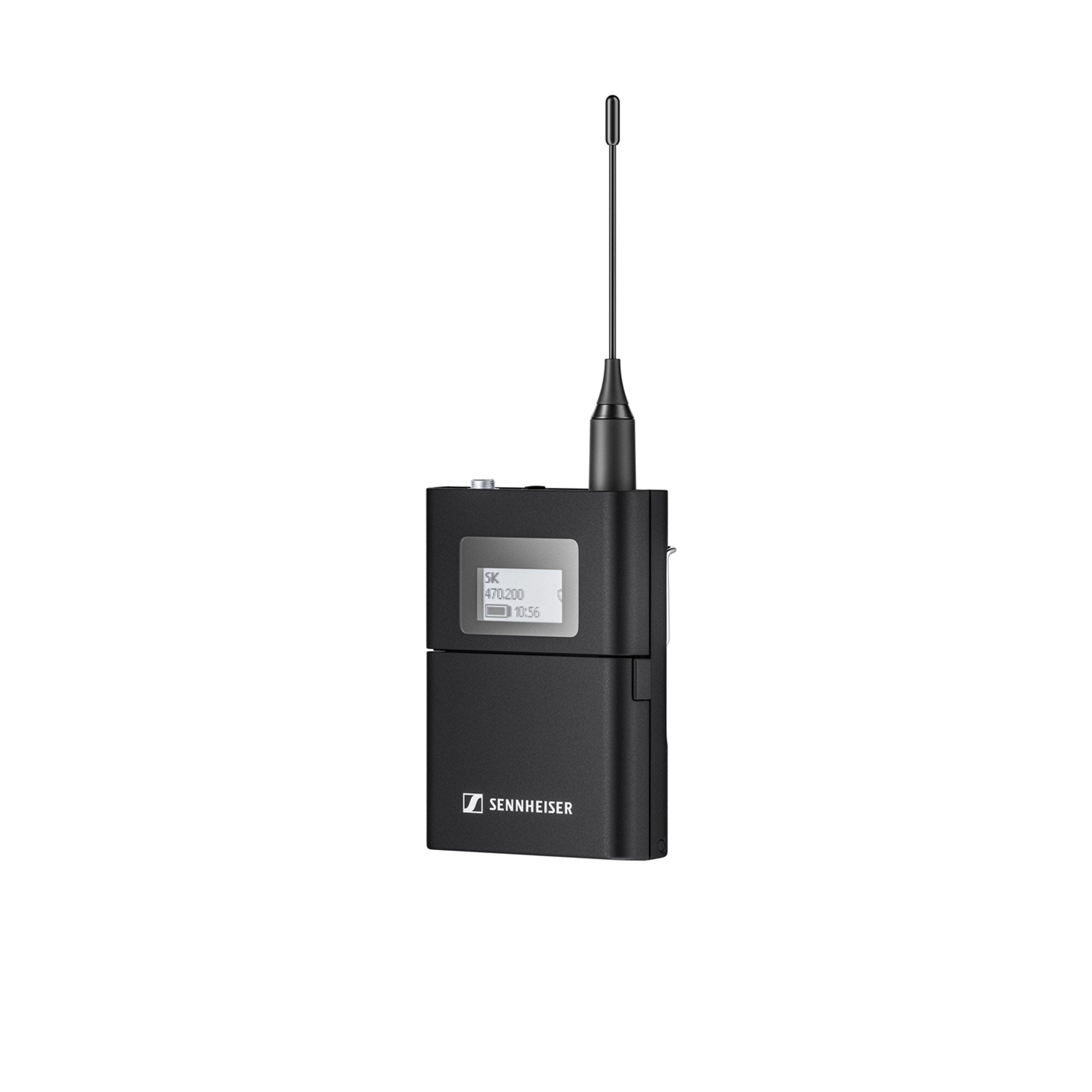

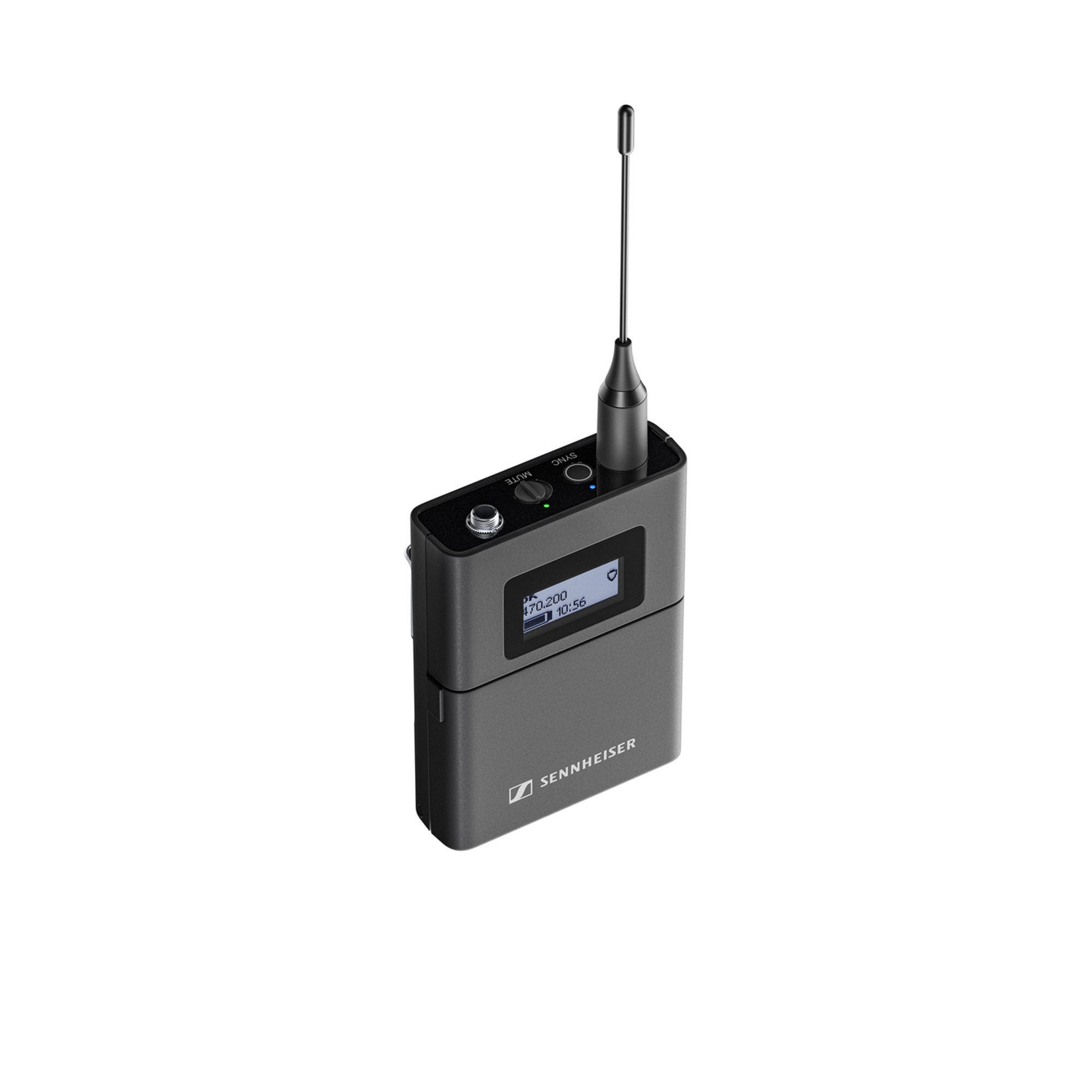

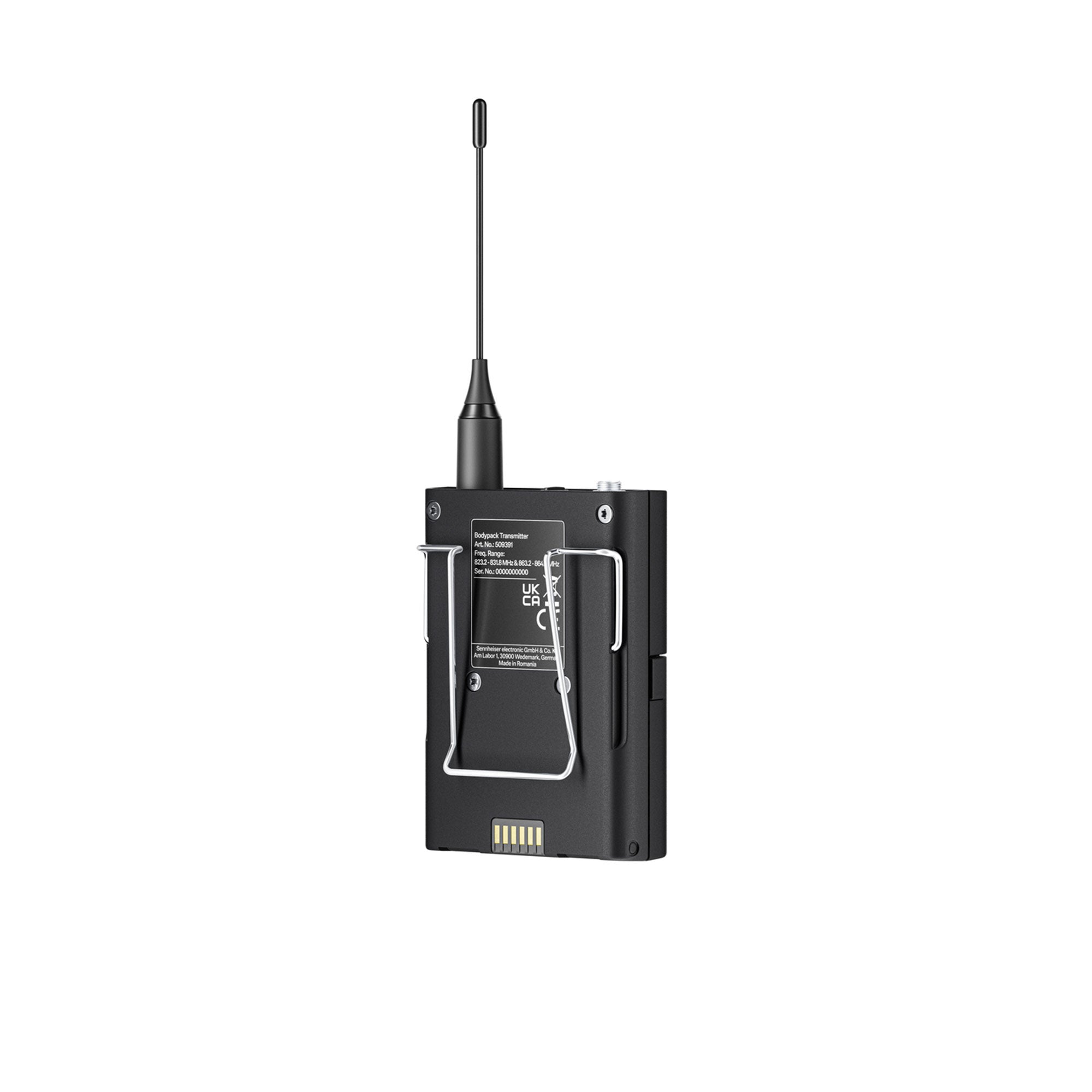

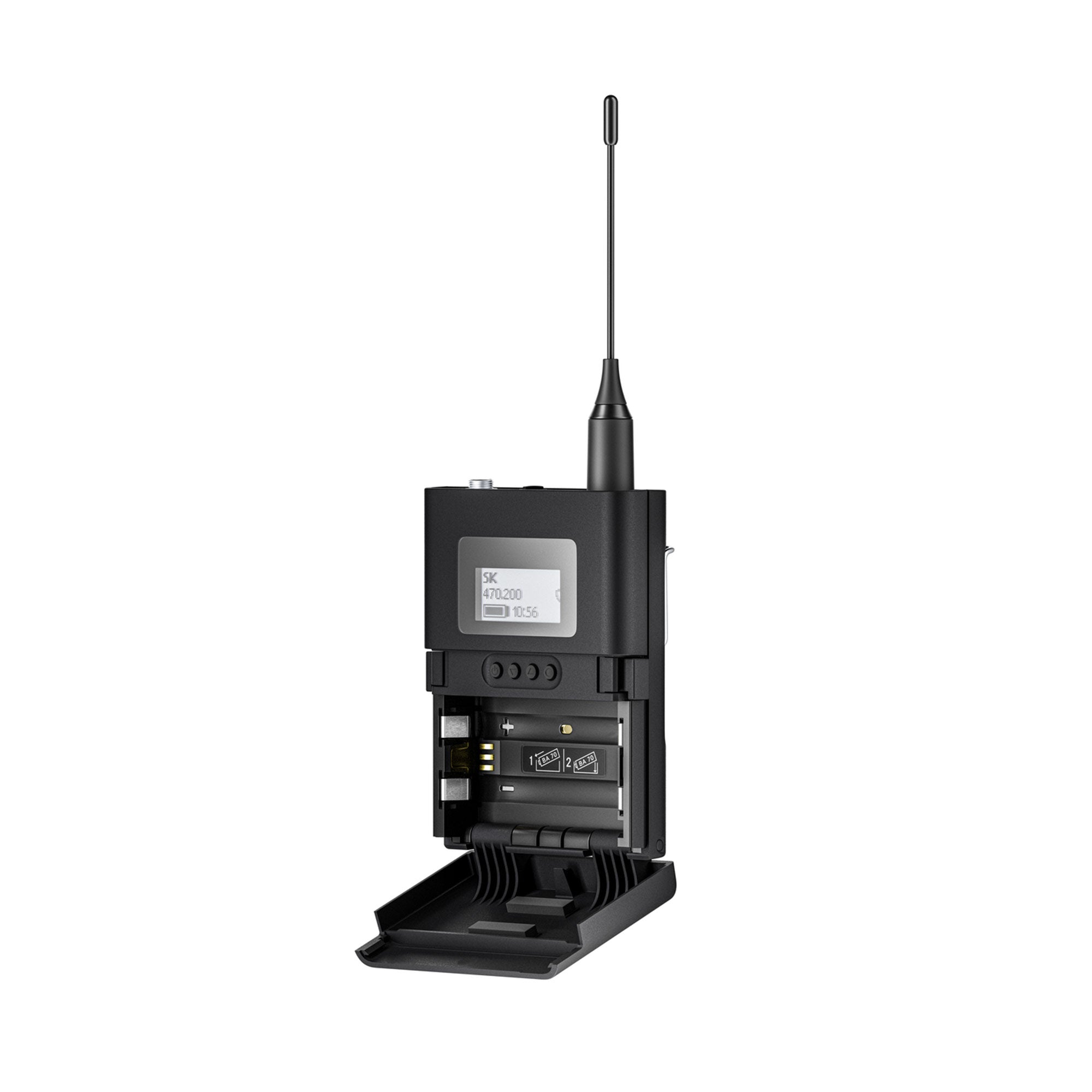

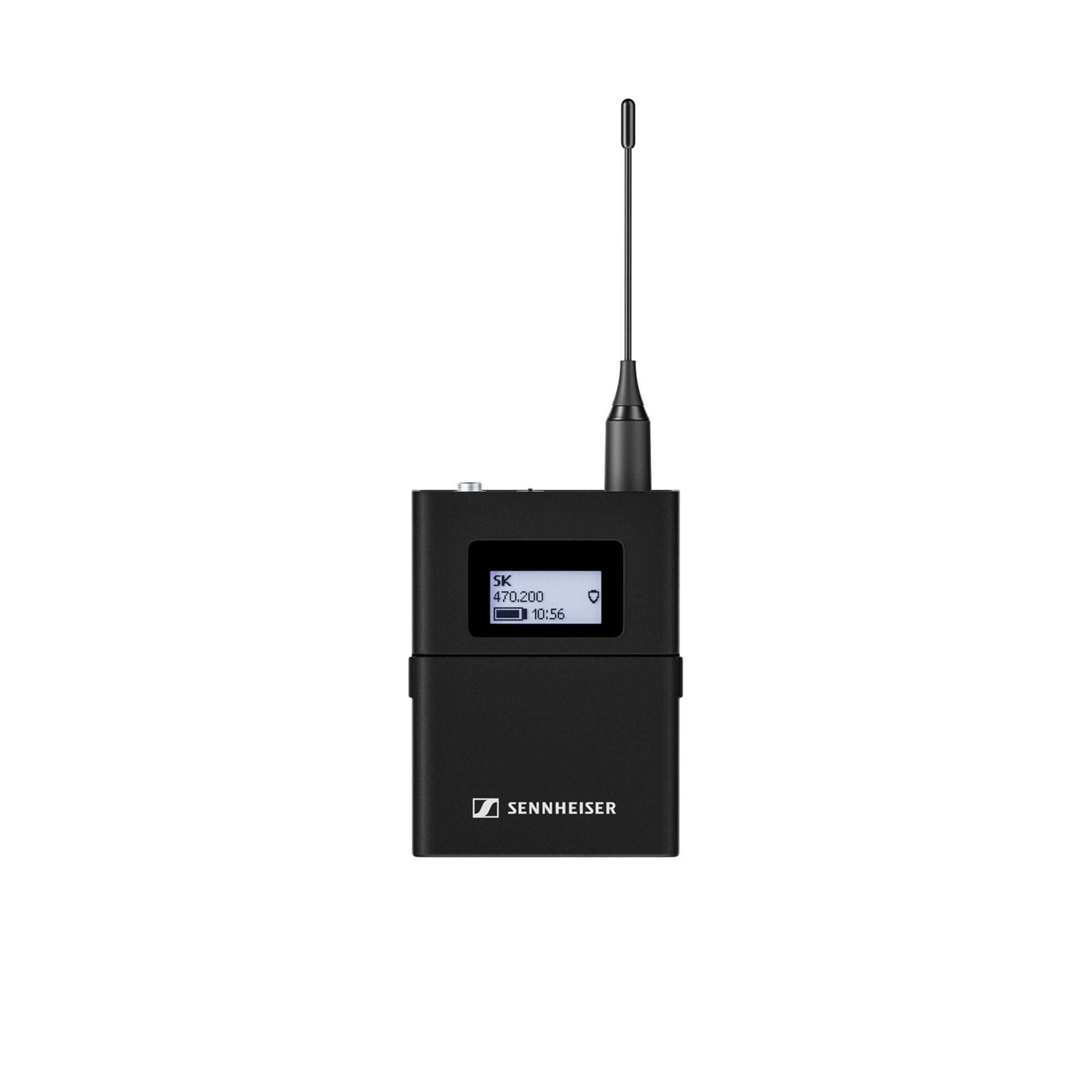

Sennheiser EW-DX SK - Wireless Bodypack Transmitter with Locking 3.5mm (Q1-9 Band / 470-550 MHz)

  • Dale #:

    SENN-EWDXSKQ19
  • Availability:

    Accepting Preorders
  • expected to ship in Fall 2022

Description

Compact and versatile bodypack transmitter for use with Evolution Wireless Digital receivers - with 3,5 mm jack or 3-pin connector variants. Features: 3,5 mm jack or 3-pin connector variants 10mW RF power with up to 100m/328ft working range Charging contacts for in-device charging with CHG... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Compact and versatile bodypack transmitter for use with Evolution Wireless Digital receivers - with 3,5 mm jack or 3-pin connector variants.

Features:

  • 3,5 mm jack or 3-pin connector variants
  • 10mW RF power with up to 100m/328ft working range
  • Charging contacts for in-device charging with CHG 70N
  • Persistent eInk display - parameters visible on screen even when device is not powered on
  • Programmable mute switch - customize the device depending on your professional needs
  • Extended runtime with lithium ion batteries - up to 12 hours operation time
  • Mic input trim control
  • Metal housing

What's In The Box:

  • EW-DX SK bodypack transmitter
  • clip
  • batteries (AA)
  • pouch
  • quick guide
  • safety guide
  • manufacturer declaration sheet

More +

Product Specs

System
Audio link frequency ranges Q1-9 Band: 470-550 MHz
R1-9 Band: 520-608 MHz
V5-7 Band: 941-960 MHz
Bluetooth® Low Energy (BLE) frequency range 2402 - 2480 MHz
Audio frequency response 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio THD ? -60 dB for 1 kHz @ -3 dBfs input level
Dynamic range 134 dB
System latency 1.9 ms
Operating temperature -10 °C - +55 °C (14 °F - 131 °F)
Relative humidity 5 - 95 % (non-condensing)
EW-DX SK (Bodypack Transmitter)
Input voltage 2.0 - 4.35 V
Input current < 300 mA
Power supply 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
Occupied bandwidth 200 kHz
Transmit power (radiated) Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)
LD mode: 10 mW ERP
BLE: max. 10 mW EIRP
Dimensions (without antenna) 63.5 x 85 x 20 mm (2.5" x 3.35" x 0.79")
Weight (without batteries) approx. 115-120 g (0.260,27 -  lbs)

More +
