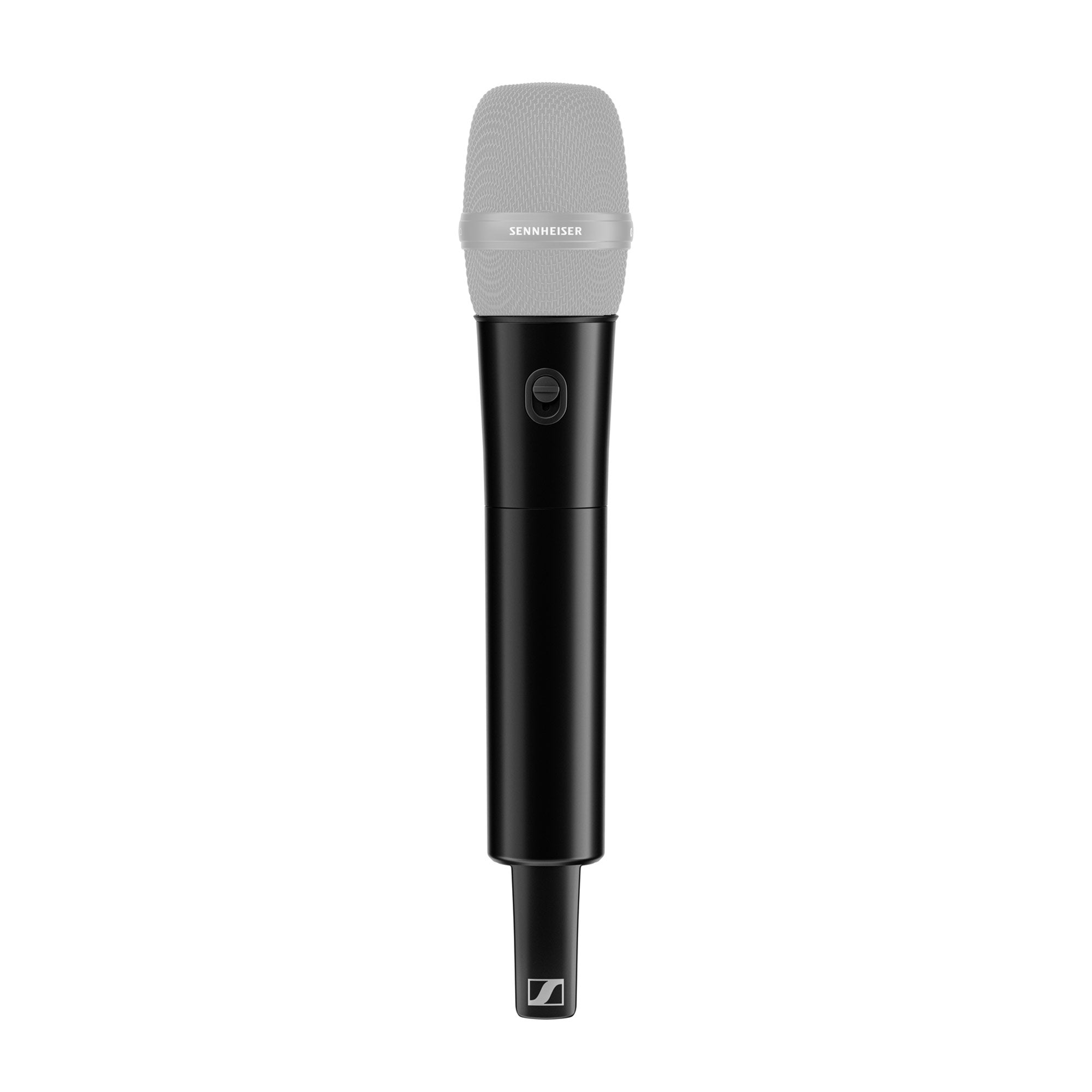

Sennheiser EW-DX SKM-S - Wireless Handheld Transmitter (Requires Capsule / Q1-9 Band / 470-550 MHz)


  • Dale #:

    SENN-EWDXSKMSR19
  • Availability:

    Accepting Preorders
  • expected to ship in Fall 2022

Description

Rugged and versatile handheld transmitter with audio on/off switch for the EW-DX wireless system. Features: 10mW RF power with up to 100m/328ft working range Charging contacts for in-device charging with CHG 70N Persistent eInk display - parameters visible on screen even when device is not... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Rugged and versatile handheld transmitter with audio on/off switch for the EW-DX wireless system.

Features:

  • 10mW RF power with up to 100m/328ft working range
  • Charging contacts for in-device charging with CHG 70N
  • Persistent eInk display - parameters visible on screen even when device is not powered on
  • Programmable mute switch on EW-DX SKM-S - customize the device depending on your professional needs
  • Function buttons - control all the transmitter settings directly from handheld microphone
  • Extended runtime with lithium-ion batteries - up to 12 hours operation time
  • Standard capsule interface - compatible with a wide range of Sennheiser and Neumann capsules
  • Mic input trim control
  • Metal housing

What's In The Box:

  • EW-DX SKM handheld transmitter
  • MMD 835 microphone module
  • MZQ 1 microphone clamp
  • batteries (AA)
  • pouch
  • quick guide
  • safety guide
  • manufacturer declaration sheet

More +

Product Specs

System
Audio link frequency ranges Q1-9 Band: 470-550 MHz
R1-9 Band: 520-608 MHz
V5-7 Band: 941-960 MHz
Bluetooth® Low Energy (BLE) frequency range 2402 - 2480 MHz
Audio frequency response 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio THD ? -60 dB for 1 kHz @ -3 dBfs input level
Dynamic range 134 dB
System latency 1.9 ms
Operating temperature -10 °C - +55 °C (14 °F - 131 °F)
Relative humidity 5 - 95 % (non-condensing)
EW-DX SKM-S (Handheld Transmitter)
Input voltage 2.0 - 4.35 V
Input current < 300 mA
Power supply 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
Occupied bandwidth 200 kHz
Transmit power (radiated) Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)
BLE: max. 10 mW EIRP
Dimensions (dia. x l) (incl. MMD  835 microphone module) 50 x 268 mm (1.97" x 10.55")
(without microphone module) 40 x 200 mm (1.57" x 7.87")
Weight (without batteries) (incl. MMD  835 microphone module) approx. 304 g (0.67  lbs)
(without microphone module) approx. 195 g (7.14 lbs)
