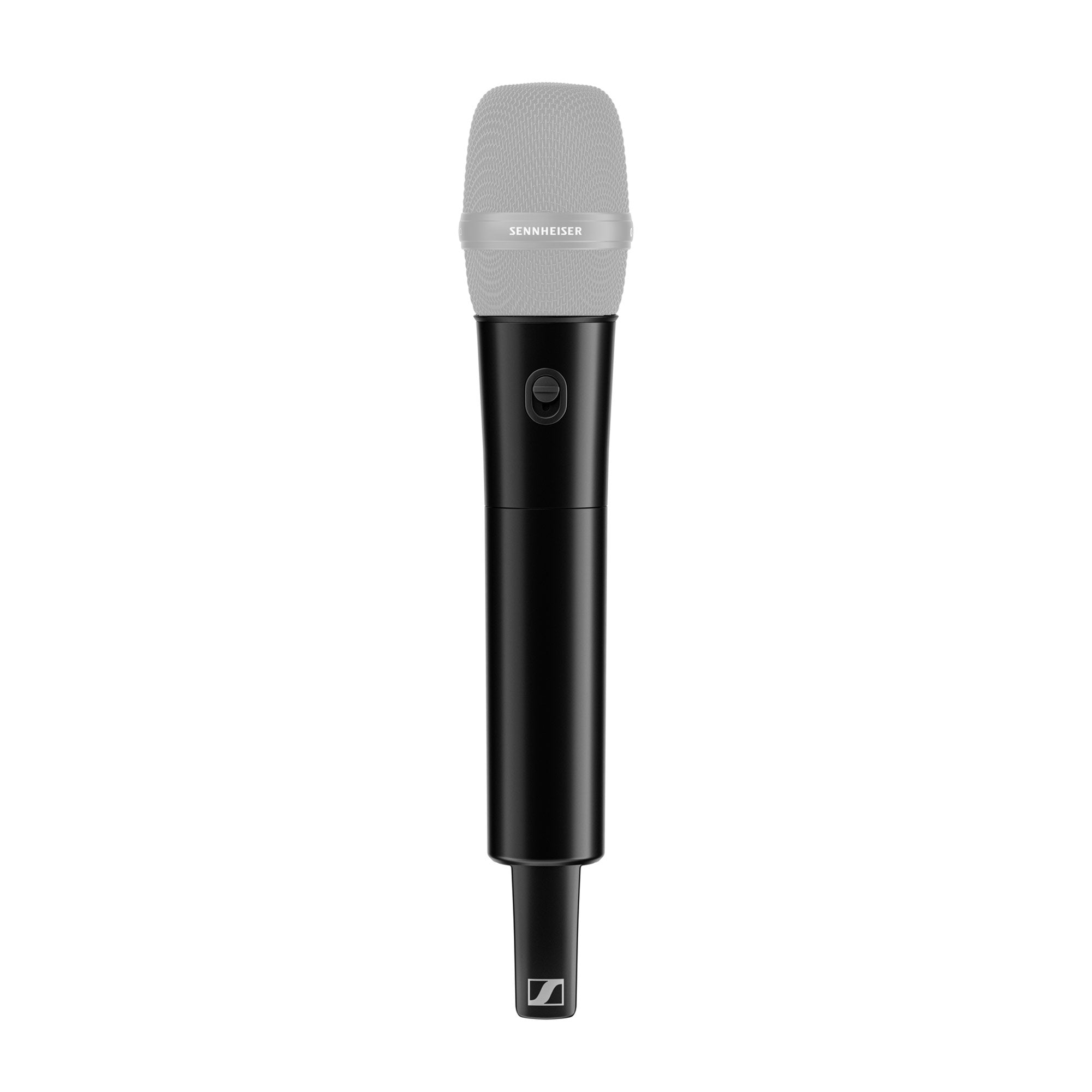

Sennheiser EW-DX SKM-S - Wireless Handheld Transmitter (Requires Capsule / R1-9 Band / 520-608 MHz)



  • Dale #:

    SENN-EWDXSKMSV57

  • Availability:

    Not in Stock - Reserve Yours

  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Rugged and versatile handheld transmitter with audio on/off switch for the EW-DX wireless system. Features: 10mW RF power with up to 100m/328ft working range Charging contacts for in-device charging with CHG 70N Persistent eInk display - parameters visible on screen even when device i... Read More

Retail Price: $549.00 Our Price: $469.00

affirm logo 3, 6 or 12 monthly payments available.

Learn more

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Rugged and versatile handheld transmitter with audio on/off switch for the EW-DX wireless system.

Features:

  • 10mW RF power with up to 100m/328ft working range
  • Charging contacts for in-device charging with CHG 70N
  • Persistent eInk display - parameters visible on screen even when device is not powered on
  • Programmable mute switch on EW-DX SKM-S - customize the device depending on your professional needs
  • Function buttons - control all the transmitter settings directly from handheld microphone
  • Extended runtime with lithium-ion batteries - up to 12 hours operation time
  • Standard capsule interface - compatible with a wide range of Sennheiser and Neumann capsules
  • Mic input trim control
  • Metal housing

What's In The Box:

  • EW-DX SKM handheld transmitter
  • MMD 835 microphone module
  • MZQ 1 microphone clamp
  • batteries (AA)
  • pouch
  • quick guide
  • safety guide
  • manufacturer declaration sheet

More +

Product Specs

System
Audio link frequency ranges Q1-9 Band: 470-550 MHz
R1-9 Band: 520-608 MHz
V5-7 Band: 941-960 MHz
Bluetooth® Low Energy (BLE) frequency range 2402 - 2480 MHz
Audio frequency response 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio THD ? -60 dB for 1 kHz @ -3 dBfs input level
Dynamic range 134 dB
System latency 1.9 ms
Operating temperature -10 °C - +55 °C (14 °F - 131 °F)
Relative humidity 5 - 95 % (non-condensing)
EW-DX SKM-S (Handheld Transmitter)
Input voltage 2.0 - 4.35 V
Input current < 300 mA
Power supply 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
Occupied bandwidth 200 kHz
Transmit power (radiated) Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)
BLE: max. 10 mW EIRP
Dimensions (dia. x l) (incl. MMD  835 microphone module) 50 x 268 mm (1.97" x 10.55")
(without microphone module) 40 x 200 mm (1.57" x 7.87")
Weight (without batteries) (incl. MMD  835 microphone module) approx. 304 g (0.67  lbs)
(without microphone module) approx. 195 g (7.14 lbs)
