DALE SKU # SENN-EWDXSKMSQ19

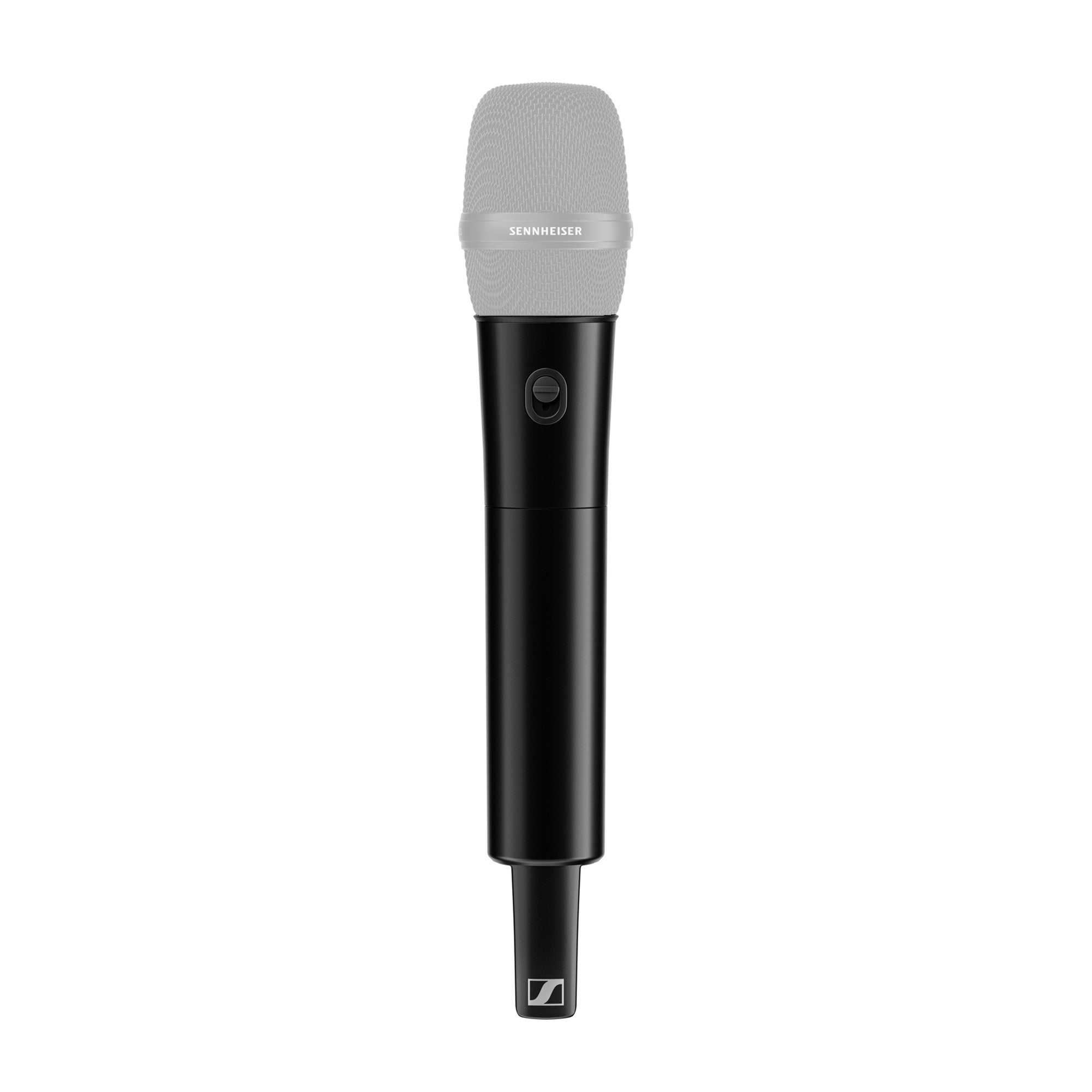

Sennheiser EW-DX SKM - Wireless Handheld Transmitter (Requires Capsule / V5-7 Band / 941-960 MHz)

Sale price$499.00 Regular price$579.00
Save $80.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    Rugged and versatile handheld transmitter for the EW-DX wireless system.

    Features:

    • 10mW RF power with up to 100m/328ft working range
    • Charging contacts for in-device charging with CHG 70N
    • Persistent eInk display - parameters visible on screen even when device is not powered on
    • Programmable mute switch on EW-DX SKM-S - customize the device depending on your professional needs
    • Function buttons - control all the transmitter settings directly from handheld microphone
    • Extended runtime with lithium-ion batteries - up to 12 hours operation time
    • Standard capsule interface - compatible with a wide range of Sennheiser and Neumann capsules
    • Mic input trim control
    • Metal housing

    What's In The Box:

    • EW-DX SKM handheld transmitter
    • MZQ 1 microphone clamp
    • batteries (AA)
    • pouch
    • quick guide
    • safety guide
    • manufacturer declaration sheet
    System
    Audio link frequency ranges Q1-9 Band: 470-550 MHz
    R1-9 Band: 520-608 MHz
    V5-7 Band: 941-960 MHz
    Bluetooth¨ Low Energy (BLE) frequency range 2402 - 2480 MHz
    Audio frequency response 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
    Audio THD ? -60 dB for 1 kHz @ -3 dBfs input level
    Dynamic range 134 dB
    System latency 1.9 ms
    Operating temperature -10 ¡C - +55 ¡C (14 ¡F - 131 ¡F)
    Relative humidity 5 - 95 % (non-condensing)
    EW-DX SKM-S (Handheld Transmitter)
    Input voltage 2.0 - 4.35 V
    Input current < 300 mA
    Power supply 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
    Occupied bandwidth 200 kHz
    Transmit power (radiated) Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)
    BLE: max. 10 mW EIRP
    Dimensions (dia. x l) (incl. MMD 835 microphone module) 50 x 268 mm (1.97" x 10.55")
    (without microphone module) 40 x 200 mm (1.57" x 7.87")
    Weight (without batteries) (incl. MMD 835 microphone module) approx. 304 g (0.67 lbs)
    (without microphone module) approx. 195 g (7.14 lbs)

    Rugged and versatile handheld transmitter for the EW-DX wireless system.

    Features:

    • 10mW RF power with up to 100m/328ft working range
    • Charging contacts for in-device charging with CHG 70N
    • Persistent eInk display - parameters visible on screen even when device is not powered on
    • Programmable mute switch on EW-DX SKM-S - customize the device depending on your professional needs
    • Function buttons - control all the transmitter settings directly from handheld microphone
    • Extended runtime with lithium-ion batteries - up to 12 hours operation time
    • Standard capsule interface - compatible with a wide range of Sennheiser and Neumann capsules
    • Mic input trim control
    • Metal housing

    What's In The Box:

    • EW-DX SKM handheld transmitter
    • MZQ 1 microphone clamp
    • batteries (AA)
    • pouch
    • quick guide
    • safety guide
    • manufacturer declaration sheet
    System
    Audio link frequency ranges Q1-9 Band: 470-550 MHz
    R1-9 Band: 520-608 MHz
    V5-7 Band: 941-960 MHz
    Bluetooth¨ Low Energy (BLE) frequency range 2402 - 2480 MHz
    Audio frequency response 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
    Audio THD ? -60 dB for 1 kHz @ -3 dBfs input level
    Dynamic range 134 dB
    System latency 1.9 ms
    Operating temperature -10 ¡C - +55 ¡C (14 ¡F - 131 ¡F)
    Relative humidity 5 - 95 % (non-condensing)
    EW-DX SKM-S (Handheld Transmitter)
    Input voltage 2.0 - 4.35 V
    Input current < 300 mA
    Power supply 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
    Occupied bandwidth 200 kHz
    Transmit power (radiated) Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)
    BLE: max. 10 mW EIRP
    Dimensions (dia. x l) (incl. MMD 835 microphone module) 50 x 268 mm (1.97" x 10.55")
    (without microphone module) 40 x 200 mm (1.57" x 7.87")
    Weight (without batteries) (incl. MMD 835 microphone module) approx. 304 g (0.67 lbs)
    (without microphone module) approx. 195 g (7.14 lbs)
