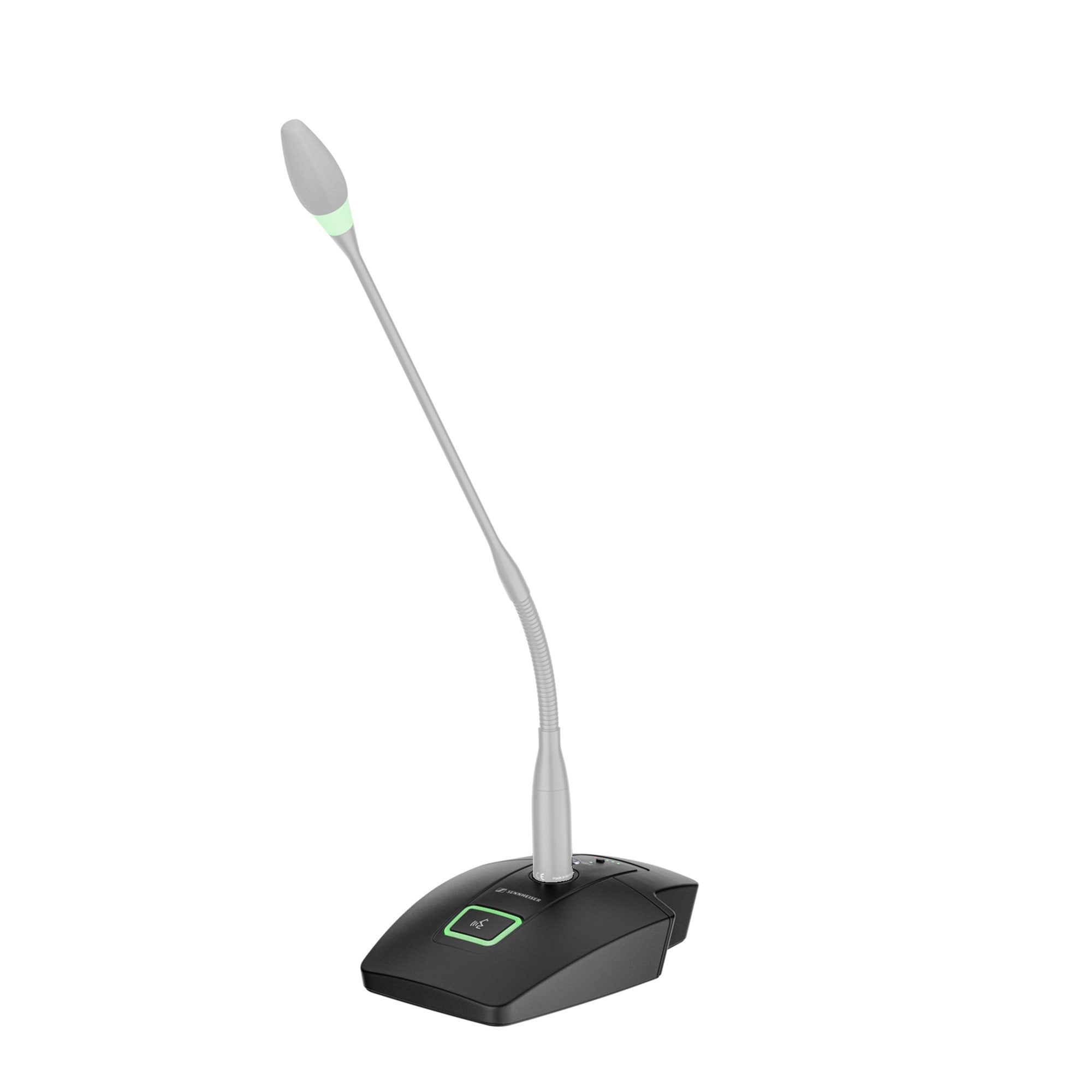

Sennheiser EW-DX TS - Tabletop Wireless Transmitter with 3-Pin XLR (R1-9 Band / 520-608 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

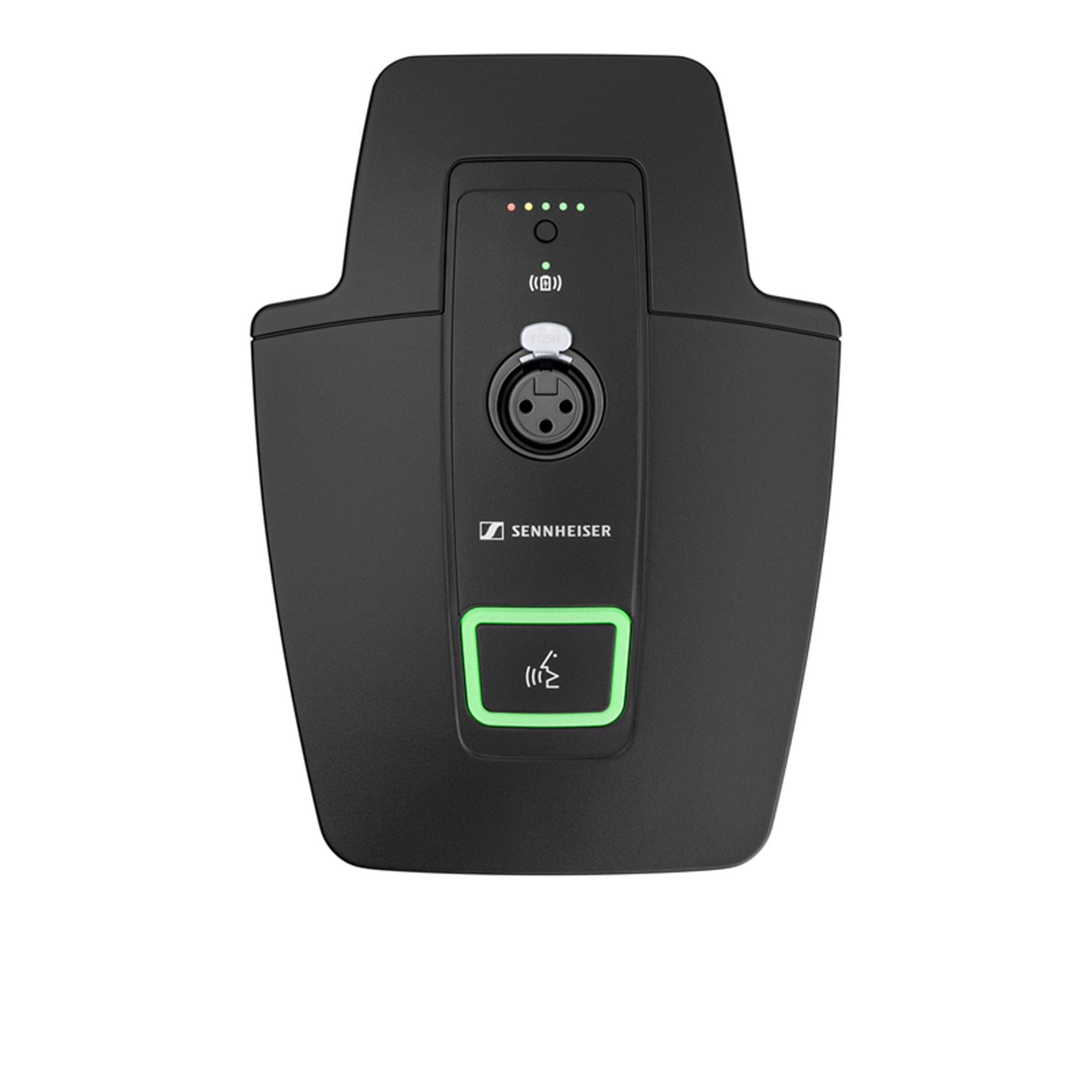

EW-DX TS 3-pin tablestand transmitter is a sturdy, wireless table stand that provides a stable base for a wide range of Sennheiser gooseneck microphones.
Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live performance productions benefit from a network-ready system that is designed to integrate seamlessly. EW-DX tablestand transmitters are compatible with a wide range of Sennheiser gooseneck microphones.
Features:
- Compatible with all Sennheiser gooseneck microphones (depending on the version)
- 10 mW RF power with up to 100 m/328ft working range
- Charging via USB-C or wireless via CHG 2W
- Programmable mute switch - customize the device depending on your professional needs
- Up to 11 hours operation time with BA 40 battery pack
- Metal housing
| System | |
| Audio link frequency ranges | Q1-9: 470.2 - 550 MHz R1-9: 520 - 607.8 MHz S1-10: 606.2 - 693.8 MHz S2-10: 614.2 - 693.8 MHz S4-10: 630 - 693.8 MHz U1/5: 823.2 - 831.8 MHz / 863.2 - 864.8 MHz V3-4: 925.2 - 937.3 MHz V5-7: 941.7 - 951.8 MHz / 953.05 - 956.05 MHz / 956.65 - 959.65 MHz Y1-3: 1785.2 - 1799.8 MHz |
| Bluetooth¨ Low Energy (BLE) frequency range | 2402 - 2480 MHz |
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) |
| Audio THD | -60 dB for 1 kHz @ -3 dBfs input level |
| Dynamic range | 134 dB |
| System latency | 1.9 ms |
| Operating temperature | -10 ¡C - +50 ¡C (+14 ¡F - +121 ¡F) |
| Relative humidity | 5 - 95 % (non-condensing) |
| EW-DX TS (Tablestand) | |
| Input voltage | 2.0 bis 4.35 V |
| Input current | < 300 mA |
| Power supply | BA 40 rechargeable battery pack |
| Occupied bandwidth | 200 kHz |
| Transmit power (radiated) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) LD mode: 10 mW ERP BLE: max. 10 mW EIRP |
| Dimensions | 166.7 x 120.2 x 48.1 mm (6.56" x 4.73" x 1.89") |
| Weight (without batteries) | approx. 650 g (1.43 lbs) |
| In The Box | EW-DX TS BA 40 quick guide safety guide manufacturer declaration sheet |
EW-DX TS 3-pin tablestand transmitter is a sturdy, wireless table stand that provides a stable base for a wide range of Sennheiser gooseneck microphones.
Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live performance productions benefit from a network-ready system that is designed to integrate seamlessly. EW-DX tablestand transmitters are compatible with a wide range of Sennheiser gooseneck microphones.
Features:
- Compatible with all Sennheiser gooseneck microphones (depending on the version)
- 10 mW RF power with up to 100 m/328ft working range
- Charging via USB-C or wireless via CHG 2W
- Programmable mute switch - customize the device depending on your professional needs
- Up to 11 hours operation time with BA 40 battery pack
- Metal housing
| System | |
| Audio link frequency ranges | Q1-9: 470.2 - 550 MHz R1-9: 520 - 607.8 MHz S1-10: 606.2 - 693.8 MHz S2-10: 614.2 - 693.8 MHz S4-10: 630 - 693.8 MHz U1/5: 823.2 - 831.8 MHz / 863.2 - 864.8 MHz V3-4: 925.2 - 937.3 MHz V5-7: 941.7 - 951.8 MHz / 953.05 - 956.05 MHz / 956.65 - 959.65 MHz Y1-3: 1785.2 - 1799.8 MHz |
| Bluetooth¨ Low Energy (BLE) frequency range | 2402 - 2480 MHz |
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) |
| Audio THD | -60 dB for 1 kHz @ -3 dBfs input level |
| Dynamic range | 134 dB |
| System latency | 1.9 ms |
| Operating temperature | -10 ¡C - +50 ¡C (+14 ¡F - +121 ¡F) |
| Relative humidity | 5 - 95 % (non-condensing) |
| EW-DX TS (Tablestand) | |
| Input voltage | 2.0 bis 4.35 V |
| Input current | < 300 mA |
| Power supply | BA 40 rechargeable battery pack |
| Occupied bandwidth | 200 kHz |
| Transmit power (radiated) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) LD mode: 10 mW ERP BLE: max. 10 mW EIRP |
| Dimensions | 166.7 x 120.2 x 48.1 mm (6.56" x 4.73" x 1.89") |
| Weight (without batteries) | approx. 650 g (1.43 lbs) |
| In The Box | EW-DX TS BA 40 quick guide safety guide manufacturer declaration sheet |
