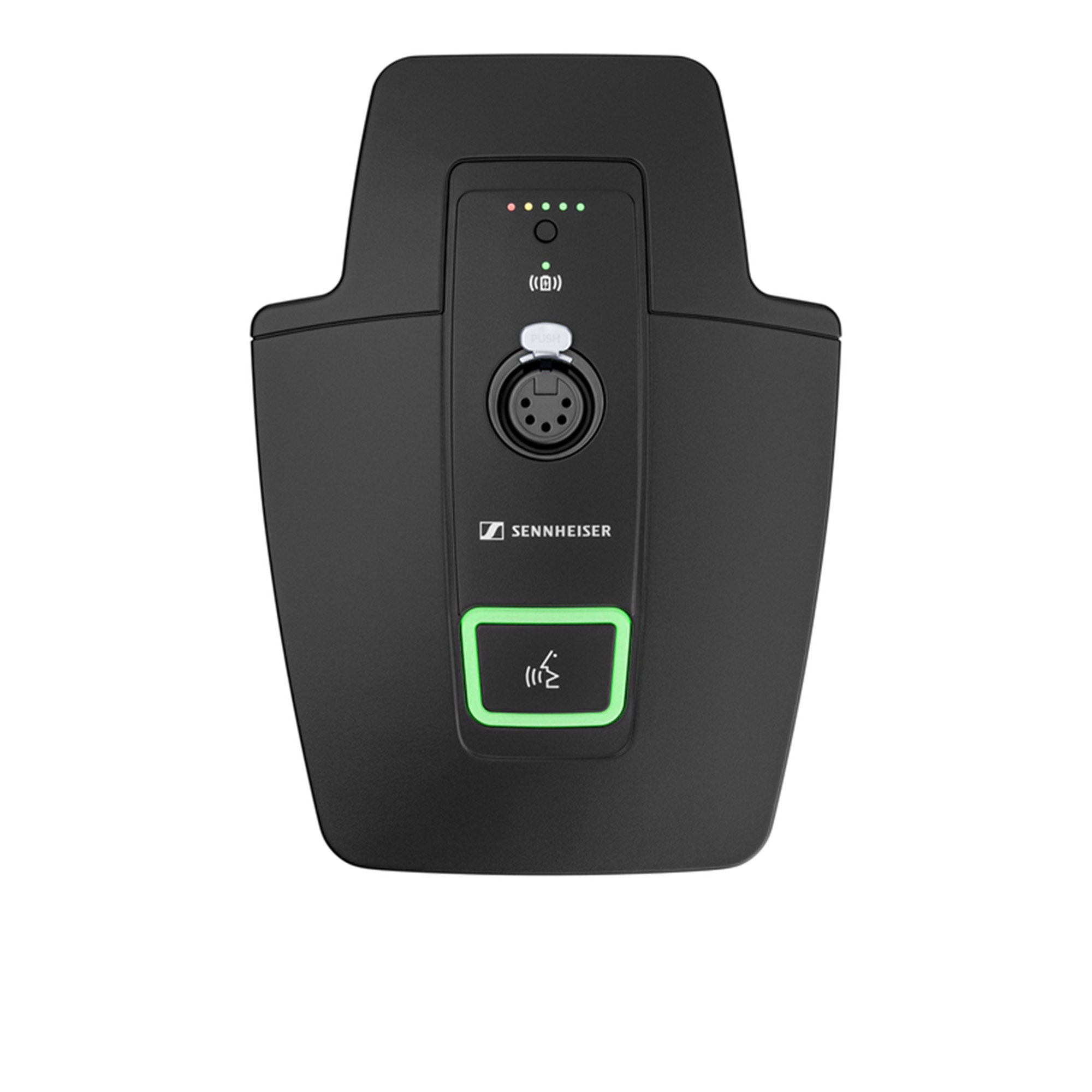

Sennheiser EW-DX TS - Tabletop Wireless Transmitter with 5-Pin XLR (Q1-9 Band / 470-550 MHz)


  • Dale #:

    SENN-EWDXTS5PINQ19
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

EW-DX TS 3-pin tablestand transmitter is a sturdy, wireless table stand that provides a stable base for a wide range of Sennheiser gooseneck microphones. Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled wi... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

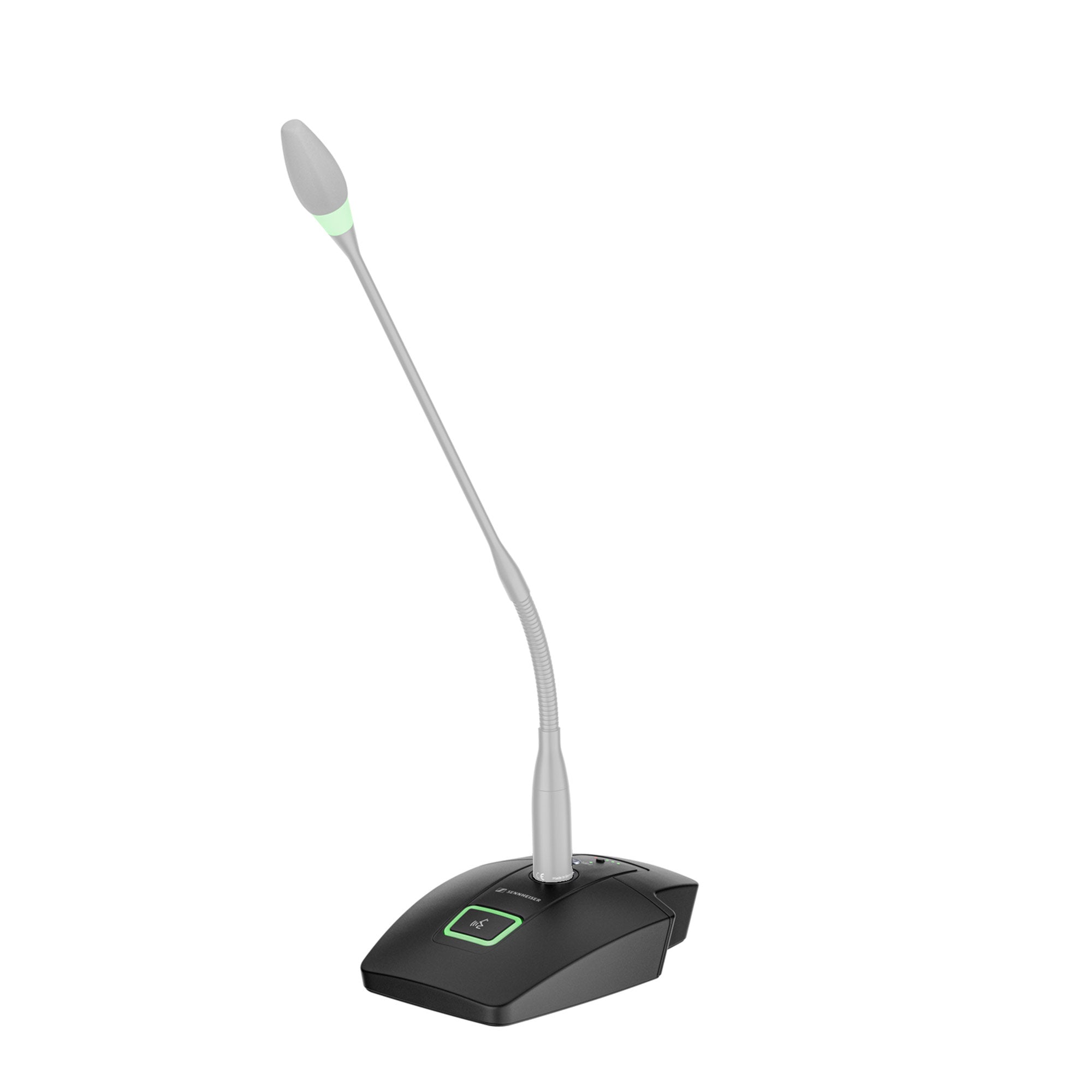

EW-DX TS 3-pin tablestand transmitter is a sturdy, wireless table stand that provides a stable base for a wide range of Sennheiser gooseneck microphones.

Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live performance productions benefit from a network-ready system that is designed to integrate seamlessly. EW-DX tablestand transmitters are compatible with a wide range of Sennheiser gooseneck microphones.

Features:

  • Compatible with all Sennheiser gooseneck microphones (depending on the version)
  • 10 mW RF power with up to 100 m/328ft working range
  • Charging via USB-C or wireless via CHG 2W
  • Programmable mute switch - customize the device depending on your professional needs
  • Up to 11 hours operation time with BA 40 battery pack
  • Metal housing

More +

Product Specs

System
Audio link frequency ranges Q1-9: 470.2 - 550 MHz
R1-9: 520 - 607.8 MHz
S1-10: 606.2 - 693.8 MHz
S2-10: 614.2 - 693.8 MHz
S4-10: 630 - 693.8 MHz
U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
V3-4: 925.2 - 937.3 MHz
V5-7: 941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65 MHz
Y1-3: 1785.2 - 1799.8 MHz
Bluetooth® Low Energy (BLE) frequency range 2402 - 2480 MHz
Audio frequency response 20 Hz - 20 kHz (-3 dB)
Audio THD -60 dB for 1 kHz @ -3 dBfs input level
Dynamic range 134 dB
System latency 1.9 ms
Operating temperature -10 °C - +50 °C (+14 °F - +121 °F)
Relative humidity 5 - 95 % (non-condensing)
EW-DX TS (Tablestand)
Input voltage 2.0 bis 4.35 V
Input current < 300 mA
Power supply BA 40 rechargeable battery pack
Occupied bandwidth 200 kHz
Transmit power (radiated) Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)
LD mode: 10 mW ERP
BLE: max. 10 mW EIRP
Dimensions 166.7 x 120.2 x 48.1 mm (6.56" x 4.73" x 1.89")
Weight (without batteries) approx. 650 g (1.43 lbs)
In The Box EW-DX TS
BA 40
quick guide
safety guide
manufacturer declaration sheet

More +
