Contact Our Expert Sales Team:
888-462-7828Dale #:
SENN-EWDXTS5PINR19Availability:
Not in Stock - Reserve YoursThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Description

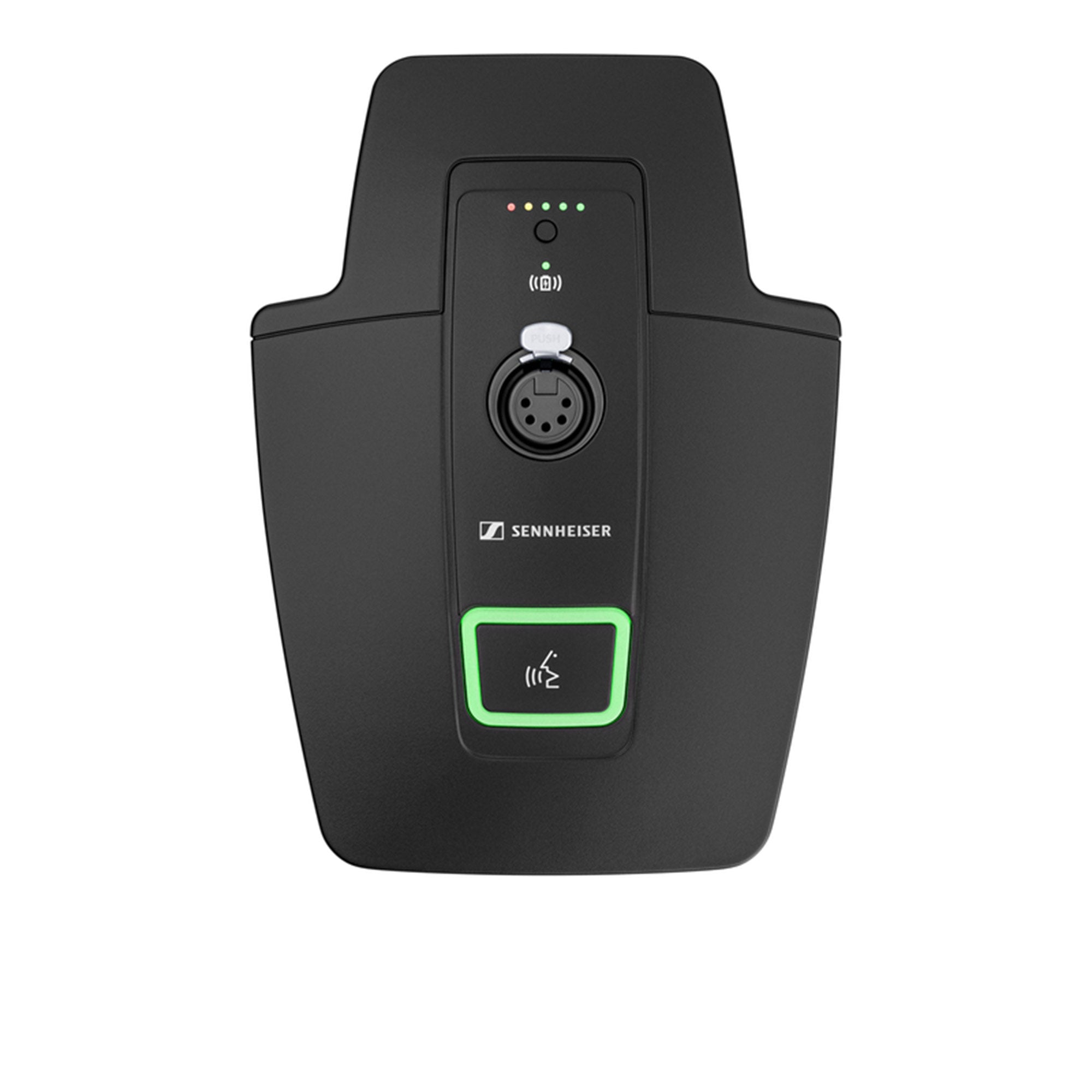

EW-DX TS 3-pin tablestand transmitter is a sturdy, wireless table stand that provides a stable base for a wide range of Sennheiser gooseneck microphones. Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled wi... Read MoreRetail Price: $949.00 Our Price: $799.00
Free Shipping (Continental US)
Suggested Accessories
Description

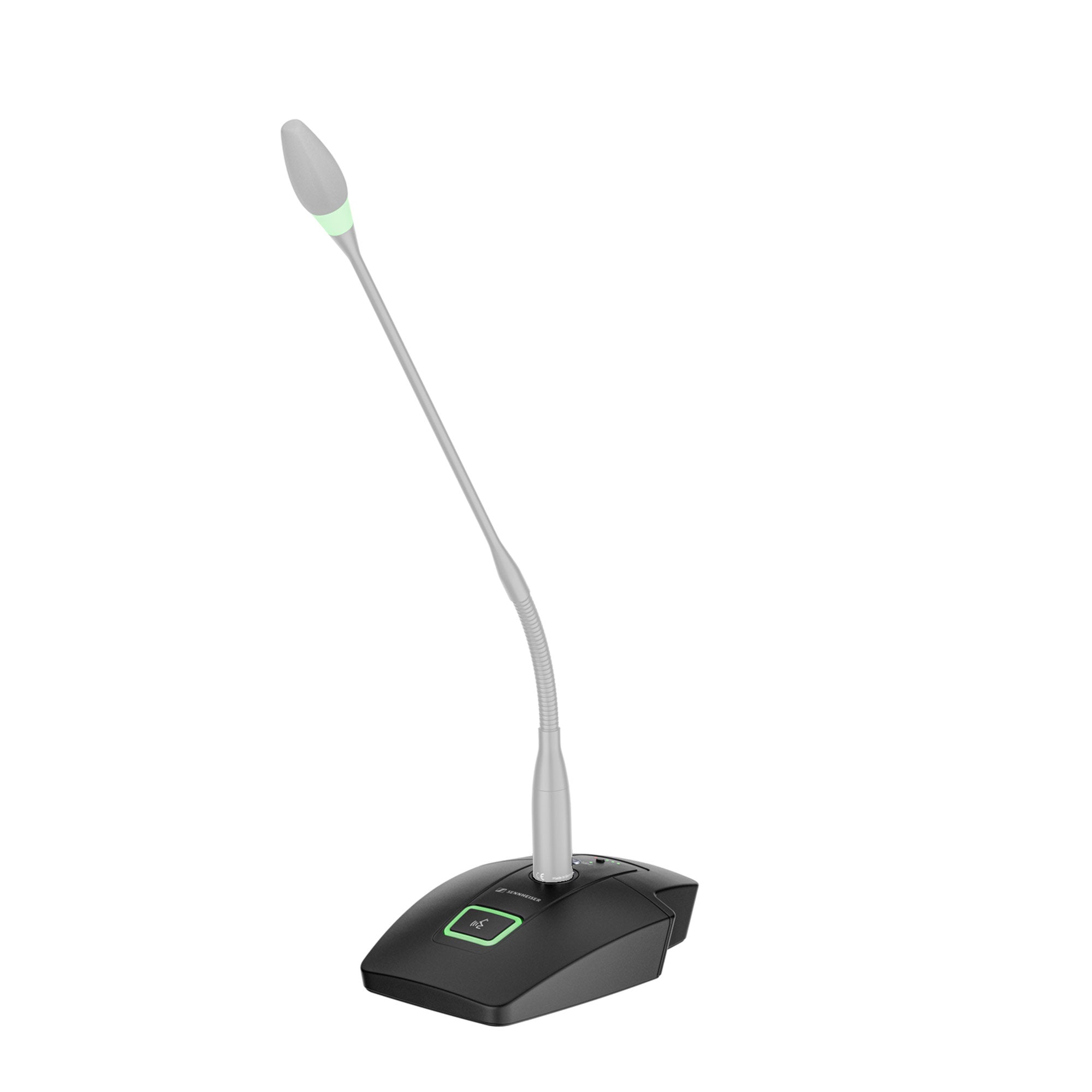

EW-DX TS 3-pin tablestand transmitter is a sturdy, wireless table stand that provides a stable base for a wide range of Sennheiser gooseneck microphones.
Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live performance productions benefit from a network-ready system that is designed to integrate seamlessly. EW-DX tablestand transmitters are compatible with a wide range of Sennheiser gooseneck microphones.
Features:
More +
Product Specs
System | |
Audio link frequency ranges | Q1-9: 470.2 - 550 MHz R1-9: 520 - 607.8 MHz S1-10: 606.2 - 693.8 MHz S2-10: 614.2 - 693.8 MHz S4-10: 630 - 693.8 MHz U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz V3-4: 925.2 - 937.3 MHz V5-7: 941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65 MHz Y1-3: 1785.2 - 1799.8 MHz |
Bluetooth® Low Energy (BLE) frequency range | 2402 - 2480 MHz |
Audio frequency response | 20 Hz - 20 kHz (-3 dB) |
Audio THD | -60 dB for 1 kHz @ -3 dBfs input level |
Dynamic range | 134 dB |
System latency | 1.9 ms |
Operating temperature | -10 °C - +50 °C (+14 °F - +121 °F) |
Relative humidity | 5 - 95 % (non-condensing) |
EW-DX TS (Tablestand) | |
Input voltage | 2.0 bis 4.35 V |
Input current | < 300 mA |
Power supply | BA 40 rechargeable battery pack |
Occupied bandwidth | 200 kHz |
Transmit power (radiated) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) LD mode: 10 mW ERP BLE: max. 10 mW EIRP |
Dimensions | 166.7 x 120.2 x 48.1 mm (6.56" x 4.73" x 1.89") |
Weight (without batteries) | approx. 650 g (1.43 lbs) |
In The Box | EW-DX TS BA 40 quick guide safety guide manufacturer declaration sheet |
More +
