Contact Our Expert Sales Team:
888-462-7828Dale #:
SENN-EWIEMG4TWINA1Availability:
Not in Stock - Reserve YoursThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Description

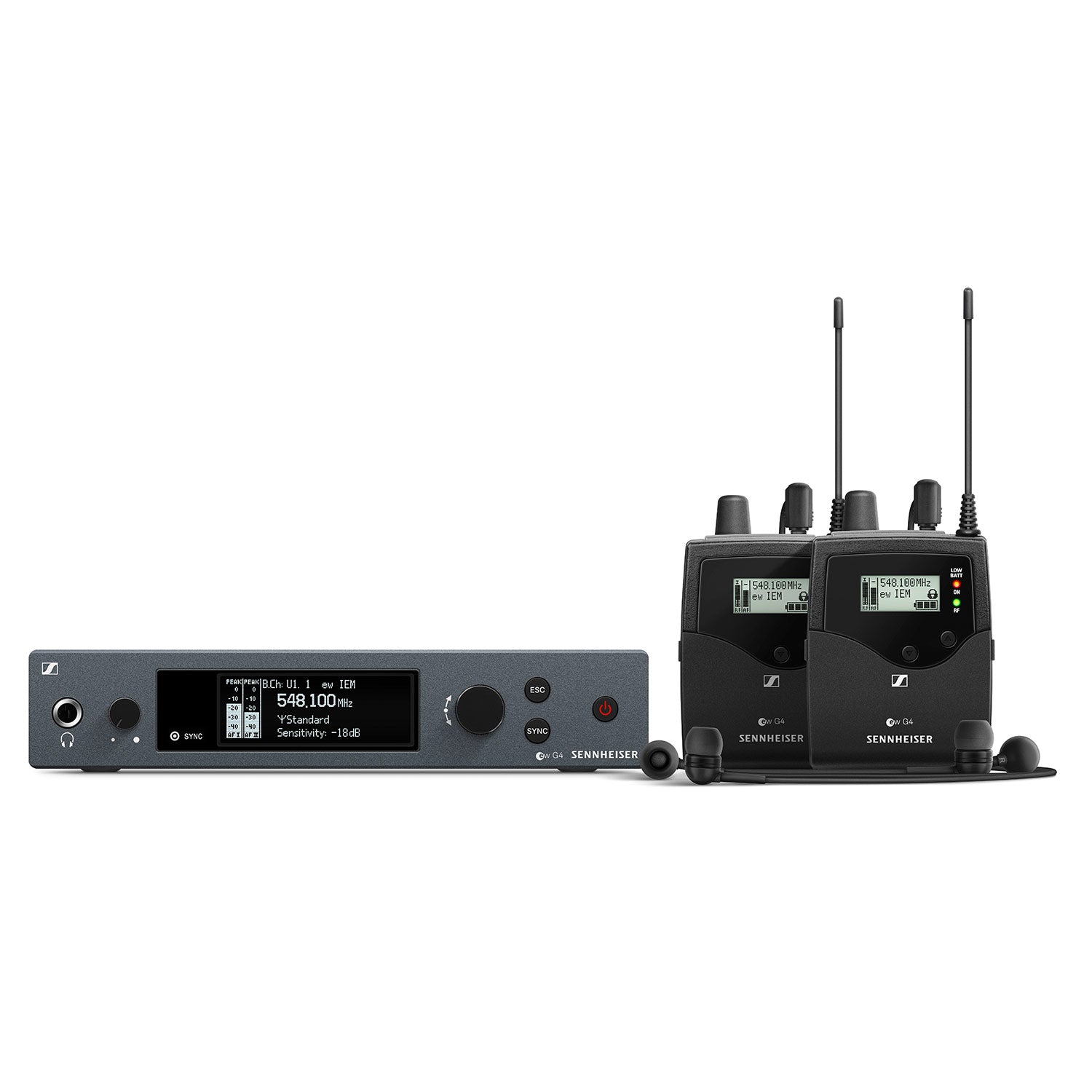

Command full control over your performance – your direct link, everywhere, everyday. The G4 In-Ear Monitoring Sets make your gig an extraordinary experience – not just for your audience, but also for you. A robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarit... Read MoreRetail Price: $1,749.00 Our Price: $1,499.00
Free Shipping (Continental US)
Suggested Accessories
Description
Command full control over your performance – your direct link, everywhere, everyday. The G4 In-Ear Monitoring Sets make your gig an extraordinary experience – not just for your audience, but also for you.
A robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage.
Features:
What's In The Box:
More +
Product Specs
SR IEM G4 Transmitter | |
RF characteristics | |
Modulation | Wideband FM stereo (MPX pilot tone) |
Frequency ranges | A1: 470 - 516 MHz A: 516 - 558 MHz G: 566 - 608 MHz |
Receiving frequencies | Max. 1680 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 16 factory-preset channels, no intermodula- tion 6 frequency banks with up to 16 programmable channels |
Switching bandwidth | up to 42 MHz |
Nominal/peak deviation | ±24 kHz / ±48 kHz |
MPX pilot tone (frequency/deviation) | 19 kHz/±5 kHz |
Frequency stability | ±10 ppm |
Antenna output | BNC socket, 50 |
RF output power at 50 | switchable: Low: typ. 10 mW Standard: typ. 30 mW High: typ. 50 mW |
AF characteristics | |
Compander system | Sennheiser HDX |
AF frequency response | 25 Hz to 15 kHz |
AF input | BAL AF IN L (I) + MONO/ BAL AF IN R (II) 2x XLR-3/1 4" (6.3 mm) jack combo socket, electronically balanced |
Max. input level | +22 dBu |
Total harmonic distortion (THD) | <0.9 % |
Signal-to-noise ratio (at nominal load and peak deviation) | >90 dB |
AF output | LOOP OUT BAL L (I)/ LOOP OUT BAL R (II) 1 4" (6.3 mm) stereo jack socket, balanced |
Overall device | |
Temperature range | -10 °C to +55 °C |
Power supply | 12 V DC |
Current consumption | max. 350 mA |
Dimensions | Approx. 202 x 212 x 43 mm |
Weight | Approx. 980 g |
SK IEM Bodypack Receiver | |
RF characteristics | |
Modulation | Wideband FM |
Frequency ranges | A1: 470 - 516 MHz A: 516 - 558 MHz G: 566 - 608 MHz |
Receiving frequencies | Max. 1680 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation 6 frequency banks with up to 16 programmable channels |
Switching bandwidth | up to 42 MHz |
Nominal/peak deviation | ±24 kHz / ±48 kHz |
Receiver principle | Adaptive diversity |
Sensitivity (with HDX, peak deviation) | < 4 V, typ. 1.6 V for 52 dBA rms S/N |
Adjacent channel selection | Typically 65 dB |
Intermodulation attenuation | Typically 70 dB |
Blocking | 80 dB |
Squelch | 5 to 25 dB V, adjustable in steps of 2 dB |
Pilot tone squelch | Can be switched off |
AF characteristics | |
Compander system | Sennheiser HDX |
Signal-to-noise ratio (1 mV, peak deviation) | approx. 90 dBA |
Total harmonic distortion (THD) | 0.9 % |
Output power at 2.4 V, 5 % THD, nominal deviation | 2 x 100 mW at 32 |
High Boost | +8 dB at 80 kHz |
Limiter | –18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off |
Overall device | |
Temperature range | -10 °C to +55 °C |
Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
Current consumption | at nominal voltage: approx. 140 mA with transmitter switched off: 25 A |
Operating time | approx. 4 to 6 hours (depending on volume level) |
Dimensions | Approx. 82 x 64 x 24 mm |
Weight (incl. batteries) | approx. 125 g |
More +
