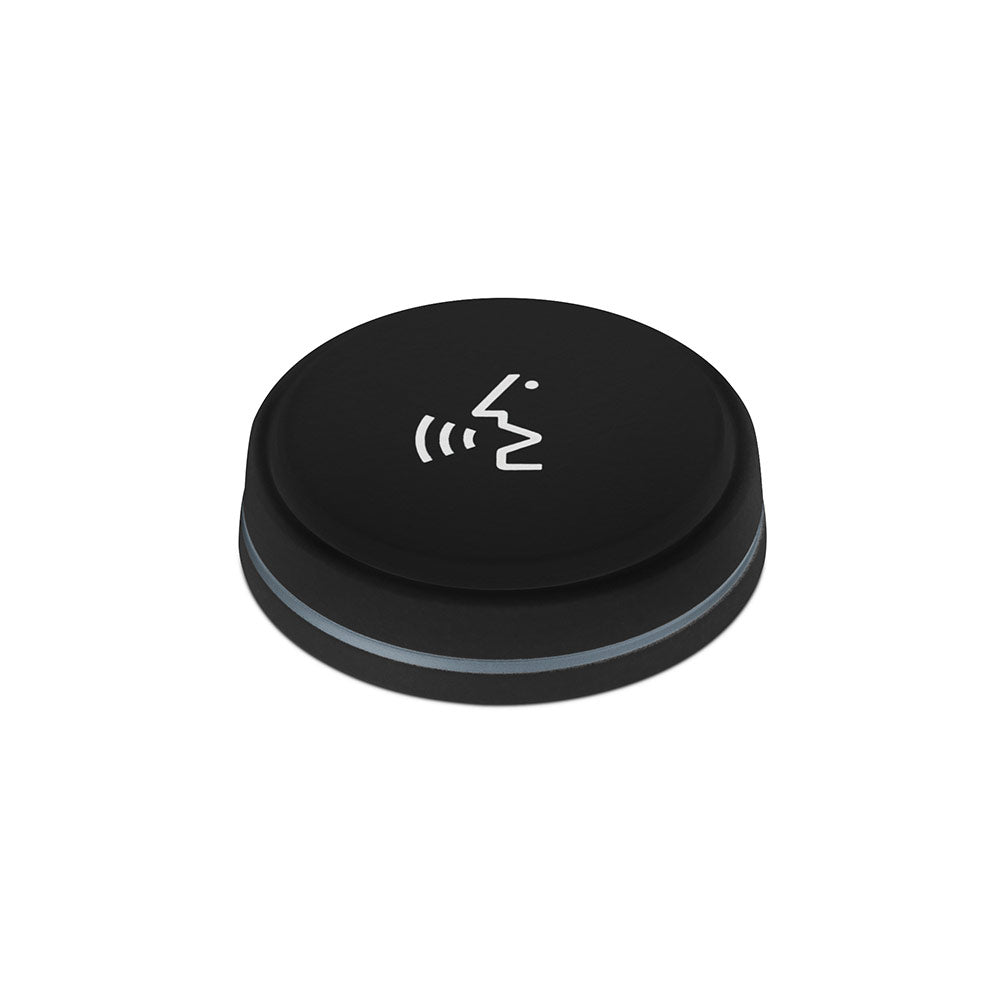

Sennheiser MAS 1 B SpeechLine Microphone Activation Button (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The rugged MAS 1 microphone activation button, used in conjunction with the MAS 133 inline switch box, offers control of connected microphone. Programmable activation modes include On, On/Off, PTT, PTM. For easy status indication, the MAS 1 is equipped with a bi-color LED.
Connects via 5-pin XLR - MAS 1 is available both with and without a cable for flexible installations.
What's in the box?
- MAS 1
- Mounting hardware
- Quick guide
| Dimensions | Height: 3.19 in (0.31 in above surface), Diameter: 1.12 in | |
| Connector | XLR-5M out, Pin assignment: 1 = Ground, 2 = Switch, 3 = LED Red, 4 = LED Green, 5 = LEDs +12 V | |
| Weight | 2.11 oz | |
| Phantom powering | 12 V (1.5 mA max.) | |
| Operating temperature | 14 ¡ to 122 ¡F | |
| Current consumption | LED ring: 3 mA | |
| Colour | LED light ring: Red / Green | |
| Thread | M 20 |
