Sennheiser MAS 133 Inline Logic Box for Integrated Microphone Systems
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

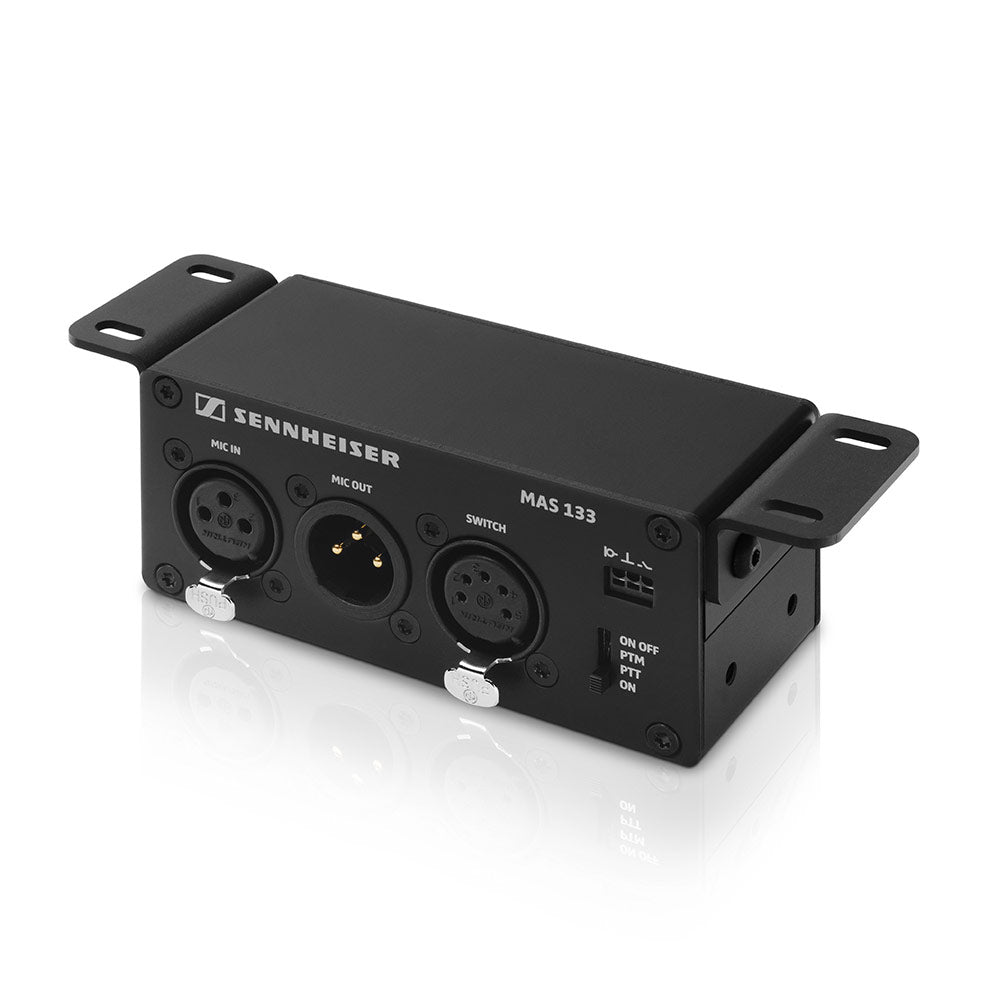

The MAS 133 is a versatile XLR inline logic box for integrated microphone solutions. The MAS 133 features (2) XLR-3 for audio and (1) XLR-5 for control via the MAS 1 mic activation button. Programmable operation modes include On, On/Off, PTT, and PTM. TTL logic enables integration with media or camera control systems.
Programmable Microphone Modes:
- On
- On/Off
- Push to talk
- Push to mute
What's in the box?
- MAS 133
- Mounting hardware
- Quick guide
| Dimensions | 5.9 x 1.7 x 1.7 in (W x D x H) |
| Connector | Mic in:ÊXLR-3F |
| Mic out:ÊXLR-3M Pin assignment: 1 = Ground, 2 = Positive (+), 3 = Negative ( ) | |
| Switch in:ÊXLR-5F Pin assignment: 1 = Ground, 2 = Switch, 3 = LED Red ( ), 4 = LED Green ( ), 5 = LEDs + 12 V out | |
| Weight | 7.47 oz |
| Operating temperature | 14 ¡ to 122 ¡F |
| Current consumption | 4.5 mA |
| Output voltage | High level:Êoutput voltage> 2.4 V |
| Low level:Êoutput voltage < 0.4 V |
