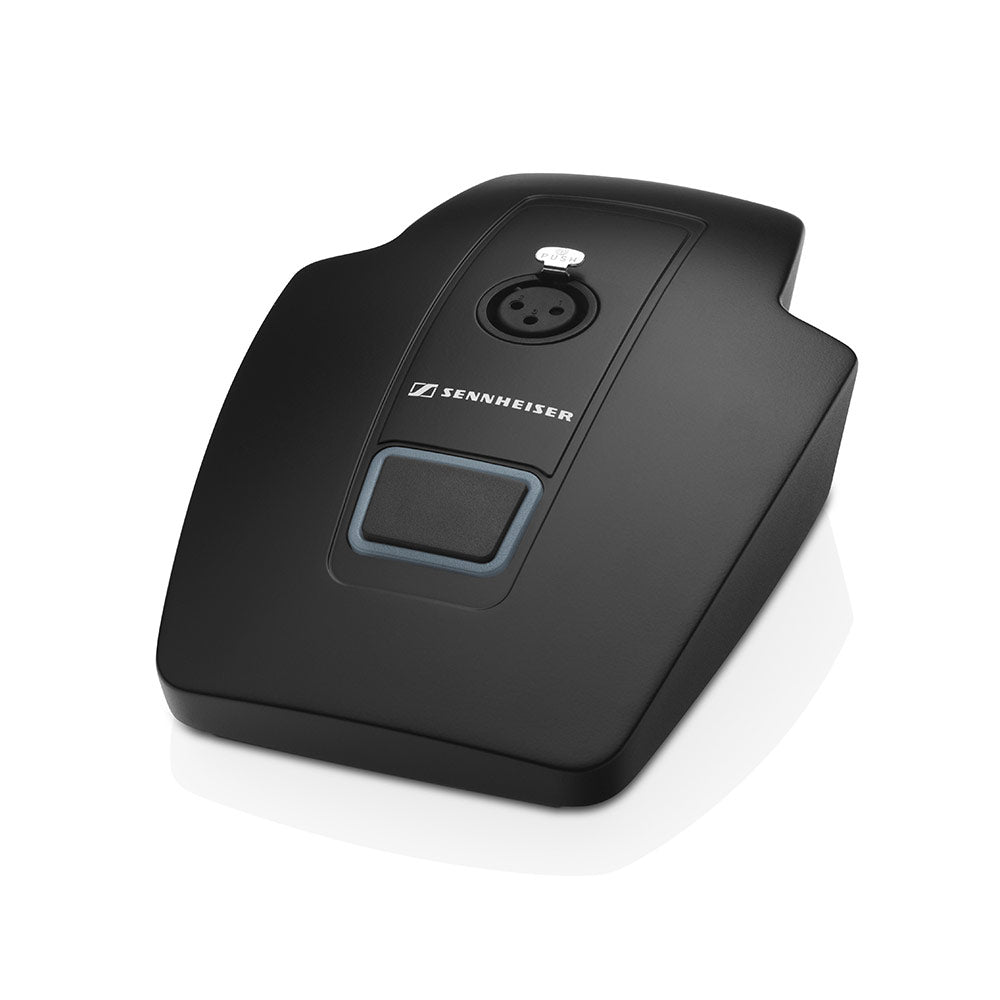

Sennheiser MAT 133-S B Desktop Stand for MEG and MZH Goosenecks with Switch (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The rugged housing of the functionally and unobtrusively designed MAT 133-S provides a solid ground for XLR-3 gooseneck microphones. A convenient microphone button is featured with a bi color light ring for clear visual feedback. The TTL-logic output serves for various control purposes such as camera control. The MAT 133-S is as versatile as it is to operate.
Microphone Modes:
- Toggle on/off
- Push to mute
- Push to talk
- Permanent on (external LED control)
What's in the box?
- 1 table stand
- Quickguide
| Dimensions | 120 x 170 x 43 mm (BTH / WDH) |
| Connector | Mic in:ÊXLR-3F Mic out:ÊXLR-3M Logic:Êclip contact for logic, Pin assignment: trigger signal at the logic connector: Logic in (external LED control), GND, Logic out (switch signal) |
| Weight | 1210 g |
| Phantom powering | P 24 - P 48 |
| Operating temperature | -10¡ - +50¡C |
| Current consumption | 3.7 mA |
| Output voltage | Logic out:Êhigh level output voltage > 2.4 V, low level output voltage < 0.4 V Logic in:Êhigh level input voltage > 2.0 V, low level input voltage < 0.8 V |
| Colour | LED light ring: red / green |
The rugged housing of the functionally and unobtrusively designed MAT 133-S provides a solid ground for XLR-3 gooseneck microphones. A convenient microphone button is featured with a bi color light ring for clear visual feedback. The TTL-logic output serves for various control purposes such as camera control. The MAT 133-S is as versatile as it is to operate.
Microphone Modes:
- Toggle on/off
- Push to mute
- Push to talk
- Permanent on (external LED control)
What's in the box?
- 1 table stand
- Quickguide
| Dimensions | 120 x 170 x 43 mm (BTH / WDH) |
| Connector | Mic in:ÊXLR-3F Mic out:ÊXLR-3M Logic:Êclip contact for logic, Pin assignment: trigger signal at the logic connector: Logic in (external LED control), GND, Logic out (switch signal) |
| Weight | 1210 g |
| Phantom powering | P 24 - P 48 |
| Operating temperature | -10¡ - +50¡C |
| Current consumption | 3.7 mA |
| Output voltage | Logic out:Êhigh level output voltage > 2.4 V, low level output voltage < 0.4 V Logic in:Êhigh level input voltage > 2.0 V, low level input voltage < 0.8 V |
| Colour | LED light ring: red / green |
