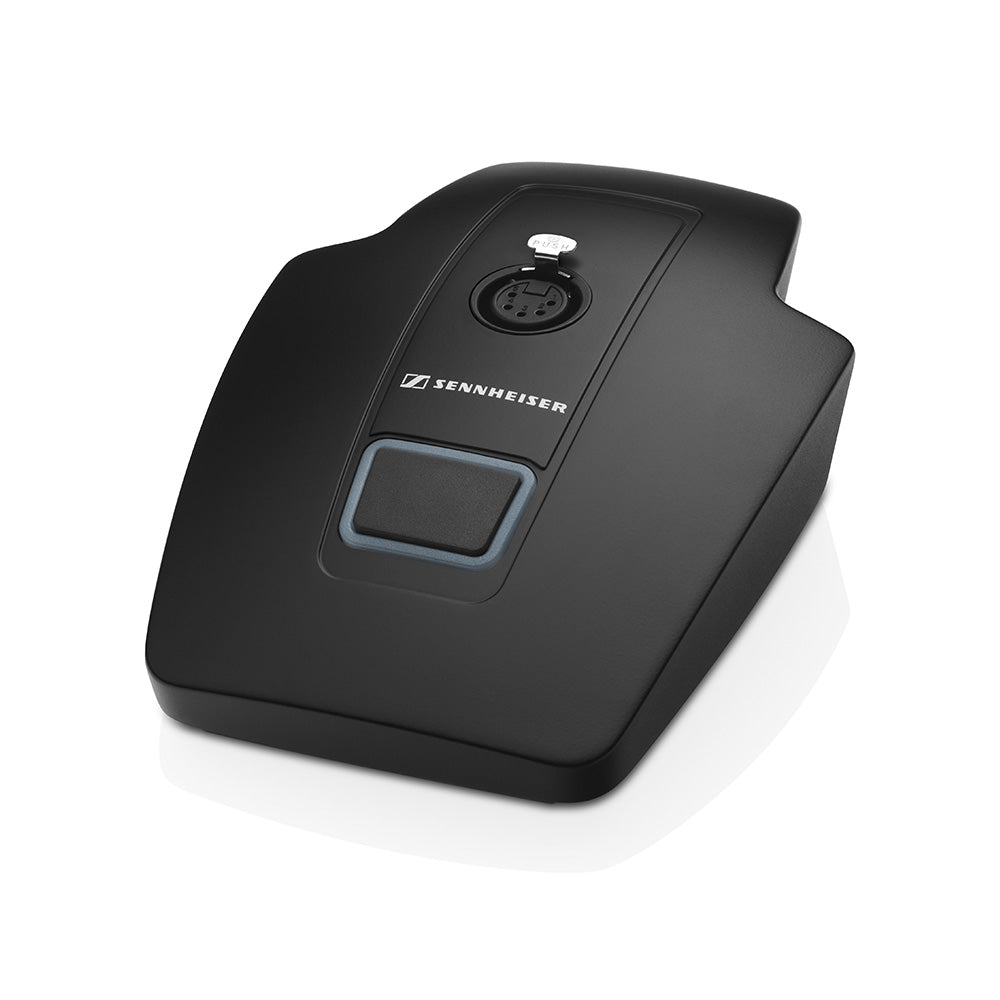

Sennheiser MAT 153-S SpeechLine Gooseneck Base with LED Ring (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Featuring a rugged housing, the functionally and unobtrusively designed MAT 153 provides a solid ground for gooseneck microphones with lighting ring.
Connector:
MIC IN: XLR-5F
MIC OUT: XLR-3M
3x terminal
Phantom powered over standard XLR cable.
What's In The Box:
- MAT 153-S table stand
| Colour | black LED light ring: red / green |
| Connector Mic in | XLR-5F, Pin assignment: 1 = gnd, 2 = hot (+), 3 = cold (_), 4 = LED (_), 5 = LED (+) |
| Connector Mic out | XLR-3M, Pin assignment: 1 = gnd, 2 = +, 3 = _ |
| Connector Clip contact | Pin assignment: trigger signal at the logic connector: Logic in (external LED control), GND, Logic out (switch signal) |
| Weight | approx. 1,206 g 1526 g |
| Current consumption | 3.7 mA |
| Output voltage | Logic out: high level output voltage> 2.4 V, low level output voltage < 0.4 V |
| Output voltage | Logic in: high level input voltage> 2.0 V, low level input voltage < 0.8 V |
Featuring a rugged housing, the functionally and unobtrusively designed MAT 153 provides a solid ground for gooseneck microphones with lighting ring.
Connector:
MIC IN: XLR-5F
MIC OUT: XLR-3M
3x terminal
Phantom powered over standard XLR cable.
What's In The Box:
- MAT 153-S table stand
| Colour | black LED light ring: red / green |
| Connector Mic in | XLR-5F, Pin assignment: 1 = gnd, 2 = hot (+), 3 = cold (_), 4 = LED (_), 5 = LED (+) |
| Connector Mic out | XLR-3M, Pin assignment: 1 = gnd, 2 = +, 3 = _ |
| Connector Clip contact | Pin assignment: trigger signal at the logic connector: Logic in (external LED control), GND, Logic out (switch signal) |
| Weight | approx. 1,206 g 1526 g |
| Current consumption | 3.7 mA |
| Output voltage | Logic out: high level output voltage> 2.4 V, low level output voltage < 0.4 V |
| Output voltage | Logic in: high level input voltage> 2.0 V, low level input voltage < 0.8 V |
