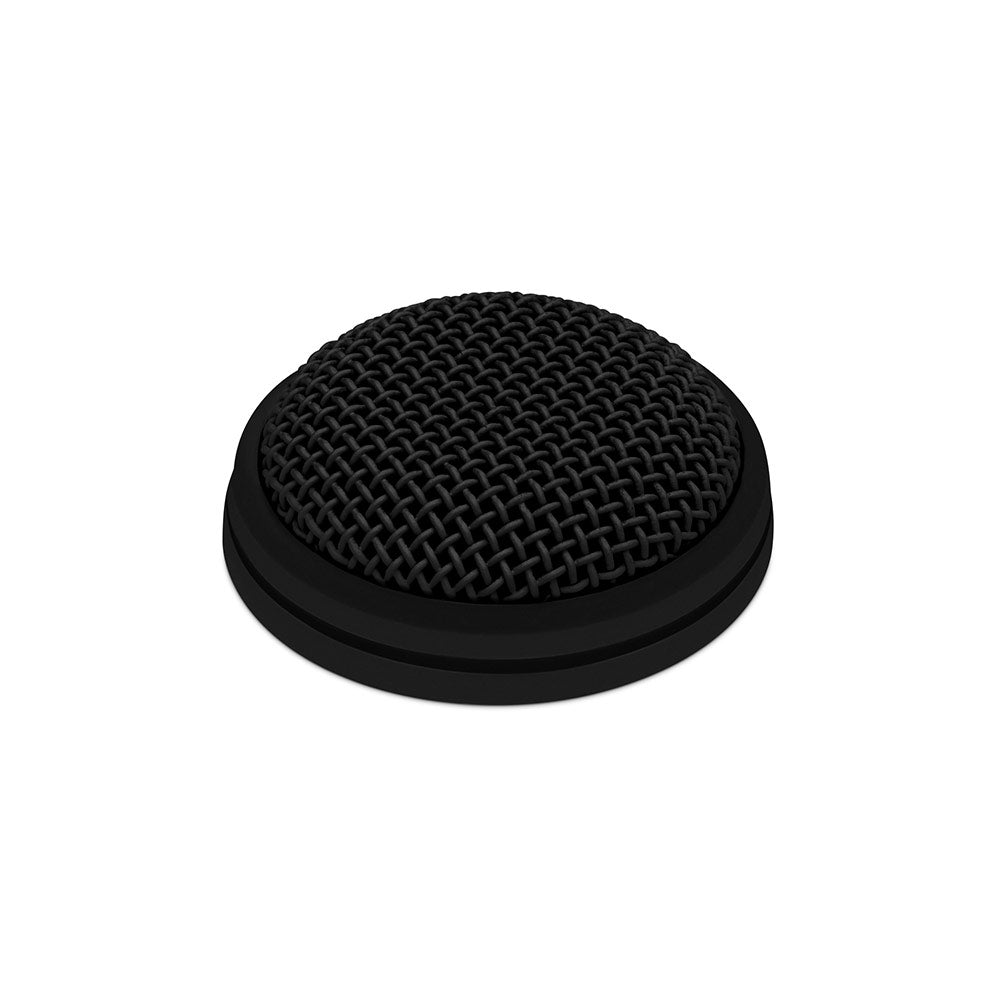

Sennheiser MEB 102 B SpeechLine Install Boundary Microphone (Black)



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:SENN-MEB102B

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)
  • The unobtrusive MEB 102 omnidirectional boundary microphone allows for easy surface install in tables or ceiling tiles. The high quality capsule provides excellent speech intelligibility. Also available as the MEB 102-L with a bi-color LED for status indication and programmable button for for On, On/Off, PTT, PTM modes.

    Available with a standard XLR connection or as the MEB 102-L TC with direct connection to the TeamConnect conferencing system.


    What's in the box?

    • MEB 102
    • Mounting hardware
    • Quick guide
  • Connector XLR-3, Pin assignment: 1 = gnd, 2 = +, 3 =
    Current consumption 3 mA
    Dimensions Height: 83.26 in (0.47 in above surface), Diameter 1.12 in
    Frequency response 40 Hz – 20 kHz
    Max. sound pressure level 125 dB
    Transducer principle pre-polarized condenser microphone
    Weight 2.05 oz
    Pick-up pattern Omnidirectional
    Nominal impedance 200 Ohm
    Phantom powering P 24 - P 48
    Operating temperature 32 °to 104 ° F
    Equivalent noise level 21 dB (A)
    Equivalent noise level weighted as per CCIR 468-3 31 dB (CCIR)
    Acoustics Boundary Layer Microphone
    Dynamic range 104 dB (A)
    Sensitivity 16 mV/Pa
    Thread M 20
