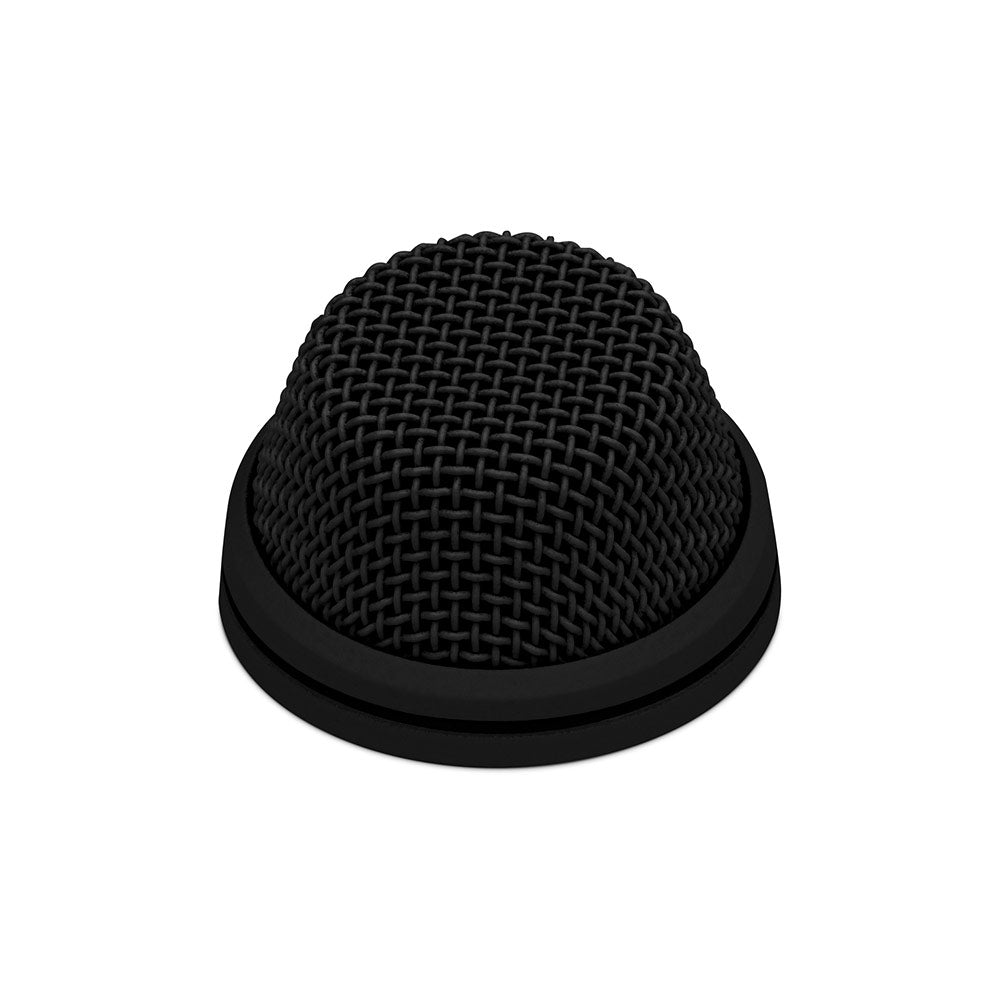

Sennheiser MEB 104 B SpeechLine Install Boundary Microphone (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The unobtrusive MEB 104 cardioid boundary microphone allows for easy surface install in tables or ceiling tiles. The high quality capsule provides excellent speech intelligibility. Also available as the MEB 104-L with a bi-color LED for status indication and programmable button for On, On/Off, PTT, PTM modes.
The MEB 104 is available both in a standard XLR connection and a TC variant for direct connection to the TeamConnect conferencing system.
What's in the box?
- MEB 104
- Mounting hardware
- Quick guide
| Connector | XLR-3, Pin assignment: 1 = gnd, 2 = +, 3 = |
| Current consumption | 3 mA |
| Dimensions | Height: 3.54 in (0.75 in above surface), Diameter: 1.12 in |
| Frequency response | 40 Hz Ð 20 kHz |
| Max. sound pressure level | 125 dB |
| Transducer principle | pre-polarized condenser microphone |
| Weight | 2.12 oz |
| Pick-up pattern | Cardioid |
| Nominal impedance | 200 Ohm |
| Phantom powering | P 24 - P 48 |
| Operating temperature | 32 ¡to 104 ¡ F |
| Equivalent noise level | 28 dB (A) |
| Equivalent noise level weighted as per CCIR 468-3 | 38 dB (CCIR) |
| Acoustics | Boundary Layer Microphone |
| Dynamic range | 97 dB (A) |
| Sensitivity | 14 mV/Pa |
| Thread | M 20 |
The unobtrusive MEB 104 cardioid boundary microphone allows for easy surface install in tables or ceiling tiles. The high quality capsule provides excellent speech intelligibility. Also available as the MEB 104-L with a bi-color LED for status indication and programmable button for On, On/Off, PTT, PTM modes.
The MEB 104 is available both in a standard XLR connection and a TC variant for direct connection to the TeamConnect conferencing system.
What's in the box?
- MEB 104
- Mounting hardware
- Quick guide
| Connector | XLR-3, Pin assignment: 1 = gnd, 2 = +, 3 = |
| Current consumption | 3 mA |
| Dimensions | Height: 3.54 in (0.75 in above surface), Diameter: 1.12 in |
| Frequency response | 40 Hz Ð 20 kHz |
| Max. sound pressure level | 125 dB |
| Transducer principle | pre-polarized condenser microphone |
| Weight | 2.12 oz |
| Pick-up pattern | Cardioid |
| Nominal impedance | 200 Ohm |
| Phantom powering | P 24 - P 48 |
| Operating temperature | 32 ¡to 104 ¡ F |
| Equivalent noise level | 28 dB (A) |
| Equivalent noise level weighted as per CCIR 468-3 | 38 dB (CCIR) |
| Acoustics | Boundary Layer Microphone |
| Dynamic range | 97 dB (A) |
| Sensitivity | 14 mV/Pa |
| Thread | M 20 |
