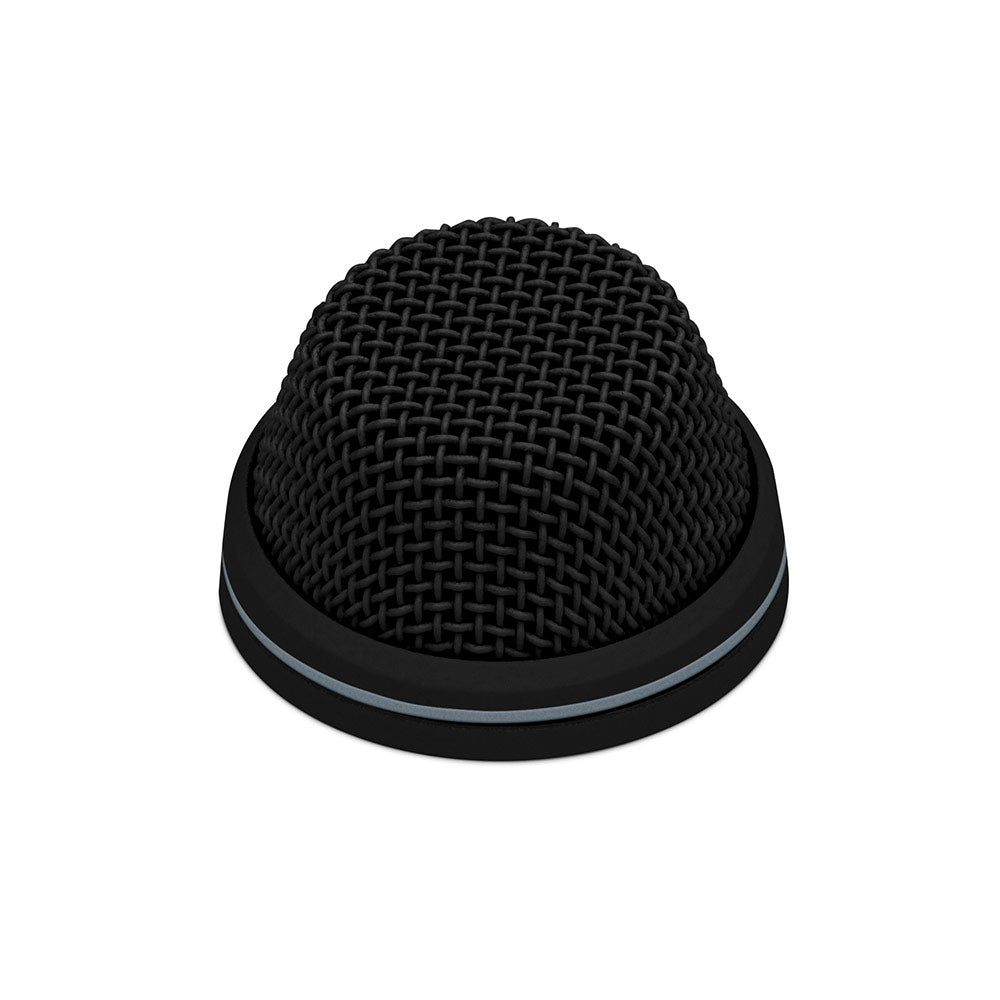

Sennheiser MEB 104-L B SpeechLine Install Boundary Microphone with LED (Black)


  • Dale #:

    SENN-MEB104LB
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The unobtrusive MEB 104 cardioid boundary microphone allows for easy surface install in tables or ceiling tiles. The high quality capsule provides excellent speech intelligibility. Also available as the MEB 104-L with a bi-color LED for status indication and programmable button for On, On/Off, PT... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The unobtrusive MEB 104 cardioid boundary microphone allows for easy surface install in tables or ceiling tiles. The high quality capsule provides excellent speech intelligibility. Also available as the MEB 104-L with a bi-color LED for status indication and programmable button for On, On/Off, PTT, PTM modes.

The MEB 104 is available both in a standard XLR connection and a TC variant for direct connection to the TeamConnect conferencing system.


What's in the box?

  • MEB 104
  • Mounting hardware
  • Quick guide

More +

Product Specs

Connector XLR-5, Pin assignment: 1 = gnd, 2 = + (Mic +), 3 = (Mic ), 4 = LED green (trigger signal), 5 = LED red (default)
Current consumption 6 mA
Dimensions Height: 3.54 in (0.75 in above surface), Diameter: 1.12 in
Frequency response 40 Hz – 20 kHz
Max. sound pressure level 125 dB
Transducer principle pre-polarized condenser microphone
Weight 2.12 oz
Pick-up pattern Cardioid
Nominal impedance 200 Ohm
Phantom powering P 24 - P 48
Operating temperature 32 °to 104 ° F
Equivalent noise level 28 dB (A)
Equivalent noise level weighted as per CCIR 468-3 38 dB (CCIR)
Acoustics Boundary Layer Microphone
Dynamic range 97 dB (A)
Sensitivity 14 mV/Pa
Thread M 20
