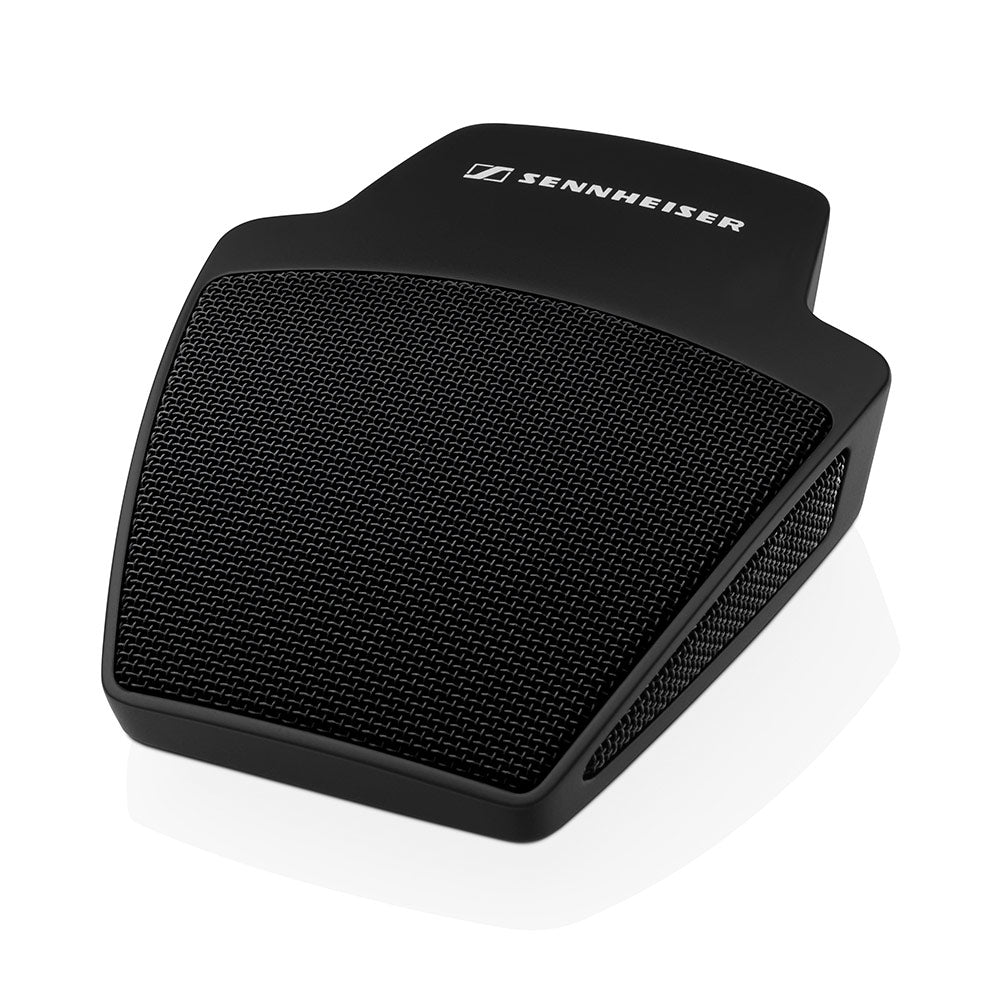

Sennheiser MEB 114 B SpeechLine Table Conference Microphone (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The MEB 114, rugged table boundary microphone, features a high-quality cardioid capsule for excellent speech intelligibility. Also available as the MEB 114-S with programmable modes (On, On/Off, PTT, PTM) and TTL Logic out for media/camera control systems.
The MEB 114 is available as a standard XLR model or the TC variant, which allows direct connection to the TeamConnect conferencing system.
What's in the box?
- MEB 114 Microphone
- Cable
- Quick guide
| Dimensions | 3.34 x 3.93 x 0.98 in (W x D x H) |
| Connector | Miniature XLR-3, Pin assignment: 1 = Ground, 2 = Positive (+), 3 = Negative ( ) |
| Frequency response | 40 Hz Ð 20 kHz |
| Max. sound pressure level | 140 dB |
| Transducer principle | pre-polarized condenser microphone |
| Weight | 10.26 oz |
| Pick-up pattern | cardioid |
| Nominal impedance | 200 Ohm |
| Phantom powering | P 24 - P 48 |
| Operating temperature | 14 ¡ to 122 ¡ F |
| Equivalent noise level | 29 dB (A) |
| Equivalent noise level weighted as per CCIR 468-3 | 39 dB (CCIR) |
| Current consumption | 1.5 mA |
| Acoustics | boundary layer microphone |
| Dynamic range | 111 dB (A) |
| Sensitivity | 10 mV/Pa |
The MEB 114, rugged table boundary microphone, features a high-quality cardioid capsule for excellent speech intelligibility. Also available as the MEB 114-S with programmable modes (On, On/Off, PTT, PTM) and TTL Logic out for media/camera control systems.
The MEB 114 is available as a standard XLR model or the TC variant, which allows direct connection to the TeamConnect conferencing system.
What's in the box?
- MEB 114 Microphone
- Cable
- Quick guide
| Dimensions | 3.34 x 3.93 x 0.98 in (W x D x H) |
| Connector | Miniature XLR-3, Pin assignment: 1 = Ground, 2 = Positive (+), 3 = Negative ( ) |
| Frequency response | 40 Hz Ð 20 kHz |
| Max. sound pressure level | 140 dB |
| Transducer principle | pre-polarized condenser microphone |
| Weight | 10.26 oz |
| Pick-up pattern | cardioid |
| Nominal impedance | 200 Ohm |
| Phantom powering | P 24 - P 48 |
| Operating temperature | 14 ¡ to 122 ¡ F |
| Equivalent noise level | 29 dB (A) |
| Equivalent noise level weighted as per CCIR 468-3 | 39 dB (CCIR) |
| Current consumption | 1.5 mA |
| Acoustics | boundary layer microphone |
| Dynamic range | 111 dB (A) |
| Sensitivity | 10 mV/Pa |
