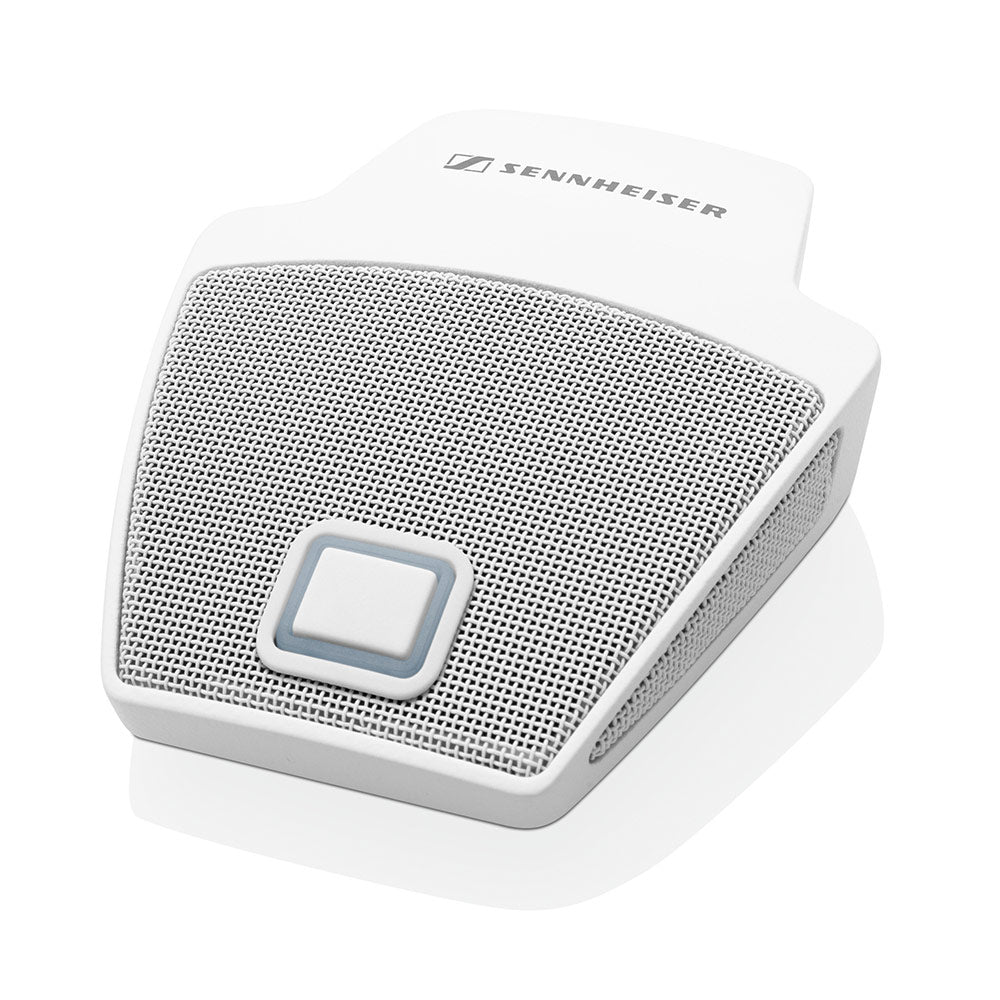

Sennheiser MEB 114-S W SpeechLine Table Conference Microphone with Switch (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The MEB 114-S, rugged table boundary microphone, features a high-quality cardioid capsule for excellent speech intelligibility. The integrated mic button features programmable modes (PTT, PTM, Toggle On/Off, Permanent On), bi-color LED status, and TTL Logic out for media/camera control systems.
Also available as a TC variant, allowing direct connection to the TeamConnect conferencing system.
Microphone Modes:
- Toggle On/Off
- Push to mute
- Push to talk
- Permanent On (external LED control)
What's in the box?
- MEB 114 Microphone
- Cable
- Quick guide
| Dimensions | 3.34 x 3.93 x 0.98 in (W x D x H) |
| Connector | Clip contact, trigger signal at the logic connector: Logic in (LED control), Ground, Logic out (switch signal) |
| Frequency response | 40 Hz Ð 20 kHz |
| Max. sound pressure level | 140 dB |
| Transducer principle | pre-polarized condenser microphone |
| Weight | 10.26 oz |
| Pick-up pattern | cardioid |
| Nominal impedance | 200 Ohm |
| Phantom powering | P 24 - P 48 |
| Operating temperature | 14 ¡ to 122 ¡ F |
| Equivalent noise level | 29 dB (A) |
| Equivalent noise level weighted as per CCIR 468-3 | 39 dB (CCIR) |
| Current consumption | 5.3 mA |
| Output voltage | Logic out:ÊHigh level output voltage> 2.4 V, low level output voltage < 0.4 V |
| Logic in:ÊHigh level input voltage> 2.0 V, Low level input voltage < 0.8 V | |
| Acoustics | boundary layer microphone |
| Colour | LED light ring: Red / Green |
| Dynamic range | 111 dB (A) |
| Sensitivity | 10 mV/Pa |
The MEB 114-S, rugged table boundary microphone, features a high-quality cardioid capsule for excellent speech intelligibility. The integrated mic button features programmable modes (PTT, PTM, Toggle On/Off, Permanent On), bi-color LED status, and TTL Logic out for media/camera control systems.
Also available as a TC variant, allowing direct connection to the TeamConnect conferencing system.
Microphone Modes:
- Toggle On/Off
- Push to mute
- Push to talk
- Permanent On (external LED control)
What's in the box?
- MEB 114 Microphone
- Cable
- Quick guide
| Dimensions | 3.34 x 3.93 x 0.98 in (W x D x H) |
| Connector | Clip contact, trigger signal at the logic connector: Logic in (LED control), Ground, Logic out (switch signal) |
| Frequency response | 40 Hz Ð 20 kHz |
| Max. sound pressure level | 140 dB |
| Transducer principle | pre-polarized condenser microphone |
| Weight | 10.26 oz |
| Pick-up pattern | cardioid |
| Nominal impedance | 200 Ohm |
| Phantom powering | P 24 - P 48 |
| Operating temperature | 14 ¡ to 122 ¡ F |
| Equivalent noise level | 29 dB (A) |
| Equivalent noise level weighted as per CCIR 468-3 | 39 dB (CCIR) |
| Current consumption | 5.3 mA |
| Output voltage | Logic out:ÊHigh level output voltage> 2.4 V, low level output voltage < 0.4 V |
| Logic in:ÊHigh level input voltage> 2.0 V, Low level input voltage < 0.8 V | |
| Acoustics | boundary layer microphone |
| Colour | LED light ring: Red / Green |
| Dynamic range | 111 dB (A) |
| Sensitivity | 10 mV/Pa |
