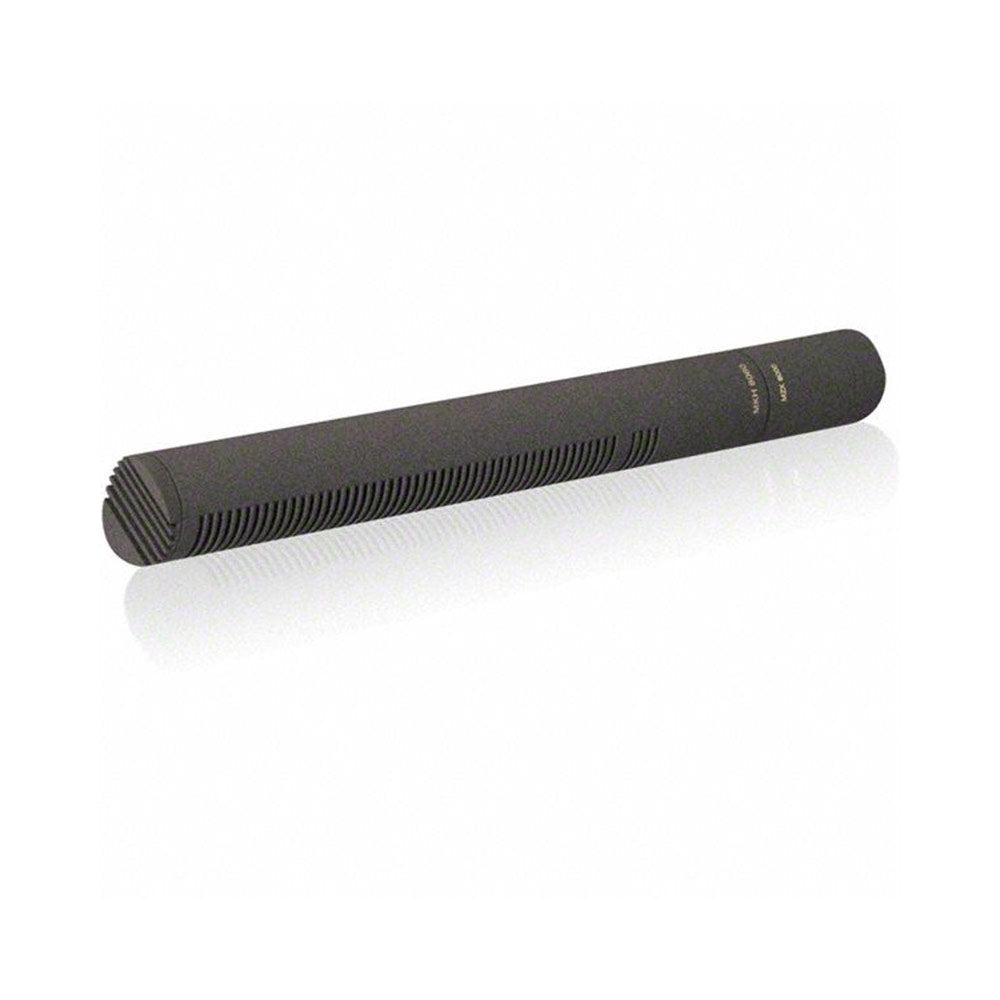

Sennheiser MKH 8060 Short Shotgun Microphone - Camera Mounting and Boom Pole Applications
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The MKH 8060 offers true and natural sound in a lightweight, rugged package. Reliable under the toughest climatic conditions, the MKH 8060's symmetrical RF transducer design produces high sensitivity, low distortion, excellent transient response. Newly designed short interference tube yields a pleasing supercardioid / lobar pickup pattern, suppressing off-axis sound without coloration to create extremely natural and detailed results. Ideal for boom or camera mounting due to its compact design, the MKH 8060 is Sennheiser's first short shotgun to interface directly into digital systems via the MZD 8000 digital module.
Features- Redesigned interference tube suppresses off-axis sounds without coloration, resulting in a pleasing, natural sound.
- Symmetrical RF condenser design yields superior immunity to moisture, incredible transient detail and low distortion.
- Modular design allows addition of a filter (MZF8000) or digital output module (MZD8000).
- Comparable directivity to the industry standard MKH 416 in a compact, lightweight format
| Transducer Principle | RF Condenser |
| Pick-up Pattern | Lobar |
| Frequency Response | 45-20,000 Hz |
| Sensitivity | -19 dBV/Pa (112 mV/Pa) |
| Max. Sound Pressure Level | 124 dB SPL |
| Phantom Powering | 48 ± 4 V (P48, IEC 61938) |
| Current Consumption | 3.3 mA |
| Nominal Impedance | 25 |
| Min. Terminating Impedance | 2K |
| Equivalent Noise Level | 8 dB(A) (DIN-IEC 651), 21 dB (CCIR 268-3) |
| Weight | 10.6 oz. (11.7 oz. with XLR module) |
| Length | 17 inches (18.3 in. with XLR module) |
| Diameter | .75 inches (19 mm) |
| Operating Temperature | -14¡ F to 140¡ F (-10¡ C to 60¡ C) |
| UPC Code | 615104183728 |
| EAN Code | 4044155053258 |
The MKH 8060 offers true and natural sound in a lightweight, rugged package. Reliable under the toughest climatic conditions, the MKH 8060's symmetrical RF transducer design produces high sensitivity, low distortion, excellent transient response. Newly designed short interference tube yields a pleasing supercardioid / lobar pickup pattern, suppressing off-axis sound without coloration to create extremely natural and detailed results. Ideal for boom or camera mounting due to its compact design, the MKH 8060 is Sennheiser's first short shotgun to interface directly into digital systems via the MZD 8000 digital module.
Features- Redesigned interference tube suppresses off-axis sounds without coloration, resulting in a pleasing, natural sound.
- Symmetrical RF condenser design yields superior immunity to moisture, incredible transient detail and low distortion.
- Modular design allows addition of a filter (MZF8000) or digital output module (MZD8000).
- Comparable directivity to the industry standard MKH 416 in a compact, lightweight format
| Transducer Principle | RF Condenser |
| Pick-up Pattern | Lobar |
| Frequency Response | 45-20,000 Hz |
| Sensitivity | -19 dBV/Pa (112 mV/Pa) |
| Max. Sound Pressure Level | 124 dB SPL |
| Phantom Powering | 48 ± 4 V (P48, IEC 61938) |
| Current Consumption | 3.3 mA |
| Nominal Impedance | 25 |
| Min. Terminating Impedance | 2K |
| Equivalent Noise Level | 8 dB(A) (DIN-IEC 651), 21 dB (CCIR 268-3) |
| Weight | 10.6 oz. (11.7 oz. with XLR module) |
| Length | 17 inches (18.3 in. with XLR module) |
| Diameter | .75 inches (19 mm) |
| Operating Temperature | -14¡ F to 140¡ F (-10¡ C to 60¡ C) |
| UPC Code | 615104183728 |
| EAN Code | 4044155053258 |
